| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-1000T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

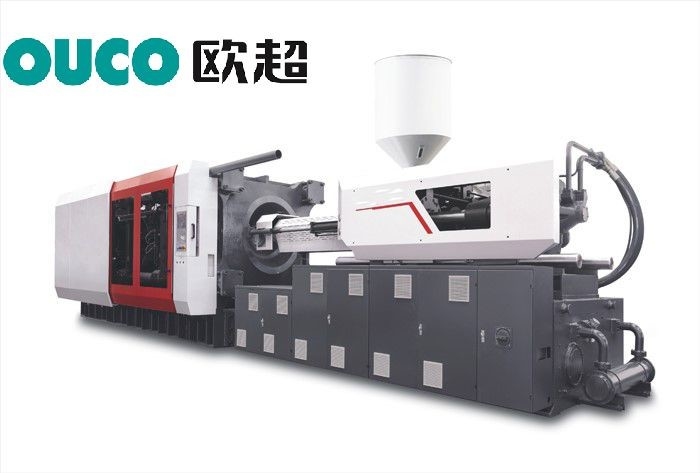

| Product Name: | OUCO 1000T PET/PVC High-end Servo Injection Moulding Machines | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 1000T PET injection molding machine,100mm PET injection molding machine,SGS servo injection molding machine |
||
The OUCO 1000T is a very economical model
Our out flip crankshaft provides longer opening strokes with the same clamping force.
We can make a fruit basket in 16 seconds, this can save you a lot of time.
100% clamping force can reduce the product's spillover, this can save 2%-5% material.
Product Advantages
Hydraulic systems supplied by well-known brands
Specialized oil circuit design and manufacturing
Provide open die ejector synchronization function
Excellence clamping structure
100% clamping force use
Fast ,more 10% output
Save 2-5% material
Power saving over 30% avoidable plasticization does not occur due to inaccurate temperature control during the production of free products good phenomenon. Efficiency and reliability, energy saving and precise control.
Efficiency And Reliability
The support of the shooting table adopts high-precision blanket rail, with low friction coefficient, injection and low and uni-form plasticizing resistance, faster injection speed, suitable for high-speed precision injection forming.
Precision Control
KEBA advanced control interface High-speed microprocessor ergonomic layout
Data and image monitoring, self-diagnosis and fault detection capabilities
Multi-level ejection, smooth and fast ejection action, easy installation of jack, push out the whole guide, can realize pulse ejection.
Nano Far Infrared Heating Ring, adopt closed-loop PID to control, accurate control. High repeat accuracy. Good thermal insulation performance.
Parameters
| Model | 1000T | |||
| Screw Specifications | A | B | C | |
| Screwdi ameter | mm | 100 | 100 | 120 |
| Screw L/Dratio | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 4329 | 4329 | 6104 |
| Shot weight (PS) | g | 3900 | 3900 | 5616 |
| injection rate(Ps) | g/S | 920 | 920 | 1325 |
| Injection pressure | MPa | 204 | 204 | 142 |
| Inject on stroke | mm | 540 | ||
| Max. injection speed | mm/s | 137 | ||
| Screw speed | r/min | 0-180 | ||
| Sys. Pressure | MPa | 16 | ||
| Pump Motor(Min-Max) | kW | 151 | ||
| Displacement | ml/r | 160+125+125 | ||
| number of Motors | PC | 3 | ||
| Heater power | kW | 61 | ||
| Number oftemp. control zones | ||||
| Clamping force | kN | 10000 | ||
| Opening stroke | mm | 1700 | ||
| Tie bar distance W×L | mm*mm | 1210x1060 | ||
| Min. mold thickness | mm | 500 | ||
| Max. mold thickness | mm | 1200 | ||
| Ejector stroke | mm | 300 | ||
| Ejector force forward | kN | 196 | ||
| Number of ejector bar | PC | 1+16 | ||
| Oil tank capacity | L | 1300 | ||
| Machine dimensions(LxWxH) | m*m*m | 10.7x2.4x2.8 | ||
| Machine weight | Ton | 44 | ||
