| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | CWI-230GK |
| Minimum Order Quantity: | 1 |
| Highlight: | 230GK Screw Barrel Injection Molding Machine,SGS Screw Barrel Injection Molding Machine,1600KN barrel injection molding machine |
||
|---|---|---|---|

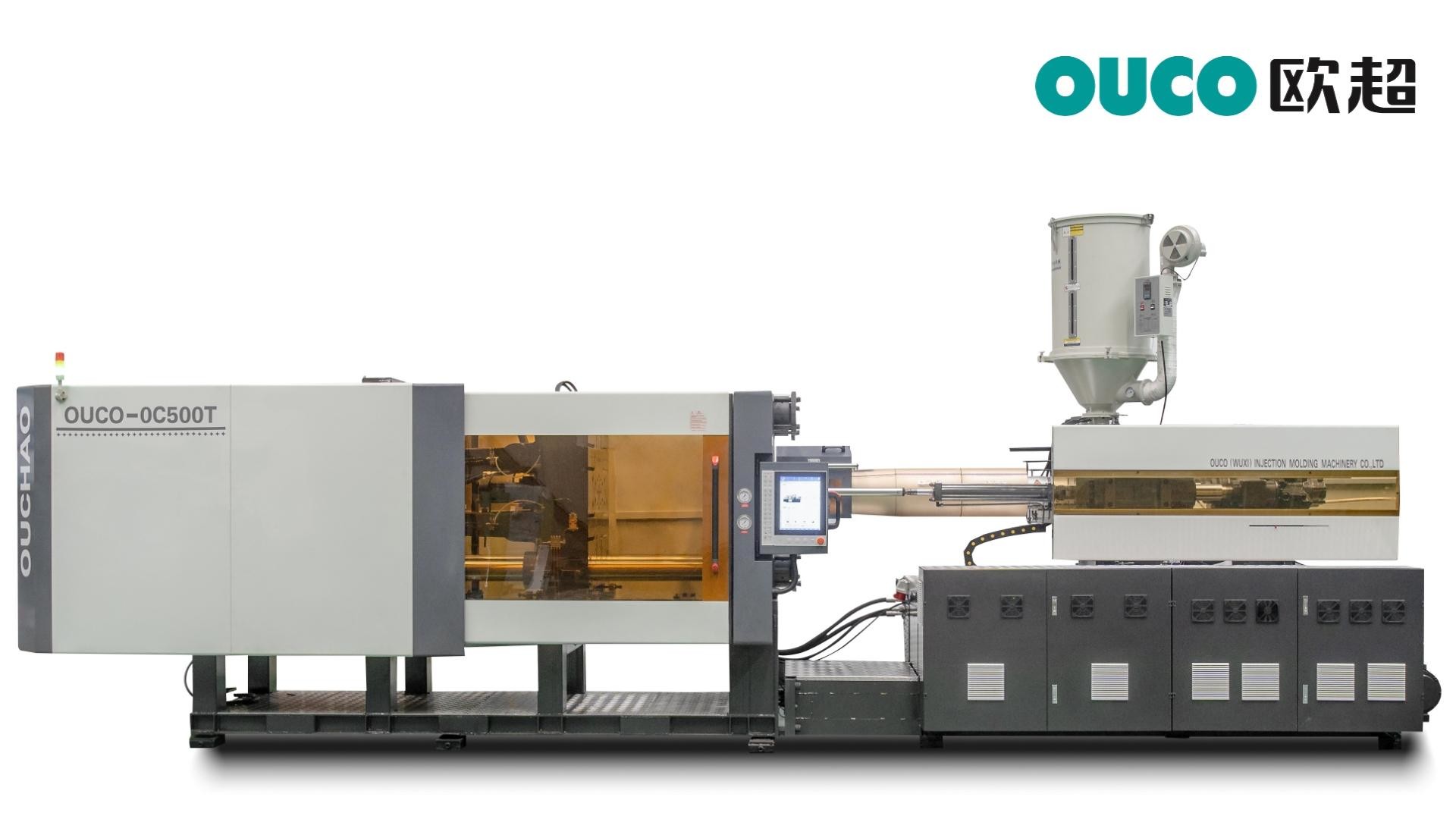

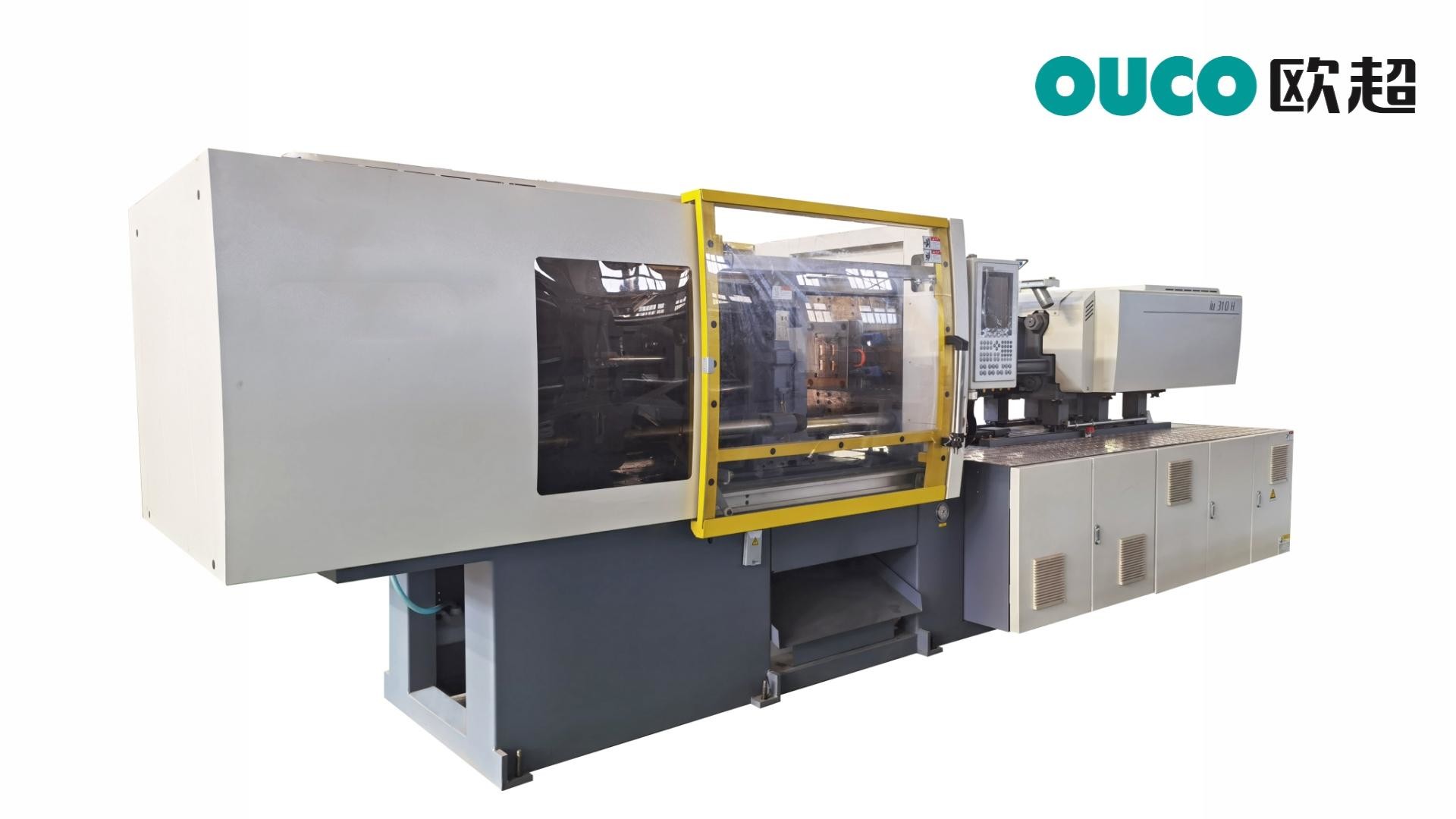

Barrel Injection Molding Machine CWI-230GK
Product Description:
Finite element analysis design, high strength formwork, frame, machine hinge thickening, effectively prevent deformation, fracture; Fully closed mold locking door, effectively prevent foreign bodies from entering the mold locking device, more beautiful and safer, mechanical safety door using brake line brake device, reliable performance, flexible and convenient.

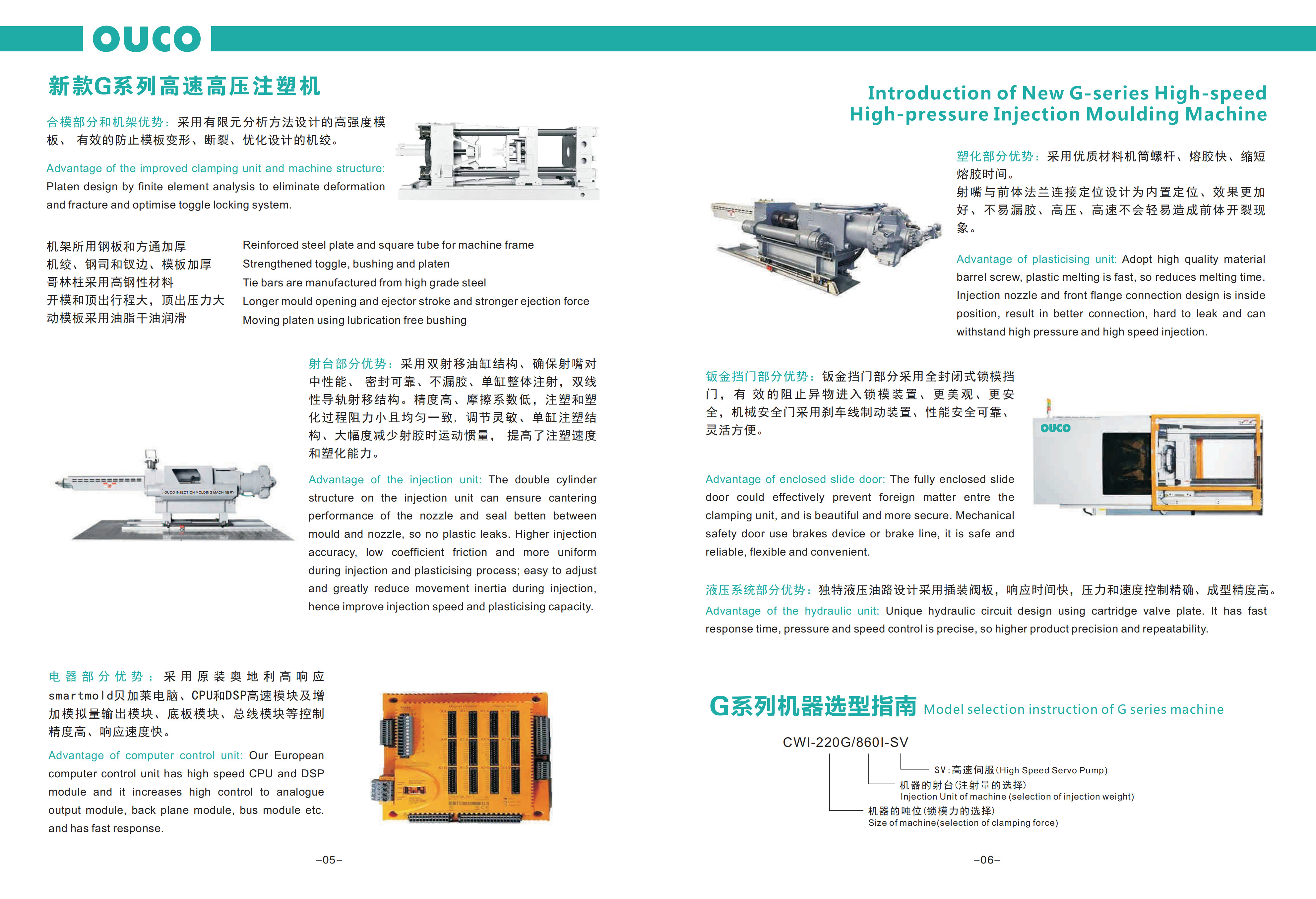

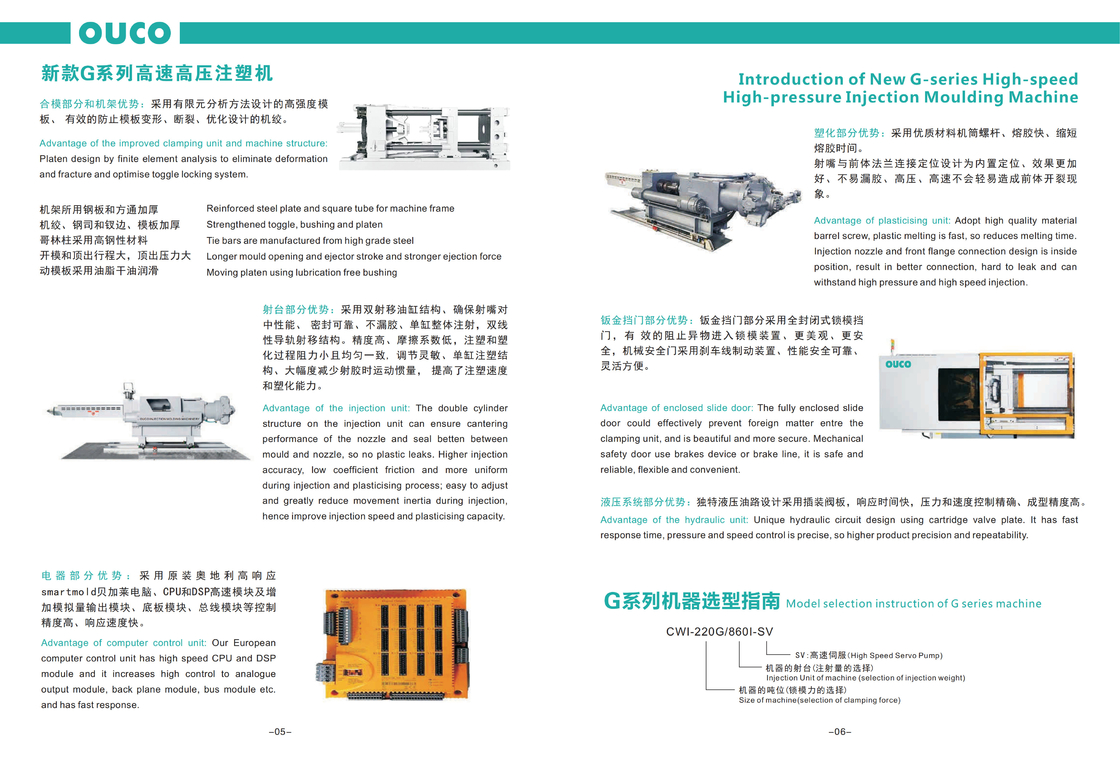

The mold locking part
High strength formwork and hinge structure design, better than the conventional injection molding machine formwork steel.
Larger inner space of tie rod, can install larger mold shape.
Enhanced the moving template wear-resistant sliding foot inclined iron pad, so that the moving template bearing the weight of the mold stronger, the new built-in non-adjustment safety mechanical rod, reduce exposure, higher safety.
Reliable die opening and end repetition accuracy is perfectly matched with automatic production auxiliary equipment, such as automatic manipulator, system visual die safety monitoring system, etc.

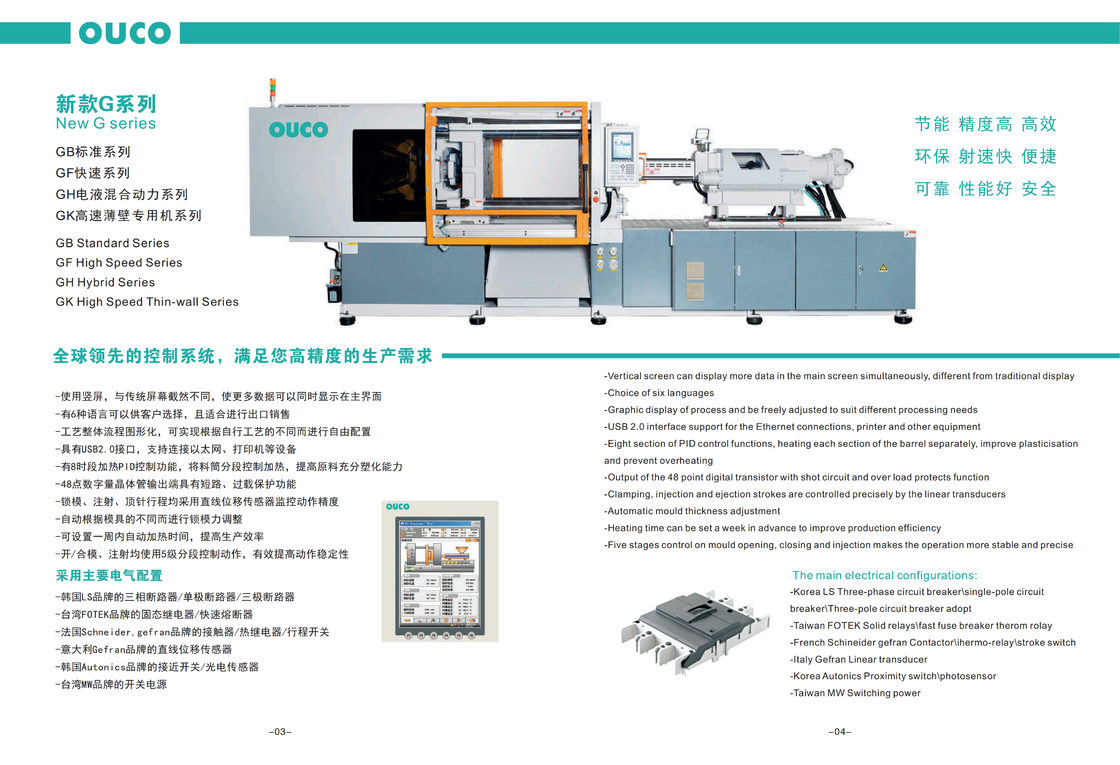

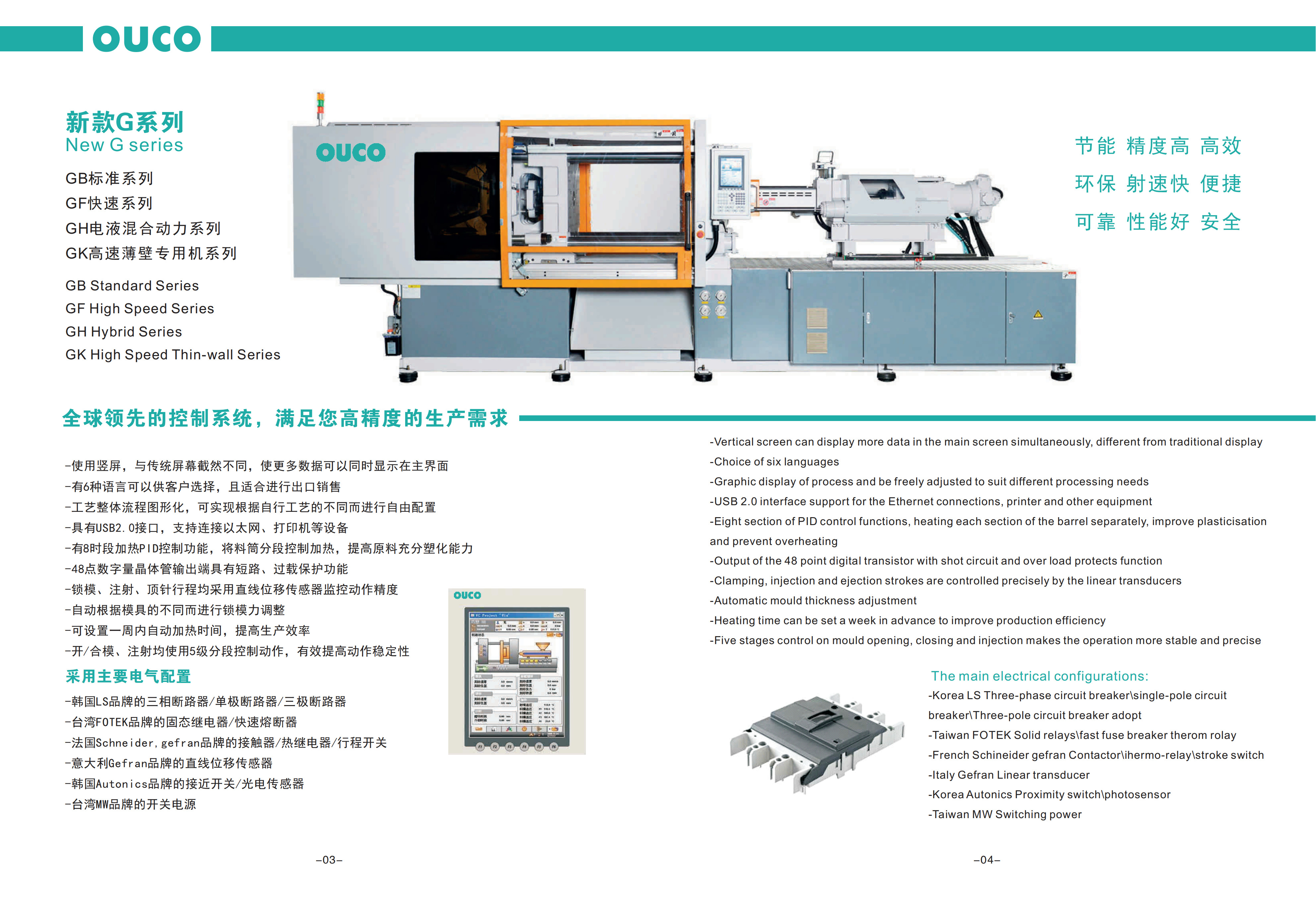

Electrical control part
The SMARTMOLD controller is a standard injection molding machine controller developed by B&R specifically for the Chinese market. SMARTMOLD integrates almost all the functions of the injection molding machine control. It can meet the configuration requirements of the injection molding machine with any performance. Manufacturers can change the machine configuration as needed, with strong flexibility.
Graphical programmable process flow, easy to modify
Most of the functions of the integrated injection molding machine are ready to use
Built-in tuning wizard and online help, field debugging without additional programming tools, shorten debugging time by 80%
The hardware realizes voltage retaining switching control
IO visual free configuration
USB supports machine formula interoperability
Support flexible manipulator interface (EUROMAP67, EUROMAP12, custom standard)
The launch pad part
Double injection transfer cylinder design, to ensure that the nozzle center force is uniform, not easy to leak glue.
European current, single cylinder overall injection design, injection speed, rapid response.
Linear guide rail support, the platform movement resistance is small, high precision.
Single injection cylinder, reduce the weight of the shooting platform components, reduce the motion inertia during the shooting process, effectively improve the screw end position accuracy during the shooting, greatly improve the weight accuracy of the molding product.
A variety of hydraulic control system options to meet the needs of different users and different products
Original Japanese Closed loop electronic Variable Pump (EH).
Multi-loop design, can achieve open and close mold, melt glue, ejection (neutron) synchronous action (EHT).
Increase hydraulic system, faster speed (EHF).
Electro-hydraulic hybrid (EHTH), the perfect combination of hydraulic injection molding machine and electric injection molding machine, the advantages of the two models complement each other.
The original Japanese variable pump and servo motor drive (SV), under the premise of ensuring high speed and high precision, more energy saving.
