| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-500T |
| Minimum Order Quantity: | 1 |
| Highlight: | OUCO 500T Screw Barrel Injection Molding Machine,70mm Screw Barrel Injection Molding Machine,85mm bucket injection molding machine |
||
|---|---|---|---|

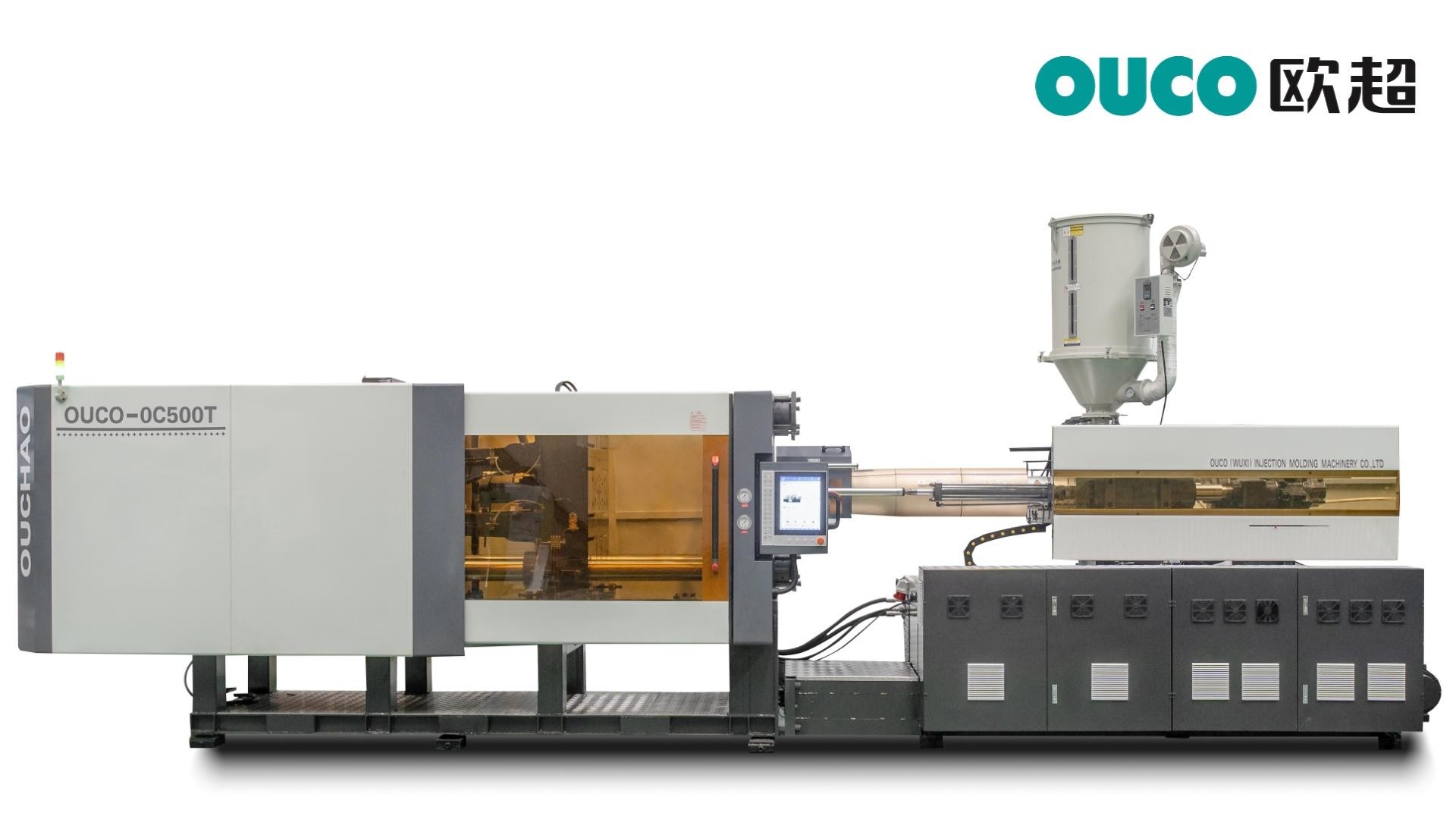

The 530-ton fruit frame injection molding machine designed and produced by OUCO is a cost-effective injection molding machine.

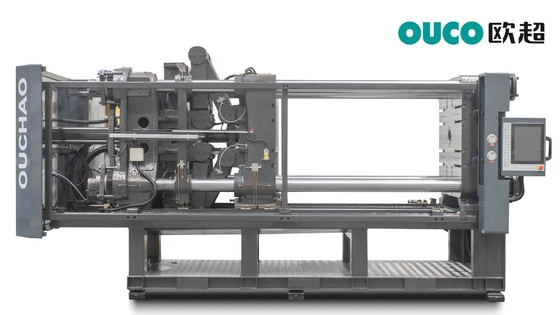

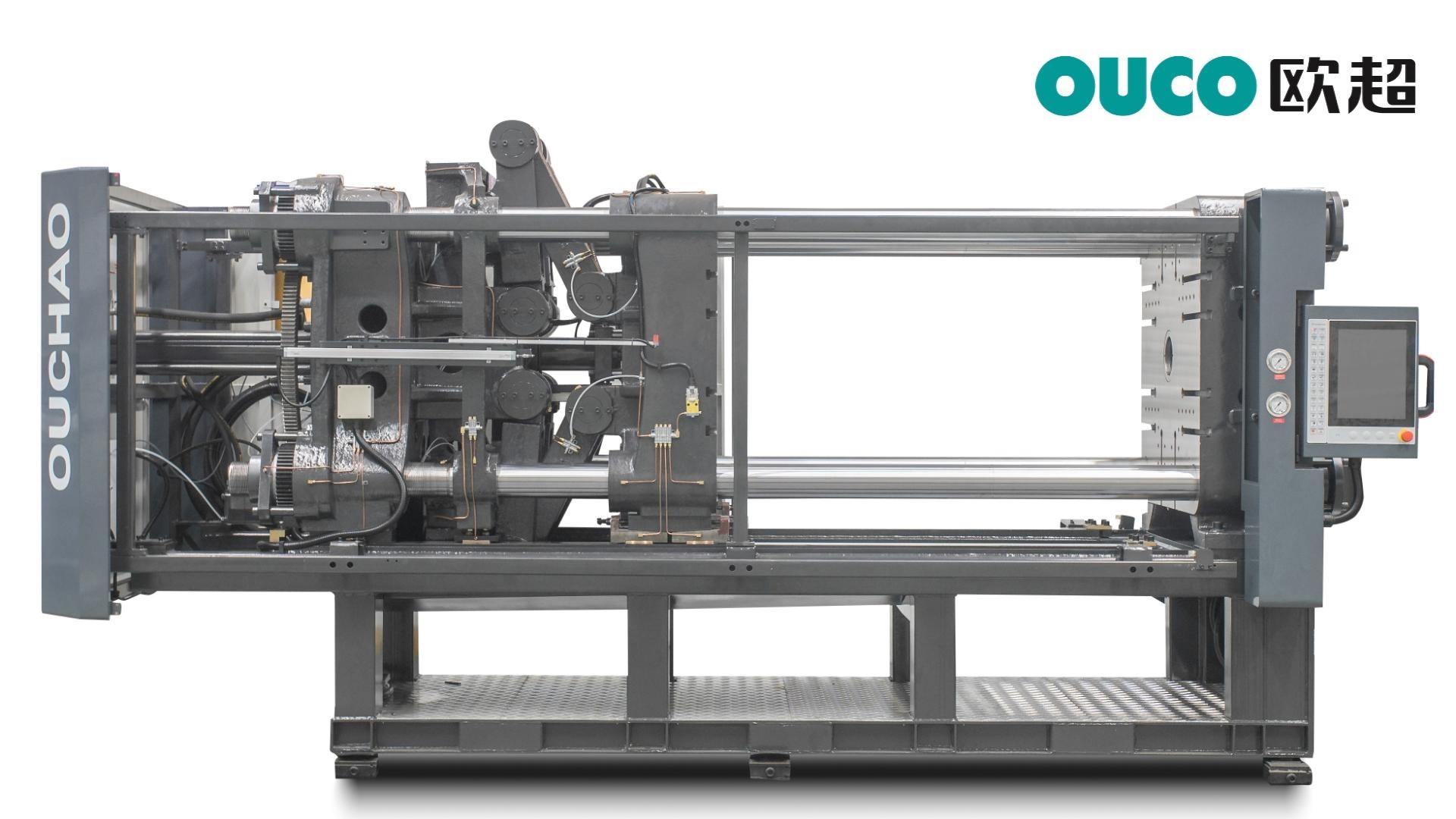

We specially designed the template according to the characteristics of the fruit frame mold. It not only makes the template stress distribution uniform and the deformation small, but also can effectively improve the precision of fruit frame products.

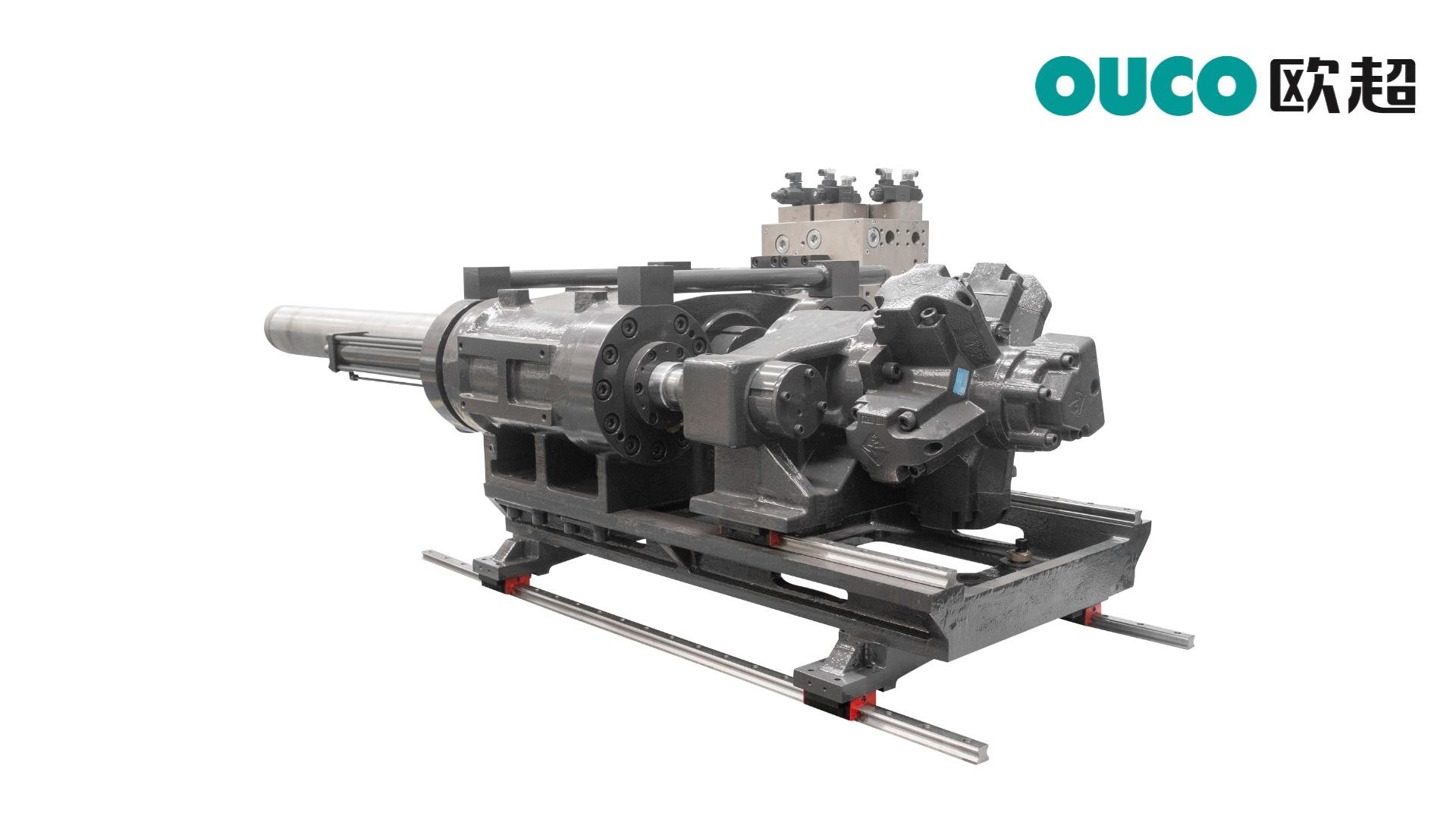

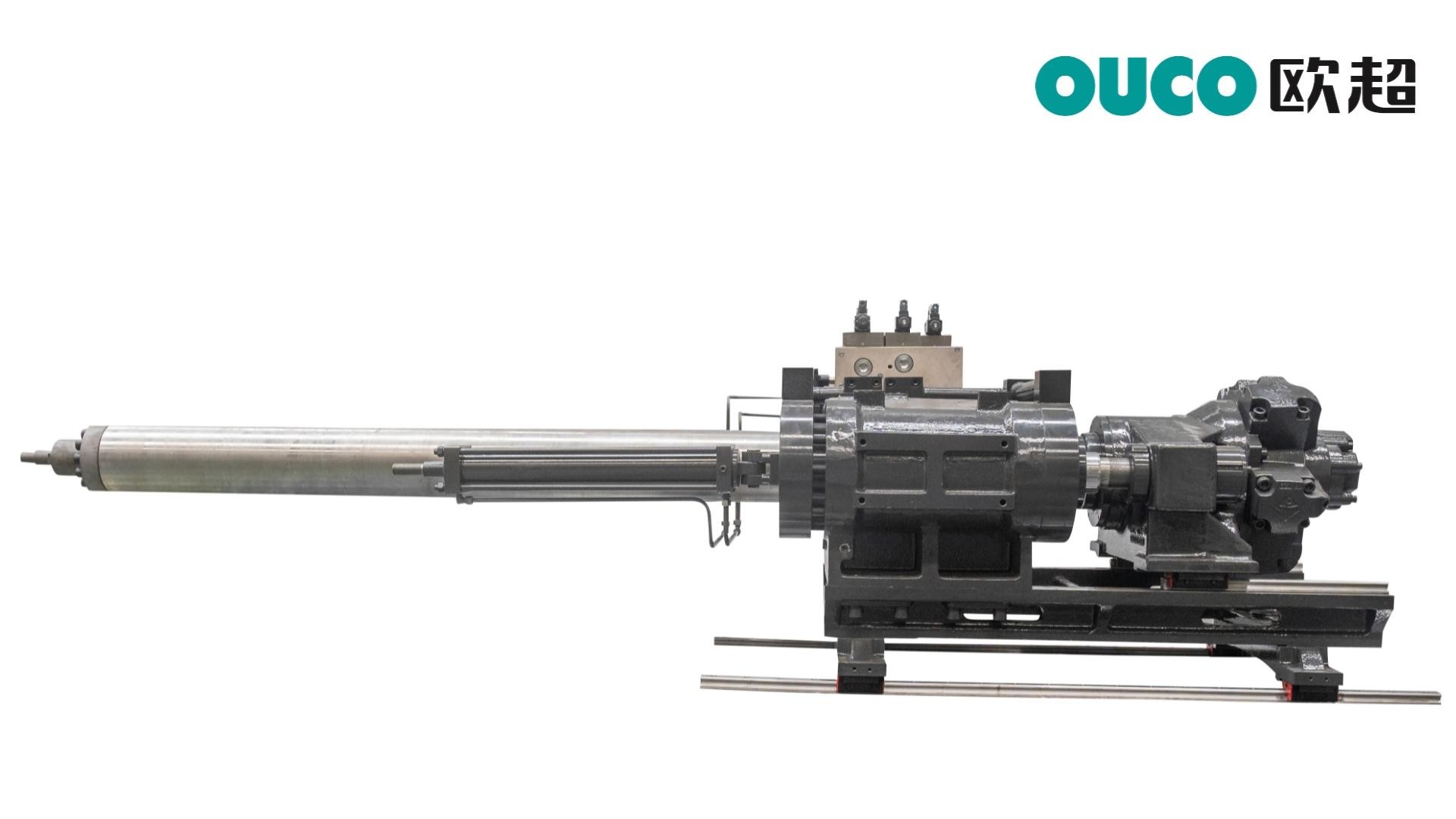

The machine adopts a high-efficiency large-diameter screw design, which greatly improves the plasticizing capacity. Equipped with high wear-resistant double alloy screw barrel, wear-resistant and corrosion-resistant.
This series of injection molding machines are equipped with dual servo motor power control, and the injection speed is fast. It can effectively shorten the product molding cycle and improve production efficiency.
Parameters
| Model | 500T | |||
| Screw Specifications | A | B | C | |
| Screwdi ameter | mm | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 1377 | 1581 | 2031 |
| injection rate(Ps) | g/S | G03 | 693 | 890 |
| Injection pressure | MPa | 209 | 182 | 142 |
| Inject on stroke | mm | 385 | ||
| Max. injection speed | mm/s | 166 | ||
| Screw speed | r/min | 0-200 | ||
| Sys. Pressure | MPa | 16 | ||
| Pump Motor(Min-Max) | kW | 94 | ||
| Displacement | ml/r | 125+125 | ||
| number of Motors | PC | 2 | ||
| Heater power | kW | 41 | ||
| Number oftemp. control zones | 5+1 | |||
| Clamping force | kN | 5000 | ||
| Opening stroke | mm | 1000 | ||
| Tie bar distance W×L | mm*mm | 860x760 | ||
| Min. mold thickness | mm | 300 | ||
| Max. mold thickness | mm | 800 | ||
| Ejector stroke | mm | 210 | ||
| Ejector force forward | kN | 110 | ||
| Number of ejector bar | PC | 1+12 | ||
| Oil tank capacity | L | 850 | ||
| Machine dimensions(LxWxH) | m*m*m | 87x2.0x2.1 | ||
| Machine weight | Ton | 19 | ||
