| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-1700T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

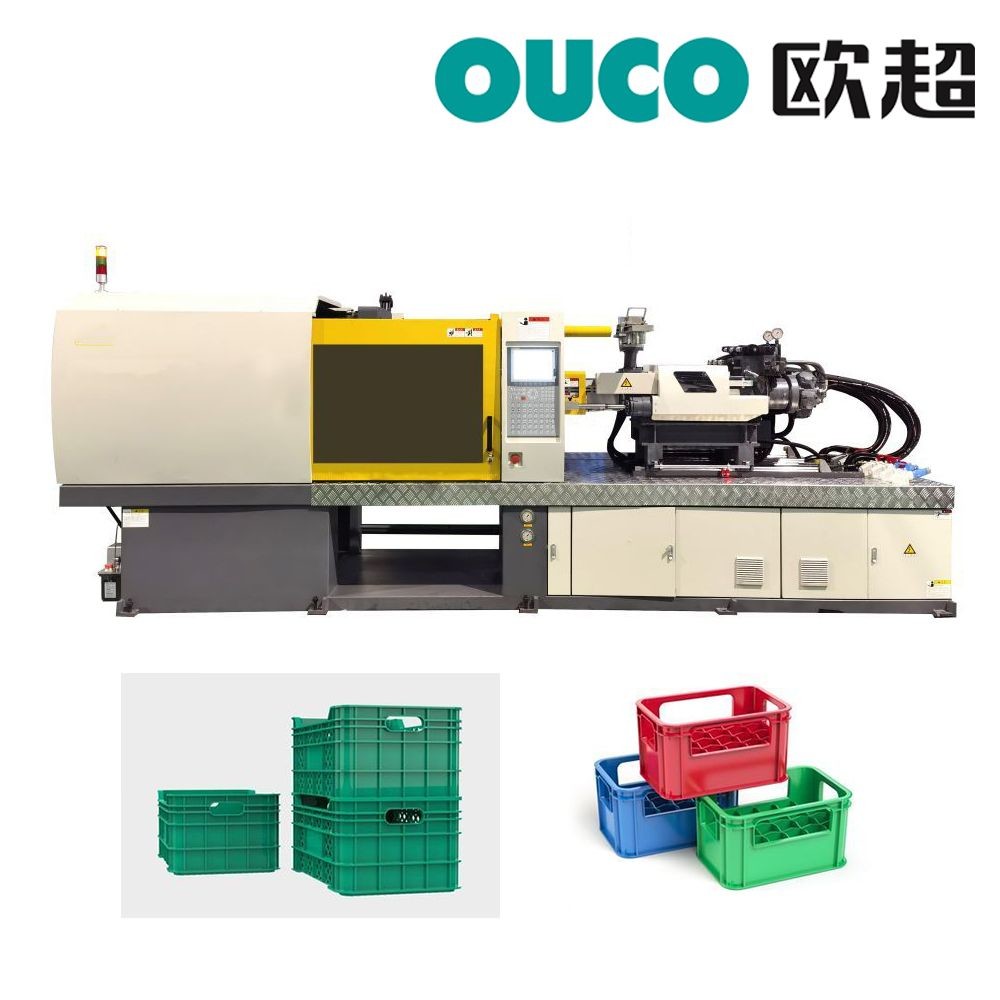

| Product Name: | Effectively Injection Plastic Moulding Machine OUCO 1700T For Bucket With Strong Clamping Force | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | OUCO Bucket Injection Molding Machine,1700T Bucket Injection Molding Machine,3250mm injection plastic moulding machine |
||
OUCO is a professional manufacturer of high-quality injection molding machines. It is an ISO9001: 2000 certified company. The company produces a series of injection molding machines with a clamping force of 50T-1600T and an injection volume of 45 grams to 11110 grams. Specification design, manufacture and assembly. It has the characteristics of high rigidity, strong clamping force, high injection pressure, precision and durability.
OUCO Machinery has excellent management and refined production in one, and it is its mission to manufacture high-quality plastic machines and help customers realize value. There are HS series precision injection molding machines, high-speed machines, fruit frame machines, bucket making machines and a series of special injection molding machines. Our company strictly follows the 6S craftsman spirit to continuously improve our quality and service.
Advantage of OUCO CWI Servo Plastic Molding Machine
Foreword fusion international design concept;
Using the latest mechanical agencies and modular design;
Can shorten the customization time;
To implementcustom production standardization of new product concepts;
Product Paraments
| CWI-1700S Ⅲ | |||||||||||
| 机型 | 1700S Ⅲ | ||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 17000 | ||||||||
| 拉杆间距 mm | Space Between Tie-bars | 1600×1400 | |||||||||
| 开模最大开距 mm | Clamping Stroke | 3300 | |||||||||
| 最大模具 mm | Mould Thickness Max | 1500 | |||||||||
| 最小模具 mm | Mould Thickness Min | 700 | |||||||||
| 模板尺寸 mm | Size of Platen | 2350×2150 | |||||||||
| 顶出长度 mm | Ejector Stroke | 400 | |||||||||
| 顶出力 Kn | Ejector Force | 341 | |||||||||
| 顶针数 | Ejector Quantily | 25 | |||||||||
| 注塑装置 | 射胶配置 | Injection Equipment | 11000I | 18000I | 30000I | ||||||
| 螺杆直径 mm | Screw Diameter | 110 | 120 | 130 | 130 | 140 | 150 | 150 | 160 | 170 | |
| 螺杆长径比 | Screw L/D ratio | 22.9 | 21 | 19.4 | 22.6 | 21 | 19.6 | 22.4 | 21 | 19.8 | |
| 理论射胶容积 cm3 | Shot Size | 5461 | 6500 | 7628 | 8821 | 10231 | 11744 | 15890 | 18080 | 20410 | |
| 实际射胶量 (PS)g | Shot Weight | 4969 | 5915 | 6941 | 8027 | 9310 | 10687 | 14619 | 16634 | 18777 | |
| oz | 177.2 | 210.9 | 247.5 | 286.3 | 332.0 | 381.0 | 515.9 | 586.9 | 662.6 | ||
| 射胶压力 MP | Injection Pressure | 209 | 176 | 145 | 203 | 175 | 152 | 193 | 176 | 150 | |
| 注射速率 mm/s | Injection Rate | 948.0 | 1129.0 | 1325.0 | 978.0 | 1135.0 | 1303.0 | 1023.0 | 1165.0 | 1315.0 | |
| 射胶速度 cm3/s | Injection Speed | 99 | 74 | 58 | |||||||
| 螺杆转速 g/s | Screw Speed | 10~180 | 10~125 | 10~75 | |||||||
| 塑化能力 rpm | Plasticising Capacity | 103.0 | 126.0 | 147.0 | 143.0 | 152.0 | 166.0 | 160.0 | 175.0 | 198.0 | |
| 电力及其他 | 油箱容积 L | Oil Tank Capacity | 1500 | ||||||||
| 电热功率 Kw | Heater Power | 85 | 100 | 120 | |||||||
| 电热区数 L | Team Control zone | 5+1 | |||||||||
| 系统压力 MPa | System Pressure Max | 16 | |||||||||
| 油泵输量 L/min | Pump Output | 750 | |||||||||
| 电机功率 Kw | Servo Power | 50+50+50+7.5 | |||||||||
| 机器净重 ton | Machine Weight | 85 | |||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 13500×3900×3250 | |||||||||

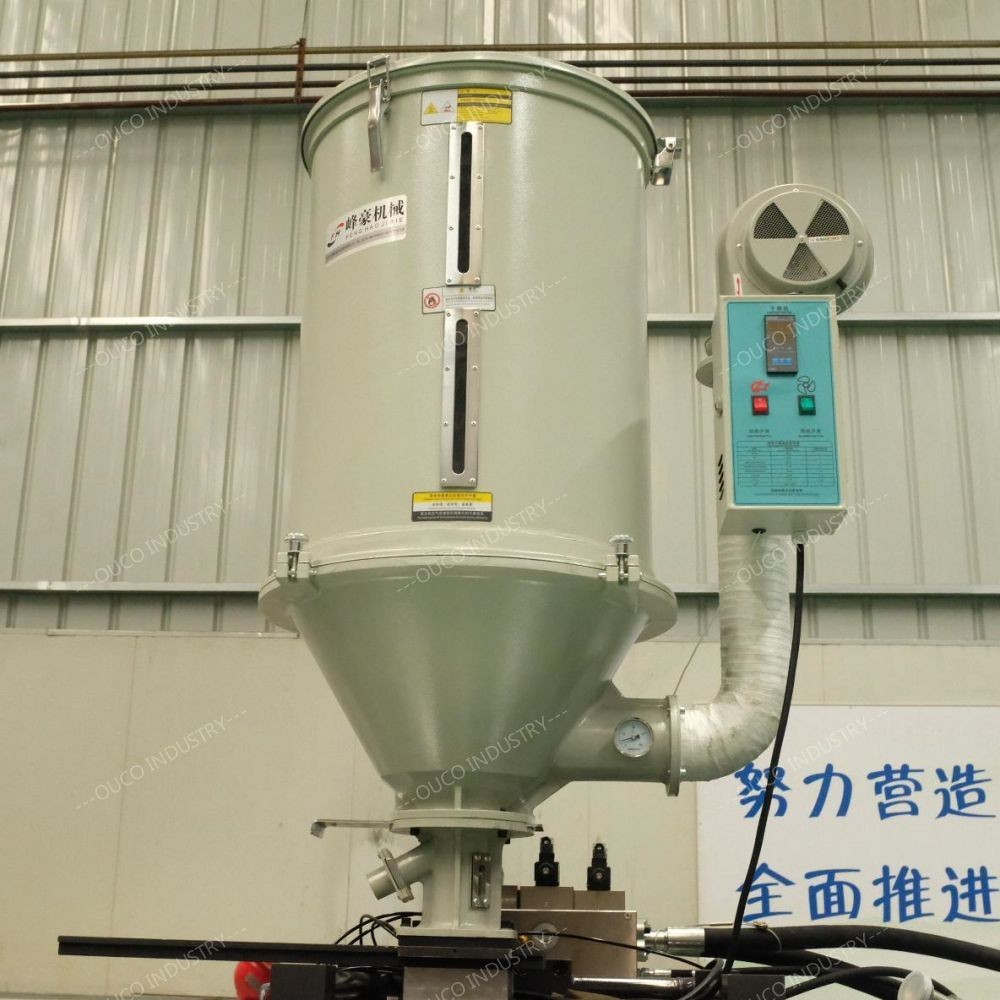

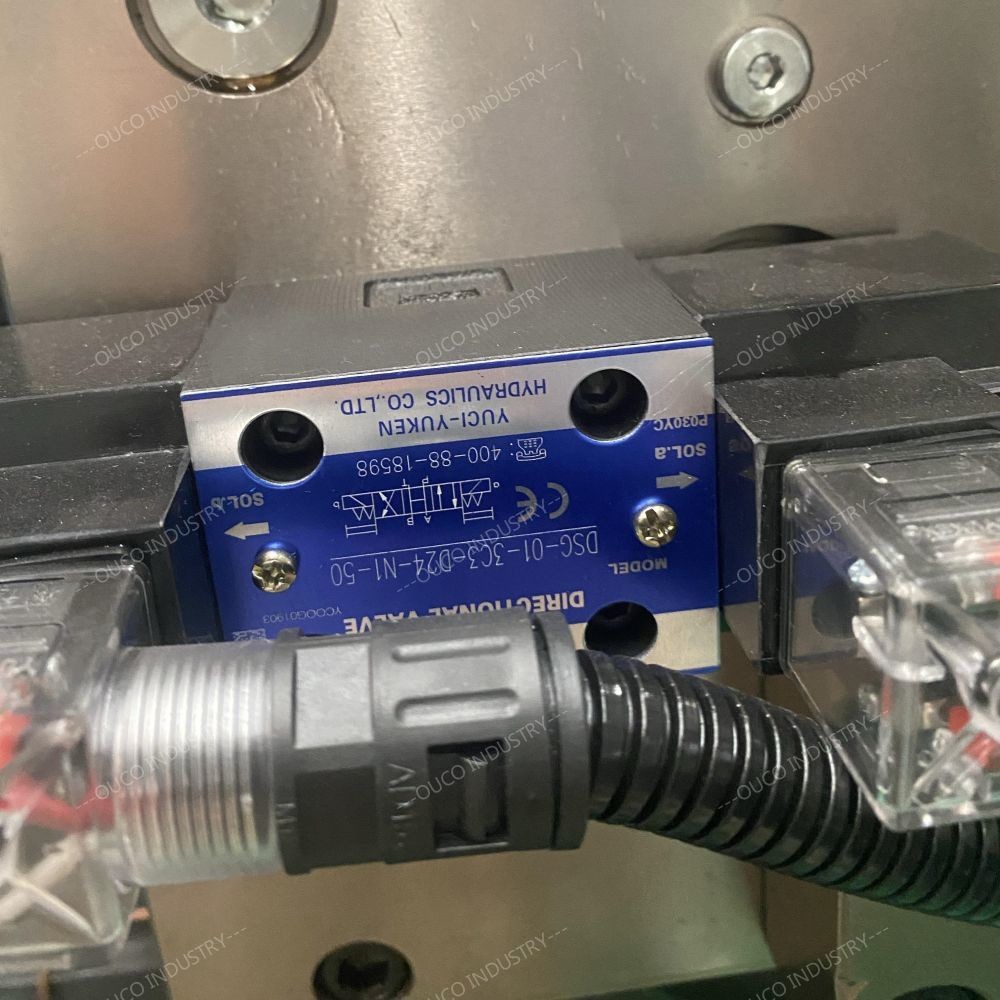

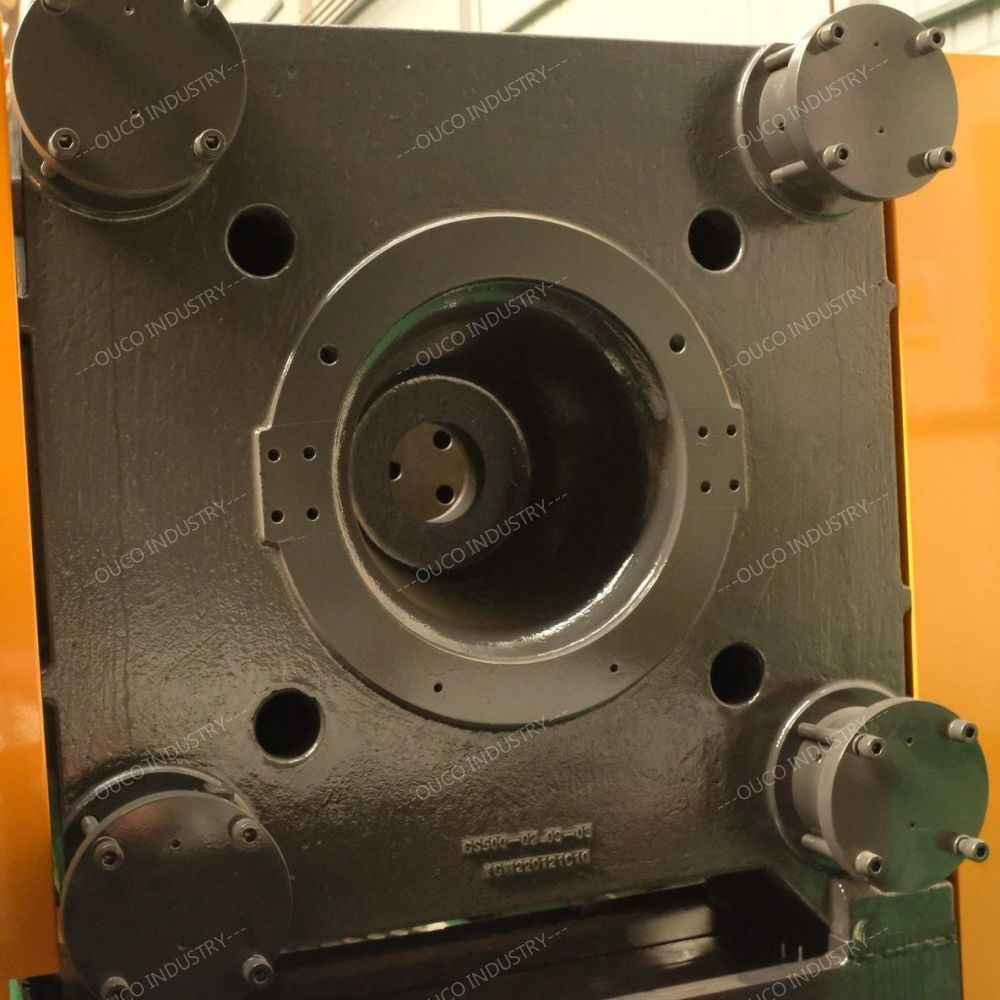

Detailed Pictures
