| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-2400T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | High Injection Pressure, Precision Plastic Moulding Machine 2100T For Beach Chairs And Tables | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | 2100T high precision injection molding machine,2400T high precision injection molding machine,120Kw desktop injection molding machine |
||
In view of the advantages of two-platen injection molding machines over three-platen injection molding machines, 90% of injection molding machines over 500 tons in developed countries such as Europe and Japan are two-platen machines. The T-two-platen injection molding machines developed by OUCO are carefully polished under the organization of the European Chief Technical Engineer The products produced have absorbed the essence of Italian technology and are manufactured in accordance with EU CE standards. They have the characteristics of high stability, high reliability, high precision and outstanding energy saving. The models cover 600-4000 tons.
The two-platen machine is a special model for deep-cavity products specially developed for the market demand of large plastic parts. The unique advantage of large part space is suitable for the production of large-scale products: industrial plastic parts, pallets, pallet boxes, auto parts (bumpers, air spoilers), beach chairs and tables, etc.
The second-platen machine also has the advantages of large mold opening stroke, fast mold change, precise control of mold clamping force, fast injection speed, and high injection repeatability accuracy, so as to truly meet the actual production needs of customers.
Advantage of OUCO CWI Servo Plastic Molding Machine
1 Clamping device that supports various molds
The double brakes of the mold opening and closing mechanism and the thimble mechanism support automatic exchange of large molds.
2 "flat pressing template" with uniform clamping force
Through the high-rigidity clamping device, the pressure on the mold surface is more evenly distributed.
(Molded products: improved dimensional accuracy, suppression of burrs)(Mold: Longer life, improved freedom of mold design and installation)
3 Increase the mold installation thickness and longitudinal width
In order to accommodate larger molds, the size of the platen and the stroke of the platen have been expanded.
Product Paraments
| CWI-2100S | ||||||||
| 机型 | 2100S Ⅲ | |||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 21000 | |||||
| 拉杆间距 mm | Space Between Tie-bars | 1800×1600 | ||||||
| 开模最大开距 mm | Clamping Stroke | 3700 | ||||||
| 最大模具 mm | Mould Thickness Max | 1700 | ||||||
| 最小模具 mm | Mould Thickness Min | 800 | ||||||
| 模板尺寸 mm | Size of Platen | 2620×2420 | ||||||
| 顶出长度 mm | Ejector Stroke | 400 | ||||||
| 顶出力 Kn | Ejector Force | 406 | ||||||
| 顶针数 | Ejector Quantily | 33 | ||||||
| 注塑装置 | 射胶配置 | Injection Equipment | 18000I | 30000I | ||||
| 螺杆直径 mm | Screw Diameter | 130 | 140 | 150 | 150 | 160 | 170 | |
| 螺杆长径比 | Screw L/D ratio | 22.6 | 21 | 19.6 | 22.4 | 21 | 19.8 | |
| 理论射胶容积 cm3 | Shot Size | 8821 | 10231 | 11744 | 15890 | 18080 | 20410 | |
| 实际射胶量 (PS)g | Shot Weight | 8027 | 9310 | 10687 | 14619 | 16634 | 18777 | |
| oz | 286.3 | 332.0 | 381.0 | 515.9 | 586.9 | 662.6 | ||
| 射胶压力 MP | Injection Pressure | 203 | 175 | 152 | 193 | 176 | 150 | |
| 注射速率 mm/s | Injection Rate | 1034.0 | 1513.0 | 1737.0 | 1364.0 | 1533.0 | 1753.0 | |
| 射胶速度 cm3/s | Injection Speed | 98 | 77 | |||||
| 螺杆转速 g/s | Screw Speed | 10~166 | 10~100 | |||||
| 塑化能力 rpm | Plasticising Capacity | 143.0 | 152.0 | 166.0 | 160.0 | 184.0 | 205.0 | |
| 电力及其他 | 油箱容积 L | Oil Tank Capacity | 2000 | |||||
| 电热功率 Kw | Heater Power | 100 | 120 | |||||
| 电热区数 L | Team Control zone | 5+1 | ||||||
| 系统压力 MPa | System Pressure Max | 16 | ||||||
| 油泵输量 L/min | Pump Output | 1000 | ||||||
| 电机功率 Kw | Servo Power | 50+50+50+50+7.5 | ||||||
| 机器净重 ton | Machine Weight | 110 | ||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 14500×4200×3530 | ||||||

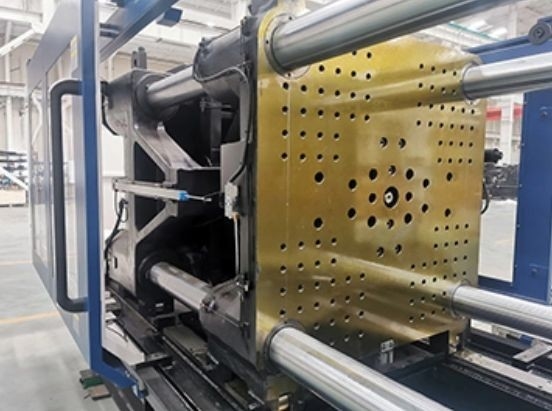

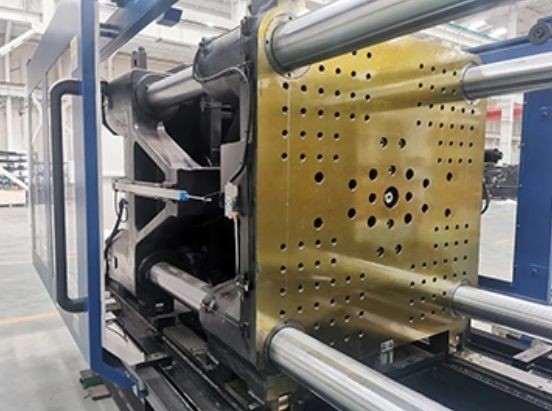

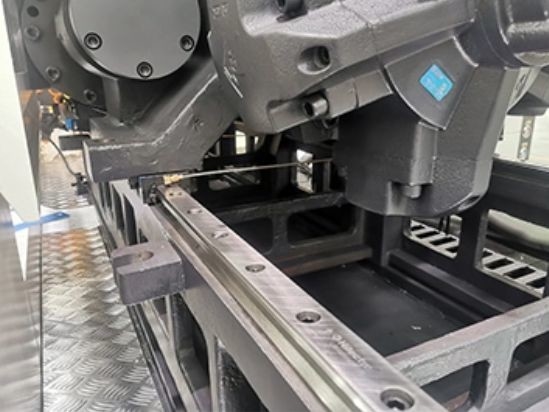

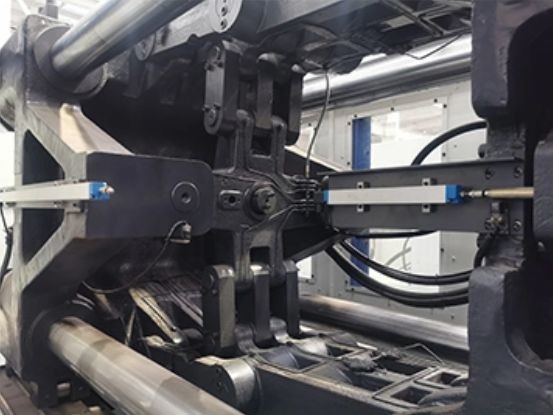

Detailed Pictures
