| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-2000T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

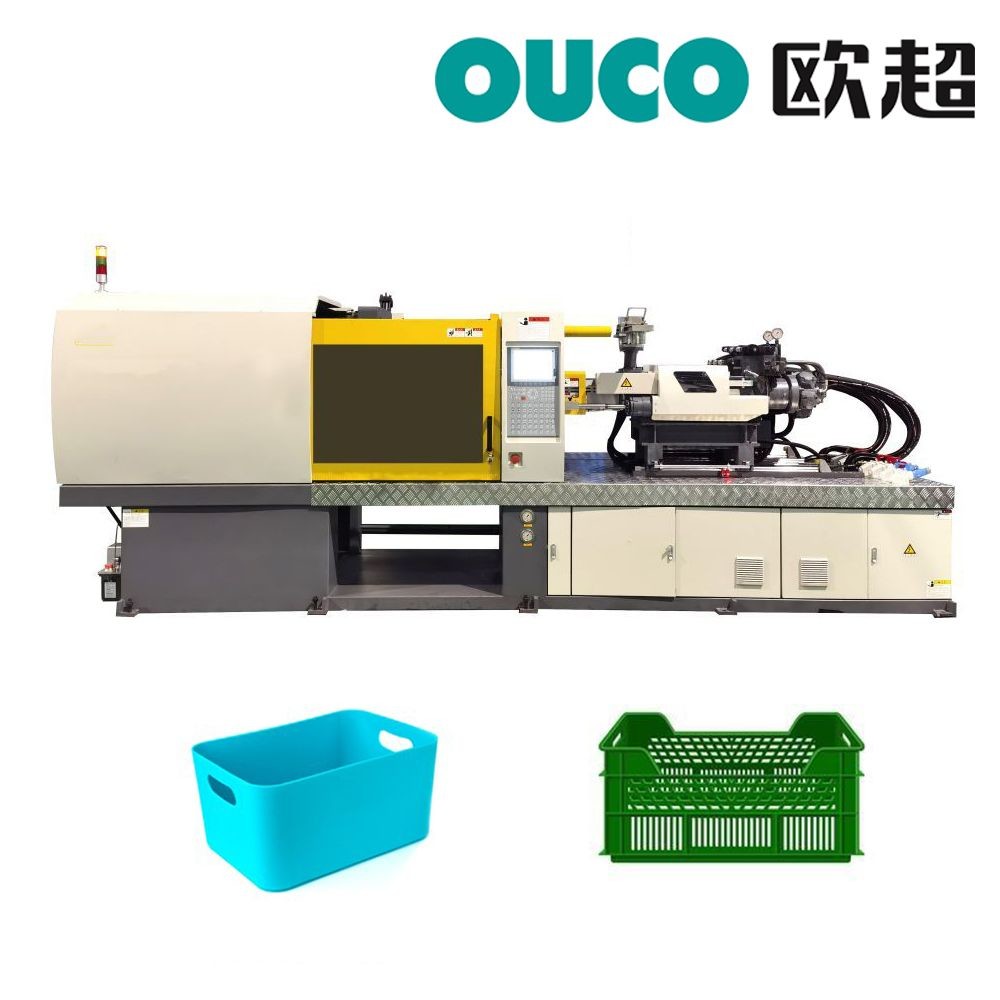

| Product Name: | 2100T Injection Plastic Moulding Machine For Big Bucket With Automatic Exchange Of Large Molds | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| Highlight: | 2100T Bucket Injection Molding Machine,800mm Bucket Injection Molding Machine,100Kw Large Molds injection moulding machine |
||
What we can do for you?
- Professional pre-sales and after-sales service
- Detailed production schedule updated regularly
- Delivery on time and short production time
- Customize the machine according to your requirements
- Well-trained engineers will offer you any technical supp
Advantage of OUCO CWI Servo Plastic Molding Machine
Intelligent motion control for short dry cycle times
Tailor-made servo drives
Square tie bar distance for more freedom
Linear guides (optional)
Intelligent mold protection
Application-oriented injection units
Latest control technology
Product Paraments
| CWI-2100S | ||||||||
| 机型 | 2100S Ⅲ | |||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 21000 | |||||
| 拉杆间距 mm | Space Between Tie-bars | 1800×1600 | ||||||
| 开模最大开距 mm | Clamping Stroke | 3700 | ||||||
| 最大模具 mm | Mould Thickness Max | 1700 | ||||||
| 最小模具 mm | Mould Thickness Min | 800 | ||||||
| 模板尺寸 mm | Size of Platen | 2620×2420 | ||||||
| 顶出长度 mm | Ejector Stroke | 400 | ||||||
| 顶出力 Kn | Ejector Force | 406 | ||||||
| 顶针数 | Ejector Quantily | 33 | ||||||
| 注塑装置 | 射胶配置 | Injection Equipment | 18000I | 30000I | ||||
| 螺杆直径 mm | Screw Diameter | 130 | 140 | 150 | 150 | 160 | 170 | |
| 螺杆长径比 | Screw L/D ratio | 22.6 | 21 | 19.6 | 22.4 | 21 | 19.8 | |
| 理论射胶容积 cm3 | Shot Size | 8821 | 10231 | 11744 | 15890 | 18080 | 20410 | |
| 实际射胶量 (PS)g | Shot Weight | 8027 | 9310 | 10687 | 14619 | 16634 | 18777 | |
| oz | 286.3 | 332.0 | 381.0 | 515.9 | 586.9 | 662.6 | ||
| 射胶压力 MP | Injection Pressure | 203 | 175 | 152 | 193 | 176 | 150 | |
| 注射速率 mm/s | Injection Rate | 1034.0 | 1513.0 | 1737.0 | 1364.0 | 1533.0 | 1753.0 | |
| 射胶速度 cm3/s | Injection Speed | 98 | 77 | |||||
| 螺杆转速 g/s | Screw Speed | 10~166 | 10~100 | |||||
| 塑化能力 rpm | Plasticising Capacity | 143.0 | 152.0 | 166.0 | 160.0 | 184.0 | 205.0 | |
| 电力及其他 | 油箱容积 L | Oil Tank Capacity | 2000 | |||||
| 电热功率 Kw | Heater Power | 100 | 120 | |||||
| 电热区数 L | Team Control zone | 5+1 | ||||||
| 系统压力 MPa | System Pressure Max | 16 | ||||||
| 油泵输量 L/min | Pump Output | 1000 | ||||||
| 电机功率 Kw | Servo Power | 50+50+50+50+7.5 | ||||||
| 机器净重 ton | Machine Weight | 110 | ||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 14500×4200×3530 | ||||||

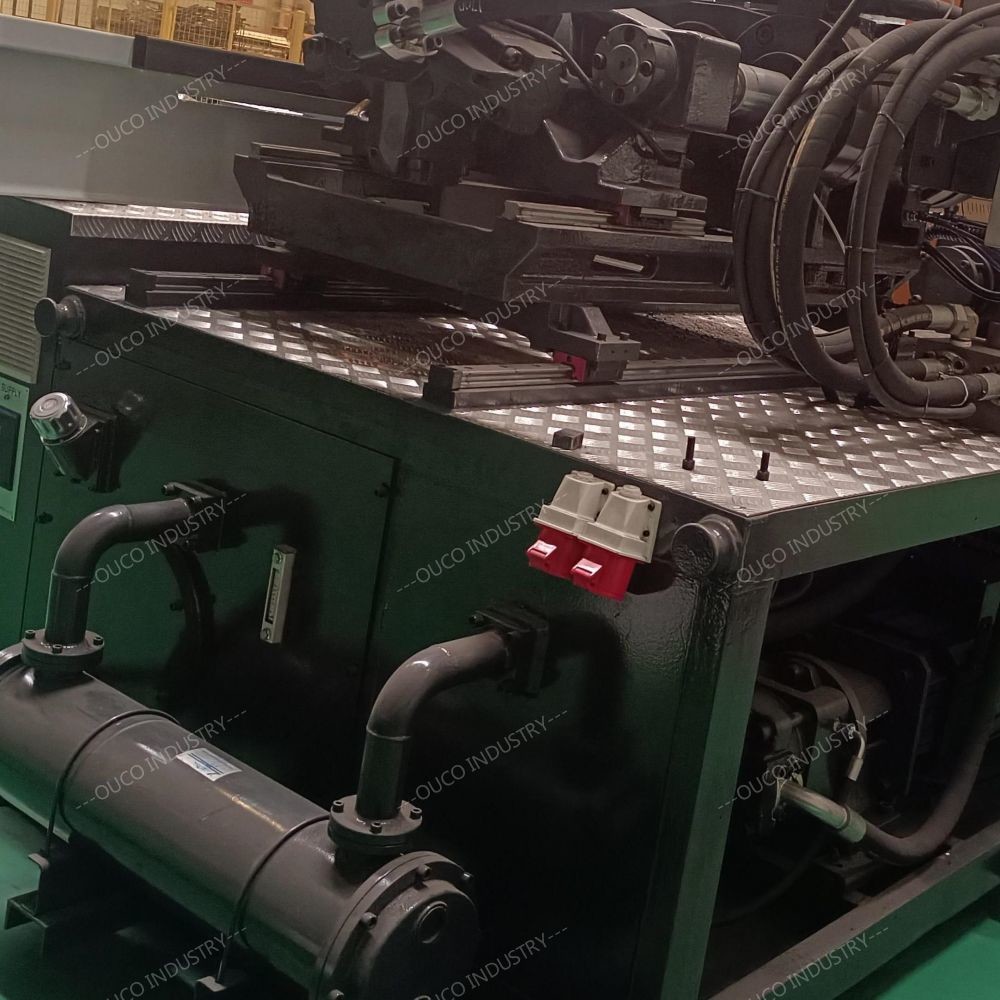

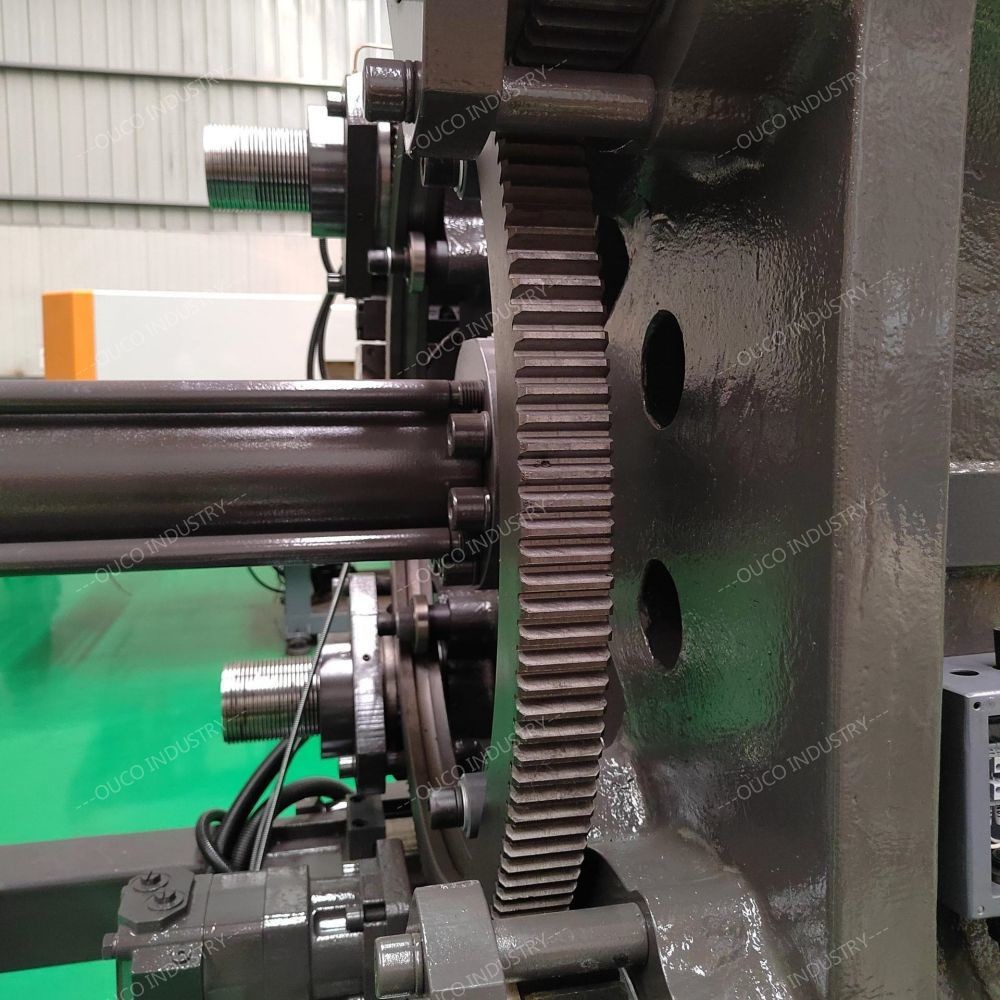

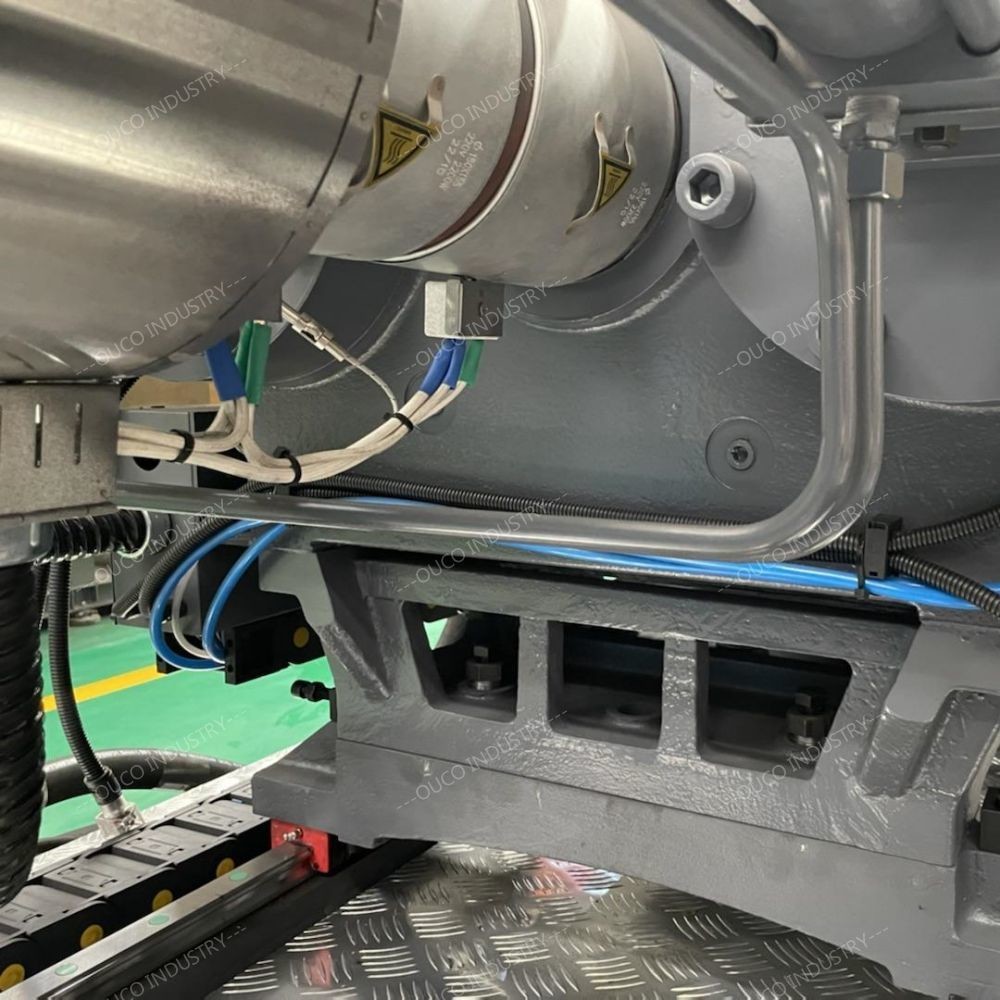

Detailed Pictures
