| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-350GB |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 1 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 450 T Custom Plastic Injection Stretch Moulding Machine Melting Time Less | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 450 Ton Screw Barrel Injection Molding Machine,790mm Screw Barrel Injection Molding Machine,SGS stretch blow moulding machine |
||

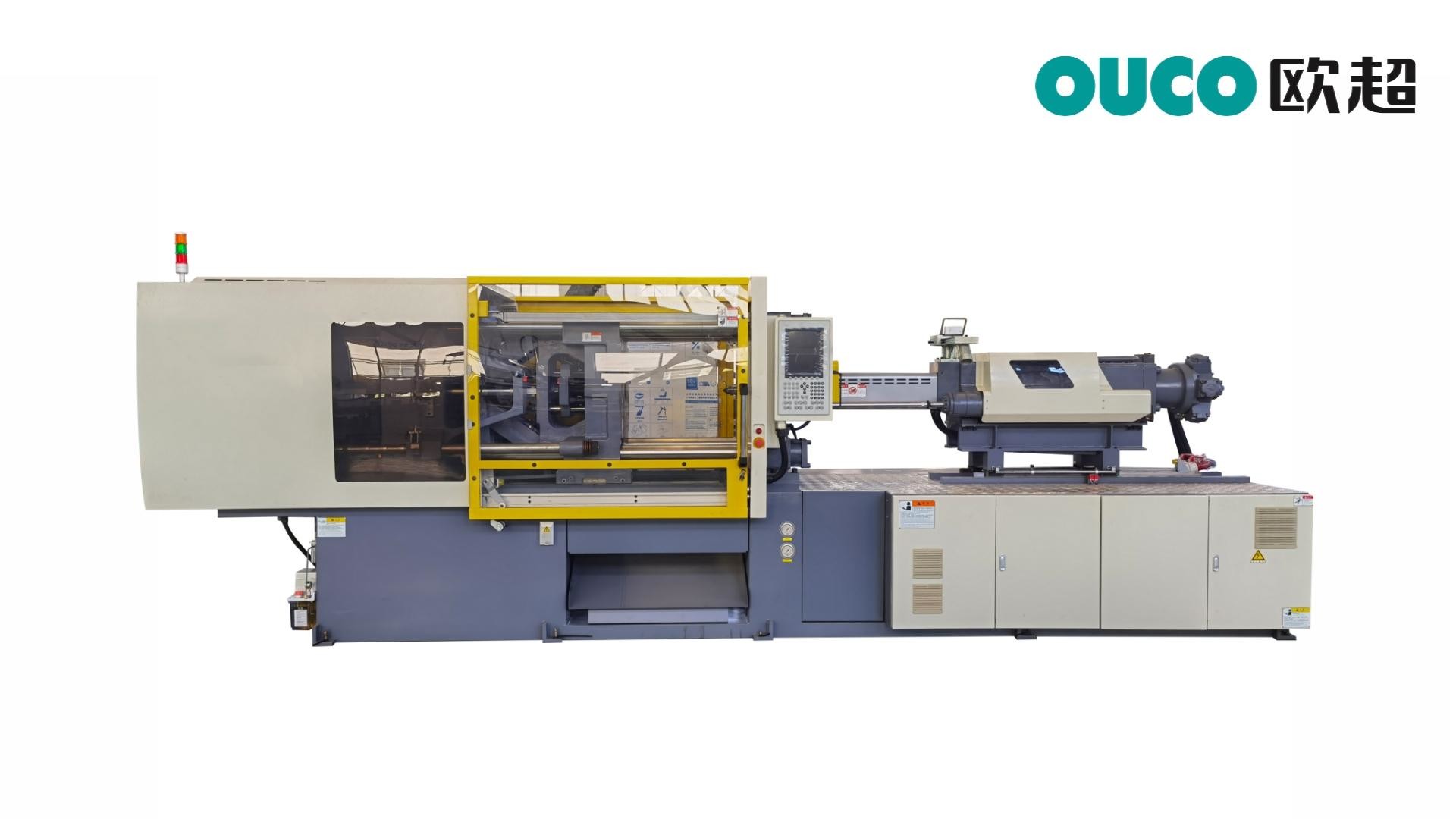

CWI-450GB, reinforced steel plate and square tube for machine frame Strengthened toggle, bushing and platen tie bars are manufactured from high grade steel. Longer mould opening and ejector stroke and stronger ejection force. Moving platen using lubrication free bushing.
The plasticizing unit has more advantages, adopt high quality material, barrel screw, plastic melting is fast, so reduces melting time.
Injection nozzle and front flange connection design is inside position, result in better connection, hard to leak and can withstand high pressure and high-speed injection.
Product parameters
| Model | CWI-450GB | CWI-600GB | ||||||||||||
| Clamping Device | 锁模力 Kn | Clamping Force | 4500 | 3500 | ||||||||||
| 拉杆间距 mm | Space Between Tie-bars | 820×820 | 710×710 | |||||||||||
| 开模最大开距 mm | Clamping Stroke | 790 | 680 | |||||||||||
| 最大模厚 mm | Mould Thickness Max | 800 | 720 | |||||||||||
| 最小模厚 mm | Mould Thickness Min | 300 | 260 | |||||||||||
| 模板尺寸 mm | Size of Platen | 1170×1170 | 1020×1020 | |||||||||||
| 顶出长度 mm | Ejector Stroke | 220 | 200 | |||||||||||
| 顶出力 Kn | Ejector Force | 113 | 80 | |||||||||||
| 顶针数 | Ejector Quantily | 13 | 13 | |||||||||||
| 2800D | 4000D | 4000D | 6600D | |||||||||||
| Injection Device | 螺杆直径 mm | Screw Diameter | 70 | 75 | 80 | 80 | 85 | 90 | 80 | 85 | 90 | 90 | 100 | 110 |
| 螺杆长径比 | Screw L/D ratio | 22.8 | 21 | 19.7 | 22.3 | 21 | 19.8 | 22.3 | 21 | 19.8 | 22.9 | 21 | 19.4 | |
| 理论射胶容积 cm3 | Shot Size | 1385 | 1590 | 1809 | 2060 | 2325 | 2607 | 2060 | 2325 | 2607 | 3052 | 3768 | 4559 | |
| 注射重量 (PS)g | Shot Weight | 1274 | 1462 | 1664 | 1873 | 2115 | 2371 | 1895 | 2139 | 2398 | 2808 | 3467 | 4195 | |
| 注塑压力 Mpa | Injection Pressure | 204 | 178 | 156 | 204 | 180 | 161 | 204 | 180 | 161 | 215 | 176 | 144 | |
| 注射速度 mm/s | Injection Speed | 135 | 107 | 119 | 90 | |||||||||
| 注塑速率 cm3/s | Injection Rate | 517 | 596 | 676 | 539 | 608 | 682 | 583 | 660 | 739 | 620 | 765 | 926 | |
| 螺杆最大转速 rpm | Screw Speed | 240 | 160 | 180 | 150 | |||||||||
| Else | 油泵电机功率 Kw | Motor Power | 36+34 | 36+36 | ||||||||||
| 油泵排量 L/min | 396 | 400 | ||||||||||||
| 电热功率 Kw | Heater Power | 30.2 | 43.9 | 43.9 | 46.9 | |||||||||
| 机器净重 ton | Machine Weight | 20 | 32 | |||||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 7960×2100×2460 | 10000×2320×2470 | |||||||||||
Advantage of the improved clamping unit and machine structure:
Platen design by finite element analysis to eliminate deformation and fracture and optimise toggle locking system.

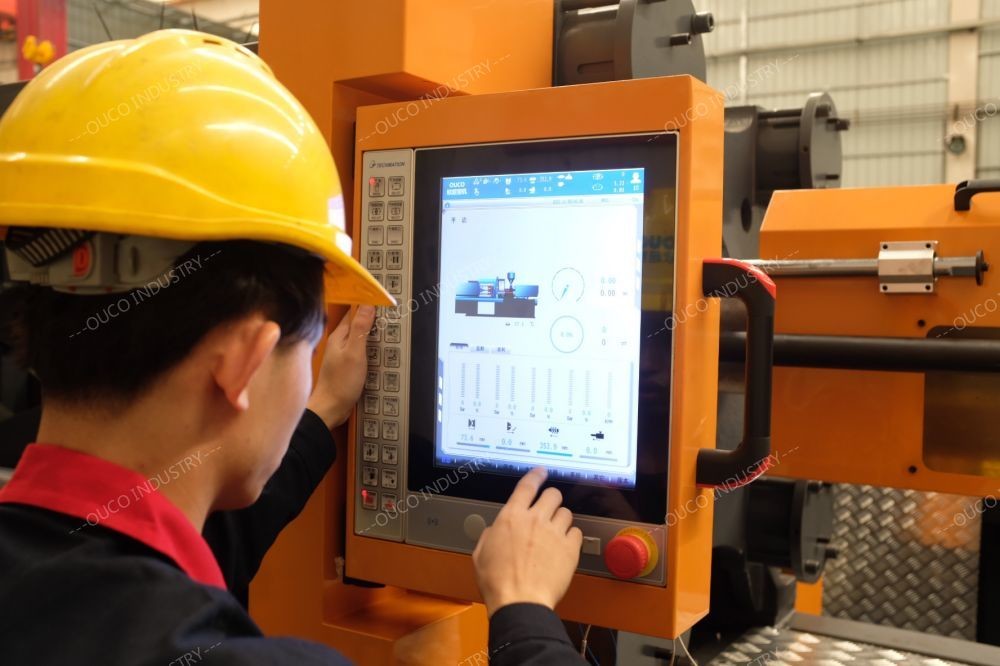

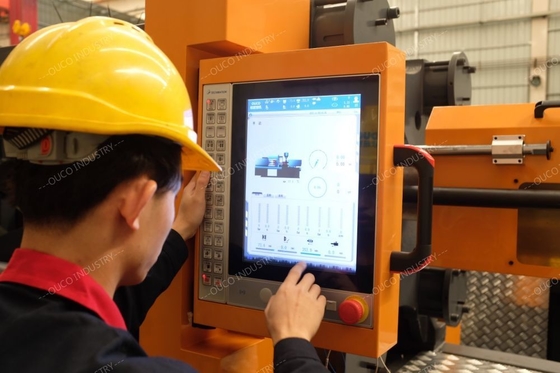

Vertical screen can display more data in the main screen simultaneously, different from traditional display
1.process and be freely adjusted to suit different processing needs
2.USB 2.0 interface support for the Ethernet connections, printer and other equipment
3.Eight section of PID control functions, heating each section of the barrel separately, improve plasticisation and prevent overheating
4.Output of the 48 point digital transistor with shot circuit and over load protects function
5.Clamping, injection and ejection strokes are controlled precisely by the linear transducers
6.Automatic mould thickness adjustment -Heating time can be set a week in advance to improve production efficiency
7.Five stages control on mould opening, closing and injection makes the operation more stable and precise
Advantage of computer control unit: Our European computer control unit has high speed CPU and DSP module and it increases high control to analogue output module, back plane module, bus module etc. and has fast response.
