| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-350GB |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 1 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

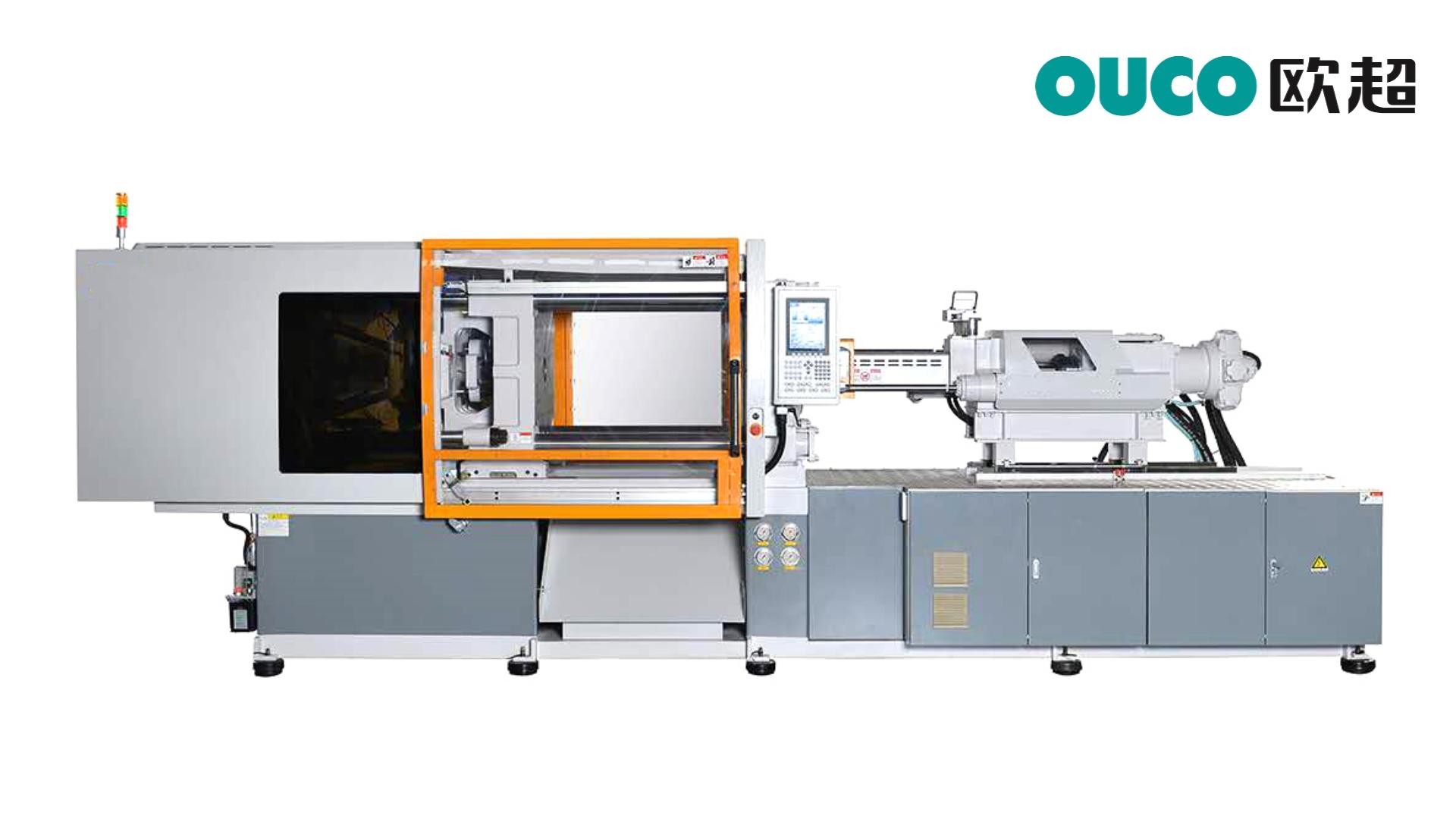

| Product Name: | 450 GB Injection Blow Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 450 GB injection blow molding machine,300mm injection blow molding machine,220mm hybrid injection molding machine |
||
Advantage of the injection unit: The double cylinder structure on the injection unit can ensure cantering performance of the nozzle and seal betten between mould and nozzle, so no plastic leaks. Higher injection accuracy, low coefficient friction and more uniform during injection and plasticising process; easy to adjust and greatly reduce movement inertia during injection, hence improve injection speed and plasticising capacity
1.barrel screw, plastic melting is fast, so reduces melting time.
2.Injection nozzle and front flange connection design is inside
3.position, result in better connection, hard to leak and can
4. withstand high pressure and high speed injection.
| Model | CWI-450GB | CWI-600GB | ||||||||||||
| Clamping Device | 锁模力 Kn | Clamping Force | 4500 | 3500 | ||||||||||
| 拉杆间距 mm | Space Between Tie-bars | 820×820 | 710×710 | |||||||||||
| 开模最大开距 mm | Clamping Stroke | 790 | 680 | |||||||||||
| 最大模厚 mm | Mould Thickness Max | 800 | 720 | |||||||||||
| 最小模厚 mm | Mould Thickness Min | 300 | 260 | |||||||||||
| 模板尺寸 mm | Size of Platen | 1170×1170 | 1020×1020 | |||||||||||
| 顶出长度 mm | Ejector Stroke | 220 | 200 | |||||||||||
| 顶出力 Kn | Ejector Force | 113 | 80 | |||||||||||
| 顶针数 | Ejector Quantily | 13 | 13 | |||||||||||
| 2800D | 4000D | 4000D | 6600D | |||||||||||
| Injection Device | 螺杆直径 mm | Screw Diameter | 70 | 75 | 80 | 80 | 85 | 90 | 80 | 85 | 90 | 90 | 100 | 110 |
| 螺杆长径比 | Screw L/D ratio | 22.8 | 21 | 19.7 | 22.3 | 21 | 19.8 | 22.3 | 21 | 19.8 | 22.9 | 21 | 19.4 | |
| 理论射胶容积 cm3 | Shot Size | 1385 | 1590 | 1809 | 2060 | 2325 | 2607 | 2060 | 2325 | 2607 | 3052 | 3768 | 4559 | |
| 注射重量 (PS)g | Shot Weight | 1274 | 1462 | 1664 | 1873 | 2115 | 2371 | 1895 | 2139 | 2398 | 2808 | 3467 | 4195 | |
| 注塑压力 Mpa | Injection Pressure | 204 | 178 | 156 | 204 | 180 | 161 | 204 | 180 | 161 | 215 | 176 | 144 | |
| 注射速度 mm/s | Injection Speed | 135 | 107 | 119 | 90 | |||||||||
| 注塑速率 cm3/s | Injection Rate | 517 | 596 | 676 | 539 | 608 | 682 | 583 | 660 | 739 | 620 | 765 | 926 | |
| 螺杆最大转速 rpm | Screw Speed | 240 | 160 | 180 | 150 | |||||||||
| Else | 油泵电机功率 Kw | Motor Power | 36+34 | 36+36 | ||||||||||
| 油泵排量 L/min | 396 | 400 | ||||||||||||
| 电热功率 Kw | Heater Power | 30.2 | 43.9 | 43.9 | 46.9 | |||||||||
| 机器净重 ton | Machine Weight | 20 | 32 | |||||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 7960×2100×2460 | 10000×2320×2470 | |||||||||||
Vertical screen can display more data in the main screen simultaneously, different from traditional display
