| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-280GB |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

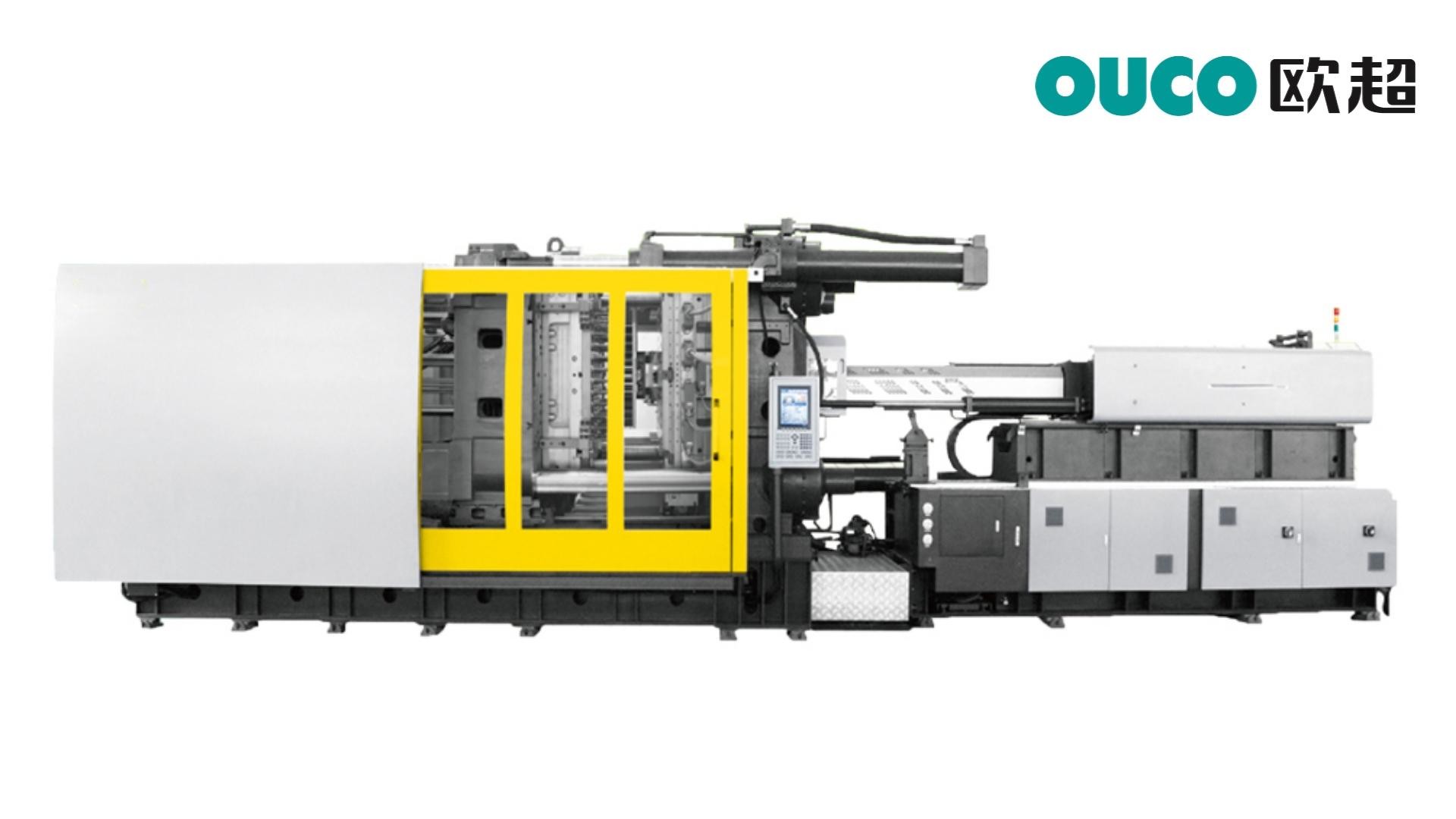

| Product Name: | CWI-280GB Injection Molding Machine With Automatic Heating Time Setting Within One Week | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 240mm automatic moulding machine,80Kn automatic moulding machine,170mm electric injection molding machine |
||
Product Advantages
Mold opening and closing with 5 segment speed closed-loop control provides exact location of mold opeining.
Injection with 5 segment closed-loop control.
Hold pressure with 5 segment closed-loop control.
Three kinds of switch mode for hold pressure:time,time+location and time+pressure.
Charge with 5 segment, back pressure with closed-loop control.
Temperature is controlled by AUTO+PID to guarantee its exact.
High clear color display showing the information.
Parameters
| MODEL | CWI-280GB | ||||||
| CLAMPING UNIT | clamping force (kN) | 2800 | |||||
| Tie bar distance W×L (mm) | 630*630 | ||||||
| Max.Daylight(mm) | 600 | ||||||
| Max. mold thickness (mm) | 650 | ||||||
| Min. mold thickness(mm) | 240 | ||||||
| Platen Dimensions W×L (mm) | 915x915 | ||||||
| Ejector Stroke(mm) | 170 | ||||||
| Ejector Force(Kn) | 80 | ||||||
| Ejector Quantily | 13 | ||||||
| Injection unit | 1100D | 1700D | |||||
| Injection Unit | Screw Diameter(mm) | 50 | 55 | 60 | 55 | 70 | |
| Screw L/D ratio | 23.3 | 21 | 23.1 | 21 | 19.5 | ||
| Theoretical injection volume (cm3) | 487 | 589 | 820 | 962 | 1115 | ||
| Shot Weight (PS) g | 448 | 542 | 754 | 885 | 1026 | ||
| Injection Pressure(MPa) | 231 | 191 | 215 | 183 | 158 | ||
| Injection Speed (mm/s) | 128 | 95 | |||||
| Injection Rate (cm3/s) | 251 | 304 | 268 | 315 | 365 | ||
| Screw Speed (rpm) | 220 | 180 | |||||
| Other | Motor Power (Kw) | 36 | |||||
| pump capacity(L/min) | 220 | ||||||
| Heater Power (Kw) | 15.9 | 22.4 | |||||
| Machine Weight (kg) | 11.8 | ||||||
| Machine size L×W×H (mm) | 6375X1650X2250 | ||||||
Injection molding is a cyclic process, each cycle mainly includes: quantitative feeding-melting and plasticizing-pressure injection-filling and cooling-mould opening and taking parts. After taking out the plastic part, the mould is closed again for the next cycle.
The time of Ouco Injection molding process is 18 seconds.
