| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-HS-530T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO-HS 530T High Power High Speed Injection Molding Machine With Large Mold Opening Stroke | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 530Ton Screw Barrel Injection Molding Machine,800mm Screw Barrel Injection Molding Machine,210mm high speed injection machine |
||
OUCO designed the Outflip crankshaft for the HS-530T, This allows us to have a lot more opening stroke compared to the normal design, so customers can choose a model with less clamping force, which can save them a lot of money. The four cylinders on our crankshaft can move in a straight line with good synchronization, which reduces power consumption.
Product Advantages
Straight pressed outward curved center clamping makes the template mold not deformed and transmits 100% clamping force of the mold.
Extra large module capacity design.
Cooperation with well-known hydraulic system manufacturers, high flow, low noise, stable performance.
Full module lubrication system, automatic lubrication, easy to operate and extend the life of the injection molding machine
Parameters
| MODEL | HS-530T | |||||
| CLAMPING UNIT | clamping force (kN) | 5300 | ||||
| Tie bar distance W×L (mm) | 860*760 | |||||
| Max.Daylight(mm) | 1000 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Platen Dimensions W×L (mm) | 860*760 | |||||
| Ejector Stroke(mm) | 210 | |||||
| Ejector Force(Kn) | 110 | |||||
| Ejector Quantily | 1+12 | |||||
| Injection Unit | Screw Diameter(mm) | 100 | ||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3332 | |||||
| Shot Weight (PS) g | 3057 | |||||
| Injection Pressure(MPa) | 113 | |||||
| Injection Speed (g/s) | 3057 | |||||
| Injection Rate (cm3/s) | 1247 | |||||
| Screw Speed (rpm) | 0-200 | |||||
| Other | Motor Power (Kw) | 95 | ||||
| pump capacity(ml/r) | 125+125 | |||||
| Heater Power (Kw) | 41 | |||||
| Machine Weight (Ton) | 19 | |||||
| Machine size L×W×H (m*m*m) | 8.7*2.0*2.1 | |||||

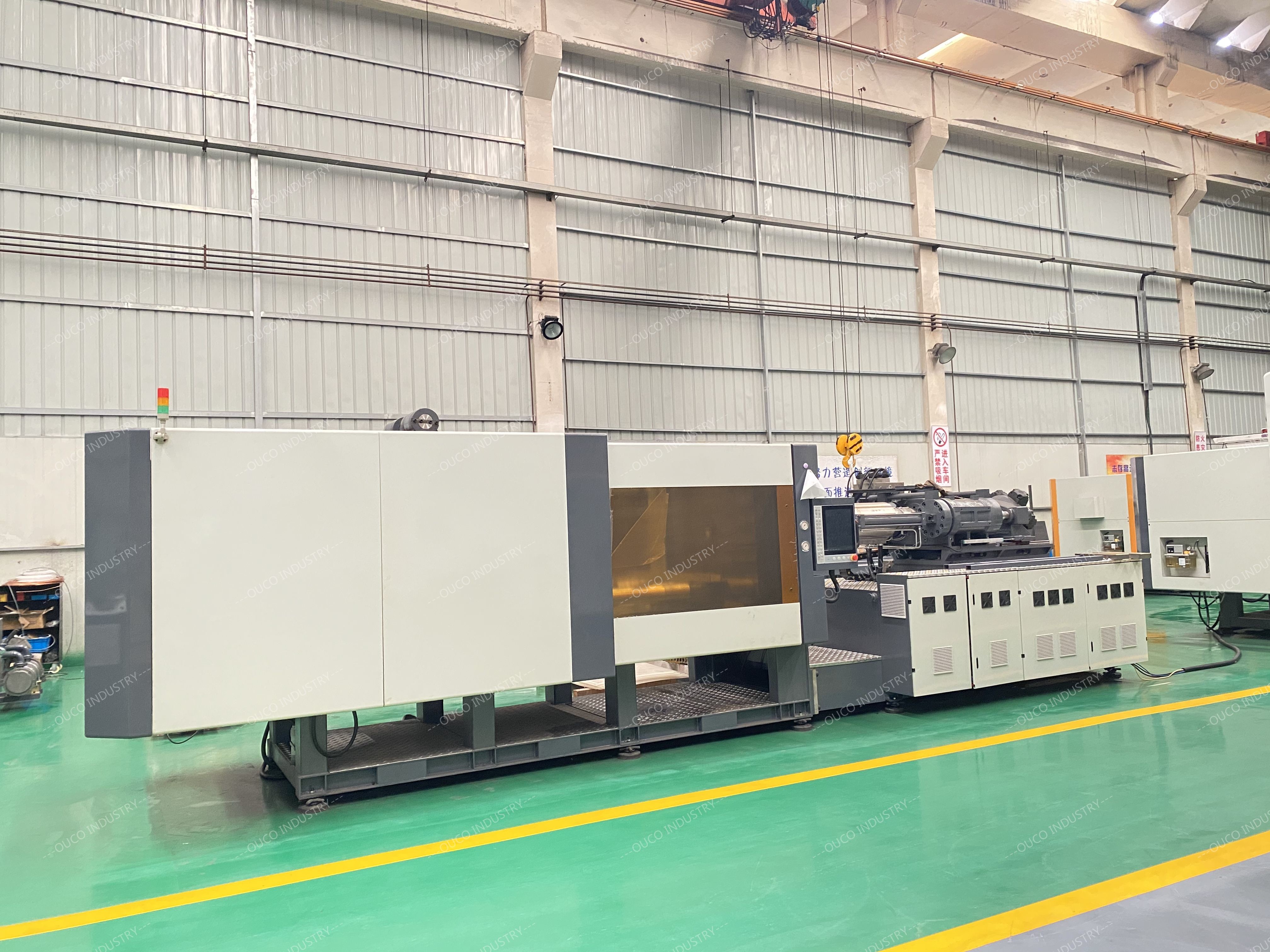

Detail Pictures
