| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC-550H HIgh Speed Injection Plastic Molding Machine For Plastic Storage Cabinet | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Plastic Storage Cabinet Injection Molding Machine,OC-550H Injection Molding Machine,High Speed Injection Molding Machine |
||

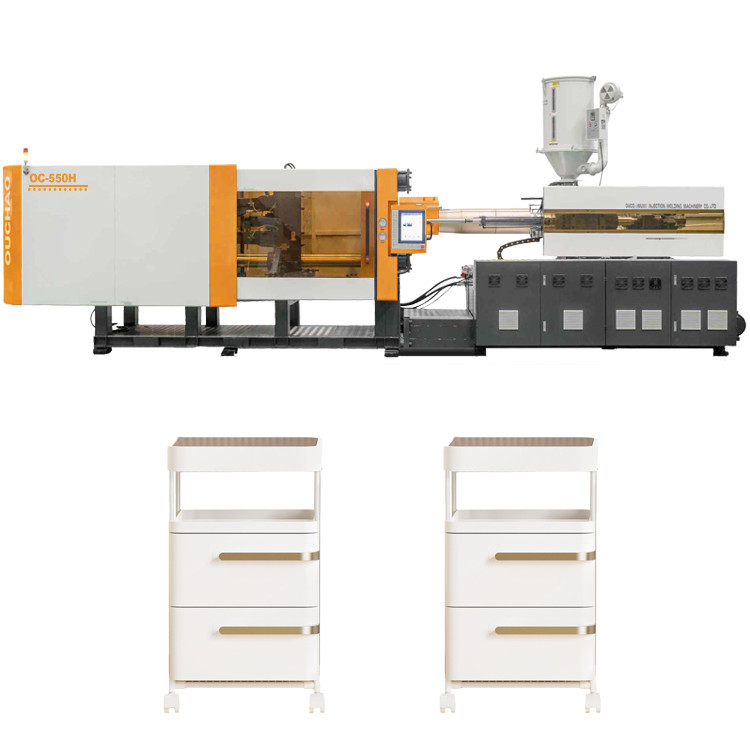

OC-550H HIgh Speed Injection Plastic Molding Machine For Plastic Storage Cabinet
About us
Name:OUCO(WUXI) Injection Molding Machinery Equipment Co.,Ltd
Address:NO.20 Tianshun Road,Yangshan Town,Huishan District,Wuxi,Jiangsu Province,P.R.China.
Time of establishment:September 2021
Main Business:
OUCO is a professional injection molding machine manufacturer, dedicated to the research and development of high-quality, high-performance injection molding equipment and plastic injection molding machines for automotive parts, medical equipment, large pipe fittings, trash cans, pallets and fruit baskets and other market areas, and customized high-quality, energy-saving and professional production solutions for customers.
Product Series:
As a professional injection molding machine manufacturer, OUCO has built high-speed machines for deep-cavity products, new G series products, SV servo energy-saving systems, and clamping forces ranging from 110 tons to 2,200 tons. Each specification can also be equipped with 2 or 3 different injection structures according to customer product requirements. In addition, it has developed and designed large two-platen series with clamping forces ranging from 800 tons to 2,100 tons.
Mission and Aspiration:
We are committed to pursuing the spirit of craftsmanship. OUCO has always been committed to meeting the needs of customers. Creating greater value for customers is the eternal concept of OUCO. We will continue to be at the forefront of the market, fearless of hardships and challenges, and continue to work hard in energy-saving, automation, refinement, and humanization of machines to bring great benefits to customers.
OUCO standard high speed series:
Product Features
Parameters
| MODEL | OC-550H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 80 | 85 | 90 |
| Screw L/D ratio(L/D) | 23.3 | 22 | 21 |
| Theoretical injection volume(cm³) | 2060 | 2326 | 2608 |
| Injection volume (g) | 1991 | 2247 | 2519 |
| Maximum rate for injection to air(g/s) | 646 | 729 | 817 |
| Injection pressure (M Pa) | 150 | 133 | 119 |
| Clamping part | |||
| Clamping force (Ton) | 5500 | ||
| Toggle stroke (mm) | 1010 | ||
| Distance between tie bars(mm*mm) | 860*800 | ||
| Maximum mould height (mm) | 800 | ||
| Minimum mould height (mm) | 300 | ||
| Ejection stroke (mm) | 210 | ||
| Ejector force forward (KN) | 103 | ||
| Amount of die thimble (Pcs) | 1+12 | ||
| Others | |||
| Motor power (kW) | 55～65 | ||
| Heater power (kW) | 41 | ||
| Quantity of temperature-control zones | 5+1 | ||
| Boundary dimension(L*W*H) (m) | 8.7x2.0x2.1 | ||
| Sys.Pressure (Mpa) | 16 | ||

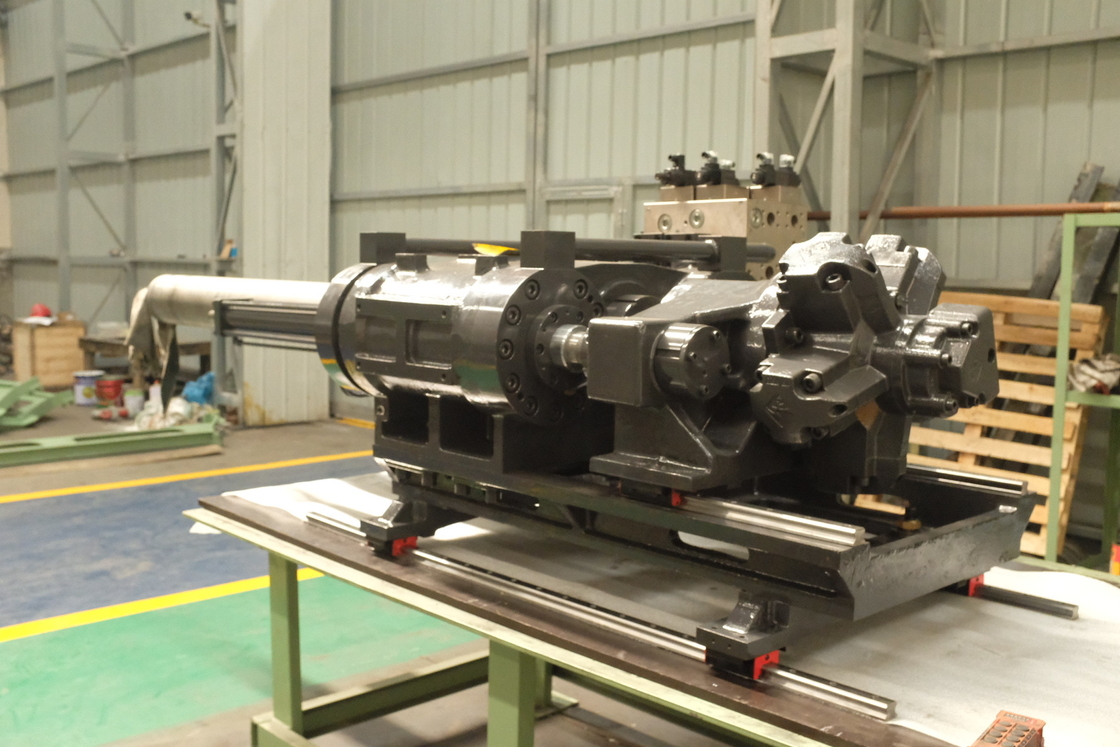

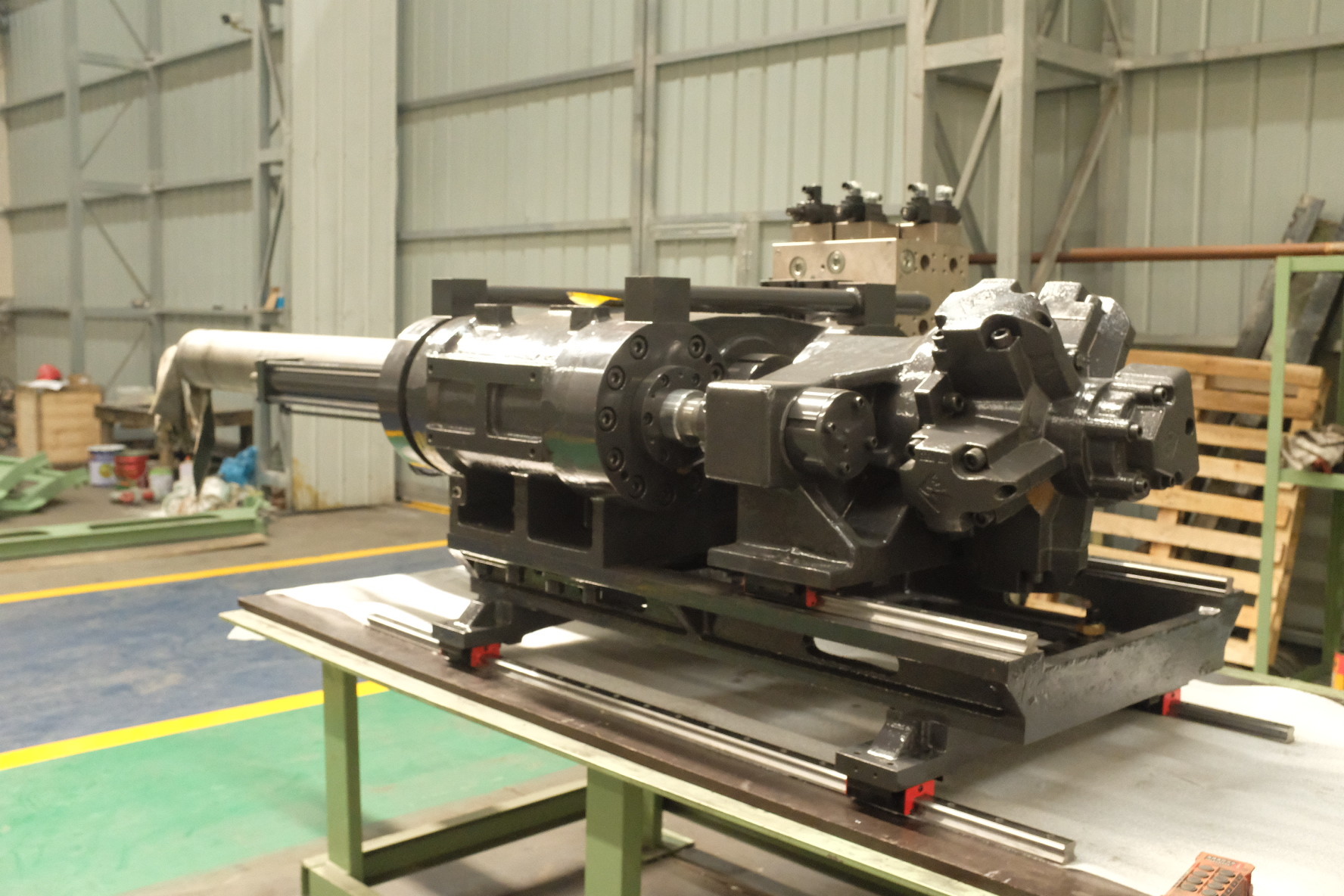

Detail Pictures

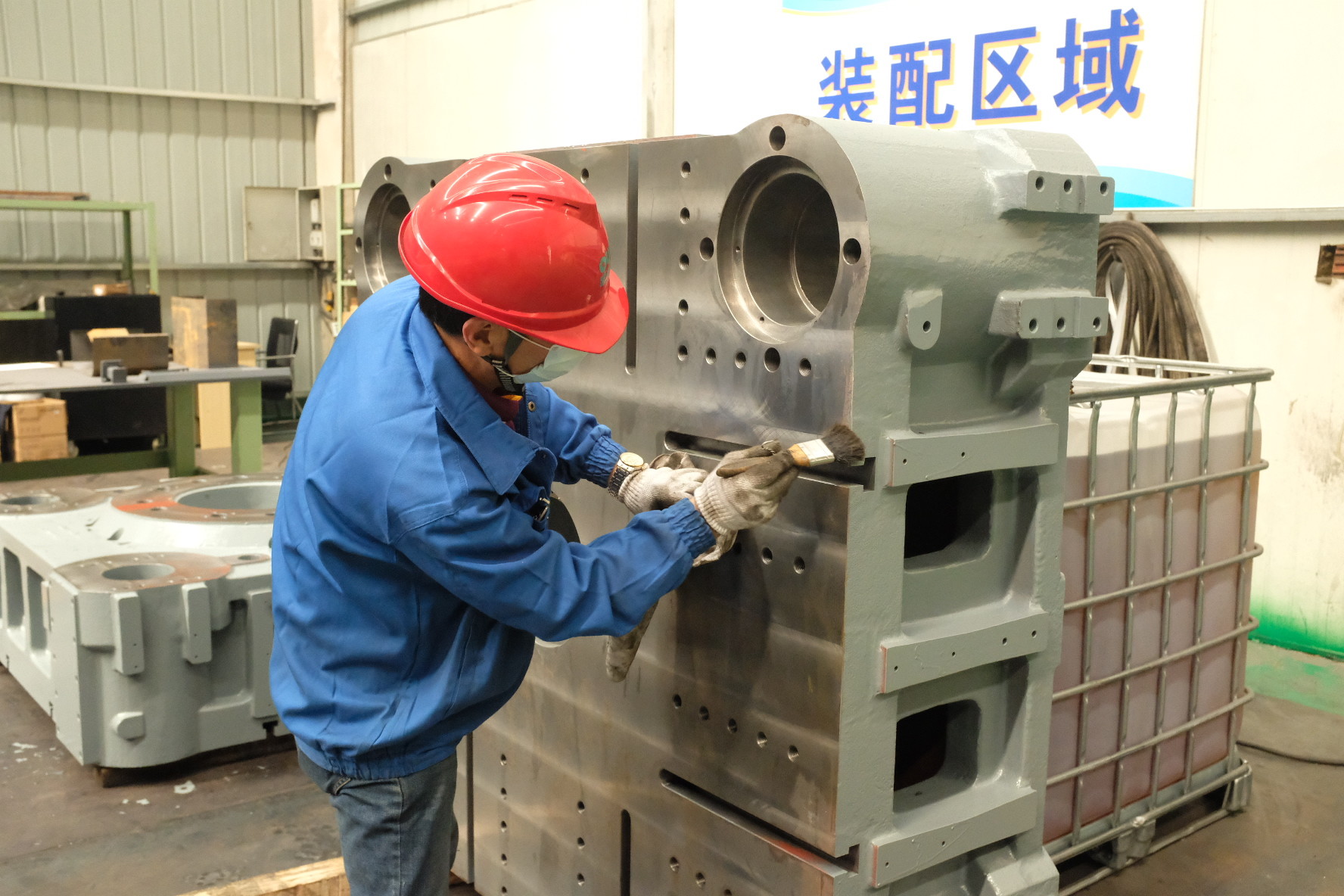

Company Profile
