| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-110GF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

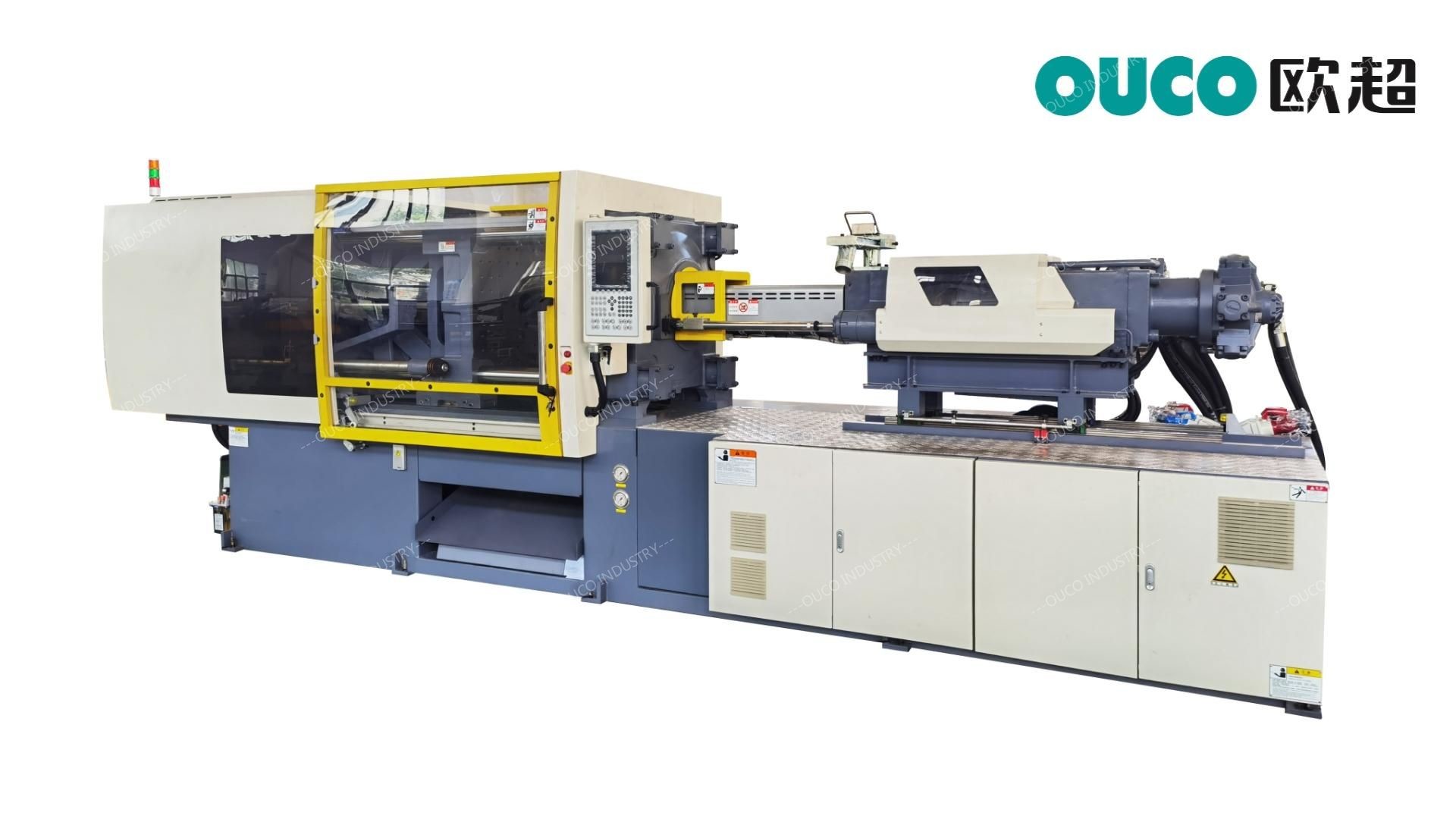

| Product Name: | High Speed Injection Molding Machine CWI-110GF High Injection Speed But Quiet | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | SGS high speed injection machine,400mm high speed injection machine,150mm plastic injection molding machine |
||
Product Advantages
High-speed, high pressure and high response suits molding high precision and thin goods.
High rigied single-cylinder injection unit make the respond faster and repeated injection more precision.
Movable injection unit is convenient for changing screw.
Long mold opeining stroke and long space between Tie-Bars can contain bigger molds.
Movable platen with self-lubricant axletree makes the machine quiet, smooth and clean.
Parameters
| MODEL | CWI-110GF | |||||||
| CLAMPING UNIT | clamping force (kN) | 1100 | ||||||
| Tie bar distance W×L (mm) | 420x420 | |||||||
| Max.Daylight(mm) | 400 | |||||||
| Max. mold thickness (mm) | 450 | |||||||
| Min. mold thickness(mm) | 150 | |||||||
| Platen Dimensions W×L (mm) | 605x605 | |||||||
| Ejector Stroke(mm) | 110 | |||||||
| Ejector Force(Kn) | 38 | |||||||
| Ejector Quantily | 5 | |||||||
| Injection unit | 310I | |||||||
| Injection Unit | Screw Diameter(mm) | 28 | 32 | 35 | ||||
| Screw L/D ratio | 23 | 23 | 21 | |||||
| Theoretical injection volume (cm3) | 89 | 117 | 140 | |||||
| Shot Weight (PS) g | 82 | 108 | 129 | |||||
| Injection Pressure(MPa) | 319 | 244 | 204 | |||||
| Injection Speed (mm/s) | 190 | |||||||
| Injection Rate (cm3/s) | 117 | 153 | 183 | |||||
| Screw Speed (rpm) | 400 | |||||||
| Other | Motor Power (Kw) | 24 | ||||||
| pump capacity(L/min) | 138 | |||||||
| Heater Power (Kw) | 7.11 | |||||||
| Machine size L×W×H (mm) | 4255x1430x1690 | |||||||
