| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-180GF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 5-stage Segmented Precision Fast Injection Molding Machine CWI-180GF | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 180GF High Speed Injection Molding Machine,High Speed Injection Molding Machine,fast injection molding machine |
||

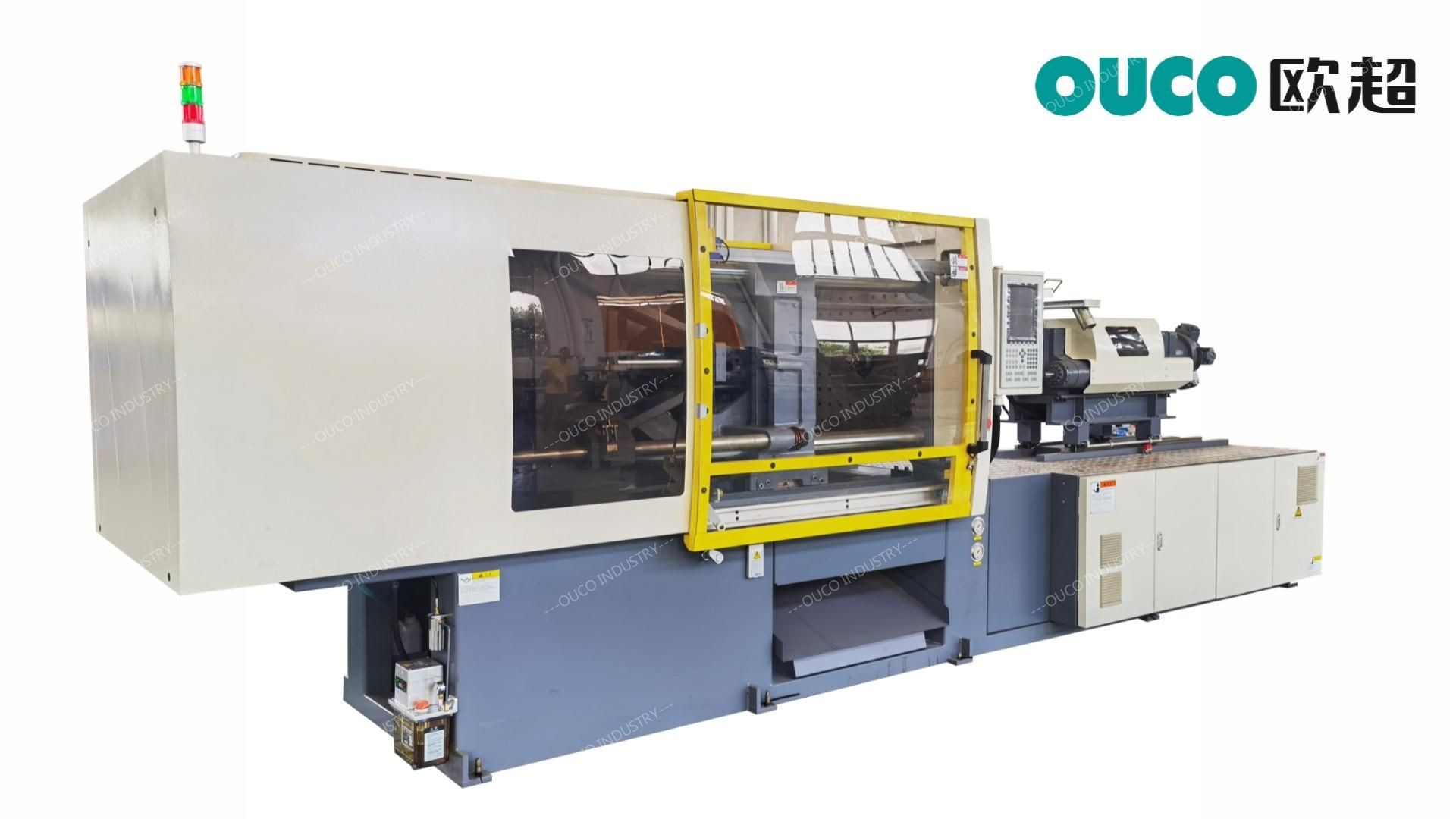

OUCO CWI-180GF adopt the linear displacement sensor of Italian Gefran brand and open/close mold and injection are controlled by five stages, so it can make our GF series injection molding machine's action precision very accurate. Our formwork is lubricated with glycerin, so it is not easy to have glue leakage. High pressure and high speed production environment will not easily cause cracking of the premise.
Product Advantages
Our European computer control unit has high speed CPU and DSP module and it increases high control to analogue output module, back plane module, bus module etc. and has fast response.
Parameters
| MODEL | CWI-180GF | |||||
| CLAMPING UNIT | clamping force (kN) | 1800 | ||||
| Tie bar distance W×L (mm) | 520 | |||||
| Max.Daylight(mm) | 450 | |||||
| Max. mold thickness (mm) | 520 | |||||
| Min. mold thickness(mm) | 170 | |||||
| Platen Dimensions W×L (mm) | 680*680 | |||||
| Ejector Stroke(mm) | 140 | |||||
| Ejector Force(Kn) | 53 | |||||
| Ejector Quantily | 5 | |||||
| Injection unit | 420I | 650I | ||||
| Injection Unit | Screw Diameter(mm) | 35 | 40 | 40 | 45 | |
| Screw L/D ratio | 24 | 21 | 24 | 21 | ||
| Theoretical injection volume (cm3) | 163 | 214 | 251 | 318 | ||
| Shot Weight (PS) g | 150 | 196 | 231 | 293 | ||
| Injection Pressure(MPa) | 256 | 196 | 256 | 202 | ||
| Injection Speed (mm/s) | 238 | 182 | ||||
| Injection Rate (cm3/s) | 229 | 229 | 229 | 290 | ||
| Screw Speed (rpm) | 400 | 400 | ||||
| Other | Motor Power (Kw) | 36 | ||||
| pump capacity(L/min) | 220 | |||||
| Heater Power (Kw) | 8.9 | 10.9 | ||||
| Machine Weight (kg) | 6.5 | |||||
| Machine size L×W×H (mm) | 5455x1620x1820 | |||||
