| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI290GK |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

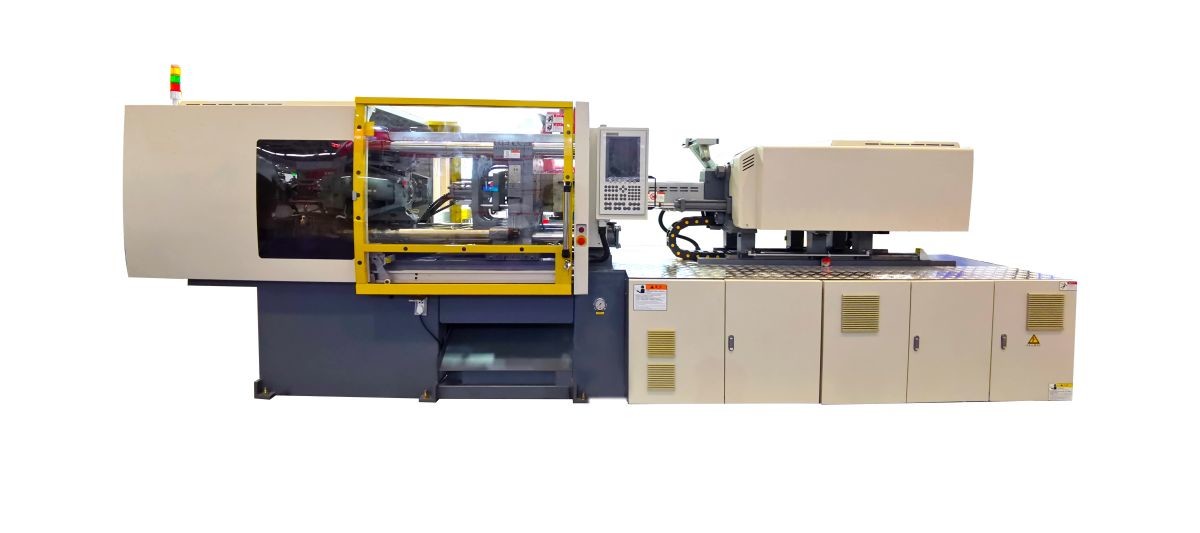

| Product Name: | OUCO High Speed And Thin Wall Injection Molding Mold Machine CWI290GK | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | CWI290GK injection molding machine,Thin Wall injection molding machine,600mm automated injection molding machine |
||
The injection molding machine enjoy good reflection from the customers, and own the advantages as follows,
1) Precision: optimized mechanical structure with famous brand controller, greatly increase machine precise.
2) Stable: dual cylinder injection, perform stability and reliability.
3) Durable: platen with DFA design helps to strengthen the rigid
4) Energy Saving: comparing with traditional fixed pump or variable pump machine, it saves elec
tricity obviously.
Product Advantages
Advantage of the improved clamping unit and machine structure: Platen design by finite element analysis to eliminate deformation and fracture and optimise toggle locking system.
Advantage of the injection unit: The double cylinder structure on the injection unit can ensure cantering performance of the nozzle and seal betten between mould and nozzle, so no plastic leaks. Higher injection accuracy, low coefficient friction and more uniform during injection and plasticising process; easy to adjust and greatly reduce movement inertia during injection, hence improve injection speed and plasticising capacity.
Advantage of computer control unit: Our European computer control unit has high speed CPU and DSP module and it increases high control to analogue output module, back plane module, bus module etc. and has fast response.
Advantage of plasticising unit: Adopt high quality material barrel screw, plastic melting is fast, so reduces melting time. Injection nozzle and front flange connection design is inside position, result in better connection, hard to leak and can withstand high pressure and high speed injection.
Advantage of enclosed slide door: The fully enclosed slide door could effectively prevent foreign matter enter the clamping unit, and is beautiful and more secure. Mechanical safety door use brakes device or brake line, it is safe and reliable, flexible and convenient.
Advantage of the hydraulic unit: Unique hydraulic circuit design using cartridge valve plate. It has fast response time, pressure and speed control is precise, so higher product precision and repeatability.
Parameters
| MODEL | CWI-290GK | ||||
| CLAMPING UNIT | clamping force (kN) | 2900 | |||
| Tie bar distance W×L (mm) | 630*630 | ||||
| Max.Daylight(mm) | 600 | ||||
| Max. mold thickness (mm) | 650 | ||||
| Min. mold thickness(mm) | 240 | ||||
| Platen Dimensions W×L (mm) | 840*940 | ||||
| Ejector Stroke(mm) | 170 | ||||
| Ejector Force(Kn) | 80 | ||||
| Ejector Quantily | 13 | ||||
| Injection unit | 860I | ||||
| Injection Unit | Screw Diameter(mm) | 50 | 55 | ||
| Screw L/D ratio | 21 | 19.1 | |||
| Theoretical injection volume (cm3) | 442 | 534 | |||
| Shot Weight (PS) g | 406 | 492 | |||
| Injection Pressure(MPa) | 207 | 171 | |||
| Injection Speed (mm/s) | 295 | ||||
| Injection Rate (cm3/s) | 579 | 700 | |||
| Screw Speed (rpm) | 350 | ||||
| Other | Motor Power (Kw) | 50+50 | |||
| pump capacity(L/min) | 450 | ||||
| Heater Power (Kw) | 13 | ||||
| Machine Weight (kg) | 12 | ||||
| Machine size L×W×H (mm) | 6400x1800x2075 | ||||
