| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI 1050S III |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | High Capacity Two-platen Injection Molding Machine For Plastic Baskets | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 600mm High Speed Injection Molding Machine,1300mm High Speed Injection Molding Machine,SGS two platen injection molding machine |
||

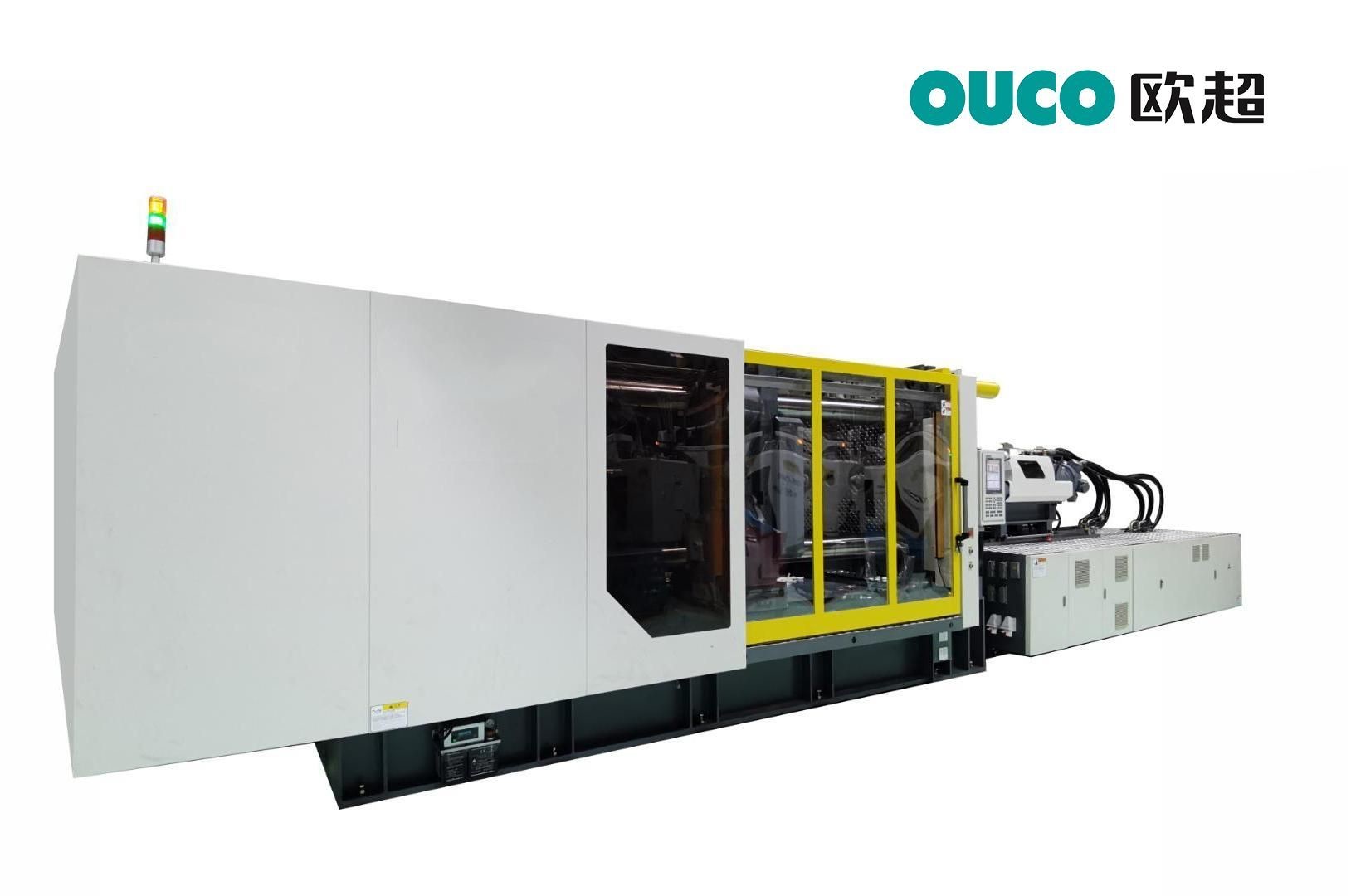

OUCO CWI-1050S III, suitable for multi-cavity mold, Maximizes the productivity.
The most stable and reliable computer system provides fast and accurate operation.
The user-friendly interface combines with the expert database and the artificial intelligence technology to monitor the production processing and the product quality automatically achieved +/- 0.1mm
Specialized design, and cost-effective, the OUCO injection molding machine are always the first choice supplier of expert equipment.
Product Advantages
1. All machine parts are supplied by well-known manufacturers with the advanced QC system
2. With the two-platen clamping system, the clamping speed is fast and improves the production cycle. The good quality of material also ensures the mold platen is more durable.
3. Four-cylinder direct clamping structure ensures high-pressure stability, clamping balance, and precise of clamping force which improves the lifetime of the mold.
4. Auto-mold adjusting function is controlled by computer. Computer collected data from transducers and analyzed. It ensures mold clamping precision.
5. Injection unit with the linear guide ensures the injection stability and precision
6. Pressure and hydraulic flow are controlled by a high response closed loop servo system. The speed is fast and energy-saving.
7. Hydraulic System adopts hydraulic parts from a Japanese famous brand and the cartridge logic valve hydraulic circuit improves the system response speed.
Parameters
| MODEL | CWI-1050S III | |||||||||
| CLAMPING UNIT | clamping force (kN) | 10500 | ||||||||
| Tie bar distance W×L (mm) | 1270*1070 | |||||||||
| Max.Daylight(mm) | 2700 | |||||||||
| Max. mold thickness (mm) | 1300 | |||||||||
| Min. mold thickness(mm) | 600 | |||||||||
| Platen Dimensions W×L (mm) | 1870*1670 | |||||||||
| Ejector Stroke(mm) | 350 | |||||||||
| Ejector Force(Kn) | 282 | |||||||||
| Ejector Quantily | 25 | |||||||||
| Injection unit | 4000I | |||||||||
| Injection Unit | Screw Diameter(mm) | 80 | 35 | 90 | ||||||
| Screw L/D ratio | 22.3 | 21 | 19.8 | |||||||
| Theoretical injection volume (cm3) | 2059 | 2325 | 2606 | |||||||
| Shot Weight (PS) g | 1873 | 2115 | 2371 | |||||||
| Injection Pressure(MPa) | 196 | 174 | 155 | |||||||
| Injection Speed (mm/s) | 153 | |||||||||
| Injection Rate (cm3/s) | 766.0 | 875.0 | 982.0 | |||||||
| Screw Speed (rpm) | 10-230 | |||||||||
| Other | Motor Power (Kw) | 43.85 | ||||||||
| pump capacity(L/min) | 570 | |||||||||
| Heater Power (Kw) | 50+45+7.5 | |||||||||
| Machine Weight (Ton) | 50 | |||||||||
| Machine size L×W×H (mm) | 11800x3200x2700 | |||||||||
