| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC-280H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 280 Ton High Speed And High Pressure Injection Plastic Molding Machine For Plastic Food Container | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | High Pressure Injection Molding Machine,Plastic Food Container Injection Molding Machine,280 Ton injection plastic molding machine |
||
Why choose us
OUCO (WUXI) Injection Molding Machinery Co., Ltd. is an Integration of industry and trade company specializing in the production of injection molding machines. From production to sales to after-sales service, it has a complete industrial system. From design to production, it has a professional technical team. We can design and equip you with high-quality and multi-selective injection molding machine models according to your production needs.
Our injection molding machines are mainly high-speed machines, servo machines and large two-platen machines. The clamping force of high-speed machines and servo machines ranges from 50 tons to 2,200 tons. Each specification can be equipped with 2 or 3 different injection structures according to your product requirements. The clamping force of the other two-platen machines ranges from 800 tons to 2,100 tons.
If you produce related products in the fields of auto parts, medical equipment, large pipes, trash cans, trays and fruit baskets, we will provide you with the corresponding plastic machine options to bring you the most suitable choice.
Unswerving commitment and pursuit of perfection is the eternal philosophy of OUCO. We will continue to update and improve our products and technologies to create more value and production benefits for you.
Product Description

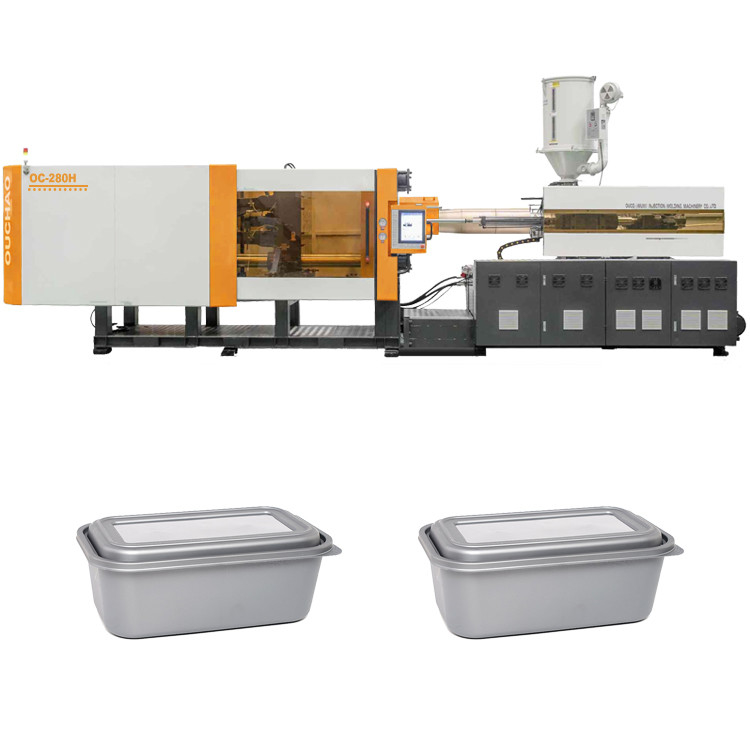

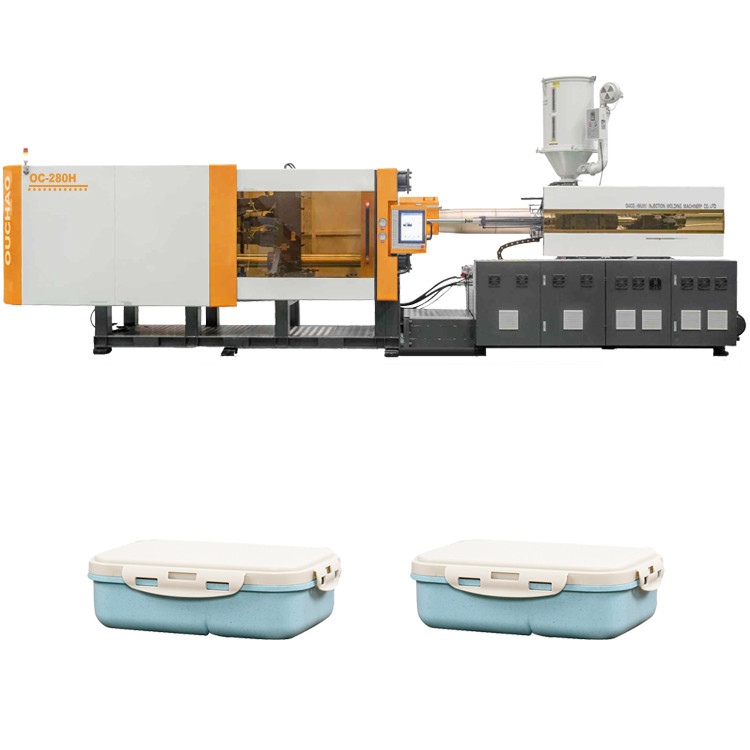

OC-280H is an injection molding machine in the standard fast machine series. Its clamping force reaches 280 tons and its maximum injection pressure reaches over 210MPa. The higher clamping force makes the template evenly stressed and effectively protects the template. It can also reduce the flash and overflow of the product and improve the precision and quality of the product. The higher injection pressure is conducive to the rapid molding of thin-walled and complex products and improves production efficiency. The mold transfer stroke reaches 615mm, which is convenient for product removal and avoids secondary damage to the product.
At the same time, this machine is also equipped with a stable, efficient, energy-saving system and a high-precision, fast-response, and easy-to-operate configuration. The power system uses a servo motor plus an internal gear pump, which greatly improves the production power of the machine and reduces energy consumption. The hydraulic system uses hydraulic components from well-known Chinese brands and inserts multiple logic valve oil circuits to effectively improve the system response speed. The injection unit uses double-cylinder injection technology, which makes the injection smoother, more accurate, and has high repetitive accuracy. The electronic control unit uses computer logic operation data acquisition and multiple language versions, which makes the operation easier and more applicable.
Parameters
| MODEL | OC-280H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 55 | 60 | 65 |
| Screw L/D ratio(L/D) | 23.8 | 21.8 | 20.1 |
| Theoretical injection volume(cm³) | 672.4 | 800.2 | 939.1 |
| Injection volume (g) | 611.8 | 728.1 | 854.6 |
| Maximum rate for injection to air(g/s) | 157.8 | 187.8 | 220.4 |
| Injection pressure (M Pa) | 216.1 | 181.6 | 154.7 |
| Clamping part | |||
| Clamping force (Ton) | 2800 | ||
| Toggle stroke (mm) | 615 | ||
| Distance between tie bars(mm*mm) | 620*570 | ||
| Maximum mould height (mm) | 615 | ||
| Minimum mould height (mm) | 275 | ||
| Ejection stroke (mm) | 175 | ||
| Ejector force forward (KN) | 61.6 | ||
| Amount of die thimble (Pcs) | 1+8 | ||
| Others | |||
| Motor power (KW) | 25~35 | ||
| Heater power (kW) | 20 | ||
| Quantity of temperature-control zones | 4+1 | ||
| Boundary dimension(L*W*H) (m) | 6.5×1.5×2.1 | ||
| Sys.Pressure (Mpa) | 16 | ||
We will offer you:
Price advantage:
Our injection molding machines have more advantages in terms of functions and performance than other high-end brands on the market, and their prices are more competitive.
Intimate pre-sales consulting service:
We will recommend the most suitable product model for you based on your product needs, making your purchase more worry-free.
High-quality after-sales service:
We provide you with regular inspection and maintenance services, lifetime maintenance of the machine body, and sufficient supply of spare parts to make your purchase more secure.
