| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-190H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

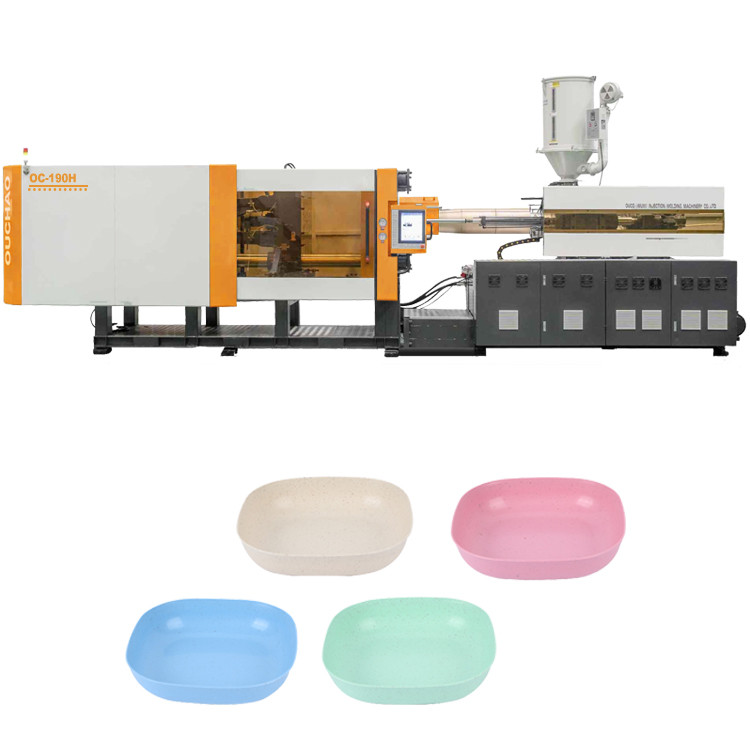

| Product Name: | OC- 190H Plastic Injection Molding Machine For Plastic Fruit Plate | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | Plastic Injection Molding Machine,OC- 190H Injection Molding Machine,Plastic Fruit Plate Injection Molding Machine |
||
OUCO(Wuxi)Injection Molding Machinery Equipment Co was established in 2021. The company covers an area of 35,000 square meters and the factory area is25,000 square meters.The company is committed to developing and manufacturing high-quality, high-performance injection molding equipment and plastic injection molding machines for the automotive parts, medical equipment, large pipes, trash cans, pallets and fruit baskets and other market sectors, and customizing high-efficiency, energy-saving and professional production solutions for customers.
Our company is an injection molding machine manufacturer. Its main products include: small plastic injection molding machines, horizontal plastic injection molding machines, injection molding machines, fully automatic plastic injection molding machines, high-speed plastic injection molding machines, servo injection molding machines, etc.
Product Advantages
Energy saving and environmental protection
Adopting servo motor and internal gear pump power system,realizing the power output mode of giving as much energy as needed,which greatly saves energy and reduces energy consumption by about 20%-80% compared with traditional power output mode.
Compared with traditional injection molding structure,high precision,less flying edge,save electricity,material,time and labor.
High efficiency and high precision
Outward turning center-locked clamping structure,clamping force utilization rate of 100%.
Adopts dual-cylinder injection technology,which provides fast response,high precision and low inertia,making it suitable for molding precision and thin-wall products.
High stability and wide applicability
The hydraulic system is supplied by the nationally famous manufacturer,adopting high-speed,oversized,and special oil circuit design and manufacture.It adopting multi-way logic control,high flow rate,low noise,and stable performance.
The electronic control unit adopting Taiwan Techmation(台湾弘讯) computer,fast response speed,high control precision,more convenient operation,multiple versions for choice,better adapt to servo system,wide applicability.
Parameters
| MODEL | OCH-190H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 45 | 50 | 55 |
| Screw L/D ratio(L/D) | 23.6 | 21.2 | 19.3 |
| Theoretical injection volume(cm³) | 369 | 455.5 | 551.2 |
| Injection volume (g) | 335.8 | 414.5 | 501.6 |
| Maximum rate for injection to air(g/s) | 115.8 | 142.9 | 173 |
| Injection pressure (M Pa) | 227.6 | 184.3 | 152.3 |
| Clamping part | |||
| Clamping force (Ton) | 1900 | ||
| Toggle stroke (mm) | 505 | ||
| Distance between tie bars(mm*mm) | 520*470 | ||
| Maximum mould height (mm) | 505 | ||
| Minimum mould height (mm) | 225 | ||
| Ejection stroke (mm) | 150 | ||
| Ejector force forward (KN) | 45.2 | ||
| Amount of die thimble (Pcs) | 1+4 | ||
| Others | |||
| Motor power (KW) | 14~22 | ||
| Heater power (kW) | 13 | ||
| Quantity of temperature-control zones | 4+1 | ||
| Boundary dimension(L*W*H) (m) | 5.2×1.3×1.9 | ||
| Sys.Pressure (Mpa) | 16 | ||

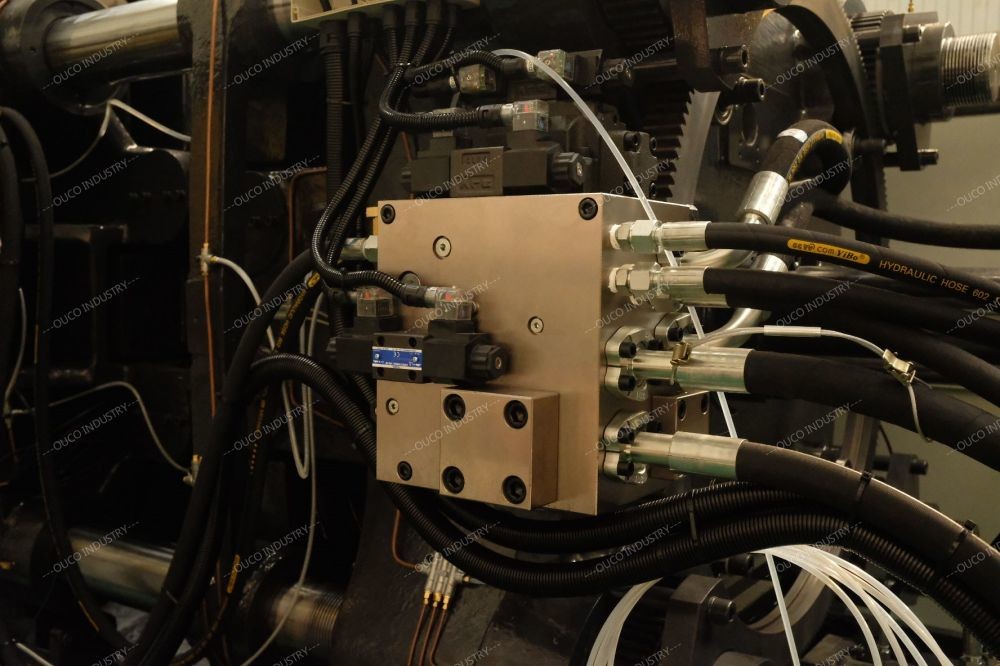

Detail Pictures
