| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-1700S III |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

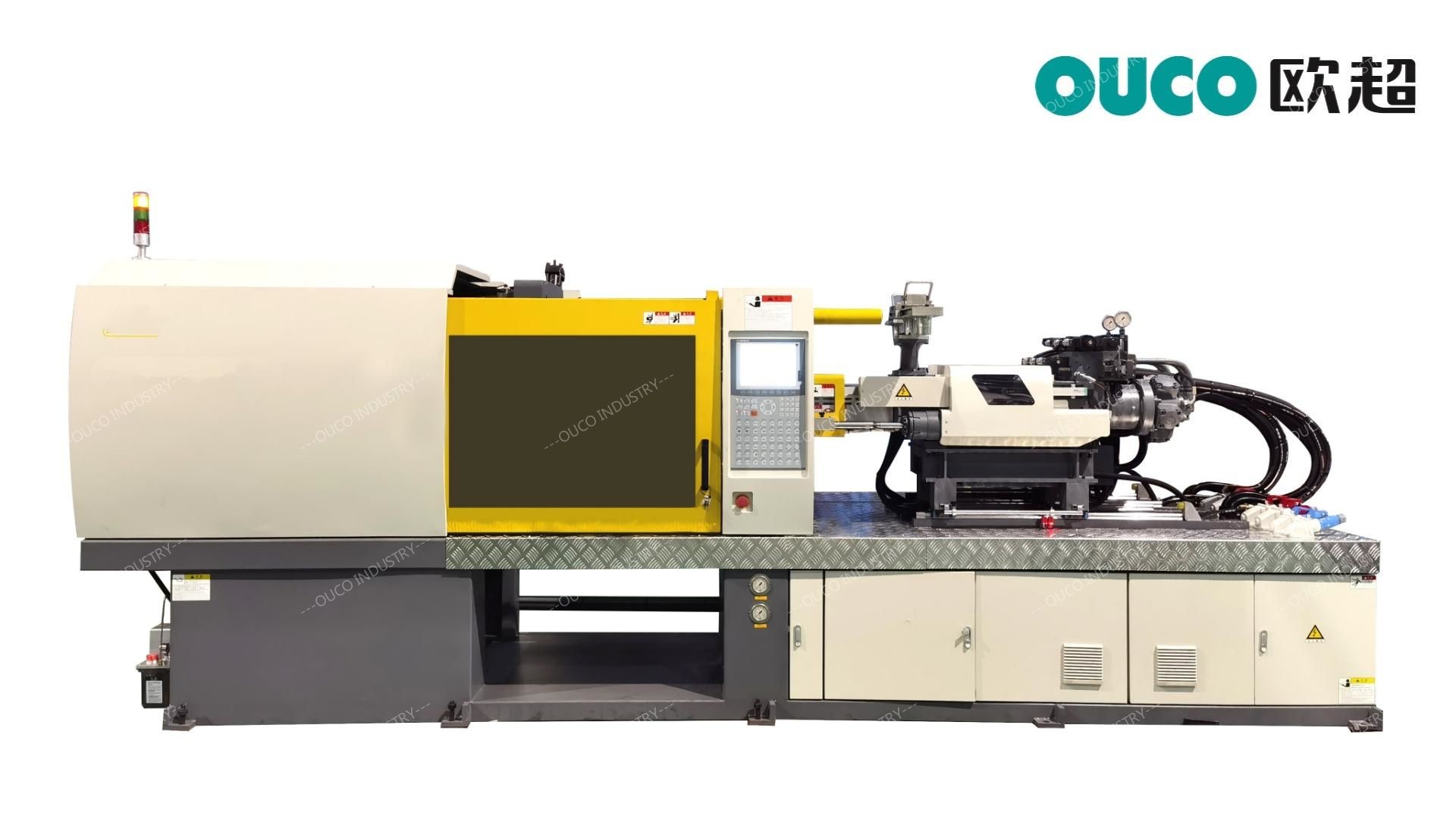

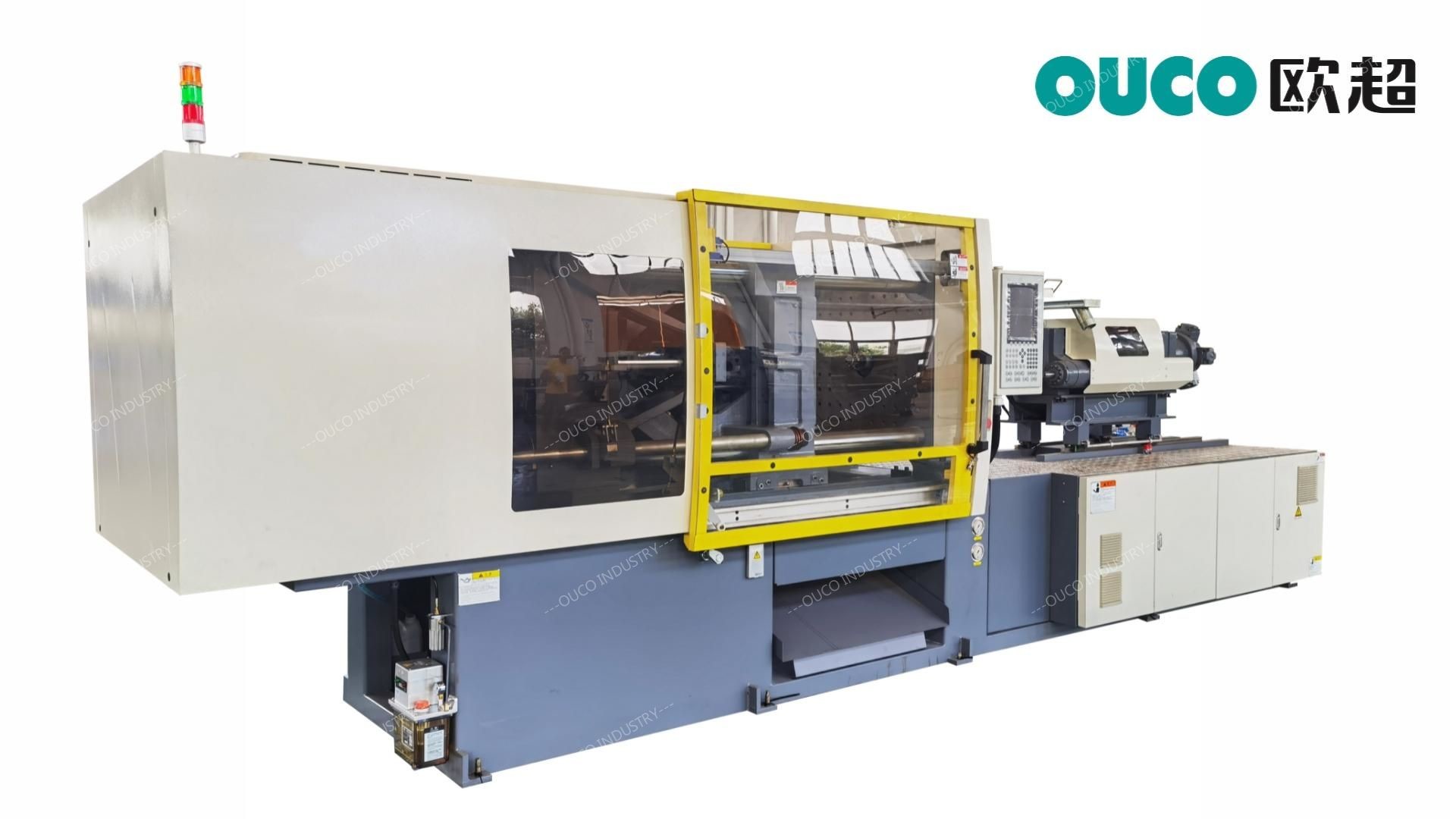

| Product Name: | Thin Wall Injection Plastic Moulding Machine High Speed 170Ton | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Injection Plastic Moulding Machine Thin Wall,170Ton Injection Plastic Moulding Machine,140mm Plastic Injection Moulding Machine |
||
The unique clamping structure disperses the pressure of the pressing plate, thereby extending its service life.
The clamping device is equipped with a high-pressure lubrication system, which can provide better protection for machines during high-speed production processes.
The special steel shell is more wear-resistant. The high rigidity bracket can make the locking structure operate more smoothly.
Parameters
| MODEL | CWI-1700S III | |||||||||
| CLAMPING UNIT | clamping force (kN) | 17000 | ||||||||
| Tie bar distance W×L (mm) | 1600*1400 | |||||||||
| Max.Daylight(mm) | 3300 | |||||||||
| Max. mold thickness (mm) | 1500 | |||||||||
| Min. mold thickness(mm) | 700 | |||||||||
| Platen Dimensions W×L (mm) | 2350*2150 | |||||||||
| Ejector Stroke(mm) | 400 | |||||||||
| Ejector Force(Kn) | 341 | |||||||||
| Ejector Quantily | 25 | |||||||||
| Injection unit | 18000I | |||||||||
| Injection Unit | Screw Diameter(mm) | 130 | 140 | 150 | ||||||
| Screw L/D ratio | 22.6 | 21 | 19.6 | |||||||
| Theoretical injection volume (cm3) | 8821 | 10231 | 11744 | |||||||
| Shot Weight (PS) g | 8027 | 9310 | 10687 | |||||||
| Injection Pressure(MPa) | 203 | 175 | 152 | |||||||
| Injection Speed (mm/s) | 74 | |||||||||
| Injection Rate (cm3/s) | 978 | 1135 | 1303 | |||||||
| Screw Speed (g/s) | 10-125 | |||||||||
| Other | Motor Power (Kw) | 100 | ||||||||
| pump capacity(L/min) | 750 | |||||||||
| Heater Power (Kw) | 50+50+50+7.5 | |||||||||
| Machine Weight (Ton) | 85 | |||||||||
| Machine size L×W×H (mm) | 13500x3900x3250 | |||||||||
