| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI360GK |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

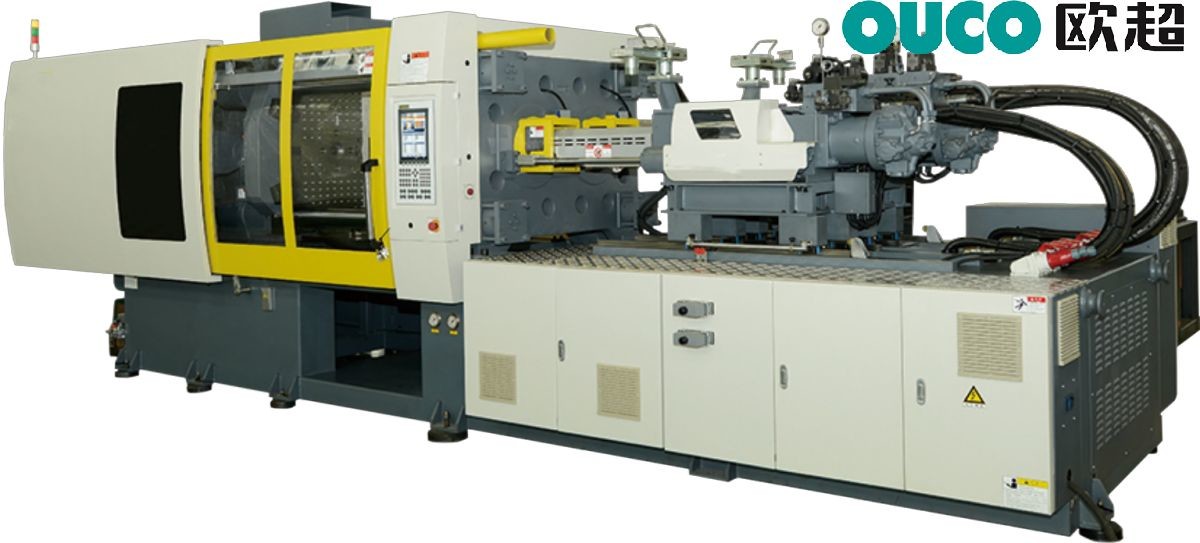

| Product Name: | Silicone Injection Molding Machine CWI-360GK High Clamping Force | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 200mm High Speed Injection Molding Machine,260mm High Speed Injection Molding Machine,SGS silicone injection molding machine |
||
Injection molding is the most cost-effective way to make a plastic part at scale. The injection molding process involves injecting molten plastic into a mold tool, then ejecting the solidified part.
This process quickly repeats hundreds or thousands of times, amortizing the cost of the mold tool and driving down the cost of each unit to a few dollars or less. Since the injection molding process uses the same mold tool for each part, it offers consistent quality across every part. Injection molding also has the highest variety of materials, colors, cosmetics, polishes, and surface textures when compared to CNC machining or even 3D printing.
Product Advantages
Advantage of the improved clamping unit and machine structure: Platen design by finite element analysis to eliminate deformation and fracture and optimise toggle locking system.
Advantage of the injection unit: The double cylinder structure on the injection unit can ensure cantering performance of the nozzle and seal betten between mould and nozzle, so no plastic leaks. Higher injection accuracy, low coefficient friction and more uniform during injection and plasticising process; easy to adjust and greatly reduce movement inertia during injection, hence improve injection speed and plasticising capacity.
Advantage of computer control unit: Our European computer control unit has high speed CPU and DSP module and it increases high control to analogue output module, back plane module, bus module etc. and has fast response.
Advantage of plasticising unit: Adopt high quality material barrel screw, plastic melting is fast, so reduces melting time. Injection nozzle and front flange connection design is inside position, result in better connection, hard to leak and can withstand high pressure and high speed injection.
Advantage of enclosed slide door: The fully enclosed slide door could effectively prevent foreign matter enter the clamping unit, and is beautiful and more secure. Mechanical safety door use brakes device or brake line, it is safe and reliable, flexible and convenient.
Advantage of the hydraulic unit: Unique hydraulic circuit design using cartridge valve plate. It has fast response time, pressure and speed control is precise, so higher product precision and repeatability.
Parameters
| MODEL | CWI-360GK | ||||
| CLAMPING UNIT | clamping force (kN) | 3600 | |||
| Tie bar distance W×L (mm) | 740*740 | ||||
| Max.Daylight(mm) | 680 | ||||
| Max. mold thickness (mm) | 720 | ||||
| Min. mold thickness(mm) | 260 | ||||
| Platen Dimensions W×L (mm) | 1090*1090 | ||||
| Ejector Stroke(mm) | 200 | ||||
| Ejector Force(Kn) | 80 | ||||
| Ejector Quantily | 13 | ||||
| Injection unit | 1100I | ||||
| Injection Unit | Screw Diameter(mm) | 55 | 60 | ||
| Screw L/D ratio | 21 | 19.3 | |||
| Theoretical injection volume (cm3) | 589 | 701 | |||
| Shot Weight (PS) g | 542 | 645 | |||
| Injection Pressure(MPa) | 191 | 160 | |||
| Injection Speed (mm/s) | 294 | ||||
| Injection Rate (cm3/s) | 698 | 831 | |||
| Screw Speed (rpm) | 300 | ||||
| Other | Motor Power (Kw) | 50+50 | |||
| pump capacity(L/min) | 500 | ||||
| Heater Power (Kw) | 15.9 | ||||
| Machine Weight (kg) | 14 | ||||
| Machine size L×W×H (mm) | 7100x2100x2175 | ||||
