| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | High Precision Control Bakelite Injection Molding Machine Used In Thermosetting Products | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | ISO9001 Bakelite Injection Molding Machine,High Precision Bakelite Injection Molding Machine,1287 grams automatic moulding machine |
||

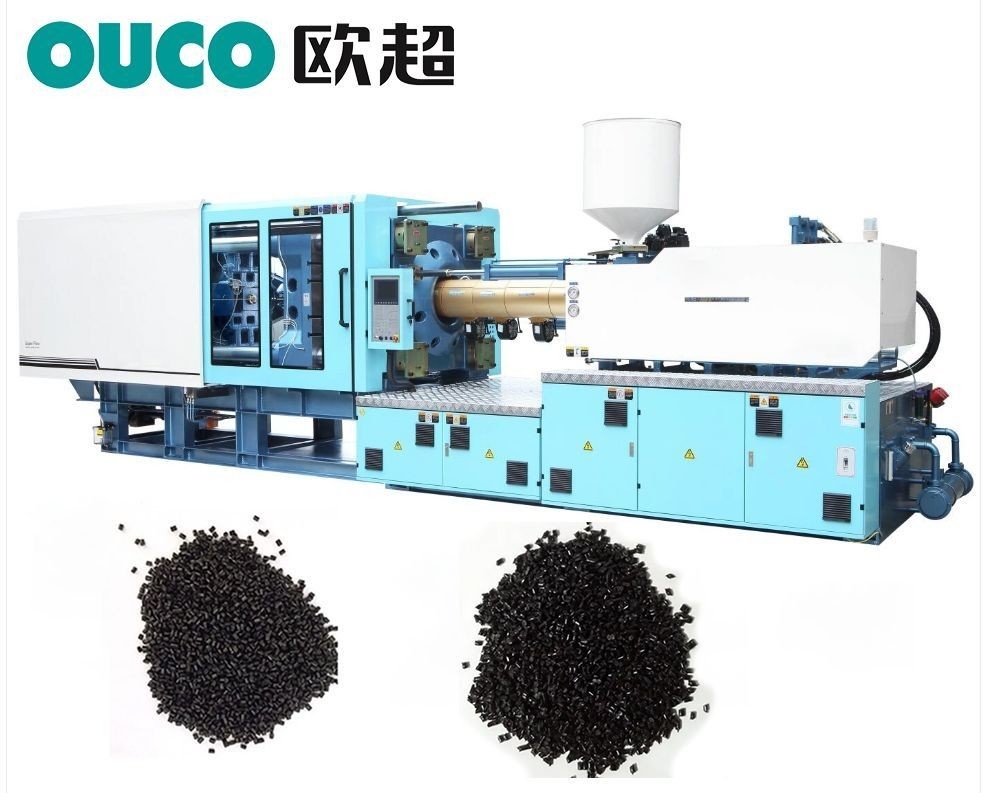

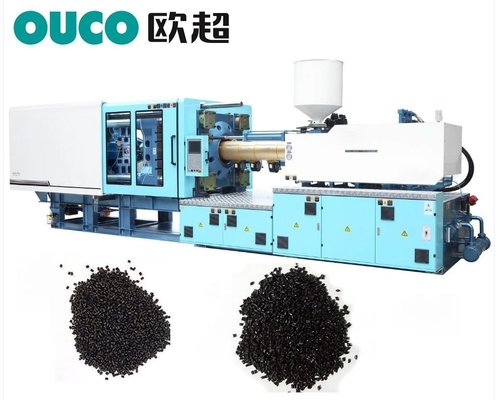

OUCO bakelite injection molding machine has high plasticizing capacity and special sol injection molding system, which can ensure that the molten plastic will not solidify in the barrel of the machine. The temperature control system of the barrel of the machine is divided into two types: electric water combination system, hot oil dual channel system. The heating device of the mold can be customized according to user needs. And the source power transmission system of the pump, fully considering the problem of long cooling time of thermosetting plastic products, can provide quantitative pump servo motor drive system and three-phase asynchronous motor drive variable pump system to save energy and provide users with a Special thermosetting injection molding solutions and create greater economic benefits for customers, such as BMC bakelite machines.
Clamping force: 50 ~ 380 tons
Injection weight (PS): 48 ~ 1287 grams.
With a lot of experience, OUCO bakelite machine has completed thermosetting plastic molding solutions. The unique screw barrel design of this series is mainly used in thermosetting products.
Our Bakelite Plastic Injection molding machine details:
1.From 80 to 420 ton clamp capacities
2.High response variable displacement pump saving 25%~50% power.
3.Excellent corrosion resistance and wear resistance with specialized material tube
4.Only apply for Bakelite plastic material.
5.Servo motor can be applied for saving electricity.
6.Two sets of mold temperature control interface, using computer high precision control.
Product Paraments
| MODEL | T90-V6/S6 | T118-V6/S6 | T120-V6/S6 | T148-V6/S6 | T188-V6/S6 | T228-V6/S6 | T268-V6/S6 | T308-V6/S6 |
| CLAMPING UNIT | ||||||||
| Clamping Force(Ton) | 90 | 90 | 120 | 128 | 160 | 200 | 250 | 288 |
| Opening Stroke(mm) | 320 | 320 | 350 | 350 | 440 | 490 | 520 | 550 |
| Max Daylight(mm) | 680 | 650 | 750 | 720 | 940 | 1040 | 1100 | 1160 |
| Platen Size(mm) | 540×540 | 540×540 | 610×610 | 610×610 | 705×705 | 775×755 | 800×760 | 850×850 |
| Bars Space(mm) | 360×360 | 360×360 | 410×410 | 410×410 | 460×460 | 510×510 | 560×490 | 610×610 |
| Max Mold Height(mm) | 319 | 319 | 359 | 359 | 459 | 509 | 539 | 569 |
| Min Mold Height(mm) | 89 | 89 | 104 | 104 | 119 | 189 | 189 | 239 |
| Ejector Stroke(mm) | 100 | 100 | 100 | 100 | 140 | 140 | 145 | 145 |
| Ejector Force(KN) | 34 | 34 | 42 | 42 | 49 | 65 | 77 | 77 |
| INJECTION UNIT | ||||||||
| Screw Diameter(mm) | 30/36 | 38/42 | 40/46 | 40/46 | 48/55 | 55/63 | 63/68 | 68/75 |
| Screw L/D | 16/16 | 16/15 | 16/16 | 16/16 | 16/15 | 16/15 | 16/15 | 16/15 |
| Injection Pressure(Mpa) | 266/185 | 233/190 | 166/125 | 166/125 | 211/161 | 202/154 | 197/169 | 208/171 |
| Shot Volume(cm³) | 113/163 | 204/249 | 226/299 | 226/299 | 443/582 | 665/873 | 966/1126 | 1198/1458 |
| Shot Weight(PS)g | 136/196 | 245/299 | 271/359 | 271/359 | 532/698 | 798/1048 | 1159/1351 | 1438/1750 |
| Shot Weight(PS)OZ | 4.8/6.9 | 8.6/10.5 | 9.6/12.7 | 9.6/12.7 | 18.8/24.6 | 28.1/37 | 40.9/47.7 | 50.7/61.7 |
| Injection Rate(g/s) | 71/102 | 98/120 | 113/150 | 113/150 | 169/221 | 252/330 | 335/390 | 354/430 |
| Injection Speed(PS)g/s | 13/19 | 20/25 | 22/30 | 22/30 | 27/36 | 38/55 | 50/64 | 50/64 |
| Screw Stroke(mm) | 160 | 180 | 180 | 180 | 245 | 280 | 310 | 330 |
| Screw Speed(rpm) | 174 | 184 | 150 | 150 | 169 | 161 | 171 | 117 |
| POWER UNIT | ||||||||
| Hydraulic Pressure(Mpa) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Pump Power(KW) | 11 | 11 | 11 | 11 | 18.5 | 22 | 30 | 37 |
| Heating Power(KW) | 6 | 6 | 7.8 | 7.8 | 9.8 | 11.5 | 13.8 | 13.8 |
| GENERAL | ||||||||
| Cycle Time(s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 | 1.8 | 2.5 | 3 |
| Oil Tank Capacity(L) | 180 | 210 | 200 | 200 | 260 | 340 | 420 | 420 |
| Machine Weight(Ton) | 2.8 | 2.8 | 3.2 | 3.2 | 4.6 | 6.2 | 7.5 | 8.2 |
| Machine Size(LxWxH)m | 3.8×1.1×1.7 | 3.8×1.1×1.7 | 4×1.2×1.8 | 4×1.2×1.8 | 4.6×1.3×1.8 | 5.3×1.4×2.1 | 5.6×1.4×2.0 | 6.1×1.53×2.2 |

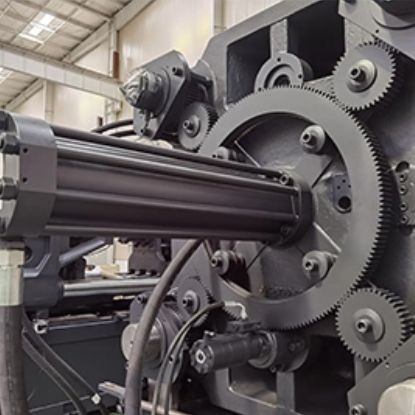

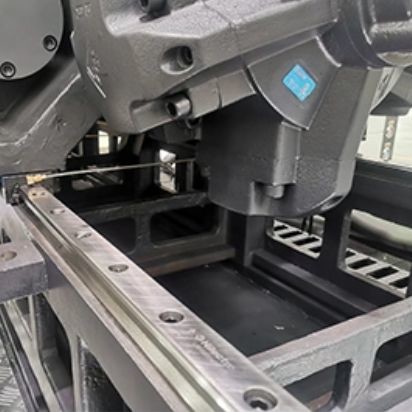

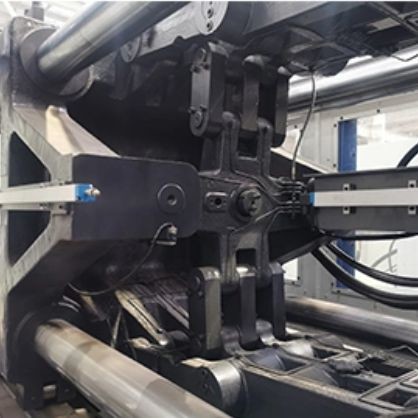

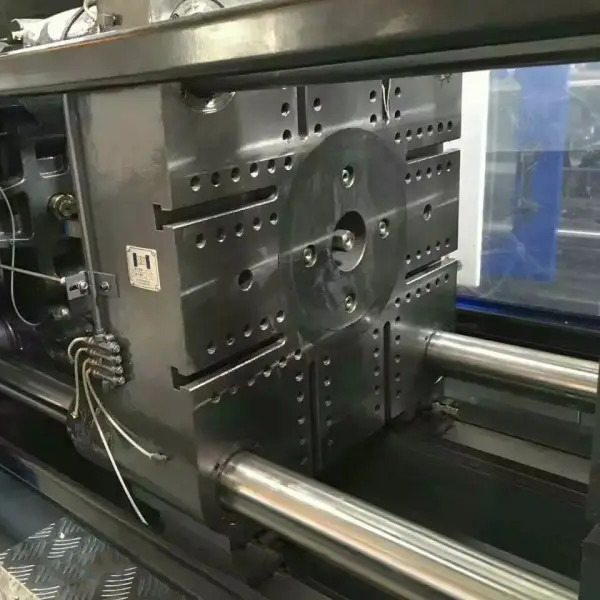

Detailed Pictures
