| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | Dual-Servo Power System PE Injection Molding Machine With First-Class Energy-Saving Standard | Plastic Processed:: | PE |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | 750mm Bakelite Injection Molding Machine,Dual Servo Bakelite Injection Molding Machine,610×610mm pp injection molding machine |
||

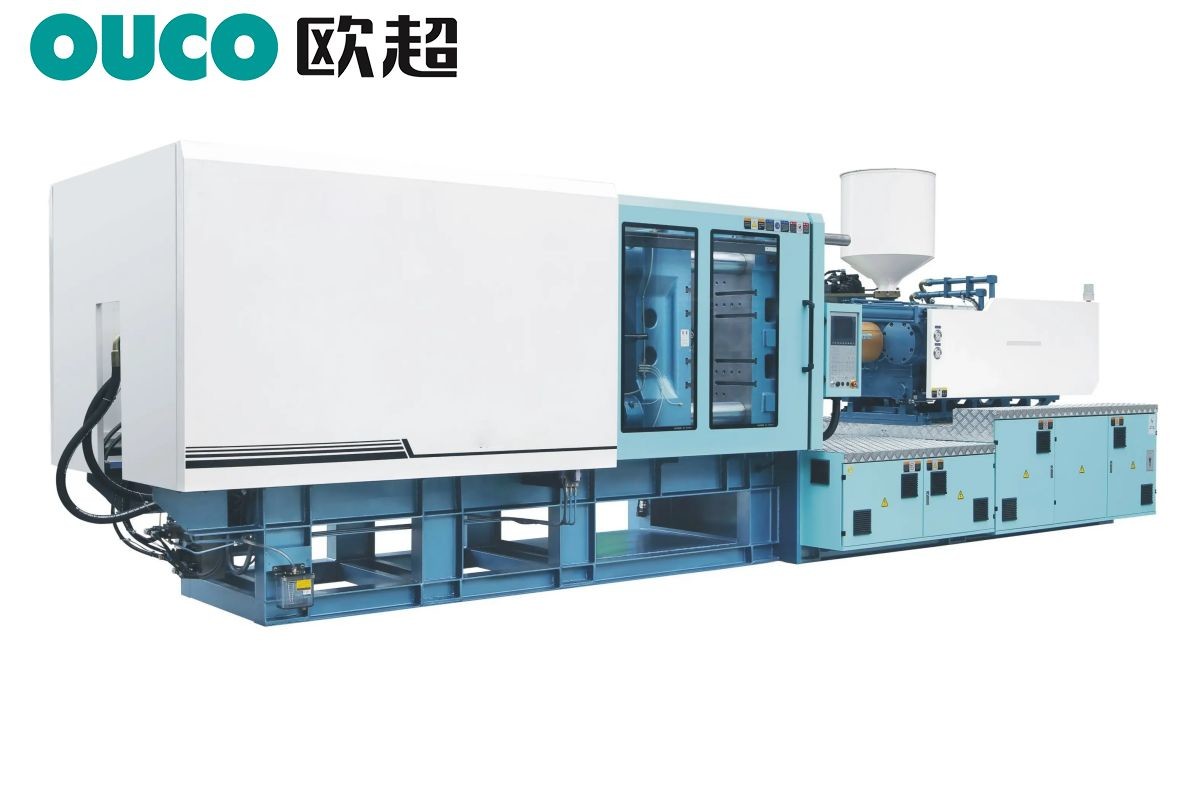

OUCO's special injection molding machine developed for fruit crates and other products. It makes our plastic crate injection molding machines perfectly match with crate molds to ensure higher production capacity and stable product quality.
The movement of the turntable is controlled by the servo motor, the rotation time can be shortened by more than 50%, the speed switching is more stable, and the positioning is more accurate.
The high-efficiency and energy-saving dual-servo power system meets the national first-class energy-saving standard. (0.40kw h/kg)
Patented turntable positioning fixture, precise positioning, to ensure the life of the mold.
Advatage Of OUCO bakelite
1.Center clamping: Minimize the deformation of the mold and template, reduce flash, save raw materials; protect the mold and prolong its life
2.High-quality heat insulation board, high pressure resistance, high temperature resistance, no deformation
3.Secondary mold opening and deflation, suitable for all kinds of thermosetting products
4.T-slot formwork, convenient for upper and lower molds
5.Techmation TECH1 series controller, the system is stable and reliable, and the action is sensitive and fast
6.Thermoplastic molding can be realized by changing the computer program and injection structure, one machine with two functions
7.Patented single-cylinder injection structure, the oil cylinder runs more smoothly, and the product molding rate is high (LK120U-200U)
8.Single shot structure, easy to clean the nozzle
Product Paraments
| MODEL | 300T | 400T | 500T | 600T | 700T | 800T | 900T | 1000T |
| CLAMPING UNIT | ||||||||
| Clamping Force(Ton) | 90 | 90 | 120 | 128 | 160 | 200 | 250 | 288 |
| Opening Stroke(mm) | 320 | 320 | 350 | 350 | 440 | 490 | 520 | 550 |
| Max Daylight(mm) | 680 | 650 | 750 | 720 | 940 | 1040 | 1100 | 1160 |
| Platen Size(mm) | 540×540 | 540×540 | 610×610 | 610×610 | 705×705 | 775×755 | 800×760 | 850×850 |
| Bars Space(mm) | 360×360 | 360×360 | 410×410 | 410×410 | 460×460 | 510×510 | 560×490 | 610×610 |
| Max Mold Height(mm) | 319 | 319 | 359 | 359 | 459 | 509 | 539 | 569 |
| Min Mold Height(mm) | 89 | 89 | 104 | 104 | 119 | 189 | 189 | 239 |
| Ejector Stroke(mm) | 100 | 100 | 100 | 100 | 140 | 140 | 145 | 145 |
| Ejector Force(KN) | 34 | 34 | 42 | 42 | 49 | 65 | 77 | 77 |
| INJECTION UNIT | ||||||||
| Screw Diameter(mm) | 30/36 | 38/42 | 40/46 | 40/46 | 48/55 | 55/63 | 63/68 | 68/75 |
| Screw L/D | 16/16 | 16/15 | 16/16 | 16/16 | 16/15 | 16/15 | 16/15 | 16/15 |
| Injection Pressure(Mpa) | 266/185 | 233/190 | 166/125 | 166/125 | 211/161 | 202/154 | 197/169 | 208/171 |
| Shot Volume(cm³) | 113/163 | 204/249 | 226/299 | 226/299 | 443/582 | 665/873 | 966/1126 | 1198/1458 |
| Shot Weight(PS)g | 136/196 | 245/299 | 271/359 | 271/359 | 532/698 | 798/1048 | 1159/1351 | 1438/1750 |
| Shot Weight(PS)OZ | 4.8/6.9 | 8.6/10.5 | 9.6/12.7 | 9.6/12.7 | 18.8/24.6 | 28.1/37 | 40.9/47.7 | 50.7/61.7 |
| Injection Rate(g/s) | 71/102 | 98/120 | 113/150 | 113/150 | 169/221 | 252/330 | 335/390 | 354/430 |
| Injection Speed(PS)g/s | 13/19 | 20/25 | 22/30 | 22/30 | 27/36 | 38/55 | 50/64 | 50/64 |
| Screw Stroke(mm) | 160 | 180 | 180 | 180 | 245 | 280 | 310 | 330 |
| Screw Speed(rpm) | 174 | 184 | 150 | 150 | 169 | 161 | 171 | 117 |
| POWER UNIT | ||||||||
| Hydraulic Pressure(Mpa) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Pump Power(KW) | 11 | 11 | 11 | 11 | 18.5 | 22 | 30 | 37 |
| Heating Power(KW) | 6 | 6 | 7.8 | 7.8 | 9.8 | 11.5 | 13.8 | 13.8 |
| GENERAL | ||||||||
| Cycle Time(s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 | 1.8 | 2.5 | 3 |
| Oil Tank Capacity(L) | 180 | 210 | 200 | 200 | 260 | 340 | 420 | 420 |
| Machine Weight(Ton) | 2.8 | 2.8 | 3.2 | 3.2 | 4.6 | 6.2 | 7.5 | 8.2 |
| Machine Size(LxWxH)m | 3.8×1.1×1.7 | 3.8×1.1×1.7 | 4×1.2×1.8 | 4×1.2×1.8 | 4.6×1.3×1.8 | 5.3×1.4×2.1 | 5.6×1.4×2.0 | 6.1×1.53×2.2 |

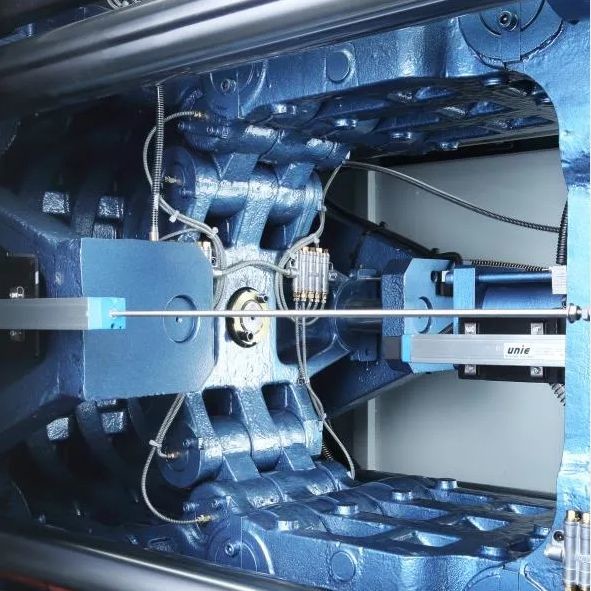

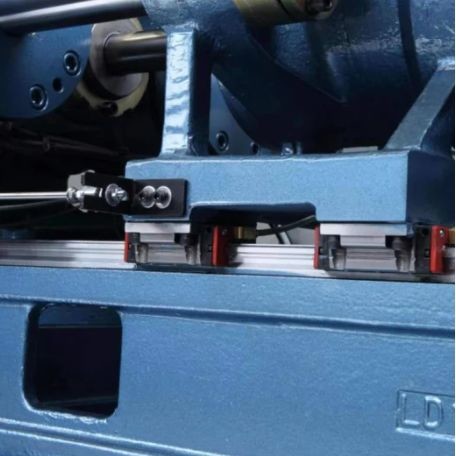

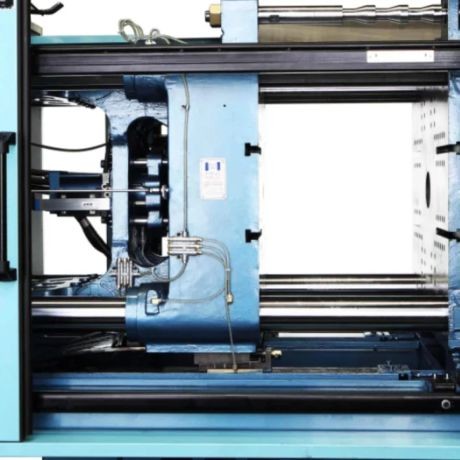

Detailed Pictures
