| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

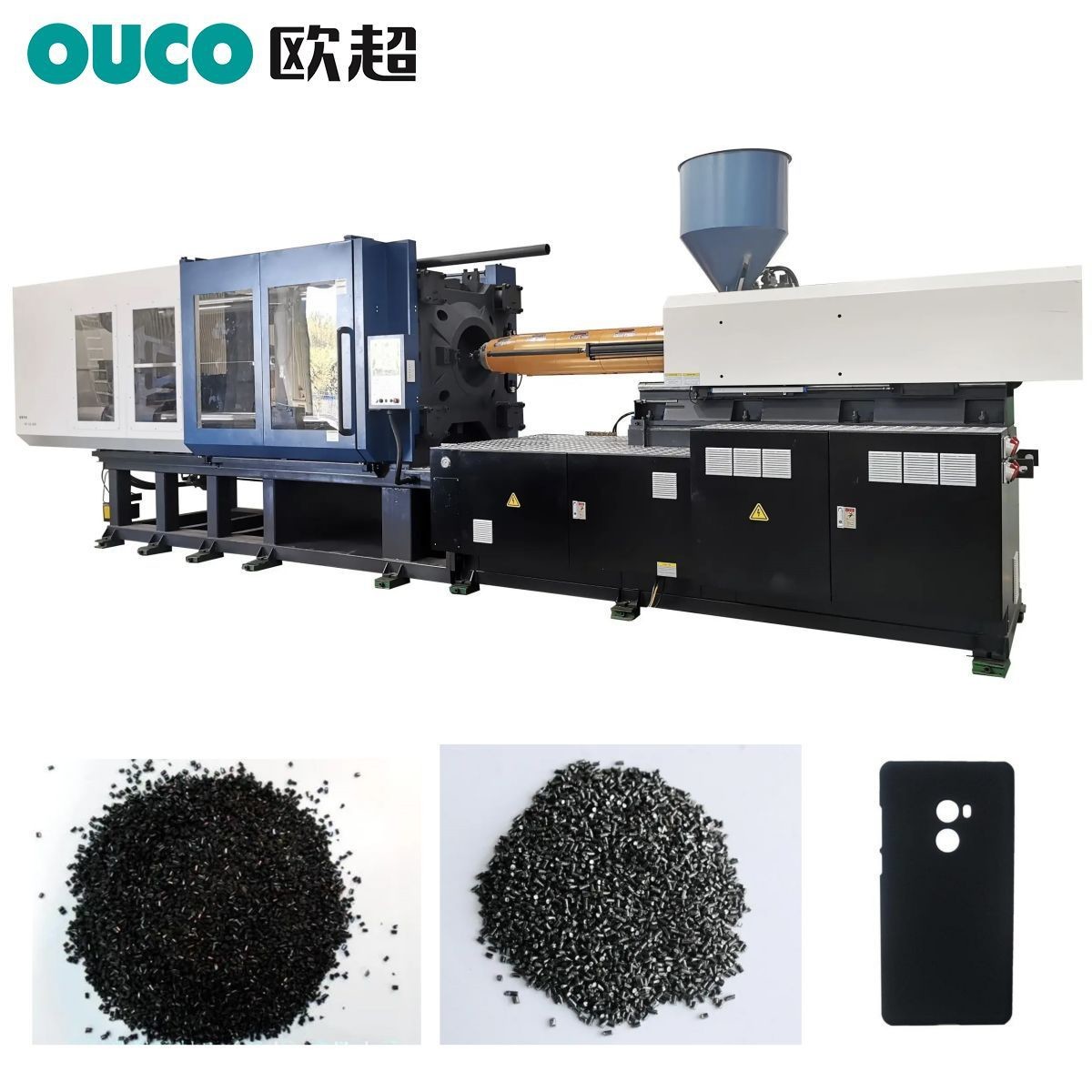

| Product Name: | High-quality Bakelite Injection Molding Machinefor Thermoset Meterial With High Pressure Resistance | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | 500ton Bakelite Injection Molding Machine,PVC Bakelite Injection Molding Machine,650mm hybrid injection molding machine |
||
OUCO's special injection molding machine developed for fruit crates and other products. It makes our plastic crate injection molding machines perfectly match with crate molds to ensure higher production capacity and stable product quality.
Advatage Of OUCO bakelite
1.Center clamping: Minimize the deformation of the mold and template, reduce flash, save raw materials; protect the mold and prolong its life
2.High-quality heat insulation board, high pressure resistance, high temperature resistance, no deformation
3.Secondary mold opening and deflation, suitable for all kinds of thermosetting products
4.T-slot formwork, convenient for upper and lower molds
5.Techmation TECH1 series controller, the system is stable and reliable, and the action is sensitive and fast
6.Thermoplastic molding can be realized by changing the computer program and injection structure, one machine with two functions
7.Patented single-cylinder injection structure, the oil cylinder runs more smoothly, and the product molding rate is high (LK120U-200U)
8.Single shot structure, easy to clean the nozzle
9.Professional barrel screw design, reasonable structure, longer life
10.Split nozzle, easy to clean, low loss, long life
11.Dual-zone mold temperature controller controls the temperature of the barrel, the temperature rises quickly, and the temperature control is accurate and stable
12.Professional servo energy-saving system is equipped as standard, suitable for thermosetting plastic molding process requirements, the machine runs with low noise, and energy saving is obvious
13.According to the different needs of customers, the power of the servo system and the oil pump system can be increased to meet the improvement of production efficiency.
Product Paraments
| MODEL | T90-V6/S6 | T118-V6/S6 | T120-V6/S6 | T148-V6/S6 | T188-V6/S6 | T228-V6/S6 | T268-V6/S6 | T308-V6/S6 |
| CLAMPING UNIT | ||||||||
| Clamping Force(Ton) | 90 | 90 | 120 | 128 | 160 | 200 | 250 | 288 |
| Opening Stroke(mm) | 320 | 320 | 350 | 350 | 440 | 490 | 520 | 550 |
| Max Daylight(mm) | 680 | 650 | 750 | 720 | 940 | 1040 | 1100 | 1160 |
| Platen Size(mm) | 540×540 | 540×540 | 610×610 | 610×610 | 705×705 | 775×755 | 800×760 | 850×850 |
| Bars Space(mm) | 360×360 | 360×360 | 410×410 | 410×410 | 460×460 | 510×510 | 560×490 | 610×610 |
| Max Mold Height(mm) | 319 | 319 | 359 | 359 | 459 | 509 | 539 | 569 |
| Min Mold Height(mm) | 89 | 89 | 104 | 104 | 119 | 189 | 189 | 239 |
| Ejector Stroke(mm) | 100 | 100 | 100 | 100 | 140 | 140 | 145 | 145 |
| Ejector Force(KN) | 34 | 34 | 42 | 42 | 49 | 65 | 77 | 77 |
| INJECTION UNIT | ||||||||
| Screw Diameter(mm) | 30/36 | 38/42 | 40/46 | 40/46 | 48/55 | 55/63 | 63/68 | 68/75 |
| Screw L/D | 16/16 | 16/15 | 16/16 | 16/16 | 16/15 | 16/15 | 16/15 | 16/15 |
| Injection Pressure(Mpa) | 266/185 | 233/190 | 166/125 | 166/125 | 211/161 | 202/154 | 197/169 | 208/171 |
| Shot Volume(cm³) | 113/163 | 204/249 | 226/299 | 226/299 | 443/582 | 665/873 | 966/1126 | 1198/1458 |
| Shot Weight(PS)g | 136/196 | 245/299 | 271/359 | 271/359 | 532/698 | 798/1048 | 1159/1351 | 1438/1750 |
| Shot Weight(PS)OZ | 4.8/6.9 | 8.6/10.5 | 9.6/12.7 | 9.6/12.7 | 18.8/24.6 | 28.1/37 | 40.9/47.7 | 50.7/61.7 |
| Injection Rate(g/s) | 71/102 | 98/120 | 113/150 | 113/150 | 169/221 | 252/330 | 335/390 | 354/430 |
| Injection Speed(PS)g/s | 13/19 | 20/25 | 22/30 | 22/30 | 27/36 | 38/55 | 50/64 | 50/64 |
| Screw Stroke(mm) | 160 | 180 | 180 | 180 | 245 | 280 | 310 | 330 |
| Screw Speed(rpm) | 174 | 184 | 150 | 150 | 169 | 161 | 171 | 117 |
| POWER UNIT | ||||||||
| Hydraulic Pressure(Mpa) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Pump Power(KW) | 11 | 11 | 11 | 11 | 18.5 | 22 | 30 | 37 |
| Heating Power(KW) | 6 | 6 | 7.8 | 7.8 | 9.8 | 11.5 | 13.8 | 13.8 |
| GENERAL | ||||||||
| Cycle Time(s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 | 1.8 | 2.5 | 3 |
| Oil Tank Capacity(L) | 180 | 210 | 200 | 200 | 260 | 340 | 420 | 420 |
| Machine Weight(Ton) | 2.8 | 2.8 | 3.2 | 3.2 | 4.6 | 6.2 | 7.5 | 8.2 |
| Machine Size(LxWxH)m | 3.8×1.1×1.7 | 3.8×1.1×1.7 | 4×1.2×1.8 | 4×1.2×1.8 | 4.6×1.3×1.8 | 5.3×1.4×2.1 | 5.6×1.4×2.0 | 6.1×1.53×2.2 |

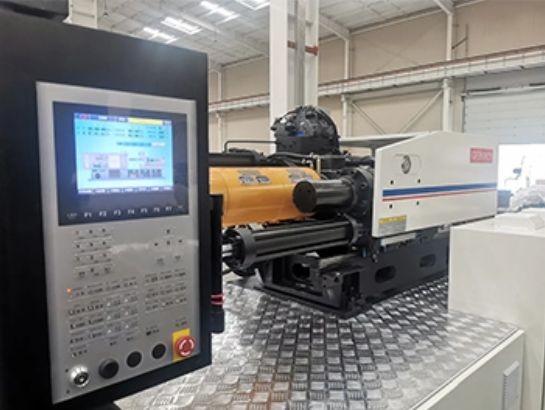

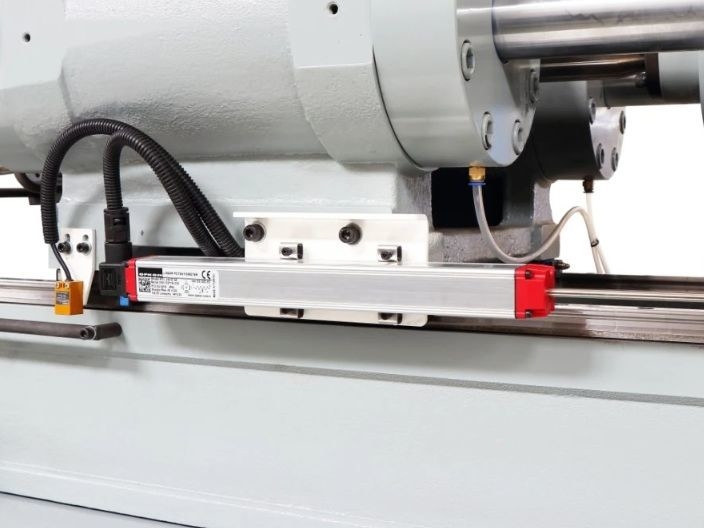

Detailed Pictures
