| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

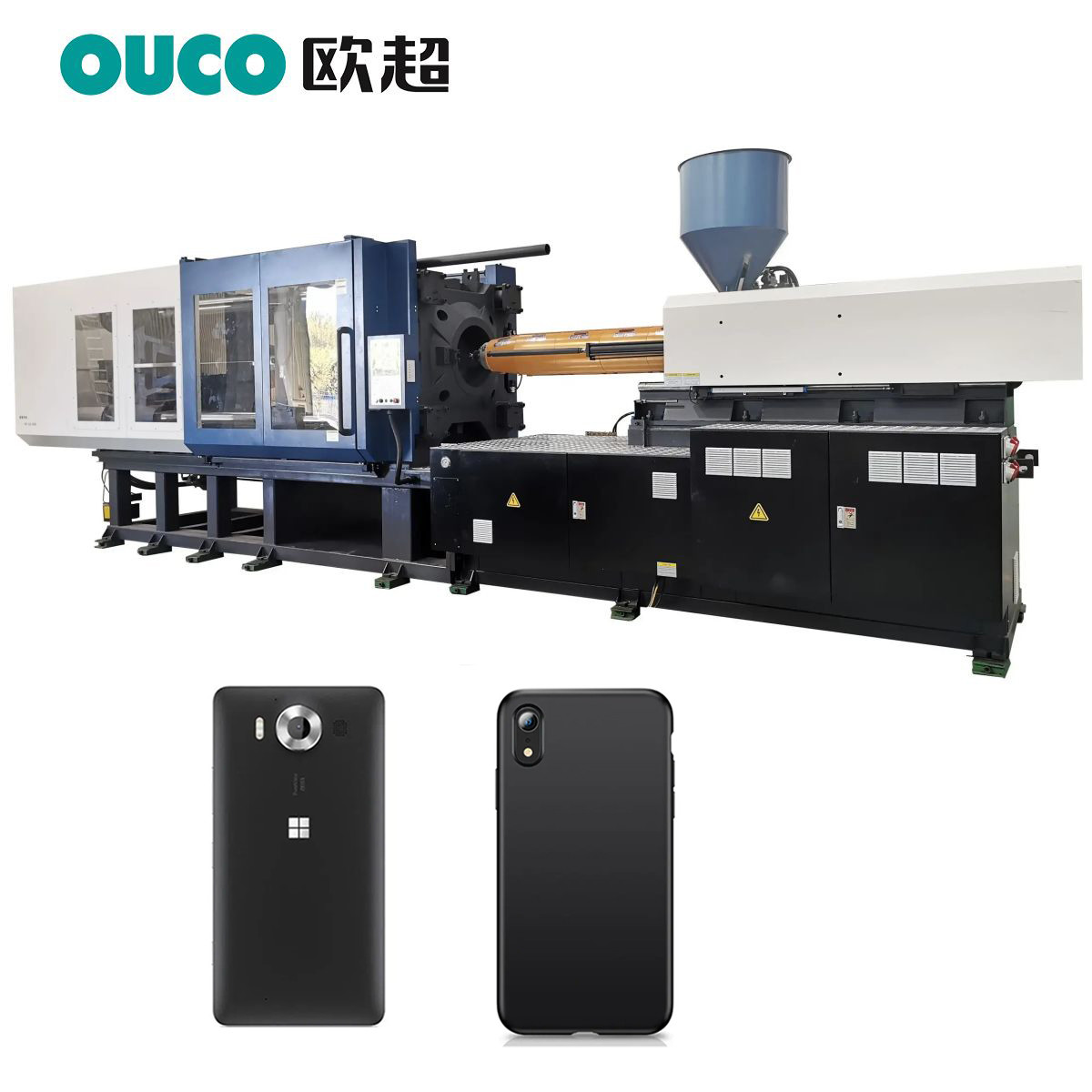

| Product Name: | Thermoset Injection Molding Machine With High Response Variable Displacement Pump For Mobile Phone Cover | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | ISO9001 Bakelite Injection Molding Machine,750mm Bakelite Injection Molding Machine,600T thermoset injection molding machine |
||
As a leading manufacturer of Thermoset injection molding machine , I'm pleased to inform you that we OUCO have been working with many companies in Europe, Asia and South America. OUCO is a factory focusing on the research and development of Thermoset injection molding machines. The injection molding machines we produce are efficient, energy-saving and intelligent equipment
Our Bakelite Plastic Injection molding machine details are:
1. From 80 to 420 ton clamp capacities
2.High response variable displacement pump saving 25%~50% power.
3.Excellent corrosion resistance and wear resistance with specialized material tube
4. Only apply for Bakelite plastic material.
5. Servo motor can be applied for saving electricity.
6.Two sets of mold temperature control interface, using computer high precision control.
Product Paraments
| MODEL | 90T | 90T | 120T | 128T | 160T | 200T | T268-V6/S6 | T308-V6/S6 |
| CLAMPING UNIT | ||||||||
| Clamping Force(Ton) | 90 | 90 | 120 | 128 | 160 | 200 | 250 | 288 |
| Opening Stroke(mm) | 320 | 320 | 350 | 350 | 440 | 490 | 520 | 550 |
| Max Daylight(mm) | 680 | 650 | 750 | 720 | 940 | 1040 | 1100 | 1160 |
| Platen Size(mm) | 540×540 | 540×540 | 610×610 | 610×610 | 705×705 | 775×755 | 800×760 | 850×850 |
| Bars Space(mm) | 360×360 | 360×360 | 410×410 | 410×410 | 460×460 | 510×510 | 560×490 | 610×610 |
| Max Mold Height(mm) | 319 | 319 | 359 | 359 | 459 | 509 | 539 | 569 |
| Min Mold Height(mm) | 89 | 89 | 104 | 104 | 119 | 189 | 189 | 239 |
| Ejector Stroke(mm) | 100 | 100 | 100 | 100 | 140 | 140 | 145 | 145 |
| Ejector Force(KN) | 34 | 34 | 42 | 42 | 49 | 65 | 77 | 77 |
| INJECTION UNIT | ||||||||
| Screw Diameter(mm) | 30/36 | 38/42 | 40/46 | 40/46 | 48/55 | 55/63 | 63/68 | 68/75 |
| Screw L/D | 16/16 | 16/15 | 16/16 | 16/16 | 16/15 | 16/15 | 16/15 | 16/15 |
| Injection Pressure(Mpa) | 266/185 | 233/190 | 166/125 | 166/125 | 211/161 | 202/154 | 197/169 | 208/171 |
| Shot Volume(cm³) | 113/163 | 204/249 | 226/299 | 226/299 | 443/582 | 665/873 | 966/1126 | 1198/1458 |
| Shot Weight(PS)g | 136/196 | 245/299 | 271/359 | 271/359 | 532/698 | 798/1048 | 1159/1351 | 1438/1750 |
| Shot Weight(PS)OZ | 4.8/6.9 | 8.6/10.5 | 9.6/12.7 | 9.6/12.7 | 18.8/24.6 | 28.1/37 | 40.9/47.7 | 50.7/61.7 |
| Injection Rate(g/s) | 71/102 | 98/120 | 113/150 | 113/150 | 169/221 | 252/330 | 335/390 | 354/430 |
| Injection Speed(PS)g/s | 13/19 | 20/25 | 22/30 | 22/30 | 27/36 | 38/55 | 50/64 | 50/64 |
| Screw Stroke(mm) | 160 | 180 | 180 | 180 | 245 | 280 | 310 | 330 |
| Screw Speed(rpm) | 174 | 184 | 150 | 150 | 169 | 161 | 171 | 117 |
| POWER UNIT | ||||||||
| Hydraulic Pressure(Mpa) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Pump Power(KW) | 11 | 11 | 11 | 11 | 18.5 | 22 | 30 | 37 |
| Heating Power(KW) | 6 | 6 | 7.8 | 7.8 | 9.8 | 11.5 | 13.8 | 13.8 |
| GENERAL | ||||||||
| Cycle Time(s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 | 1.8 | 2.5 | 3 |
| Oil Tank Capacity(L) | 180 | 210 | 200 | 200 | 260 | 340 | 420 | 420 |
| Machine Weight(Ton) | 2.8 | 2.8 | 3.2 | 3.2 | 4.6 | 6.2 | 7.5 | 8.2 |
| Machine Size(LxWxH)m | 3.8×1.1×1.7 | 3.8×1.1×1.7 | 4×1.2×1.8 | 4×1.2×1.8 | 4.6×1.3×1.8 | 5.3×1.4×2.1 | 5.6×1.4×2.0 | 6.1×1.53×2.2 |

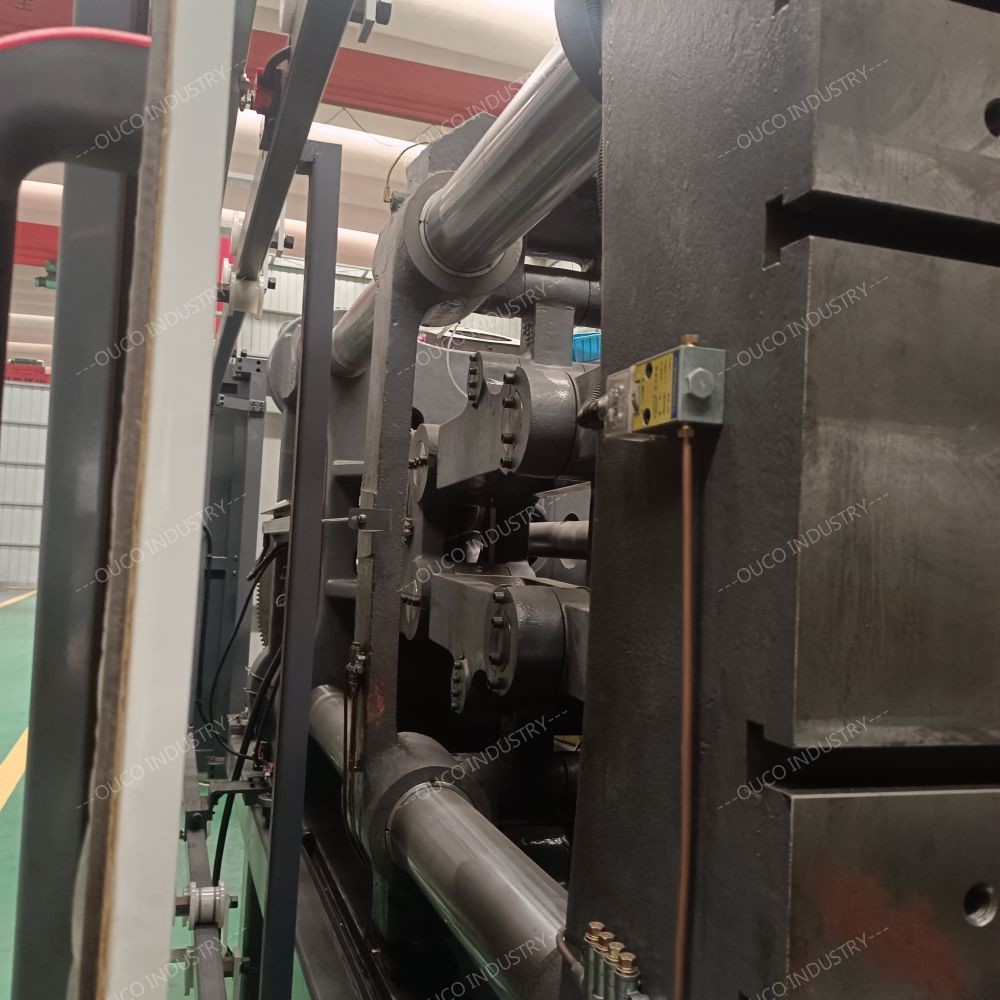

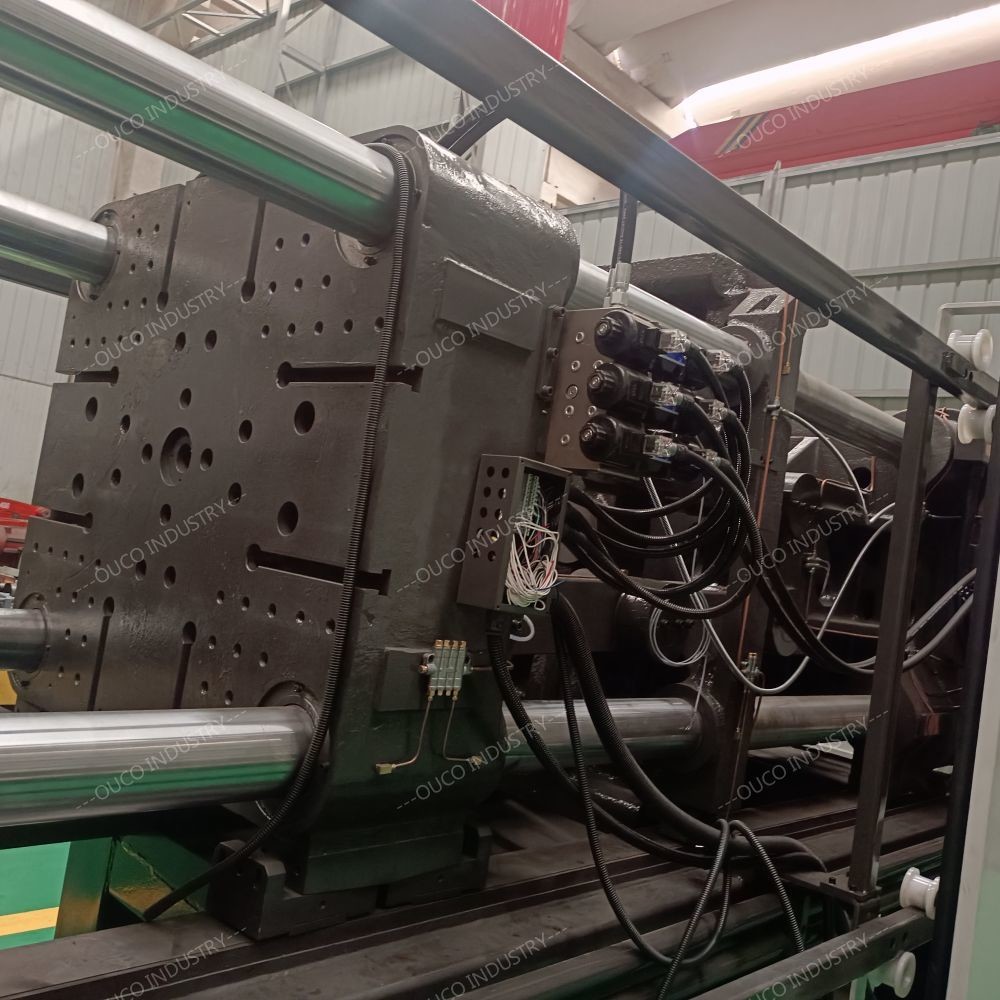

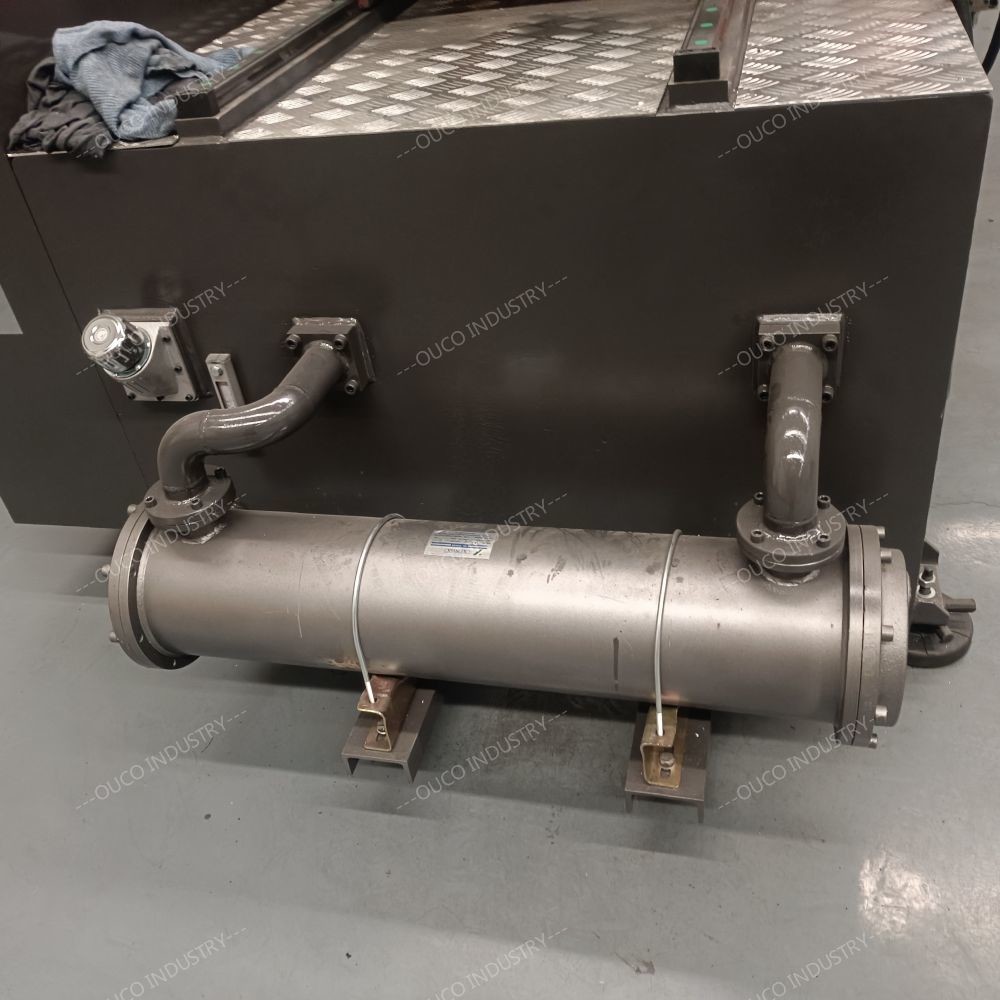

Detailed Pictures
