| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-150GF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

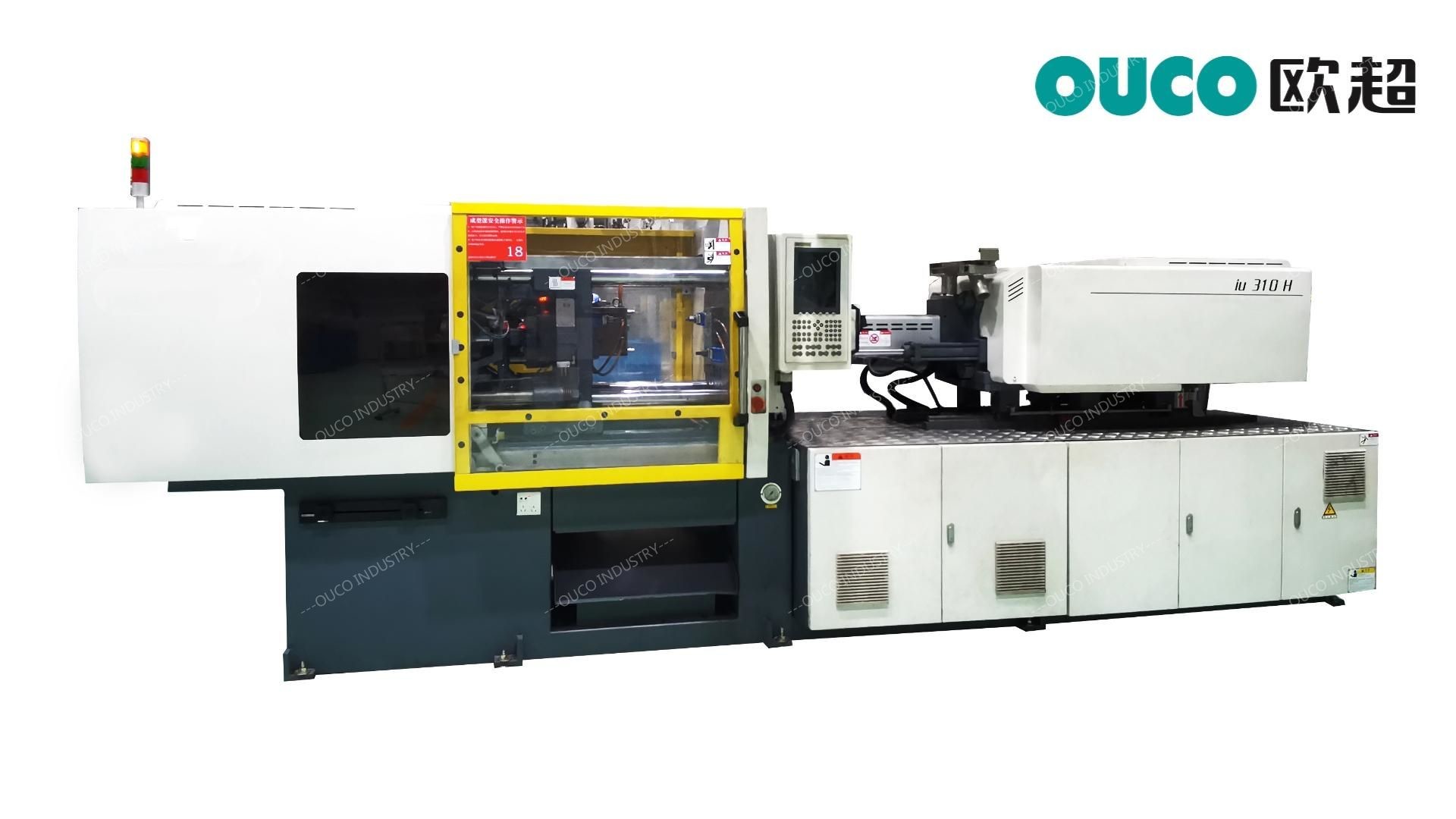

| Product Name: | High Speed Injection Molding Machine With Easy Maintenance And No Oil Leakage CWI-150GF | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
Product Advantages
Variable pump control technology provides more power savings.
Self-closed suction oil filter is convenient for dismantling and maintenance.
Back oil filter can cleanse the hydraulic oil circularly so that prolonging the life.
Reliable oil seal technology eliminates oil leaking and makes the maintenance convenient.
Parameters
| MODEL | CWI-150GF | |||||
| CLAMPING UNIT | clamping force (kN) | 1500 | ||||
| Tie bar distance W×L (mm) | 470*470 | |||||
| Max.Daylight(mm) | 450 | |||||
| Max. mold thickness (mm) | 520 | |||||
| Min. mold thickness(mm) | 170 | |||||
| Platen Dimensions W×L (mm) | 680*680 | |||||
| Ejector Stroke(mm) | 140 | |||||
| Ejector Force(Kn) | 53 | |||||
| Ejector Quantily | 5 | |||||
| Injection unit | 310I | 420I | ||||
| Injection Unit | Screw Diameter(mm) | 32 | 35 | 35 | 40 | |
| Screw L/D ratio | 23 | 21 | 24 | 21 | ||
| Theoretical injection volume (cm3) | 117 | 140 | 163 | 214 | ||
| Shot Weight (PS) g | 108 | 129 | 150 | 196 | ||
| Injection Pressure(MPa) | 244 | 204 | 256 | 196 | ||
| Injection Speed (mm/s) | 239 | 191 | ||||
| Injection Rate (cm3/s) | 192 | 230 | 230 | 300 | ||
| Screw Speed (rpm) | 400 | 400 | ||||
| Other | Motor Power (Kw) | 34 | ||||
| pump capacity(L/min) | 176 | |||||
| Heater Power (Kw) | 7.11 | 8.91 | ||||
| Machine Weight (kg) | 5.2 | |||||
| Machine size L×W×H (mm) | 5095x1500x1745 | |||||
