| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-520T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC-520T High Clamping Force Plastic Crate Making Injection Molding Machine For Turnover Box | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |

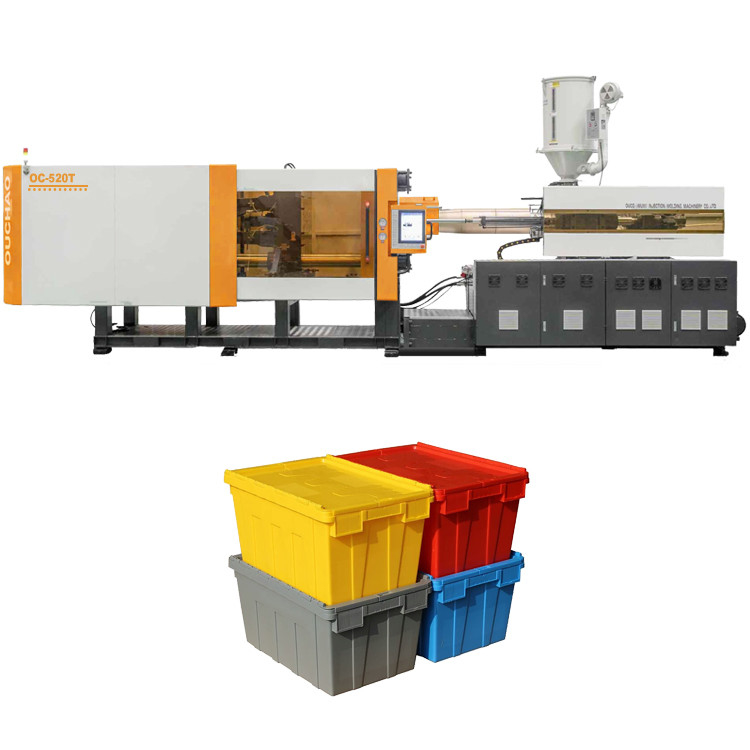

OC-520T High Clamping Force Plastic Crate Making Injection Molding Machine For Turnover Box
About us
OUCO INJECTION MOLDING MACHINERY is located in Wuxi City, near Shanghai ,China.As the professional manufacturer, by several years of rich experience, the professionalism of excellence, advanced management concept scientific development research, strict quality management and excellent customer service, OUCO is the confidence and guarantee of your career. Through reasonable technical research and sound production process control security system.OUCO strictly controls every link, tries its best to provide cost-effective injection molding machine to clients under the quality aim of pursuing quality zero defect.And also provide customers with efficient, energy-saving, professional production solutions.
Features and Advantages of Plastic Crate Making Machine OC-520T
1)Long mold opening stroke, adopts central mold clamping structure.
2)Simple structure in linear type ,easy for installation and maintenance.
3)Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4)High pressure double crank to control the die opening and closing.
We can customize deep cavity products injection molding machines for customers according to the characteristics of each customer, and provide overall solutions,We can solve the problem for you at different injection molding industry.
1. High productivity: The OC-520T plastic injection molding machine has high productivity and can efficiently produce a variety of plastic products.The injection molding speed is fast, the clamping force is large, and the product has less flash and burrs.High production efficiency and reduced cost input.
2. Flexibility: With a larger mold opening stroke is suitable for deep cavity product production,such as plastic crate,box,trash bin,bucket,etc.It can realize the diversification of production.One machine can be used for multiple purposes. One machine can be used for multiple molds, which improves the flexibility and diversity of production.
3. Applicable industries: This plastic injection molding machine is an ideal choice for manufacturing plants, providing a flexible and efficient solution for producing plastic products.
4. Main selling points: With features such as 520 tons clamping force and a theoretical injection volume of 2841cm3 and 3148cm3, the machine is designed to meet the needs of various production environments.
5.High cost performance: Our injection molding machines provide highly competitive prices while ensuring high quality and stable performance, helping you achieve higher output with lower investment.
Parameters
| MODEL | OCH-520T | |
| Screw Model | A | B |
| Screw diameter(mm) | 95 | 100 |
| Screw L/D ratio | 19 | 18 |
| Theoretical injection volume (cm3) | 2941 | 3259 |
| Shot weight (PS) g | 2481 | 3148 |
| Injection rate (g/s) | 856 | 948 |
| Injection pressure(M Pa) | 113 | 102 |
| Injection stroke(mm) | 415 | |
| Screw Speed(r/min) | 0-200 | |
| Sys.Pressure(M pa) | 16 | |
| Pump Motor(KW) | 75 | |
| Clamping force (KN) | 5200 | |
| Heater power(W) | 35 | |
| Number of temp.control zones | 5+1 | |
| Opening stroke (mm) | 900 | |
| Ejector stroke(mm) | 190 | |
| Ejector force forward(KN) | 80 | |
| Space between tie bar (mm*mm) | 820*780 | |
| Max. mold thickness (mm) | 760 | |
| Min. mold thickness(mm) | 300 | |
| Pump Motor (KW) | 75 | |
| Heater power (Kw) | 35 | |
| Number of ejector bar(PC) | 1+12 | |
| Oil tank capacity(L) | 680 | |
| Machine size L×W×H (m*m*m) | 8.6*2.1*2.2 | |
How to ask the machine price?
Our machine has different model size to make different products.
1. If you know the machine model you need, you tell us the machine model, we can give price directly.
2. If you don't know the machine model, Please tell us what product you want to make, we can choose the machine according to your products weight and size.

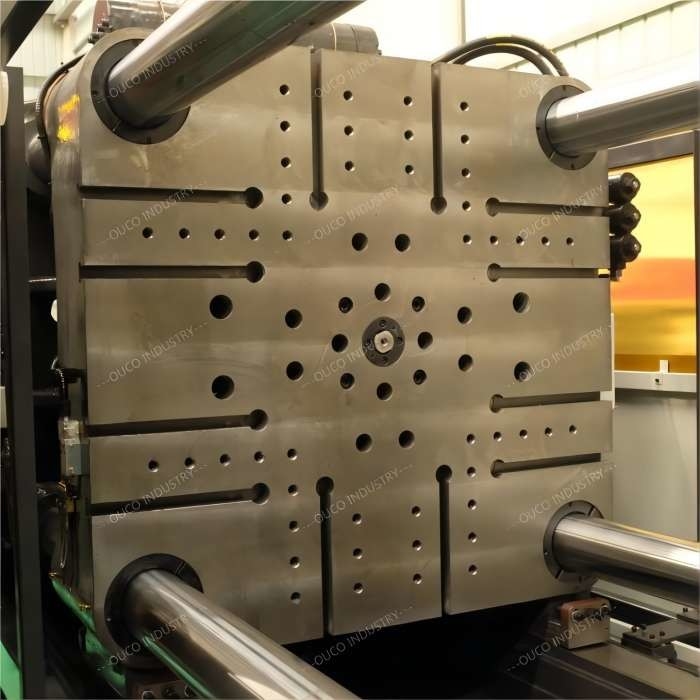

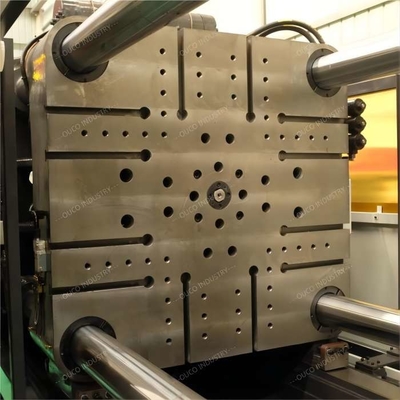

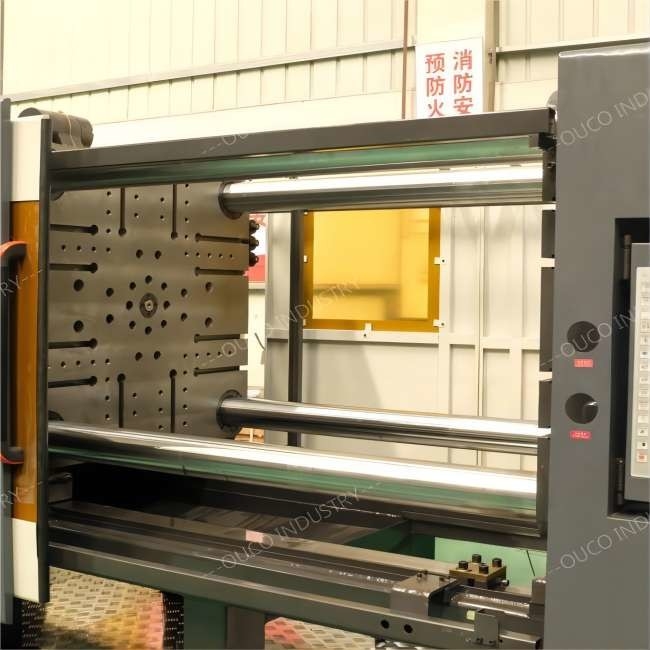

Detail Pictures
