| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-O470T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 470 T Optimized Edition Injection Molding Machine For Crate/Painting Bucket | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | 470Ton Bucket Injection Molding Machine,95mm bucket injection molding machine,55KW automatic moulding machine |
||
Product Details and Optimized functions:

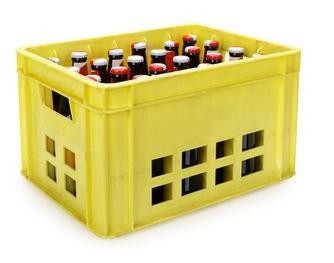

1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s; Spray paint bucket (780-800g) cycle time 20s.
2. Specially designed screw and barrel structure for faster plastic cization and shorter loading cycle.
Optional bimetallic screw and barrel to be compatible with the recycled material of the box.
3. Optional automation equipment is available to improve production efficiency.
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 95 |
| SCREW L/D RATIO | L/D | 19 | |
| INJECTION CAPACITY IN THEORY | cm3 | 2622 | |
| INJECTION WEIGHT(PS) | g | 2386 | |
| INJECTION PRESSURE | MPa | 133 | |
| INJECTION RATE | g/s | 636 | |
| PLASTICIZING CAPACITY | g/s | 95 | |
| SCREW SPEED | rpm | 154 | |
| CLAMPING UNIT | CLAMPING FORCE | KN | 4700 |
| MOVING MOULD-PLATE STROKE | mm | 780 | |
| MAX. MOULD HEIGHT | mm | 820 | |
| MIN. MOULD HEIGHT | mm | 300 | |
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 820x770 | |
| HYDRAULIC EJECTOR FORCE | mm | 125 | |
| HYDRAULIC EJECTOR STROKE | KN | 200 | |
| EJECTOR NUMBER | n | 13 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR /DRIVING POWER | KW | 55 | |
| HEATING CAPACITY | KW | 27 | |
| MACHINE DIMENSION (L×W×H) | m | 8.54*1.99*2.43 | |
| MACHINE WEIGHT | t | 16.9 | |
| OIL TANK CAPACITY | L | 960 | |

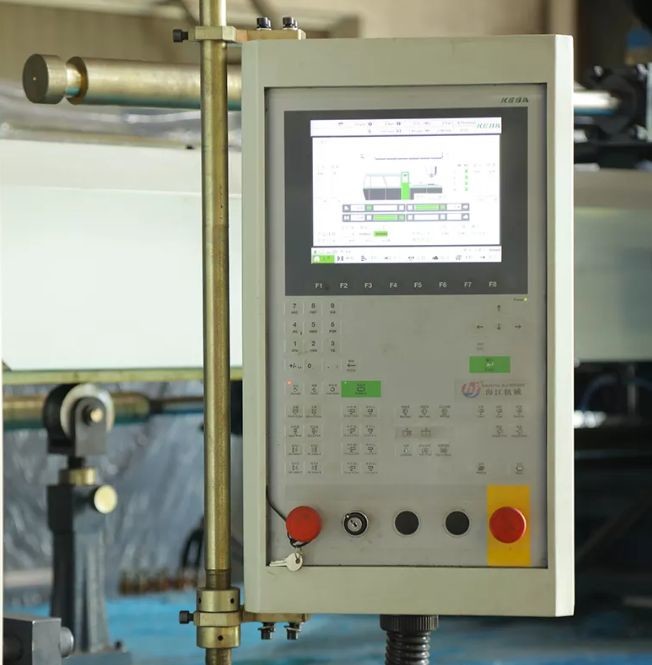

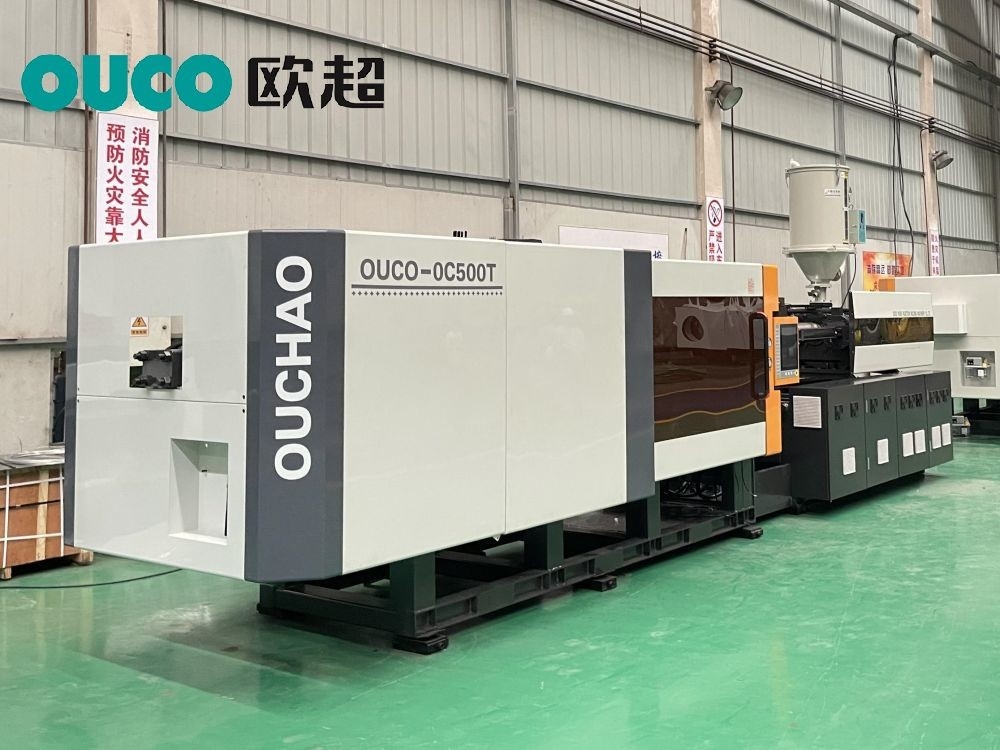

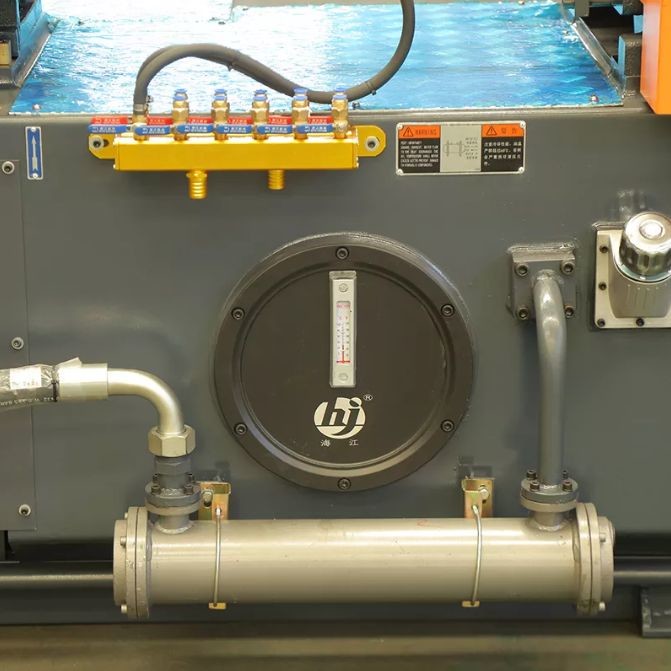

Detail Pictures
