| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC-550H Long Toggle Stroke Injection Molding Machine For Plastic Cosmetic Storage Box | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | OC-550H Injection Molding Machine,Long Toggle Stroke Injection Molding Machine,Cosmetic Storage Box injection molding machine |
||

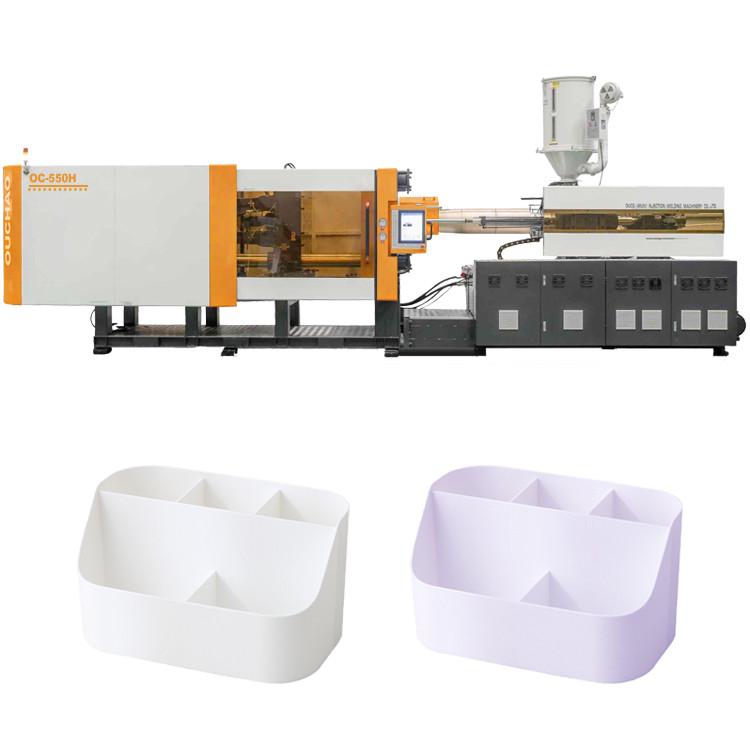

OC-550H Long Toggle Stroke Injection Molding Machine For Plastic Cosmetic Storage Box
Why Choose Us
1.As a professional injection molding machine and mold manufacturer, excellent quality, honest management.
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
Features of the OC-550H
Bigger space between tie-bars
It can accommodate larger molds and products and is suitable for the production of large products or those requiring multi-cavity molds.Improve production adaptability and flexibility.
Outward turning center-locked clamping structure
It can provide greater clamping force, reduce defective products, and make the template force uniform, protect the template, and extend the service life of the template.
High precision, Stable and super long life
integral guide rod support, double-cylinder balanced injection device, so that the screw is evenly balanced during the advancement of the injection, linear advancement.
Better price
Our machines have better price advantages compared with similar products on the market.
CE Certified
Our Injection Molding Machine is CE certified, guaranteeing compliance with safety and quality standards.
Customized Configurations
Our injection molding machines are available in different clamping force is from 110 tons to 2200 tons, allowing you to choose the perfect meet your specific manufacturing needs.
Machine application scene
Our machines can be used for a variety of product types. The products produced are determined by the mold. If you are engaged in the production of fruit baskets, trash cans, storage boxes, chairs, stools, cabinets and other plastic products, you can choose our machines.
Parameters
| MODEL | OC-550H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 80 | 85 | 90 |
| Screw L/D ratio(L/D) | 23.3 | 22 | 21 |
| Theoretical injection volume(cm³) | 2060 | 2326 | 2608 |
| Injection volume (g) | 1991 | 2247 | 2519 |
| Maximum rate for injection to air(g/s) | 646 | 729 | 817 |
| Injection pressure (M Pa) | 150 | 133 | 119 |
| Clamping part | |||
| Clamping force (Ton) | 5500 | ||
| Toggle stroke (mm) | 1010 | ||
| Distance between tie bars(mm*mm) | 860*800 | ||
| Maximum mould height (mm) | 800 | ||
| Minimum mould height (mm) | 300 | ||
| Ejection stroke (mm) | 210 | ||
| Ejector force forward (KN) | 103 | ||
| Amount of die thimble (Pcs) | 1+12 | ||
| Others | |||
| Motor power (kW) | 55～65 | ||
| Heater power (kW) | 41 | ||
| Quantity of temperature-control zones | 5+1 | ||
| Boundary dimension(L*W*H) (m) | 8.7x2.0x2.1 | ||
| Sys.Pressure (Mpa) | 16 | ||

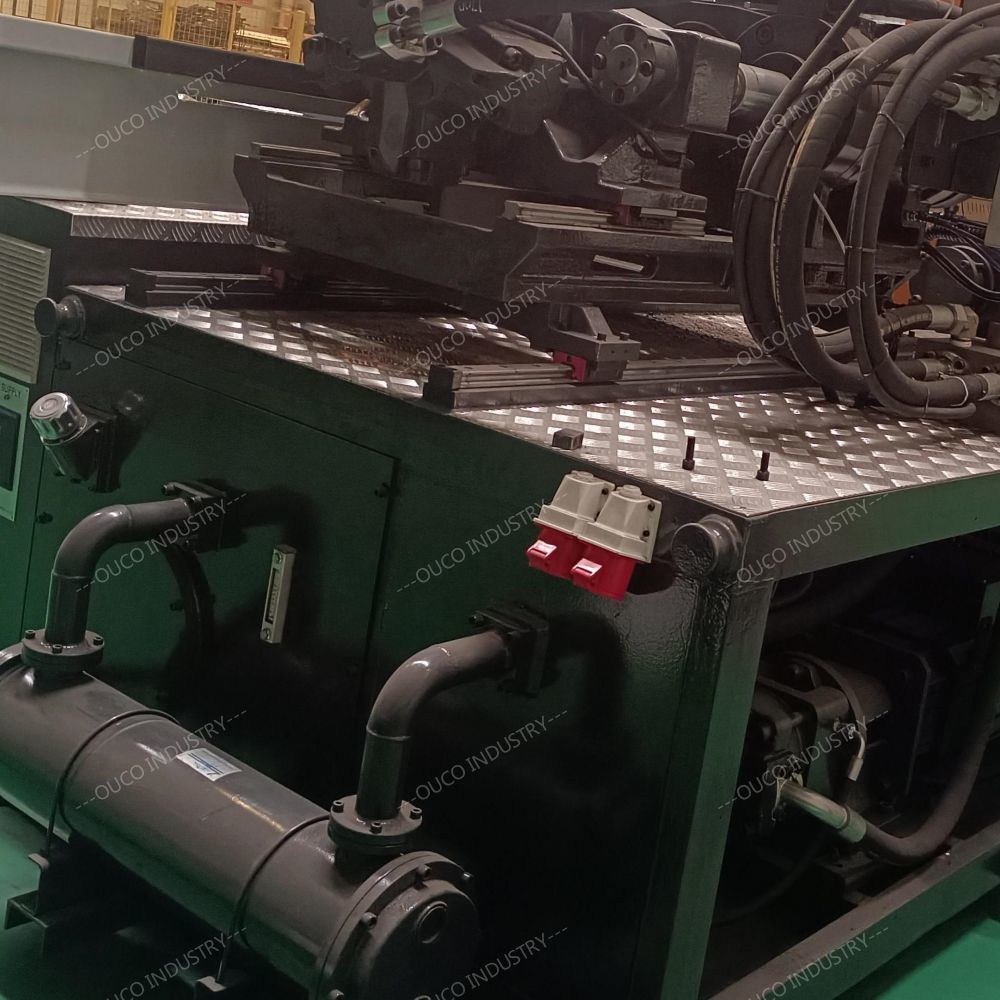

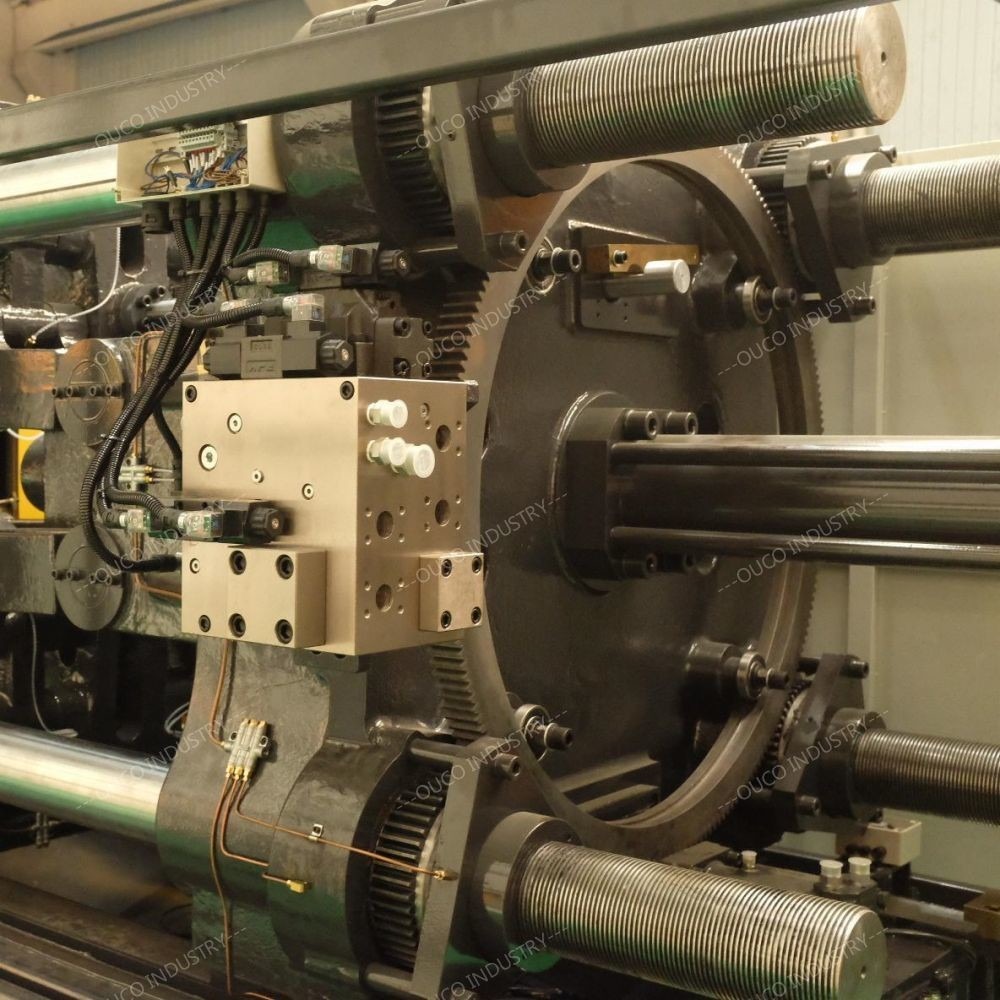

Detail Pictures
