| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-500T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

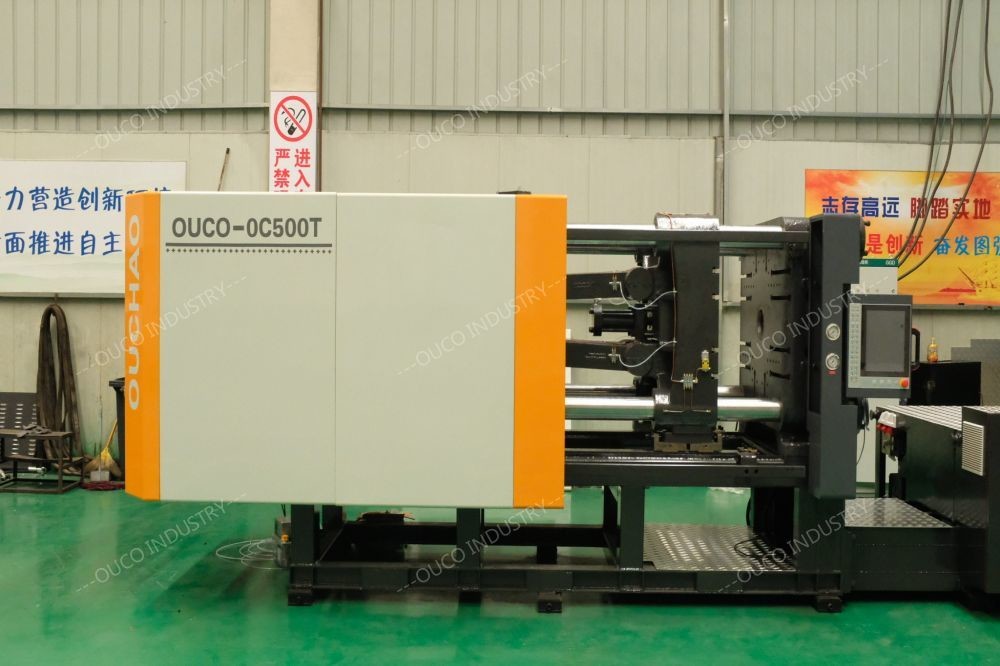

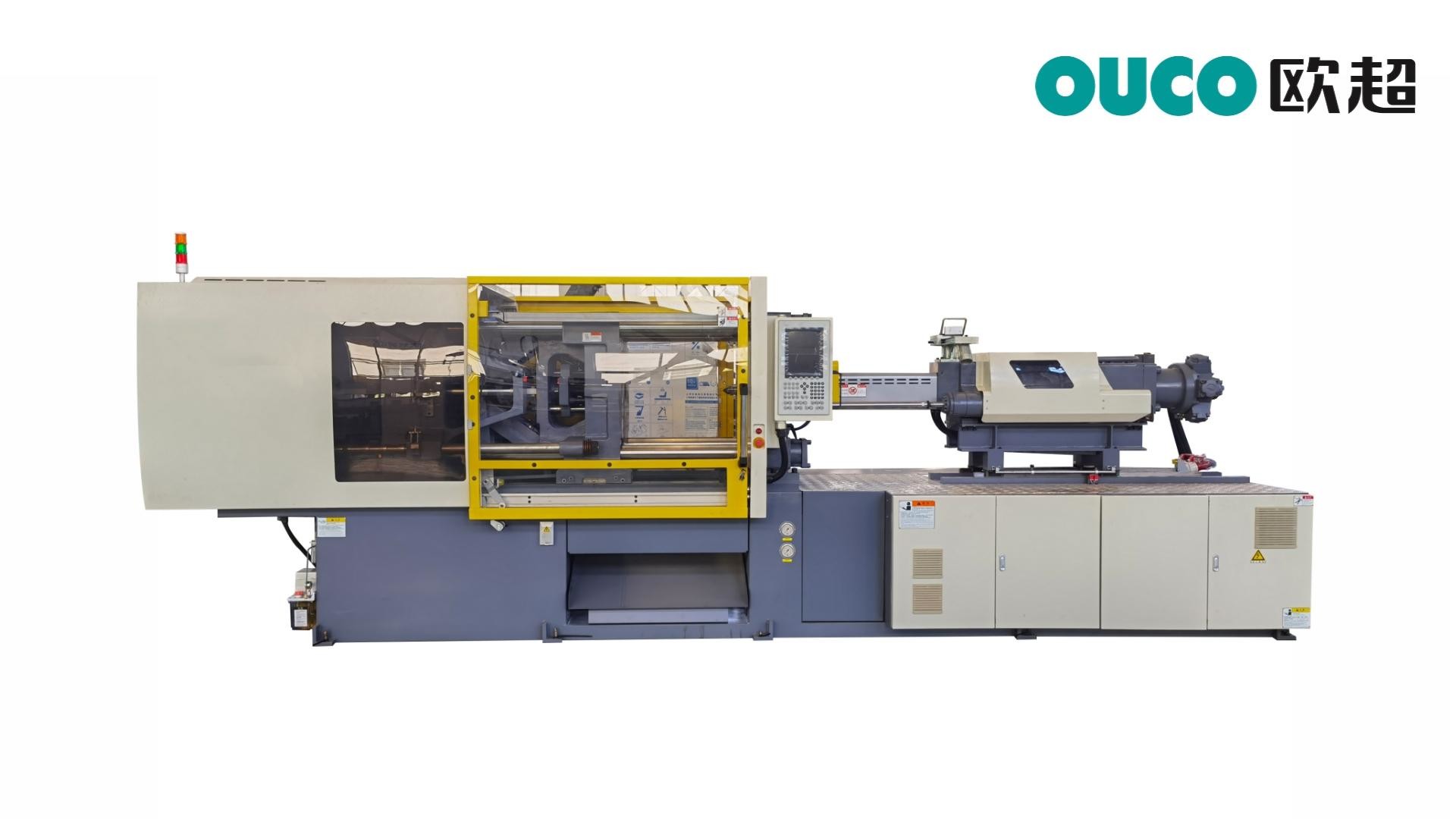

| Product Name: | Toggled Injection Molding Machine Clamping Force 500 Ton | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 500Ton High Precision Injection Molding Machine,75mm High Precision Injection Molding Machine,204 MPa Toggled Injection Molding Machine |
||
Why choose Ouco injection molding machine ?
A: Unique Quality .Parts is provided by well-known manufacturers, such as Schneider ,Siemens.
B: Competitive price.Equipment for the same purpose, our price is lower.
C: Outstanding Service . 8+8+8 service system, both after-sales and sales are proficient in injection molding machines.
The energy saving of the injection molding machine can be divided into two parts: one is the power part and the other is the heating part.
Energy saving in the power part: most of them use frequency converters. The energy saving method is to save the excess energy consumption of the motor. For example, the actual power of the motor is 50Hz, and you actually only need 30Hz in production. Wasted, the frequency converter is to change the power output of the motor to achieve the effect of energy saving.
Energy saving in the heating part: Most of the energy saving in the heating part is the use of electromagnetic heaters to save energy, and the energy saving rate is about 30%-70% of the old-fashioned resistance coil.
.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
All our deep cavity injection molding machine are equipped with double servo motor power,it control adopts the latest confluence technology
Our company's lubrication system uses copper pipes for fixed pipes and soft copper pipes for moving parts, which can increase the service life of copper pipes.

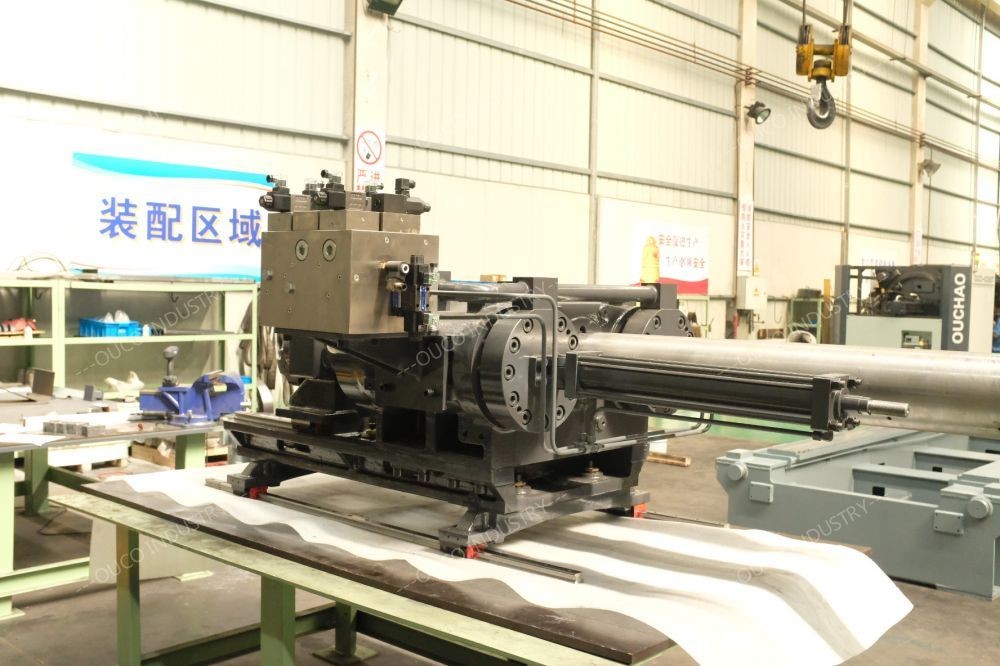

The hydraulic system is provided by well-known manufacturers in China and is designed and manufactured with high-speed super large and special oil circuit.It adopts multi-channel logic control with large flow, low noise and stable performance.The machines with a capacity of more than 450 tons provide the synchronous function of ejector pin while opening the mold, so as to shorten the forming cycle of the product.
