| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-300T |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |

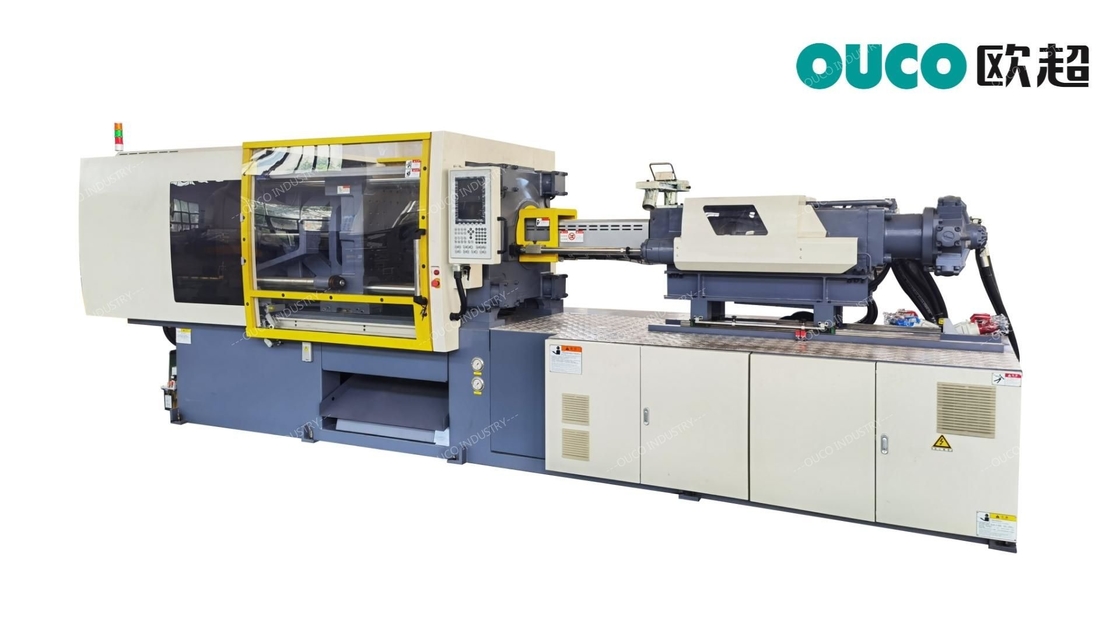

| Product Name: | High Quality Clamping Force 500T Injection Molding Machine | Type: | Preform Injection |
|---|---|---|---|
| Clamping Force: | 1600KN | Injection Weight: | 260-410g |
| Injection Rate: | 166-204cm3 | Power: | 50HZ |
| Opening Stroke: | 480mm | ||
| High Light: | CE High Precision Injection Molding Machine,410g High Precision Injection Molding Machine,500 ton injection molding machine |
||
1. Direct pressure external curve type central locking,the formwork and mold will not deform,and 100% locking force of the mold will be transmitted;
2. Leading the whole industry of injection molding machine, the extra large mold opening stroke is designed to reduce the purchase cost for deep cavity users;
3. Compared with the traditional injection molding machine structure, it saves material,time and manpower
4. Outward turning crankshaft, it make the same clamping force injection machine have the longer opening stroke
| Model | 300T | 400T | 500T | |||||||
| Screw Model | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 |
| Injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 |
| Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 |
| Inject on stroke | mm | 325 | 360 | 385 | ||||||
| Max. injection speed | mm/s | 178 | 156 | 166 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 63 | 75 | 94 | ||||||
| Displacement | ml/r | 163 | 100+100 | 125+125 | ||||||
| number of Motors | PC | 1 | 2 | 2 | ||||||
| Heater power | kW | 27 | 35 | 41 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 3000 | 4000 | 5000 | ||||||
| Opening stroke | mm | 800 | 900 | 1000 | ||||||
| Tie bar distance W×L | mmxmm | 680x680 | 760x660 | 860x760 | ||||||
| Min. mold thickness | mm | 210 | 300 | 300 | ||||||
| Max. mold thickness | mm | 680 | 730 | 800 | ||||||
| Ejector stroke | mm | 190 | 190 | 210 | ||||||
| Ejector force forward | kN | 62 | 80 | 110 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 510 | 680 | 850 | ||||||
| Machine dimensions(LxWxH) | mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | ||||||
| Machine weight | Ton | 10.5 | 15 | 19 | ||||||
Taiwan Hongxun's latest 15 inch vertical screen touch-screen
computer is selected,which is high-end and beautiful;In addition to the functions of the whole machine, it supports the energy consumption management of the whole machine and the centralized management of all parameters.
