| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 650 Tons High Precision Injection Molding Machine For Plastic Folding Stool | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 650t High Precision Injection Molding Machine,650 Tons Injection Molding Machine,Plastic Folding Stool Injection Molding Machine |
||

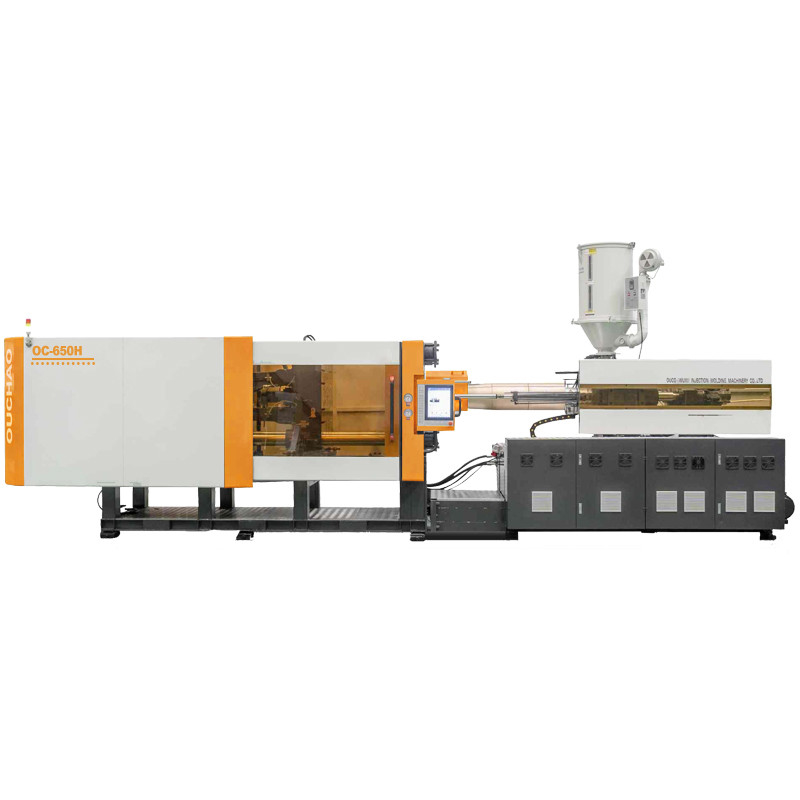

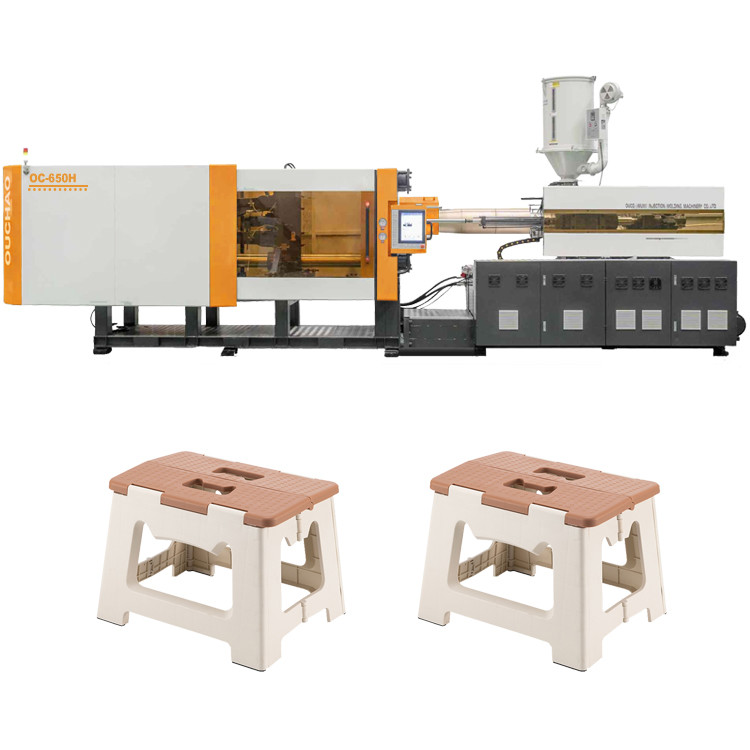

OUCO 650 Tons High Precision Injection Molding Machine For Plastic Folding Stool
About Us
As the professional manufacturer, by rich of experience, the professionalism of excellence, advanced management concept scientific development research, strict quality management and excellent customer service, OUCO injection molding machinery Co., Ltd. is the confidence and guarantee of your career. Through reasonable technical research and sound production process control security system OUCO strictly controls every link, tries its best to provide cost-effective injection molding machine to clients under the quality aim of pursuing quality zero defect.
In order to guarantee the injection molding machine quality, OUCO owns high-precision machining equipment as well as a full set of precision testing equipment and facilities.We also have our own R&D and design team, and the machine production has its own assembly workshop.
Machine series:
OUCO developed many series, include small plastic injection molding machine, servo injection molding machine,fast injection molding machine,horizontal injection molding machine,high-speed injection molding machine,two-color/multi-color injection molding machine.The clamping force is from 150 tons to 2200 tons,and each specification can be equipped with 2 or 3 different injection structures according to your product requirements.
Machine advantage:
1.Servo motor energy saving system is adopted. it can save many electric power than normal machine.
2.The machine is adopted Intelligent computer controller,to make sure the rigidity and intensity of clamping structure.
3.Larger column tie bar space and larger mould opening stroke, it can use for more bigger size mould production.
4.High precise linear guide slide structure and double cylinder injection system to the injection balance.
5.The injection unit of plastic machine used double cylinder Injection technology, the fast injection response, high accuracy, small motion inertia,small mechanical back pressure, make it suitable for producing precise and thin-wall products.
6.Compared with other machines on the market with the same clamping force, our machines have obvious advantages in price.
7.Machines are all CE, ISO9001:2008 and SGS certified, which not only demonstrates our high commitment to quality and safety, but also ensures that our products meet international standards.
Parameters
| MODEL | OC-650H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 85 | 90 | 95 |
| Screw L/D ratio(L/D) | 23.3 | 22 | 20.8 |
| Theoretical injection volume(cm³) | 2553.5 | 2862.8 | 3189.7 |
| Injection volume (g) | 2323.7 | 2605.1 | 2902.6 |
| Maximum rate for injection to air(g/s) | 413.1 | 463.1 | 516 |
| Injection pressure (M Pa) | 178.5 | 159.2 | 142.9 |
| Clamping part | |||
| Clamping force (Ton) | 6500 | ||
| Toggle stroke (mm) | 1150 | 950 | |
| Distance between tie bars(mm*mm) | 960*830 | 930*830 | |
| Maximum mould height (mm) | 950 | ||
| Minimum mould height (mm) | 425 | ||
| Ejection stroke (mm) | 250 | ||
| Ejector force forward (KN) | 125.7 | ||
| Amount of die thimble (Pcs) | 1+14 | ||
| Others | |||
| Motor power (kW) | 60~70 | ||
| Heater power (kW) | 44 | ||
| Quantity of temperature-control zones | 5+1 | ||
| Boundary dimension(L*W*H) (m) | 9.5x2.1x2.6 | ||
| Sys.Pressure (Mpa) | 16 | ||

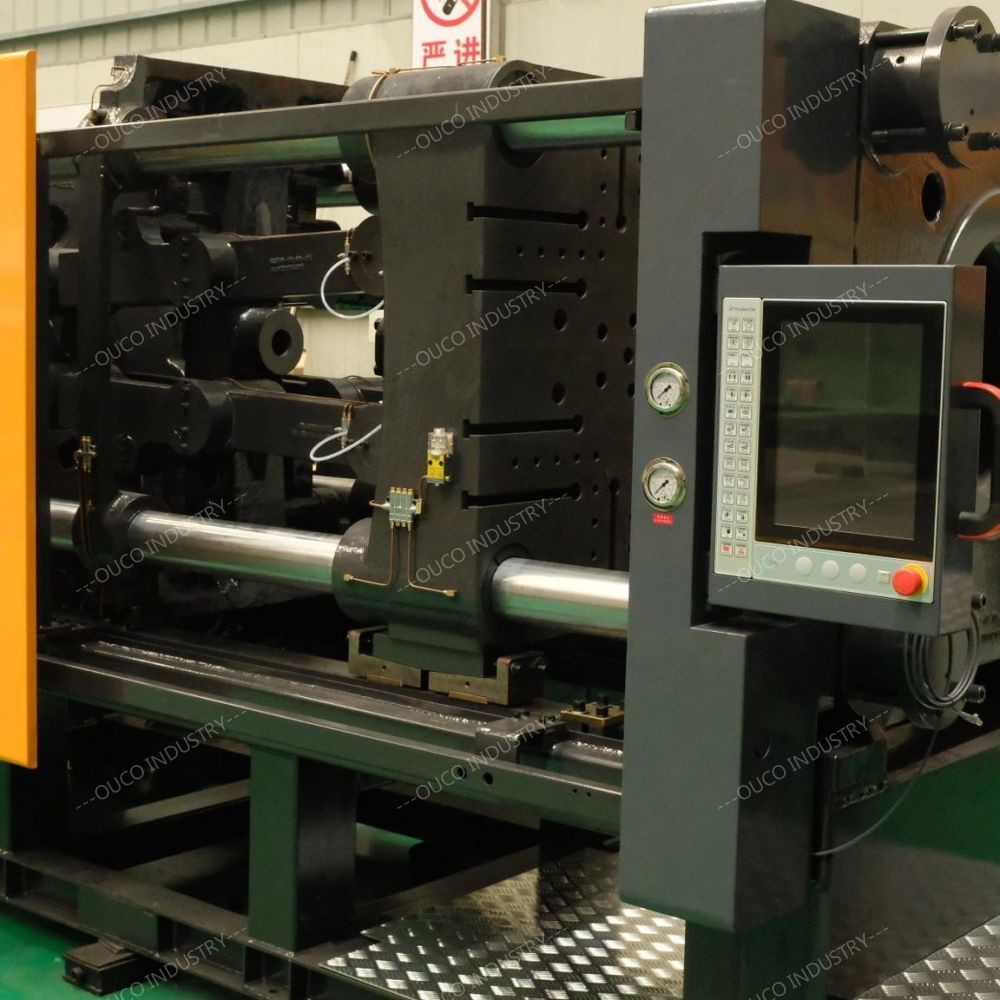

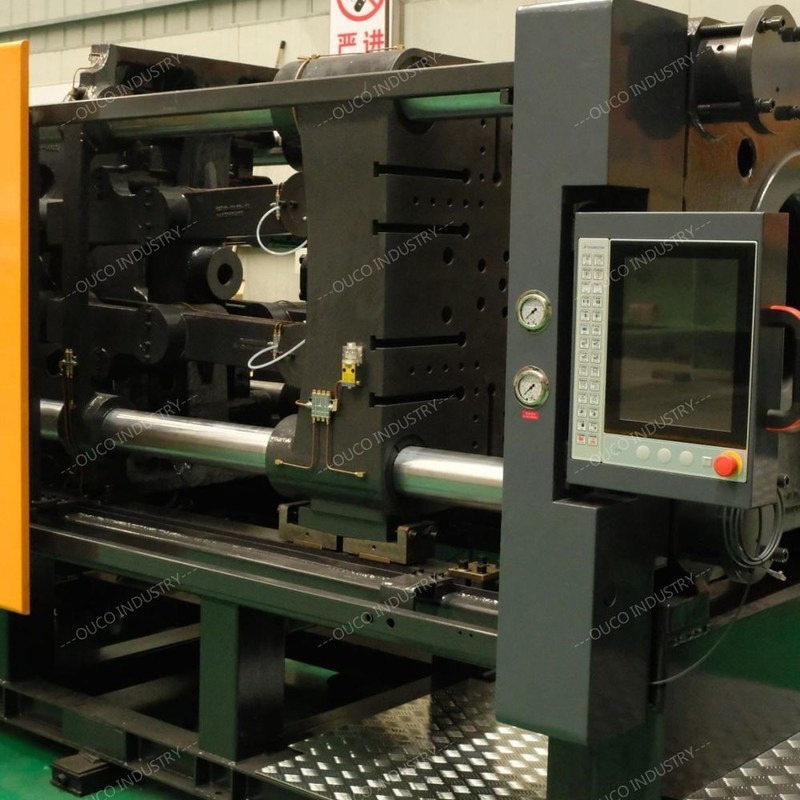

Detail Pictures
