| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 550 Ton High Clamping Force Injection Plastic Molding Machine For Plastic Bucket | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Plastic bucket Injection Molding Machine,550 Ton Injection Molding Machine,High Clamping Force Injection Molding Machine |
||

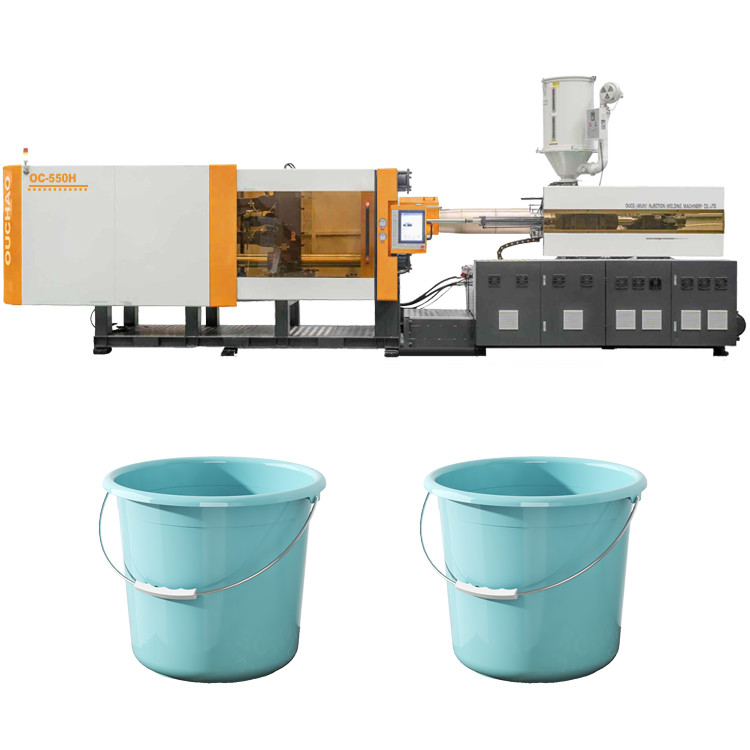

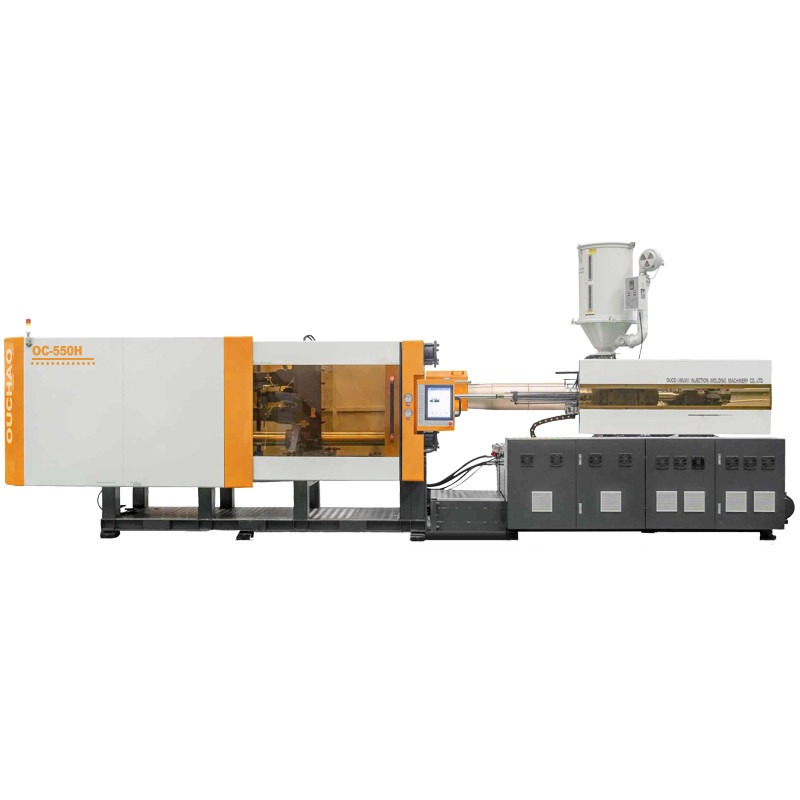

550 Ton High Clamping Force Injection Plastic Molding Machine For Plastic Bucket
Why choose us
OUCO (WUXI) Injection Molding Machinery Co., Ltd. is an Integration of industry and trade company specializing in the production of injection molding machines. From production to sales to after-sales service, it has a complete industrial system. From design to production, it has a professional technical team. We can design and equip you with high-quality and multi-selective injection molding machine models according to your production needs.
Our injection molding machines are mainly high-speed machines, servo machines and large two-platen machines. The clamping force of high-speed machines and servo machines ranges from 50 tons to 2,200 tons. Each specification can be equipped with 2 or 3 different injection structures according to your product requirements. The clamping force of the other two-platen machines ranges from 800 tons to 2,100 tons.
If you produce related products in the fields of auto parts, medical equipment, large pipes, trash cans, trays and fruit baskets, we will provide you with the corresponding plastic machine options to bring you the most suitable choice.
Unswerving commitment and pursuit of perfection is the eternal philosophy of OUCO. We will continue to update and improve our products and technologies to create more value and production benefits for you.
Product features and advantages
OC-550H is a model in OUCO standard fast series injection molding machines with the advantage of center clamping. It has high clamping force and deep cavity advantages and is widely used in the production of plastic deep buckets, plastic basins, plastic fruit baskets and other plastic products.

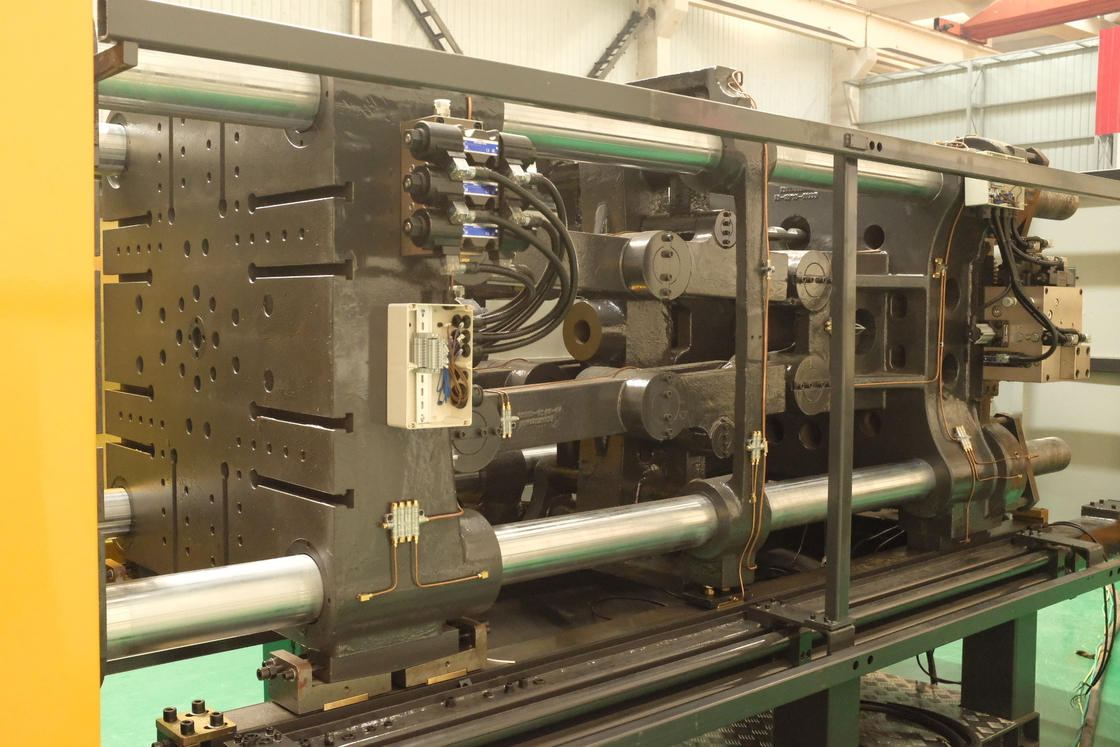

Center clamping structure:
The clamping force reaches 550 tons, and the center clamping structure of direct pressure and external curvature can make the clamping utilization rate reach 100%. The center clamping structure can evenly distribute the clamping force in the center of the mold, avoiding the displacement and deformation of the mold, which not only ensures the accuracy and quality of the product, but also effectively protects the mold and prolongs the service life of the mold.
Energy-saving power system:
The servo motor plus internal gear pump power system is used. The servo motor can adjust the output power of the oil pump according to actual needs to reduce energy loss. In addition, the hydraulic system of the internal gear pump enhances the power of the machine and effectively reduces energy usage costs.
High precision and easy operation:
Dual-cylinder injection technology is used, with fast injection response and high precision, ensuring a smoother and more accurate injection process and improving product quality; the electronic control unit adopts a computer control system with fast response, high control precision, easy operation, and multiple language versions, which has wider applicability.
Parameters
| MODEL | OC-550H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 80 | 85 | 90 |
| Screw L/D ratio(L/D) | 23.3 | 22 | 21 |
| Theoretical injection volume(cm³) | 2060 | 2326 | 2608 |
| Injection volume (g) | 1991 | 2247 | 2519 |
| Maximum rate for injection to air(g/s) | 646 | 729 | 817 |
| Injection pressure (M Pa) | 150 | 133 | 119 |
| Clamping part | |||
| Clamping force (Ton) | 5500 | ||
| Toggle stroke (mm) | 1010 | ||
| Distance between tie bars(mm*mm) | 860*800 | ||
| Maximum mould height (mm) | 800 | ||
| Minimum mould height (mm) | 300 | ||
| Ejection stroke (mm) | 210 | ||
| Ejector force forward (KN) | 103 | ||
| Amount of die thimble (Pcs) | 1+12 | ||
| Others | |||
| Motor power (kW) | 55～65 | ||
| Heater power (kW) | 41 | ||
| Quantity of temperature-control zones | 5+1 | ||
| Boundary dimension(L*W*H) (m) | 8.7x2.0x2.1 | ||
| Sys.Pressure (Mpa) | 16 | ||
Applicable scene:

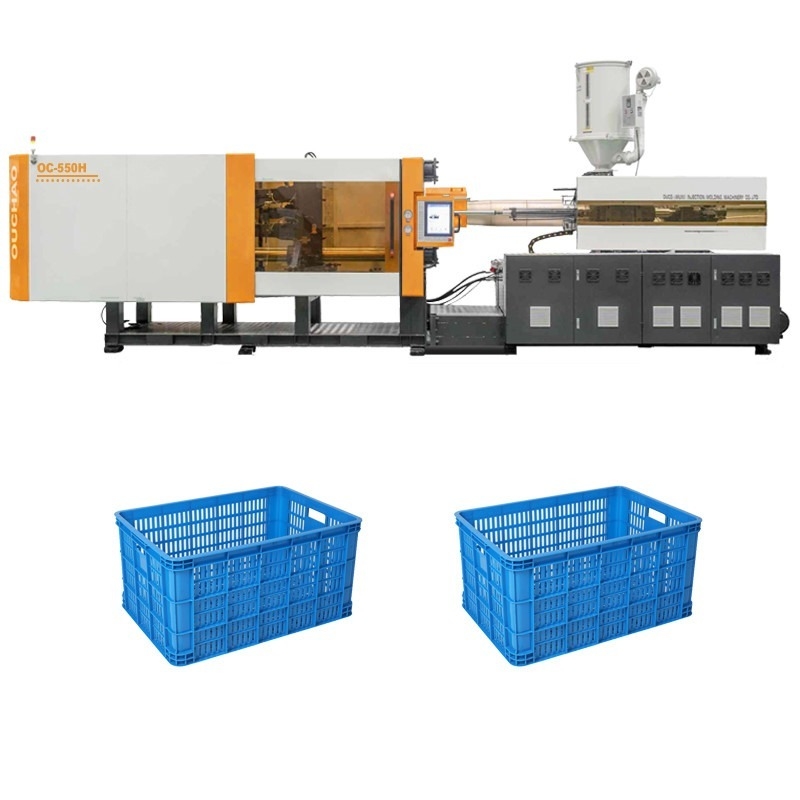

The fruit basket injection molding machine is suitable for the production of various fruit baskets and is widely used in fruit packaging, supermarkets, farmers' markets, orchards and other fields, providing customers with efficient and high-quality fruit basket production solutions.
Detail Pictures
