| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-800H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

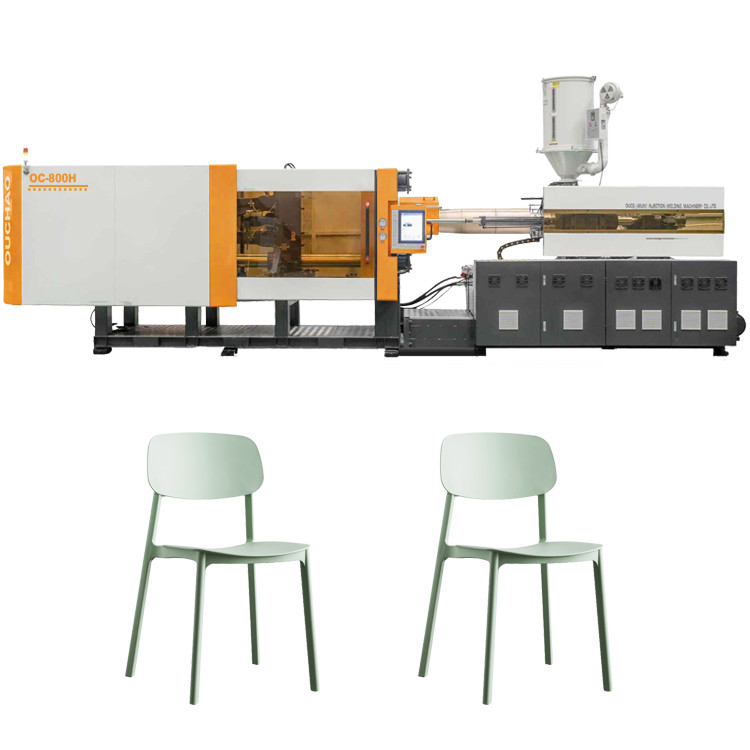

| Product Name: | OC-800H Servo Motor Injection Moulding Machine Manufacturing Plastic Chair | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | injection plastic molding machine Manufacturing,Chair injection plastic molding machine,Chair high speed injection molding machine |
||
About us
OUCO(WUXI) Injection Molding Machinery Equipment Co.,Ltd,a subsidiary of Jiangsu OUCO Heavy Industry Science and Technology Group, it was established in 2021.Since its establishment, the company has been constantly adjusting and improving.
The company is committed to developing and manufacturing high-quality, high-performance injection molding equipment and plastic injection molding machines for the automotive parts, medical equipment, large pipes, trash cans, pallets and fruit baskets and other market sectors, and customizing high-efficiency, energy-saving and professional production solutions for customers.
Unwavering commitment,the pursuit of perfection. OUCO is always committed to meet the needs of customers and create greater value for customers is eternal concept of OUCO injection molding.We will,as always,walk in the front of the market,fearless of hardships and challenges,and make continuous efforts i energy-saving,automation,precision and humanization of machines to bring customers the maximum return on investment.
Product Advantages
This product is one of our hot-selling products and can meet your diverse product needs.
First of all, it has a super clamping force of 8000kN. The super clamping force can reduce product flash, bring you higher precision products, shorten the production cycle, improve production efficiency, adapt to more diverse mold needs, and the mold template is evenly stressed, extending the service life of the mold. The mold opening stroke reaches 1300mm, which can adapt to more types and designs of molds. The super large mold opening stroke can also avoid damage to the product when it is taken out.
Secondly, the servo system and the new oil circuit design have been upgraded. The servo system uses a servo motor and an internal gear pump to provide power for the machine, achieving the goal of using as much energy as possible, saving energy and improving efficiency. The hydraulic system is designed and provided by a well-known Chinese manufacturer, with a special oil circuit, large flow, low noise and more stable performance.
The injection system adopts double-cylinder injection technology, which can inject multiple materials to produce more complex and functional products to meet different market needs, and can also reduce mold replacement time and improve production efficiency. It adopts linear guide technology, repeated injection, high precision and strong stability.
.
Parameters
| MODEL | OC-800H | |||
| Injection part | ||||
| Screw type | A | B | C | D |
| Screw diameter (mm) | 85 | 90 | 100 | 110 |
| Screw L/D ratio(L/D) | 23.3 | 22 | 20 | 20 |
| Theoretical injection volume(cm³) | 2837 | 3179 | 3927 | 4752 |
| Injection volume (g) | 2740 | 3020 | 3729 | 4752 |
| Maximum rate for injection to air(g/s) | 477 | 534 | 660 | 799 |
| Injection pressure (M Pa) | 211 | 188 | 151 | 125 |
| Clamping part | ||||
| Clamping force (Ton) | 8000 | |||
| Toggle stroke (mm) | 1300 | |||
| Distance between tie bars(mm*mm) | 1060*860 | |||
| Maximum mould height (mm) | 1000 | |||
| Minimum mould height (mm) | 450 | |||
| Ejection stroke (mm) | 280 | |||
| Ejector force forward (KN) | 181 | |||
| Amount of die thimble (Pcs) | 1+20 | |||
| Others | ||||
| Motor power (KW) | 90～100 | |||
| Heater power (kW) | 52 | |||
| Quantity of temperature-control zones | 5+1 | |||
| Boundary dimension(L*W*H) (m) | 10x2.2x2.4 | |||
| Sys.Pressure (Mpa) | 16 | |||

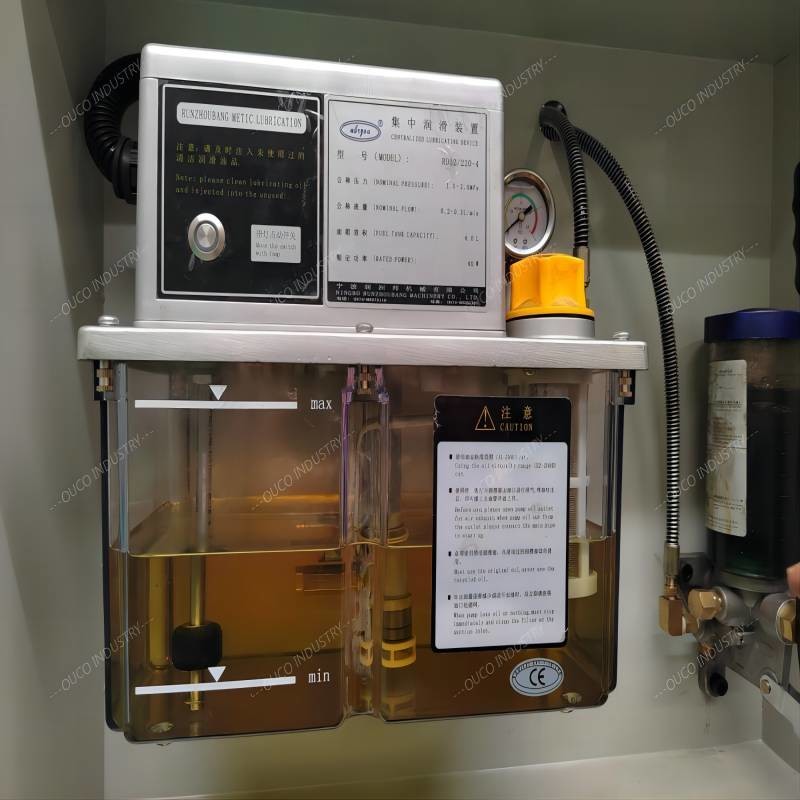

Detail Pictures
