| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-2200T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Wood Case & Carton Packaging |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

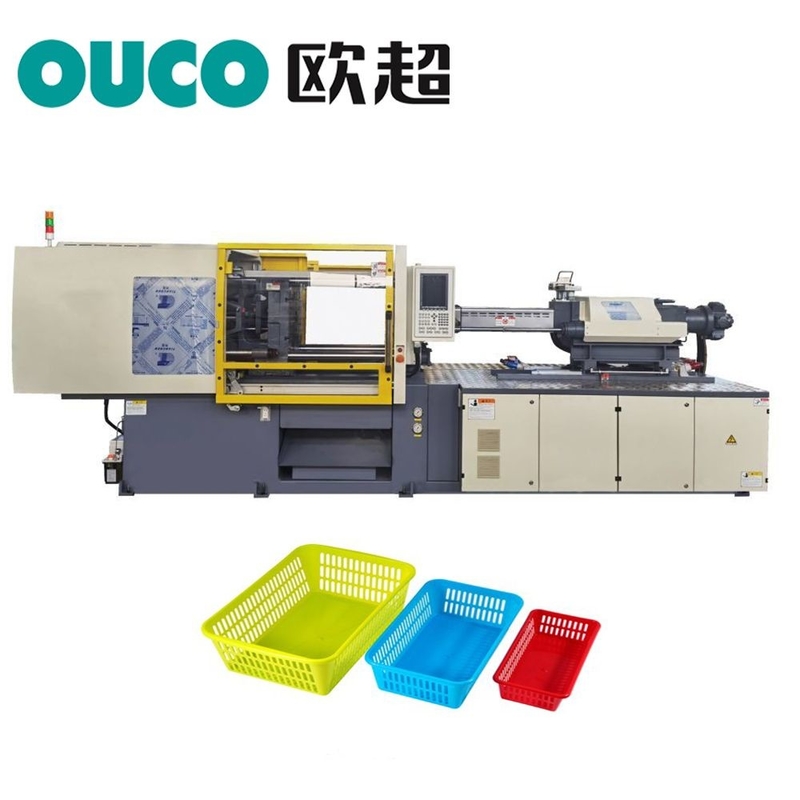

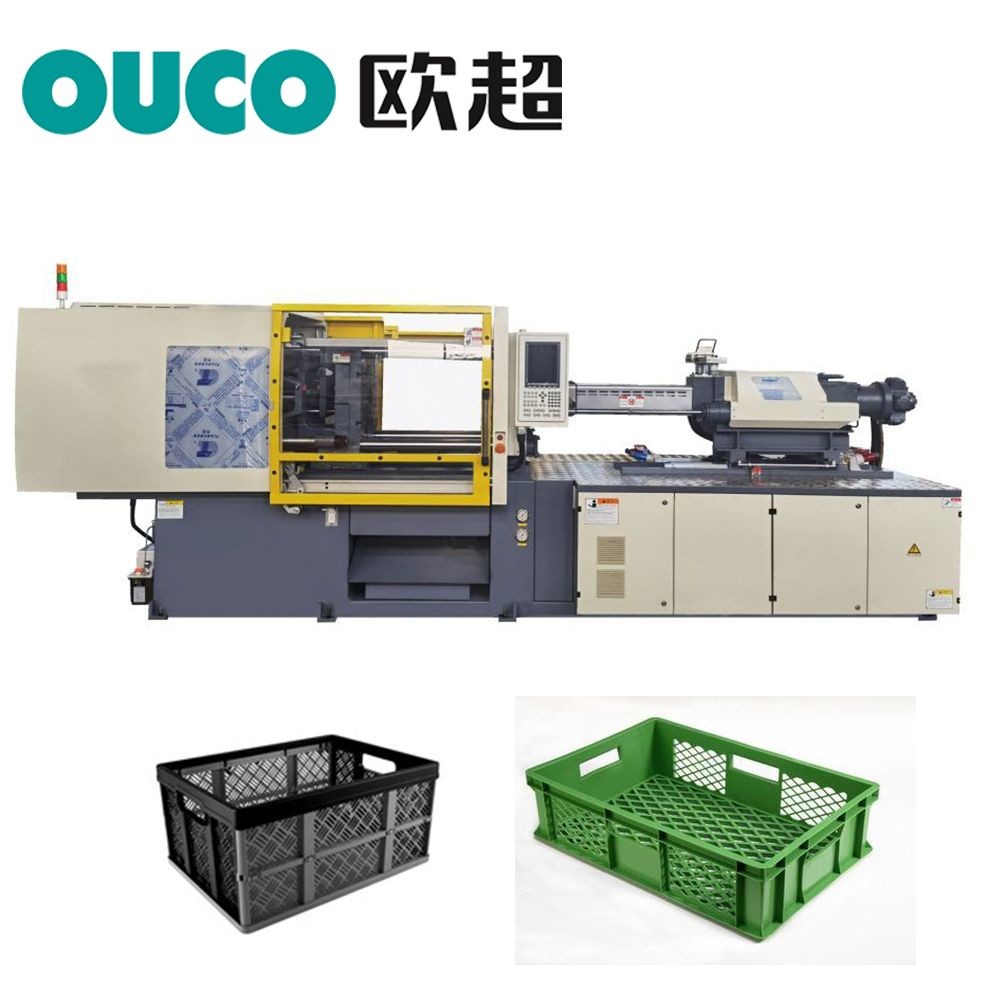

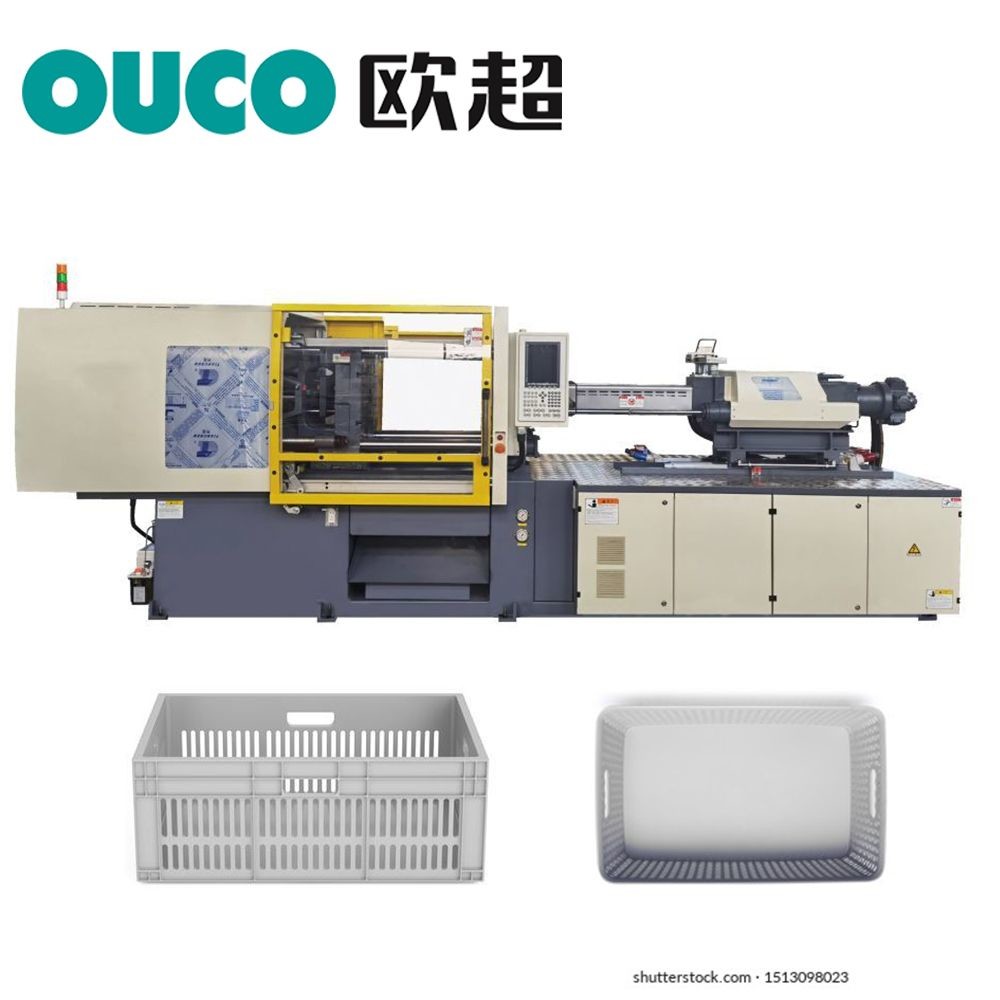

| Product Name: | Large Injection Moulding Machine For Disposable Plastic Baskets And Crates | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Machinery Test Report: | Provided |
| Application: | Disposable Plastic Baskets And Crates | Condition: | New |
| Transport Package: | FCL | Warranty: | 1 Year |
| High Light: | SGS large plastic injection molding machine,120mm large plastic injection molding machine,ISO9001 desktop injection molding machine |
||

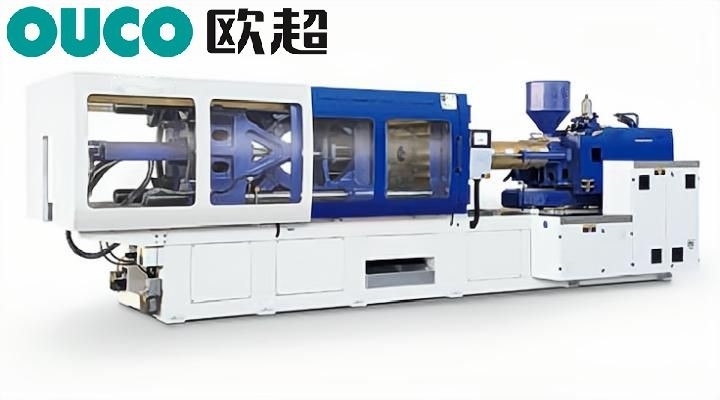

The OUCO Large Injection Moulding Machine is equipped with better clamping unit.
1 The latest design, with a five-point toggle device, has the advantage of a stable movement curve and soft impact.
2 High quality mould platen with sufficient strength to ensure that the mould does not go out of shape in high pressure clamping situations.
3 Hard chrome plated high tensile strength tie bar made of high quality alloy for good wear and corrosion resistance.
4 Wear resistant moving platen guide
5 Transducer controlled clamping stroke
6 Multi-step control of clamping and opening speed and pressure
7 Ejector unit offers dwell, single, multiple, vibration functions
8 Differentiated high speed clamping
9 Low pressure mould protection function
10 Gear-driven hydraulic mould height adjustment with coarse and fine operation
11 Dual mechanical and electrical safety interlocks
12 Automatic centralised lubrication system with remote pressure detector
Parameters
| Model | 1400T | 1850T | 2200T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 110 | 120 | 130 | 125 | 135 | 145 | 135 | 145 | 155 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 5177 | 6161 | 7230 | 8034 | 9371 | 10811 | 10015 | 11553 | 13202 |
| Shot weight (PS) | g | 4763 | 5668 | 6652 | 7391 | 8621 | 9946 | 9213 | 10629 | 12146 |
| injection rate(Ps) | g/S | 1651 | 1384 | 1628 | 1275 | 1488 | 1717 | 1647 | 1932 | 2208 |
| Injection pressure | MPa | 197 | 165 | 141 | 197 | 169 | 146 | 187 | 162 | 142 |
| Inject on stroke | mm | 545 | 655 | 700 | ||||||
| Max. injection speed | mm/s | 130 | 130 | 124 | ||||||
| Screw speed | r/min | 0-180 | 0-160 | 0-150 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 178 | 210 | 235 | ||||||
| Displacement | ml/r | 160+160+160 | 160+160+125 + 125 | 125+125+125+125+125 | ||||||
| number of Motors | PC | 3 | 4 | 5 | ||||||
| Heater power | kW | 68 | 89 | 115 | ||||||
| Number oftemp. control zones | 6+1 | 7+1 | 8+1 | |||||||
| Clamping force | kN | 14000 | 18500 | 22000 | ||||||
| Opening stroke | mm | 1900 | 2300 | 2500 | ||||||
| Tie bar distance W×L | mm*mm | 1460x1320 | 1620x1460 | 1760x1560 | ||||||
| Min. mold thickness | mm | 700 | 750 | 750 | ||||||
| Max. mold thickness | mm | 1400 | 1600 | 1750 | ||||||
| Ejector stroke | mm | 350 | 400 | 450 | ||||||
| Ejector force forward | kN | 251 | 332 | 425 | ||||||
| Number of ejector bar | PC | 1+28 | 1+28 | 1+28 | ||||||
| Oil tank capacity | L | 1530 | 2210 | 2550 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 14.8x3.6x33 | 15x3.2x3.5 | 18.5x3.6x3.7 | ||||||
| Machine weight | Ton | 70 | 100 | 140 | ||||||

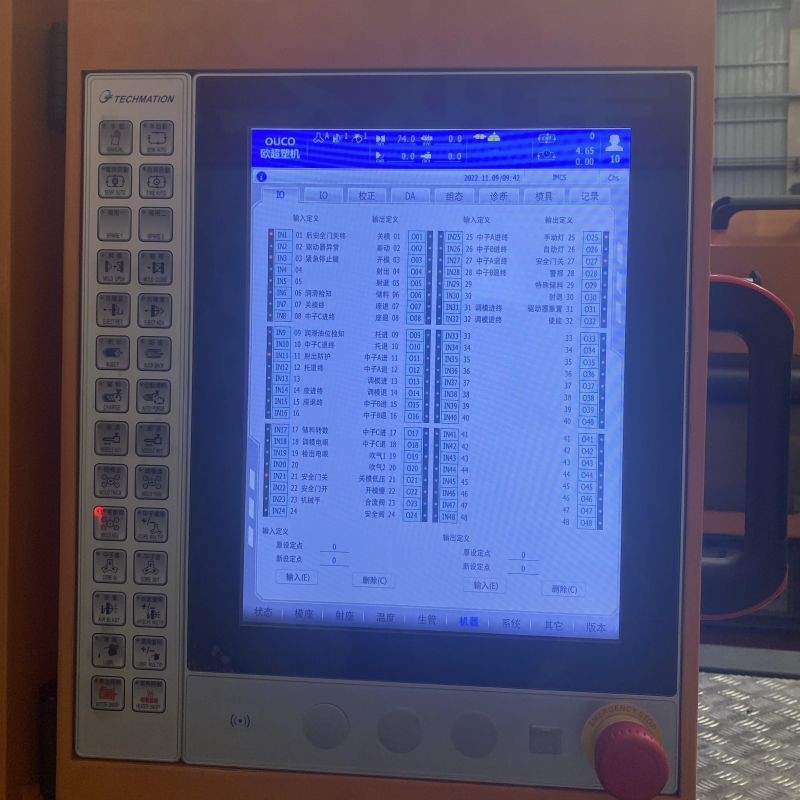

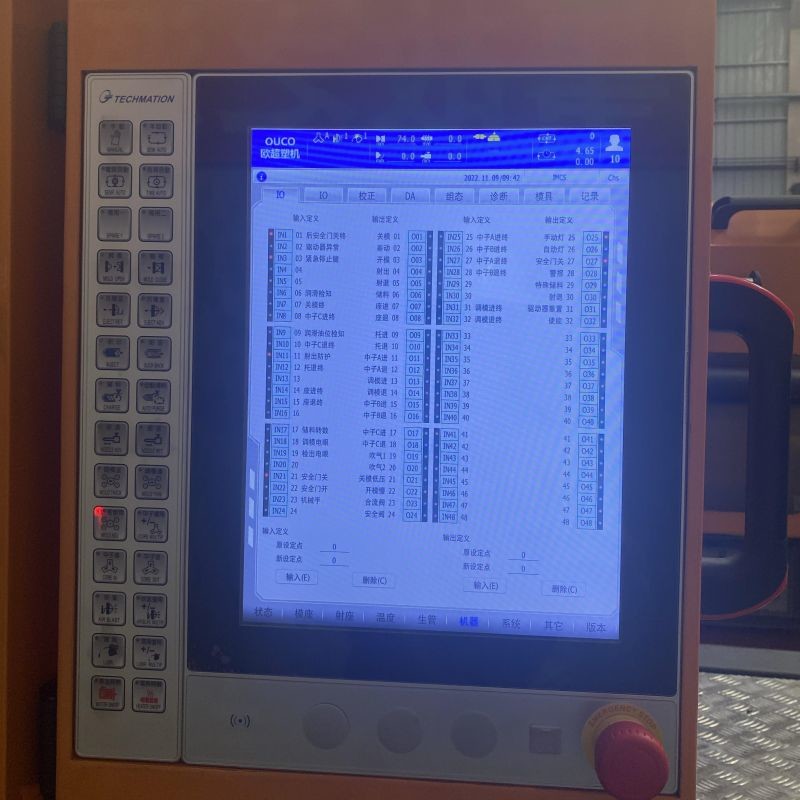

Detail Pictures
