| Place of Origin: | china |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | 1050 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Shipping Container |
| Delivery Time: | 30-50 Days |
| Payment Terms: | Western Union, T/T, D/P, D/A |
| Supply Ability: | 500 sets per year |
| Product Name: | 1050T High Effective Bucket Plastic Injection Moulding Machine Manufacturers | Plastic Processed: | PP,PC,PVC |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Food&Beverage | Type: | Automation |
| Warranty: | 1 Year | Machinery: | Provided |
| Place Of Origin: | Wuxi,China | Selling Points: | Competitive Price |
| Video Outgoing-inspection: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time: | About 50 Days |
| High Light: | 1050Ton electric injection moulding machines,600mm electric injection moulding machines,1300mm Bucket Injection Moulding Machine |
||
Why choose ouco high speed fruit bucket injection molding machine?
1.Two servo drives, double servo motor power control adopts the latest confluence technology ,which can not only run at high speed, but also automatically control the power consumption,so as to improve the production efficiency.
2.Intelligent motion control for short dry cycle times,we make a fruit basket in over 17 seconds, the industry average is 20 seconds.
3.Outward turning crankshaft for more freedom,it make the same clamping force injection machine have the longer opening stroke . Same need cost less.
4.Linear guide of the rear platen of injection unit,lower friction but faster response.
5.Our company's lubrication system uses copper pipes for fixed pipes and soft copper pipes for moving parts, which can increase the service life of copper pipes.
6.Most of the energy saving in the heating part is the use of electromagnetic heaters to save energy, and the energy saving rate is about 30%-70% of the old-fashioned resistance coil.Energy saving in the power part: most of them use frequency converters. The energy saving method is to save the excess energy consumption of the motor.
7. Taiwan Hongxun's latest 15 inch vertical screen touch-screen computer is selected,which is high-end and beautiful;In addition to the functions of the whole machine, it Supports the energy consumption management of the whole machine and the centralized management of all parameters.
Product details:
| CWI-1050S Ⅲ | |||||||||||
| 机型 | 1050S Ⅲ | ||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 10500 | ||||||||
| 拉杆间距 mm | Space Between Tie-bars | 1270×1070 | |||||||||
| 开模最大开距 mm | Clamping Stroke | 2700 | |||||||||
| 最大模具 mm | Mould Thickness Max | 1300 | |||||||||
| 最小模具 mm | Mould Thickness Min | 600 | |||||||||
| 模板尺寸 mm | Size of Platen | 1870×1670 | |||||||||
| 顶出长度 mm | Ejector Stroke | 350 | |||||||||
| 顶出力 Kn | Ejector Force | 282 | |||||||||
| 顶针数 | Ejector Quantily | 25 | |||||||||
| 注塑装置 | 射胶配置 | Injection Equipment | 4000I | 6600I | 11000I | ||||||
| 螺杆直径 mm | Screw Diameter | 80 | 85 | 90 | 90 | 100 | 110 | 110 | 120 | 130 | |
| 螺杆长径比 | Screw L/D ratio | 22.3 | 21 | 19.8 | 23.3 | 21 | 19.1 | 22.9 | 21 | 19.4 | |
| 理论射胶容积 cm3 | Shot Size | 2059 | 2325 | 2606 | 3052 | 3768 | 4559 | 5461 | 6500 | 7628 | |
| 实际射胶量 (PS)g | Shot Weight | 1873 | 2115 | 2371 | 2777 | 3428 | 4148 | 4969 | 5915 | 6941 | |
| oz | 66.0 | 74.5 | 83.5 | 99.0 | 122.3 | 148.0 | 177.2 | 210.9 | 247.5 | ||
| 射胶压力 MP | Injection Pressure | 196 | 174 | 155 | 215 | 174 | 144 | 209 | 176 | 145 | |
| 注射速率 mm/s | Injection Rate | 776.0 | 875.0 | 982.0 | 707.0 | 872.0 | 1056.0 | 718.0 | 855.0 | 1003.0 | |
| 射胶速度 cm3/s | Injection Speed | 153 | 110 | 76/93 | |||||||
| 螺杆转速 g/s | Screw Speed | 10~230 | 10~200 | 10~140 | |||||||
| 塑化能力 rpm | Plasticising Capacity | 64.0 | 70.0 | 82.0 | 78.0 | 83.0 | 107.0 | 72.0 | 83.0 | 102.0 | |
| 电力及其他 | 油箱容积 L | Oil Tank Capacity | 1200 | ||||||||
| 电热功率 Kw | Heater Power | 43.85 | 58 | 85 | |||||||
| 电热区数 L | Team Control zone | 5+1 | |||||||||
| 系统压力 MPa | System Pressure Max | 16 | |||||||||
| 油泵输量 L/min | Pump Output | 570 | |||||||||
| 电机功率 Kw | Servo Power | 55+45+7.5 | |||||||||
| 机器净重 ton | Machine Weight | 50 | |||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 11800×3250×2700 | |||||||||
Why choose OUCO?
We are a professional high-tech injection molding machine enterprise with rich experience in manufacturing and selling injection molding machines. Bucket Injection molding Machine is our flagship product .We will customize injection molding solutions for you.

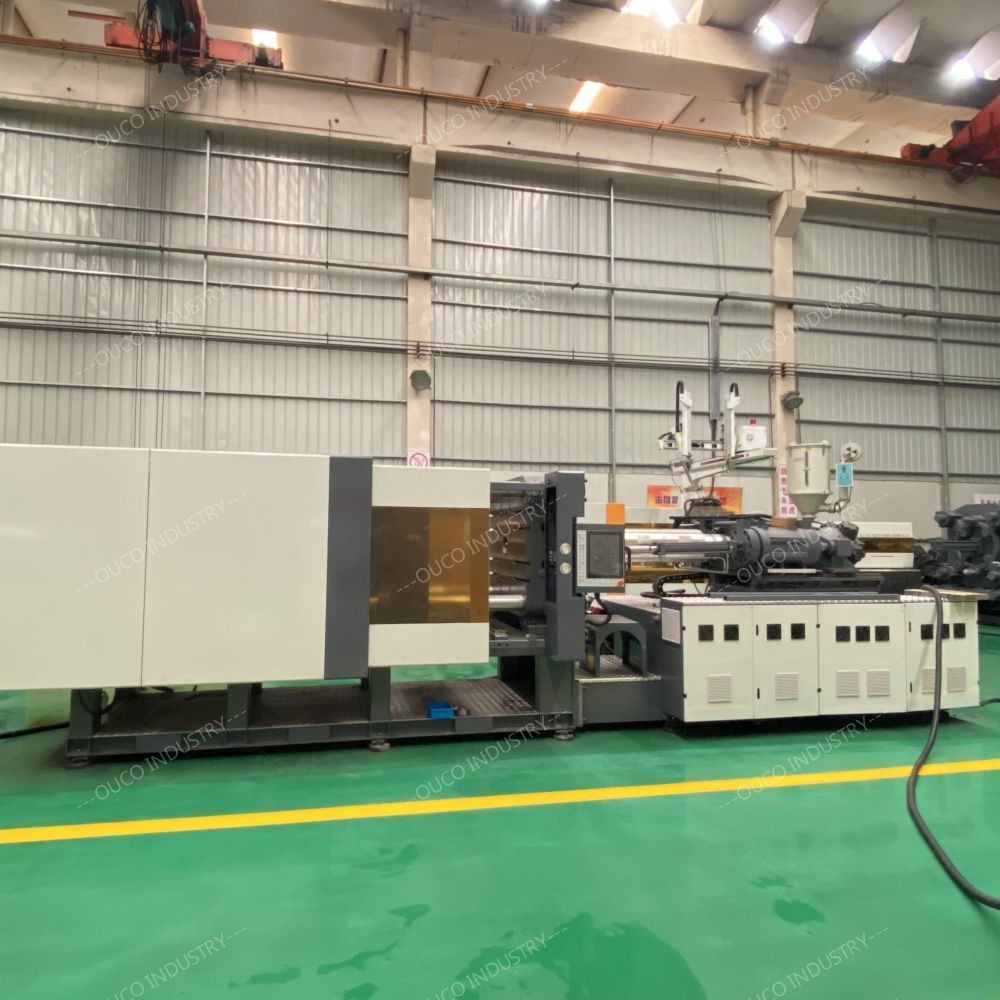

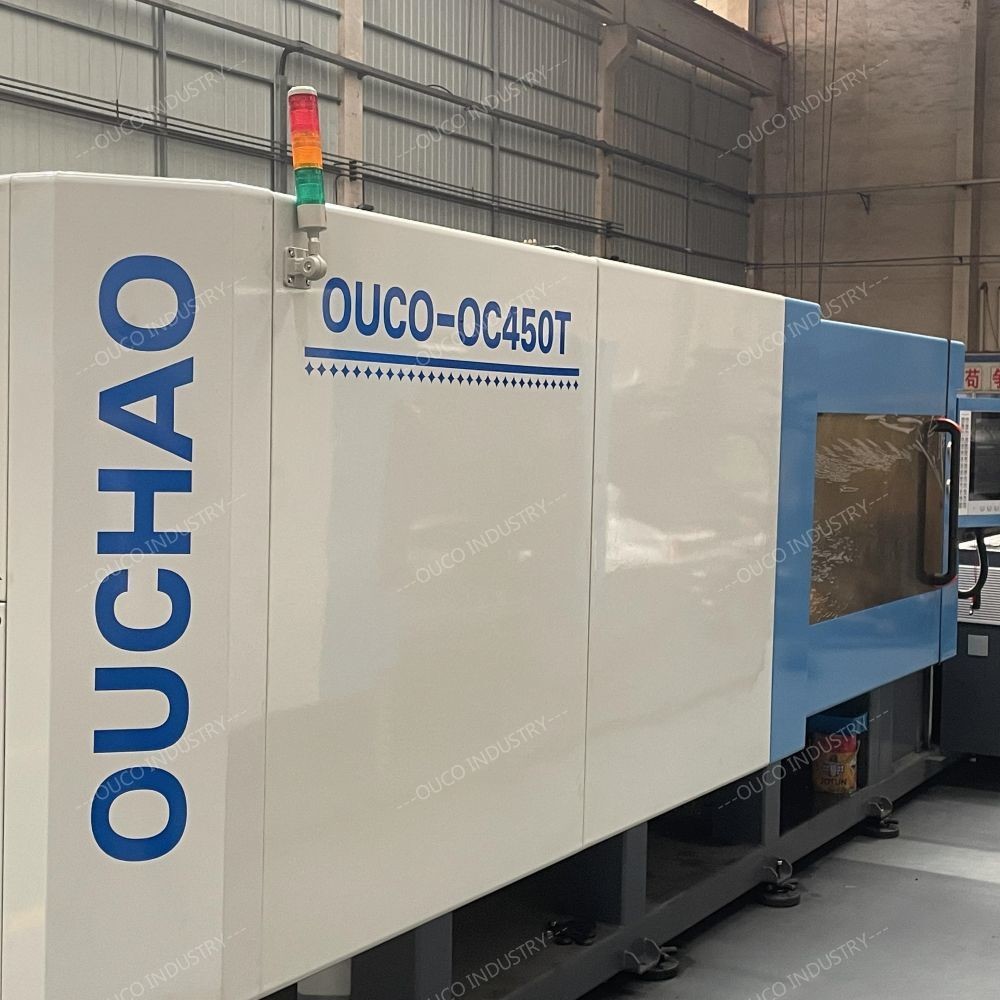

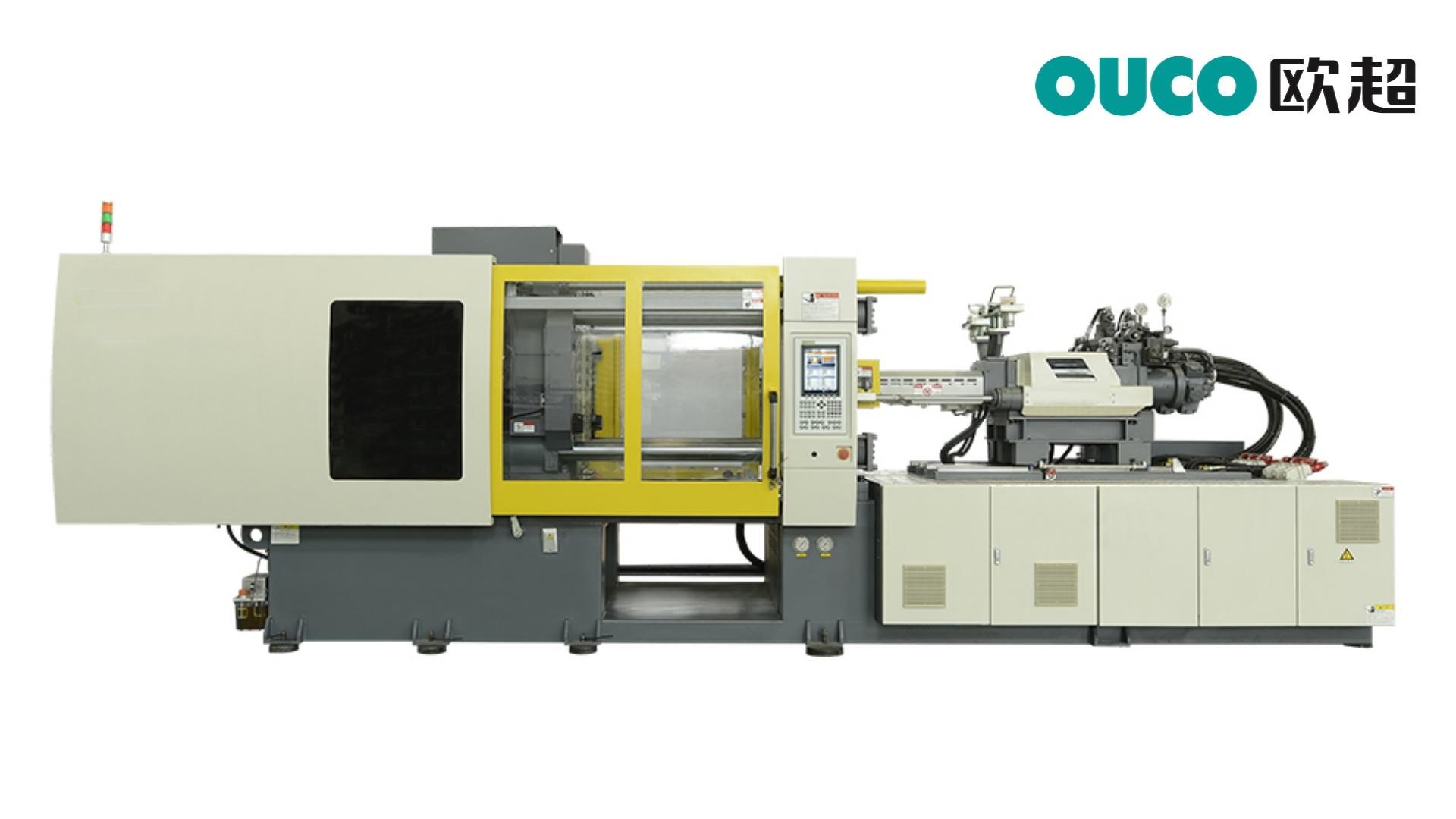

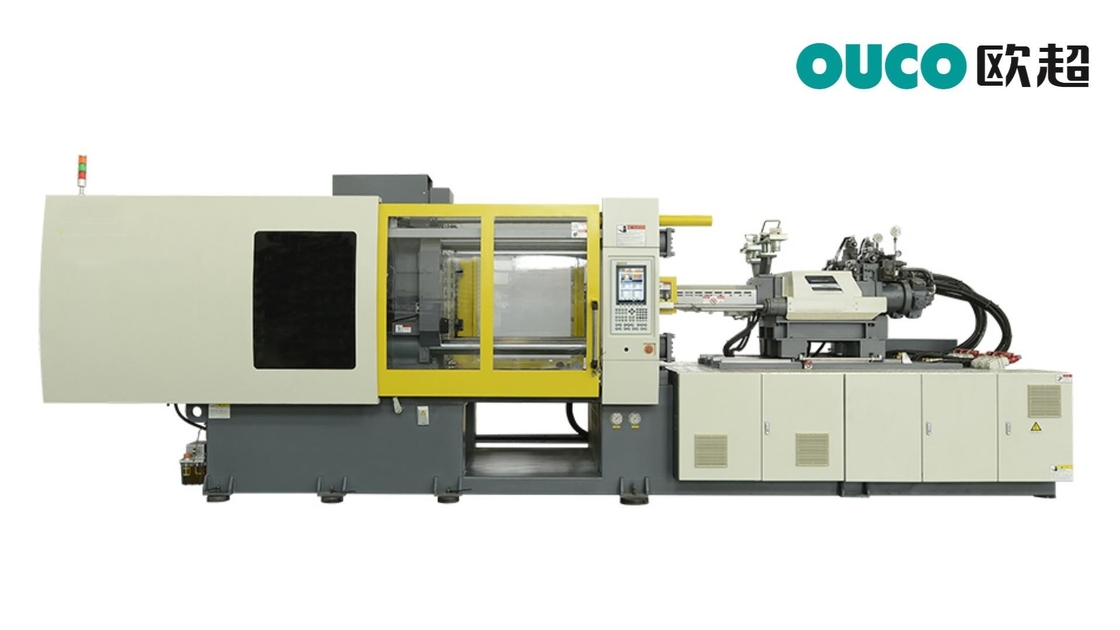

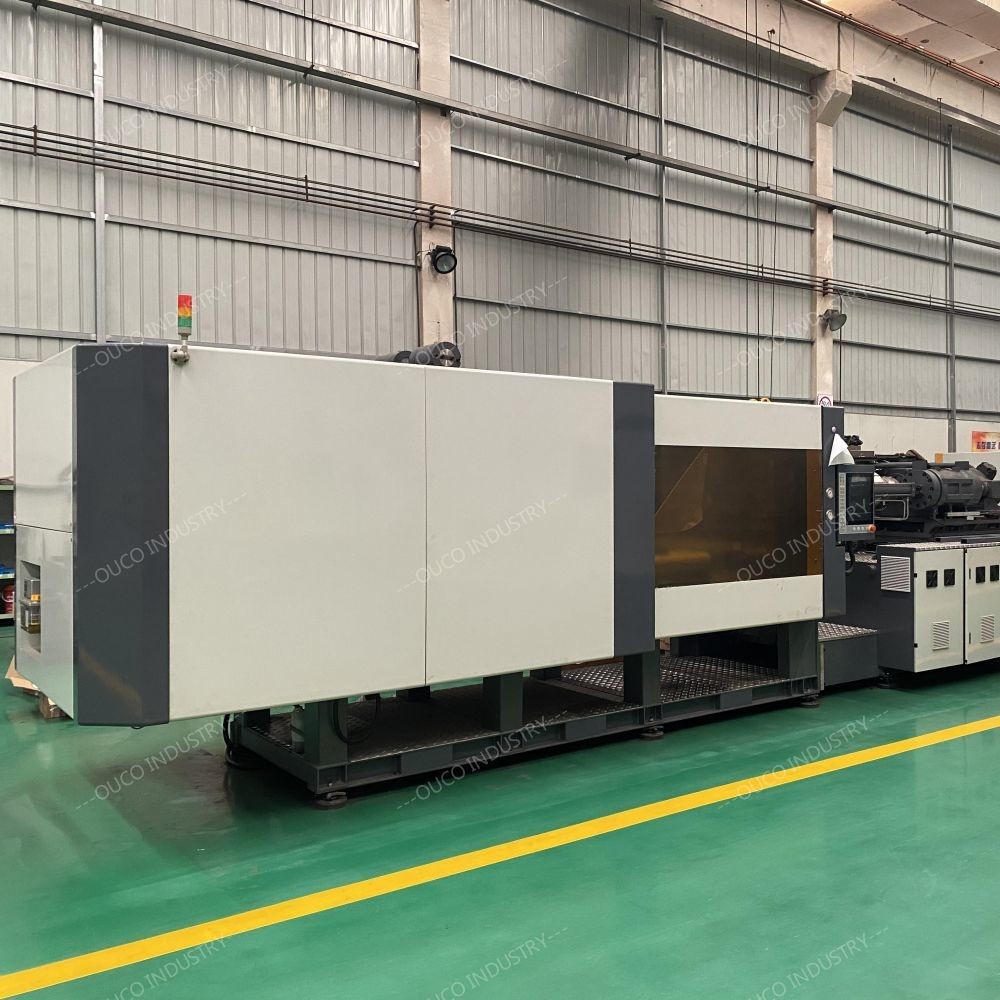

Detail Pictures
