| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-180T/220T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | 180T-220T High Quality Efficiency Plastic Molding Machine With Energy-Saving Heating Device | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | 220T plastic molding machine,180T plastic molding machine,Efficiency Plastic precision injection molding machine |
||
1. Cleanliness, the equipment is free from external pollution, and the equipment does not generate regeneration pollution to the outside world.
2. Precision, the equipment molds the best quality products with extremely high quality repeatability, highest equipment stability and safety under the shortest possible cycle conditions.
3. Servo oil-electric control system, high response, high precision, closed-loop control of pressure and speed.
4. The fully enclosed design of the product forming area, plus the positive pressure laminar flow air conveying device, the forming area can be an independent cleaning system.
5. The mold clamping machine hinge adopts a circulating lubrication system to reduce the pollution caused by lubricating oil and keep the machine clean.
6. Using new materials, the sliding foot is self-lubricating, reducing the pollution of lubricating oil.
7. Simultaneous ejection function of mold opening, shortening molding cycle and increasing production capacity.
Product Paraments
| GF快速系列 | ||||||||||
| 机型 | CWI-180GF | CWI-220GF | ||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 1800 | 2200 | ||||||
| 拉杆间距 mm | Space Between Tie-bars | 520×520 | 570×570 | |||||||
| 开模最大开距 mm | Clamping Stroke | 500 | 550 | |||||||
| 最大模厚 mm | Mould Thickness Max | 550 | 600 | |||||||
| 最小模厚 mm | Mould Thickness Min | 200 | 220 | |||||||
| 模板尺寸 mm | Size of Platen | 755×755 | 830×830 | |||||||
| 顶出长度 mm | Ejector Stroke | 140 | 170 | |||||||
| 顶出力 Kn | Ejector Force | 53 | 80 | |||||||
| 顶针数 | Ejector Quantily | 5 | 9 | |||||||
| 注射装置 | 射胶装置 | Injection Unit | 420I | 650I | 650I | 860I | ||||
| 螺杆直径 mm | Screw Diameter | 35 | 40 | 40 | 45 | 40 | 45 | 45 | 50 | |
| 螺杆长径比 | Screw L/D ratio | 24 | 21 | 24 | 21 | 24 | 21 | 23 | 21 | |
| 理论射胶容积 cm3 | Shot Size | 163 | 214 | 251 | 318 | 251 | 318 | 358 | 442 | |
| 注射重量 (PS)g | Shot Weight | 150 | 196 | 231 | 293 | 231 | 292 | 329 | 406 | |
| oz | 5.3 | 6.9 | 8.2 | 10.3 | 8.2 | 10.3 | 11.6 | 14.3 | ||
| 注塑压力 Mpa | Injection Pressure | 256 | 196 | 256 | 202 | 256 | 202 | 256 | 207 | |
| 注射速度 mm/s | Injection Speed | 238 | 182 | 228 | 180 | |||||
| 注塑速率 cm3/s | Injection Rate | 229 | 229 | 229 | 290 | 286 | 363 | 286 | 354 | |
| 螺杆最大转速 rpm | Screw Speed | 400 | 400 | 400 | 350 | |||||
| 其他 | 油泵电机功率 Kw | Motor Power | 36 | 48 | ||||||
| 油泵排量 L/min | 220 | 275 | ||||||||
| 电热功率 Kw | Heater Power | 8.9 | 10.9 | 10.9 | 13 | |||||
| 机器净重 ton | Machine Weight | 6.5 | 7.5 | |||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 5455×1620×1820 | 5830×1640×1870 | |||||||

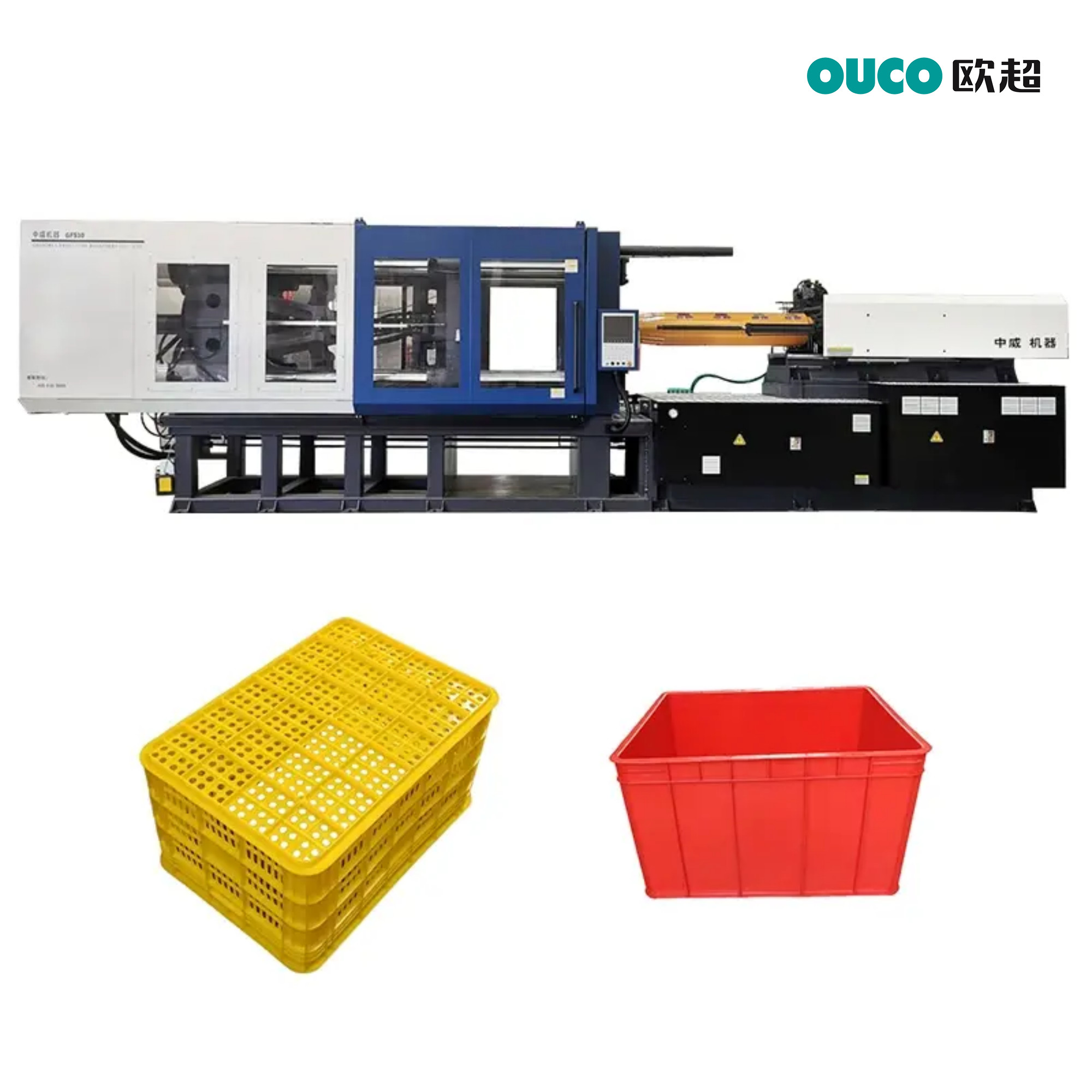

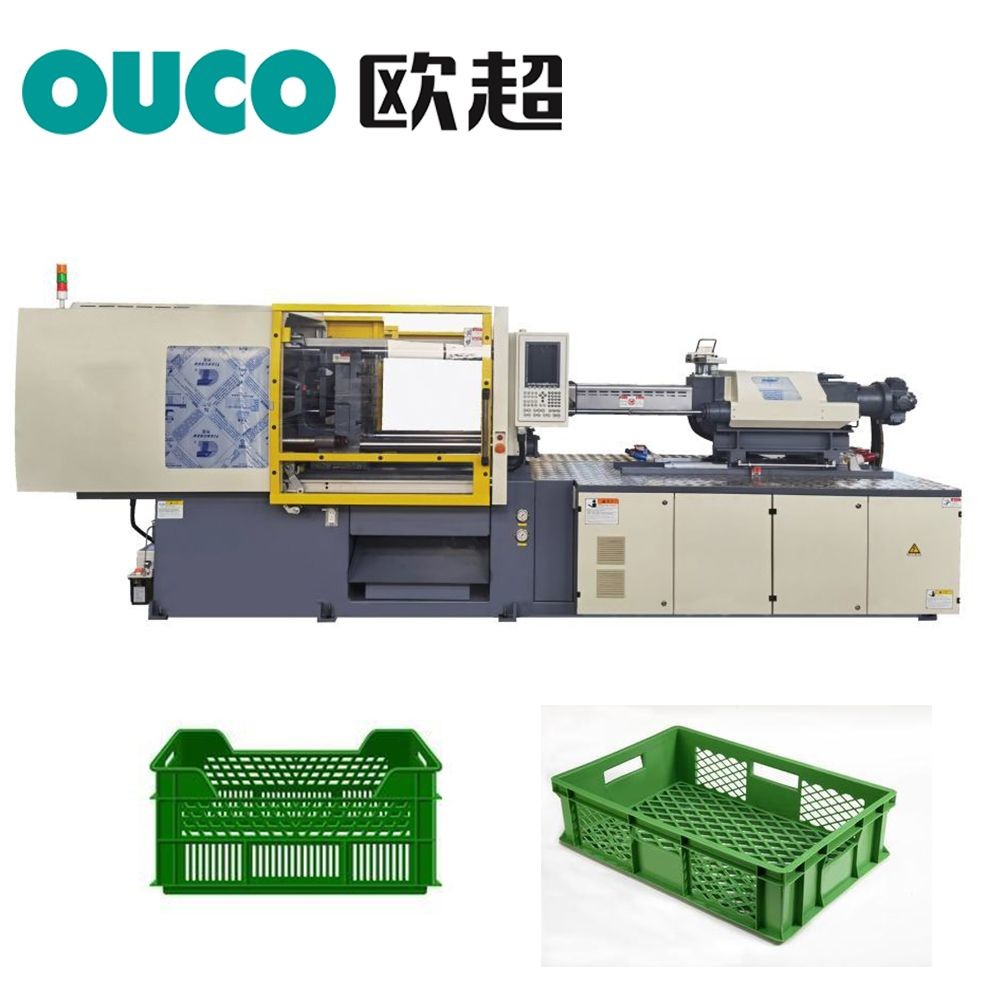

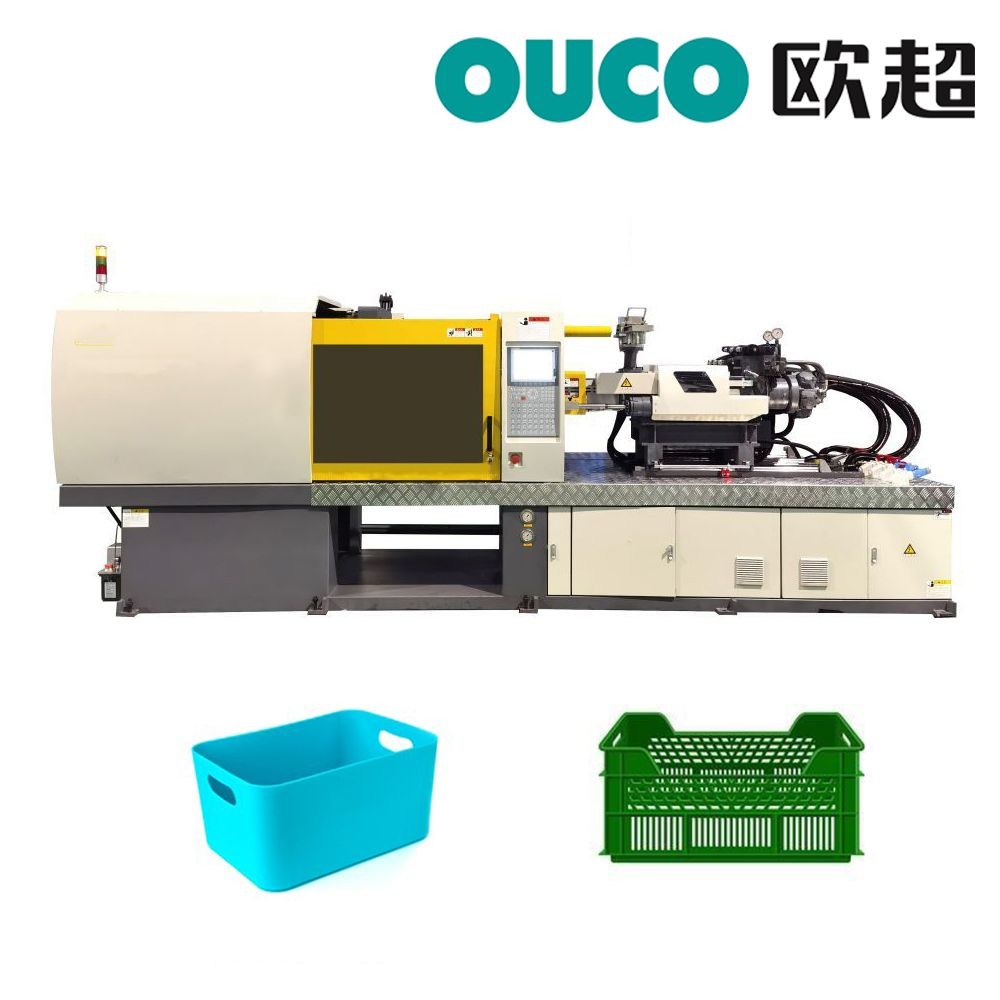

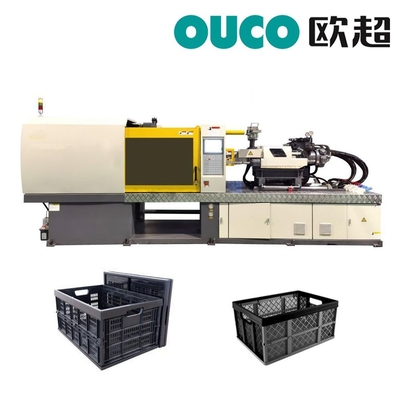

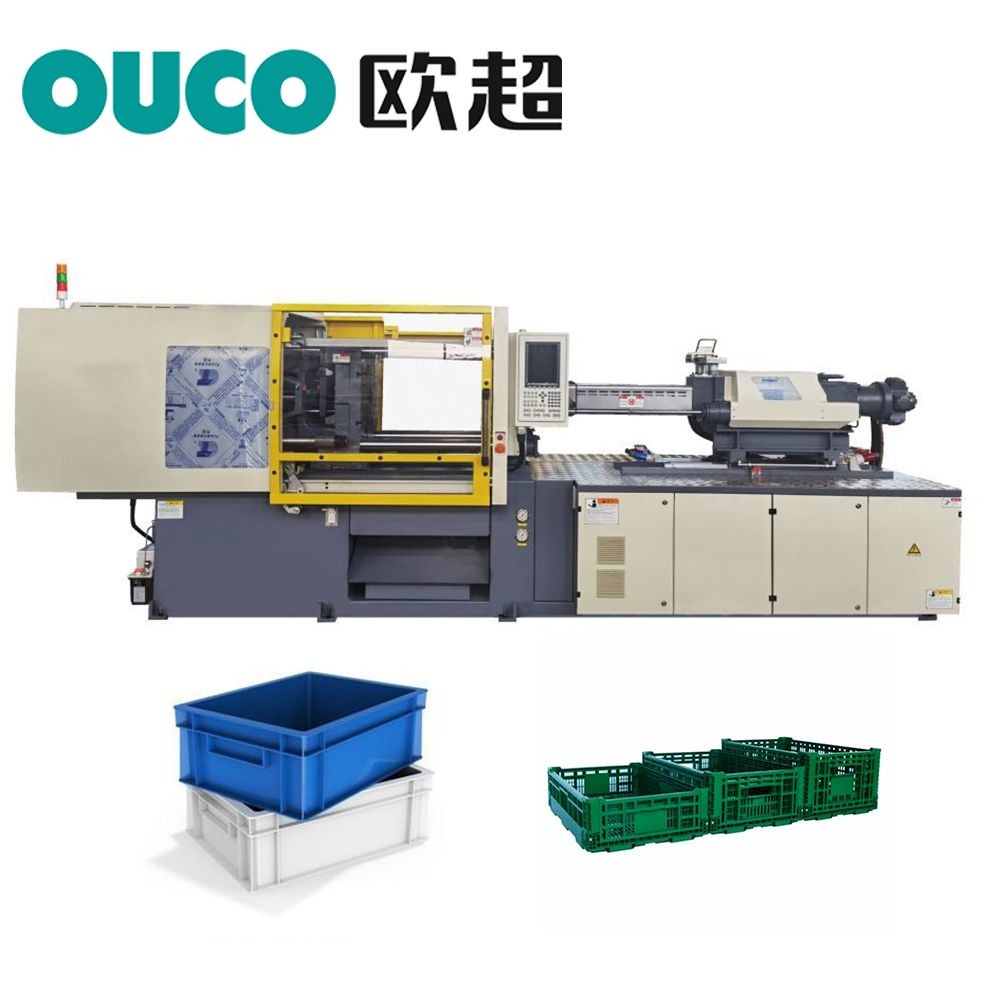

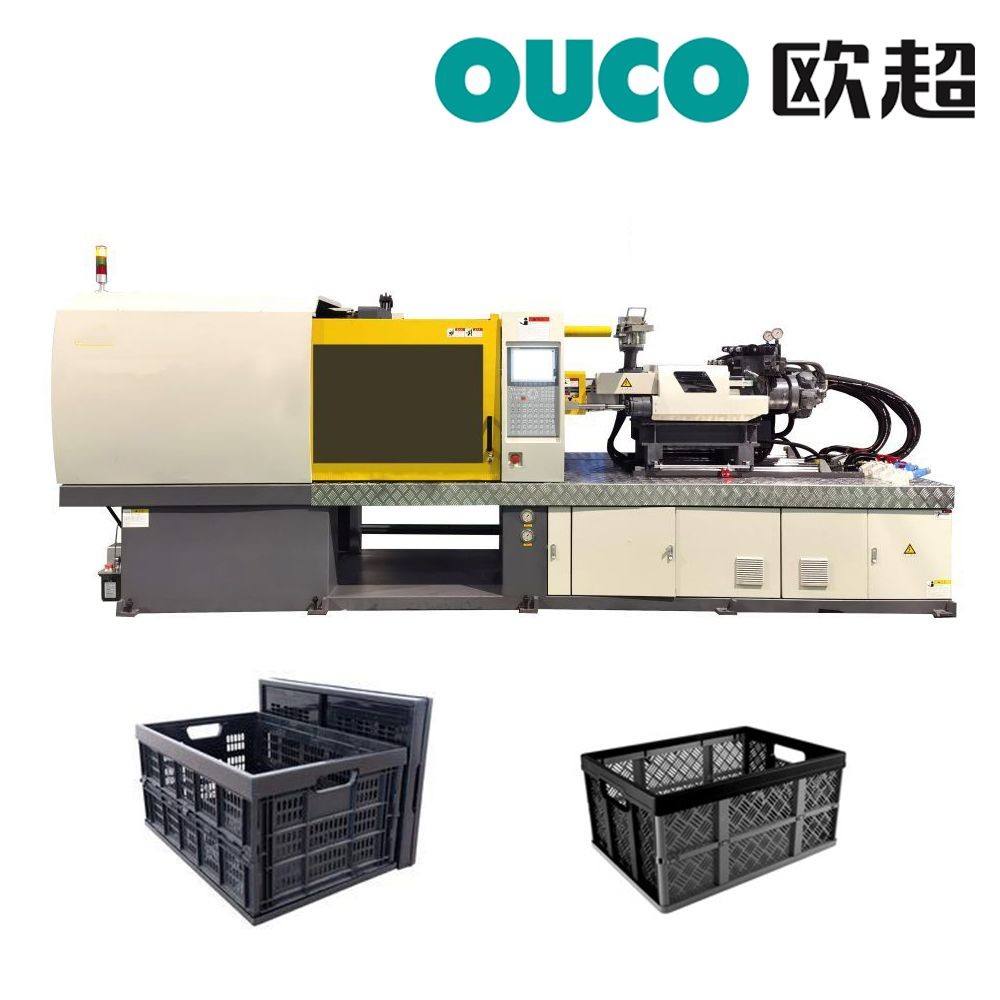

Detailed Pictures
