| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-400T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Wood Case & Carton Packaging |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

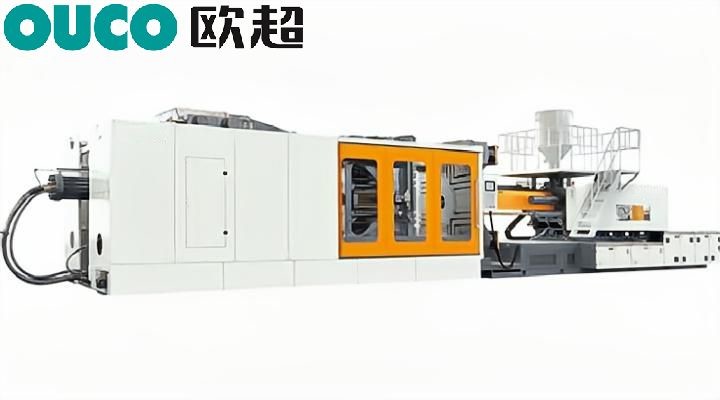

| Product Name: | Fruit Plastic Mesh Basket Automatic Injection Moulding Machines, CE Stand | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Machinery Test Report: | Provided |
| Application: | Fruit Plastic Mesh Basket | Condition: | New |
| Transport Package: | FCL | Warranty: | 1 Year |
| Highlight: | CE Servo Motor Injection Molding Machine,SGS Servo Motor Injection Molding Machine,65mm automatic injection moulding machines |
||
Unmatched energy-saving features - Flexible servo motor control system with energy saving. It saves 20-80% of electrical power compared to ordinary injection moulding machines.
Outstanding precision and stability - Equipped with precise pressure sensors and rotary encoders for monitoring and feedback of flow and pressure respectively.
Double guided guide bar support and double balanced fast injection. Based on the feedback information, the high-performance synchronous servomotor will adjust the flow and pressure accordingly by changing the flow and pressure.
Based on the feedback information, the high performance synchronous servomotor will adjust the flow and pressure accordingly by varying the speed and torque. The closed loop control ensures consistent product quality.
Fast response and high efficiency - The drive system has a high response sensitivity. It takes only 0.05 seconds to reach the maximum value. Much faster response than ordinary injection moulding machines. In this way, it significantly reduces cycle times, increases productivity and greatly increases your efficiency.
Parameters
| Model | 300T | 400T | 500T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 |
| injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 |
| Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 |
| Inject on stroke | mm | 325 | 360 | 385 | ||||||
| Max. injection speed | mm/s | 178 | 156 | 166 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 63 | 75 | 94 | ||||||
| Displacement | ml/r | 163 | 100+100 | 125+125 | ||||||
| number of Motors | PC | 1 | 2 | 2 | ||||||
| Heater power | kW | 27 | 35 | 41 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 3000 | 4000 | 5000 | ||||||
| Opening stroke | mm | 800 | 900 | 1000 | ||||||
| Tie bar distance W×L | mm*mm | 680x680 | 760x660 | 860x760 | ||||||
| Min. mold thickness | mm | 210 | 300 | 300 | ||||||
| Max. mold thickness | mm | 680 | 730 | 800 | ||||||
| Ejector stroke | mm | 190 | 190 | 210 | ||||||
| Ejector force forward | kN | 62 | 80 | 110 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 510 | 680 | 850 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | ||||||
| Machine weight | Ton | 10.5 | 15 | 19 | ||||||

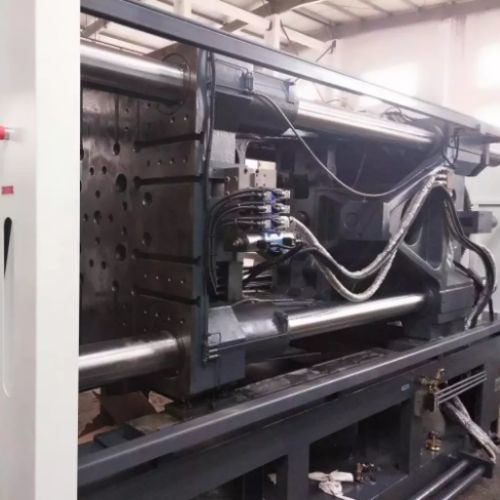

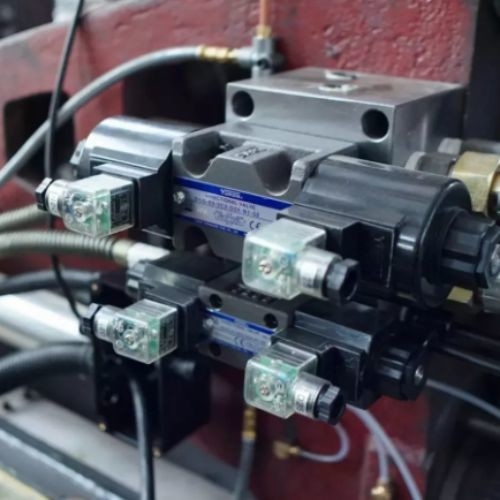

Detail Pictures
