| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC800H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Restaurants Plastic Stools Making OUCO 880T Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 880T Injection Molding Machine,Restaurants Plastic Stools Making Machine,Plastic Stools Making Injection Molding Machine |
||
Company Advantages
We have established a complete quality control system, and we conduct strict quality inspections at every stage from raw material procurement to production process. We always insist on using high-quality materials and parts to ensure the durability and reliability of the products, and fundamentally extend the service life of the injection molding machine.
The sales team and the technical team work together to answer your questions, provide professional technical support, and help solve technical problems during use. If you have special needs, we provide customized solutions and can replace or use accessories of a special brand according to your specific needs.
While selling injection molding machines, considering that some customers need to be equipped with related auxiliary machines, we can also provide you with quotes for related auxiliary machines. Help you build a complete product production line.
Product Advantages

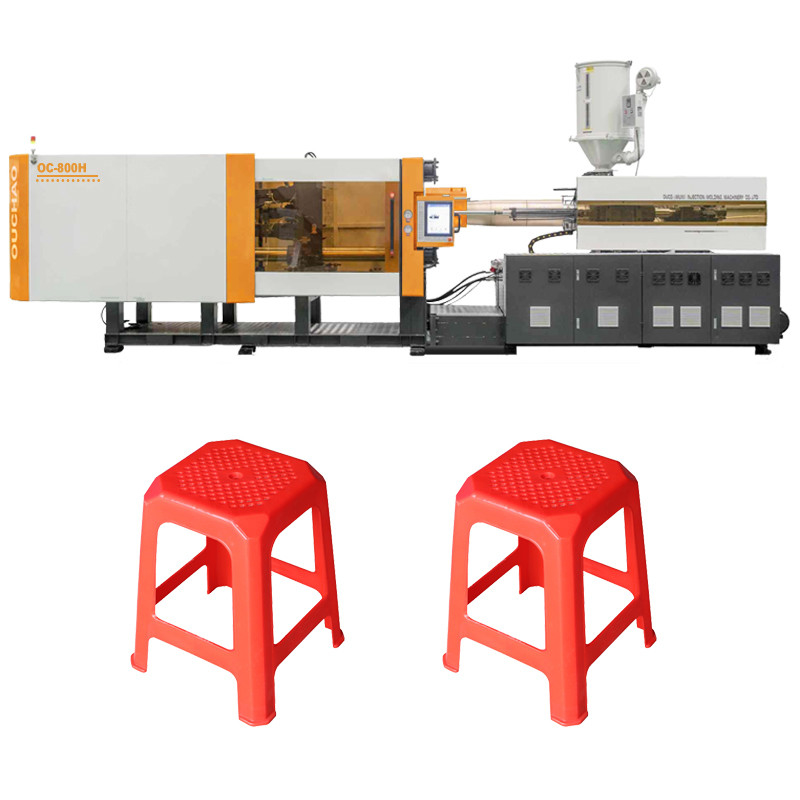

Plastic stools are mass consumer goods with low prices, so the injection molding machines used need to have high efficiency to reduce production costs. The OC-800H will be your best choice.
The injection volume can reach up to 4752cm³, and sufficient plastic can be injected at one time to eliminate product quality problems caused by multiple injections and ensure consistent product quality. Equipped with a larger servo motor, it provides strong power, giving the OC-800H injection molding machine faster injection speed and shorter response time, greatly improving production efficiency, shortening production cycles, and helping companies reduce costs and increase efficiency.
OC-800H has an extra-large mold opening stroke, which is convenient for changing molds. It can easily produce plastic stools of various styles and sizes, and is highly adaptable. At the same time, the central clamping structure makes the template force uniform and the deformation is small, better protects the template and mold, and effectively extends the use time of the template mold.
The operating system equipped with our injection molding machine supports multiple language versions, which is convenient for employees to learn and operate.
Parameters
| MODEL | OC800H | |||||
| Clamping force (kN) | 8000 | |||||
| Space between tie bar (mm*mm) | 1060*860 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1300 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3927 | |||||
| Shot weight (PS) g | 3729 | |||||
| Injection pressure(MPa) | 151 | |||||
| Injection speed (mm/s) | 89 | |||||
| Injection rate (g/s) | 660 | |||||
| Pump power (Kw) | 83 | |||||
| Oil tank capacity(L) | 1020 | |||||
| Heater power (Kw) | 52 | |||||
| Machine Weight (T) | 27 | |||||
| Machine size L×W×H (m) | 10*2.2*2.4 | |||||

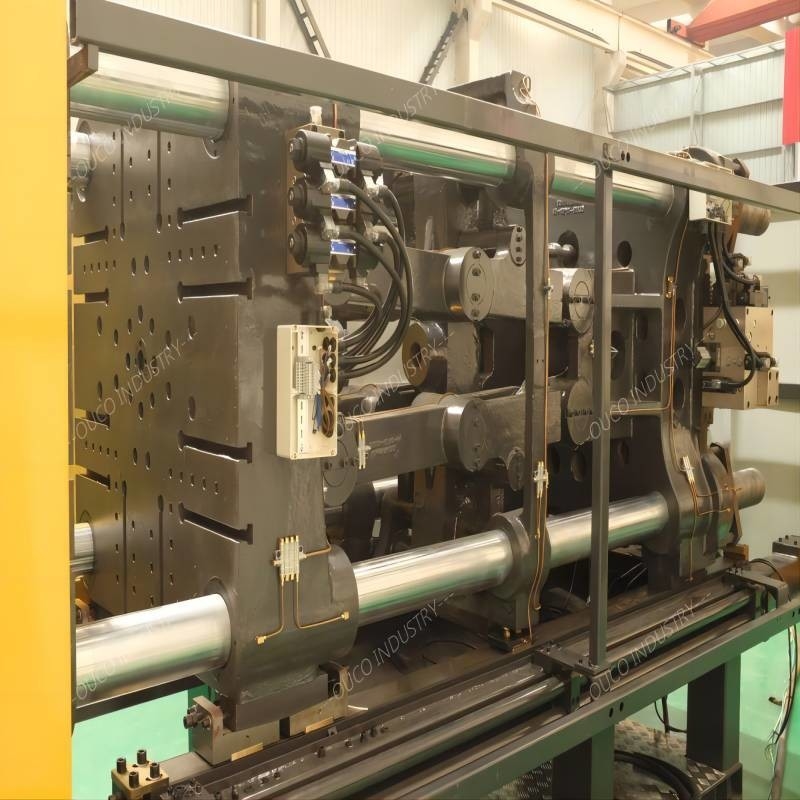

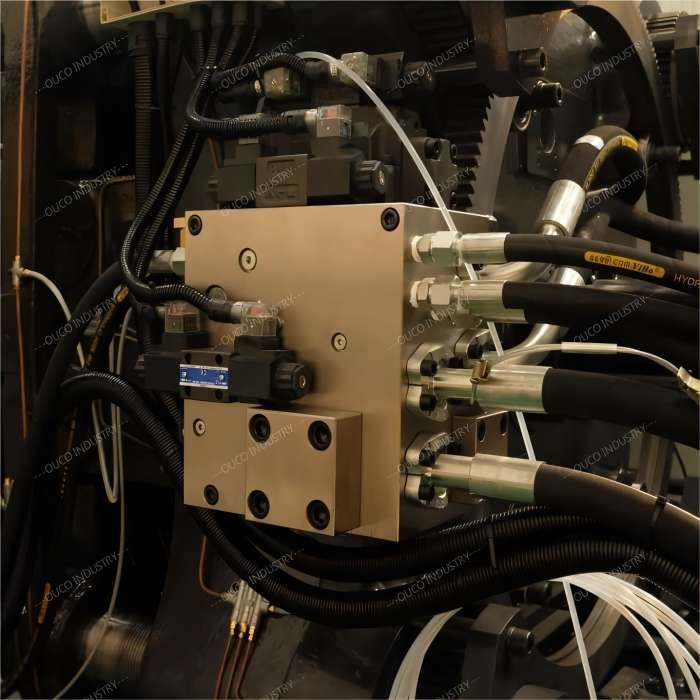

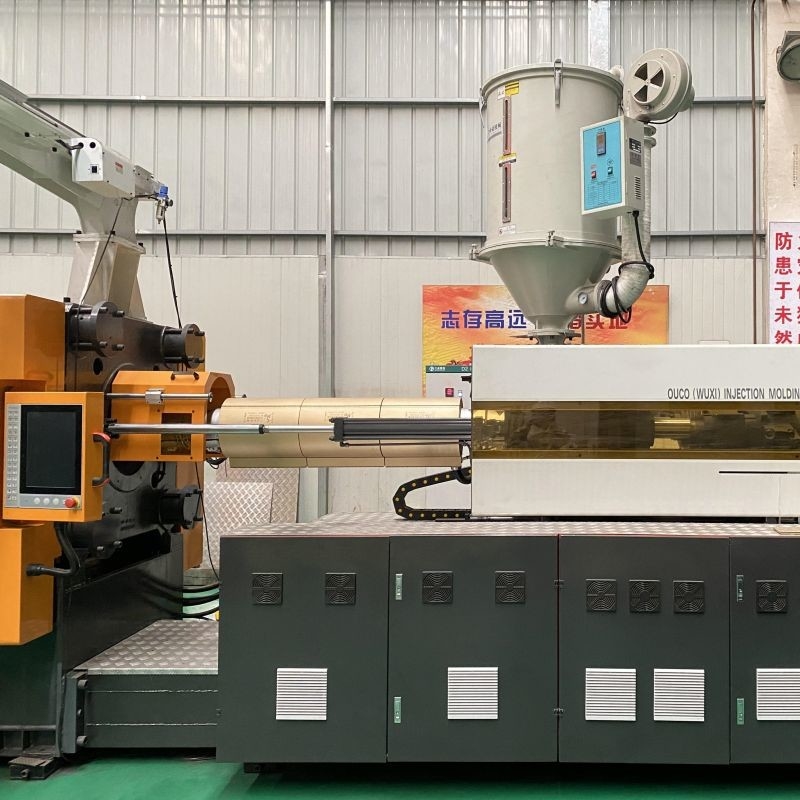

Detail Pictures
