| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

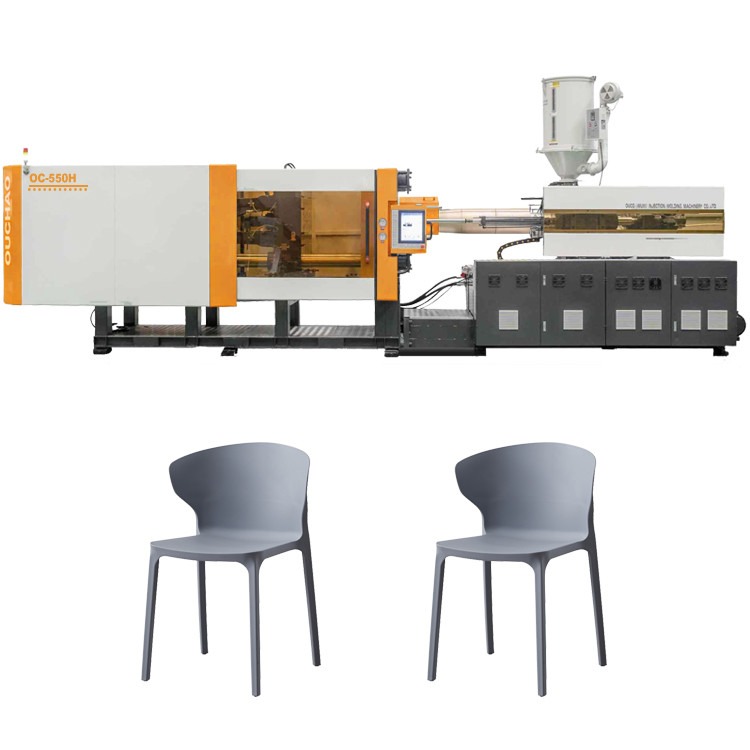

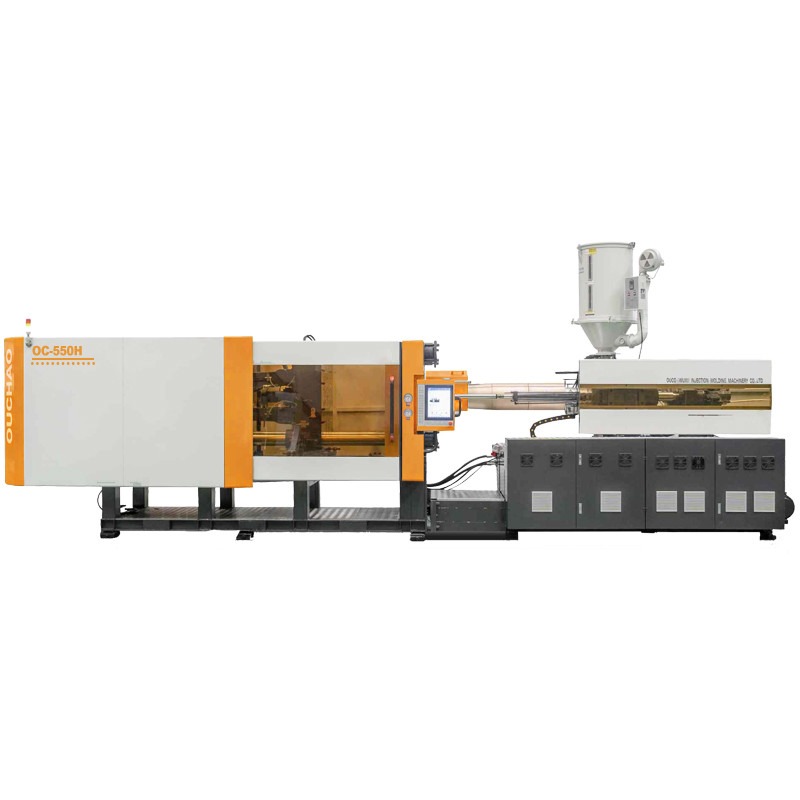

| Product Name: | 550T High Output Injection Moulding Machine For The Production Of Plastic Chairs | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | High Output Injection Moulding Machine,550T Injection Moulding Machine,Plastic Chairs Injection Moulding Machine |
||
1. Innovative design, leading the future: our injection moulding machines adopt cutting-edge innovative design to meet the ever-changing market demand and lead the future development trend of the injection moulding industry.
2. Leading technology, excellent quality: relying on advanced manufacturing technology, our injection moulding machines excel in precision, stability and durability, ensuring excellent product quality.
3. Efficient production, improve efficiency: High-efficiency injection moulding system ensures the double improvement of production speed and quality, effectively reduces the production cost and improves the overall benefit of the enterprise.
4. Simple operation, easy to start: user-friendly operation interface and control system design, so that the user can easily master the operation skills, quickly get started, reduce training costs.
5. Intelligent control, accurate and reliable: through the intelligent control system, it achieves accurate control of the injection moulding process, ensures stable and reliable product quality, and improves production efficiency and product competitiveness.
Parameters
| MODEL | OCM-550H | |||||
| Clamping force (kN) | 550 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 90 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2608 | |||||
| Shot weight (PS) g | 2519 | |||||
| Injection pressure(MPa) | 118 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 817 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 20 | |||||
| Machine size L×W×H (mm) | 8700*2100*2200 | |||||

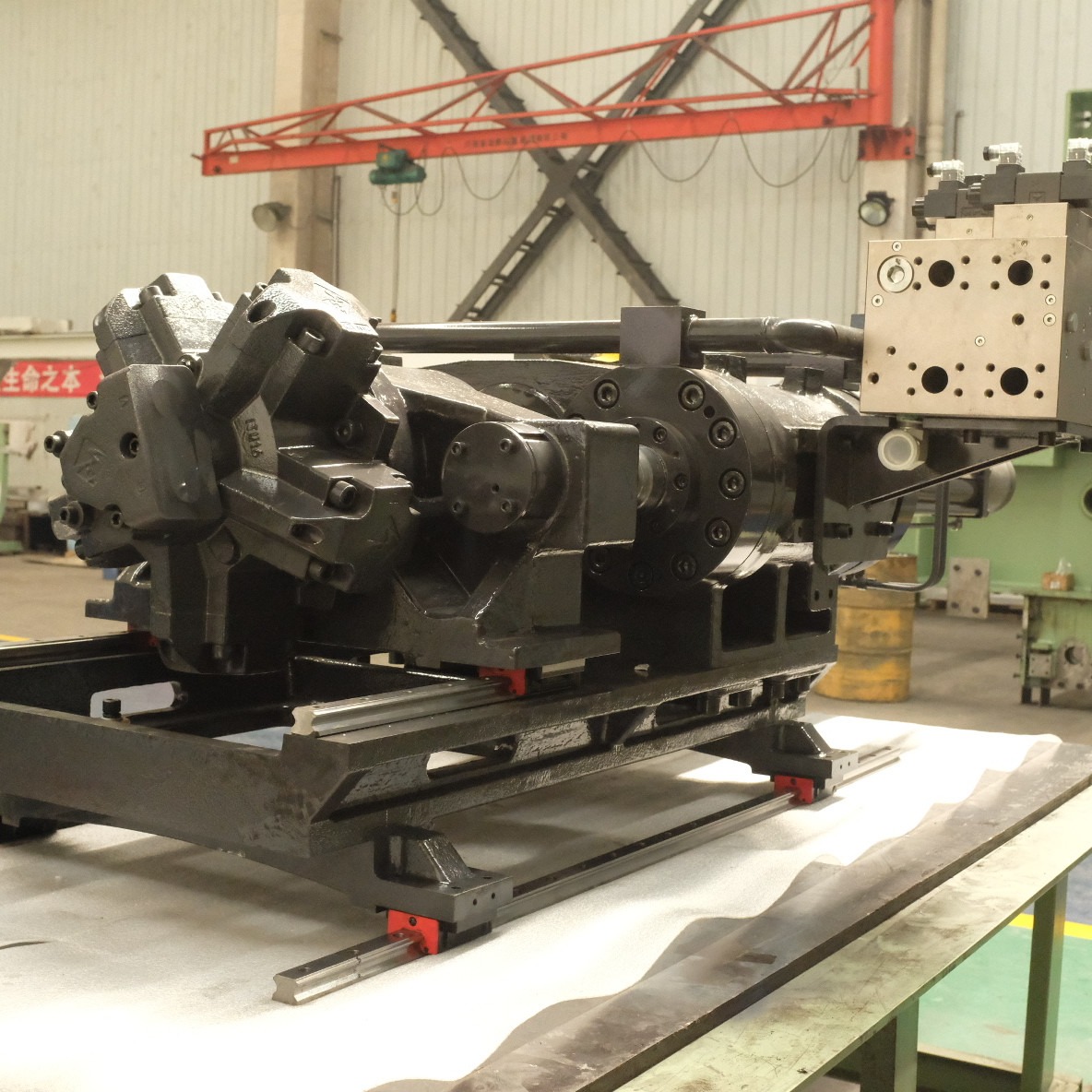

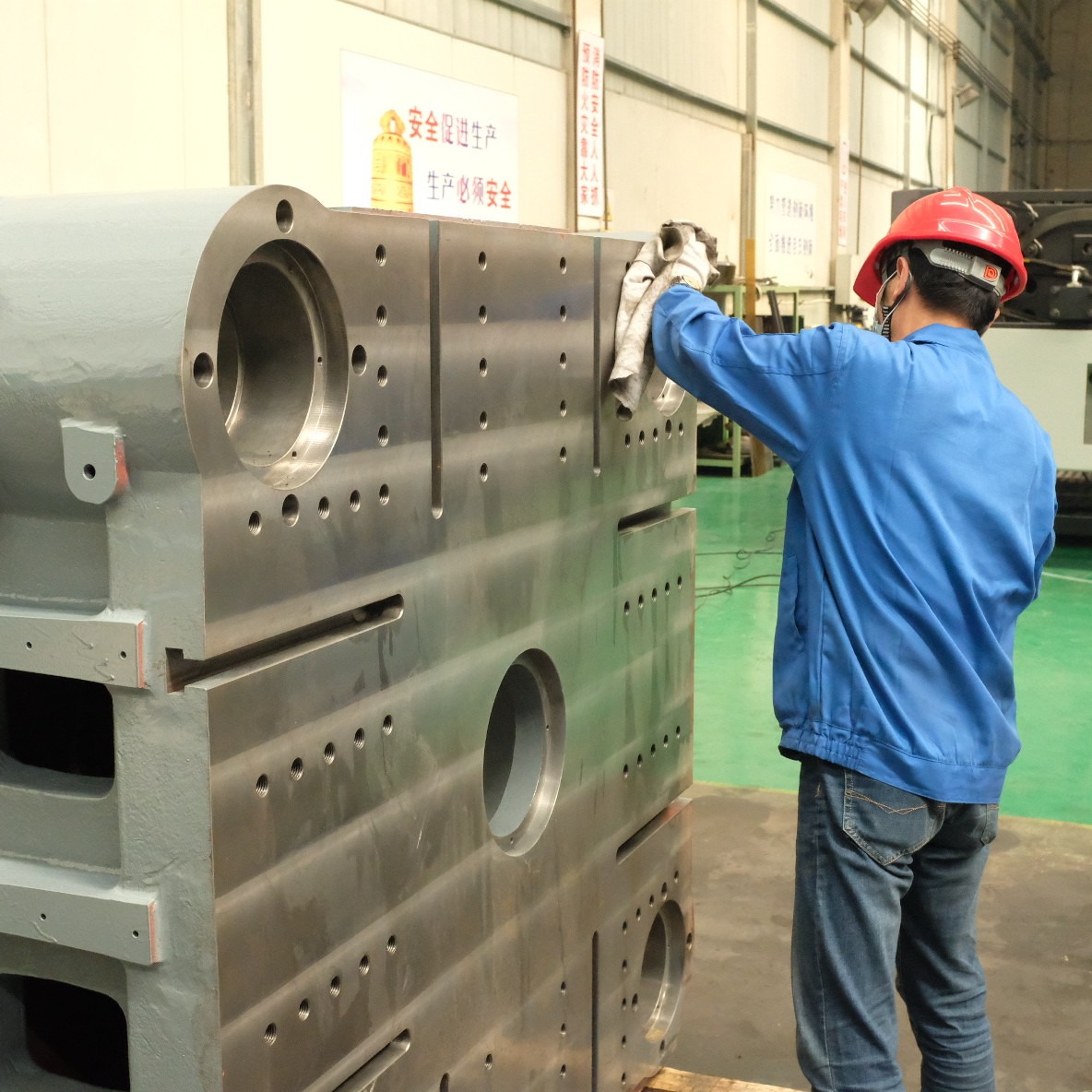

Detail Pictures
