| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

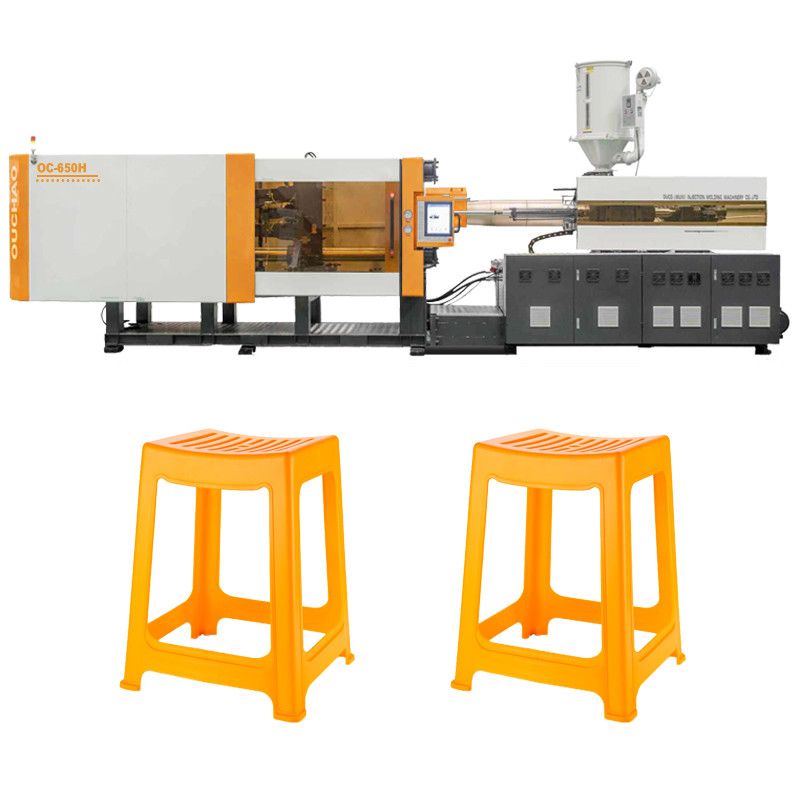

| Product Name: | High Output Plastic High Legged Stool Making 650T Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | High Output Injection Molding Machine,650T Injection Molding Machine,Plastic High Legged Stool Making Machine |
||
Company Advantages
As a professional manufacturer of injection molding machines, we have a complete production process and strict quality control system to ensure that each injection molding machine meets the highest quality standards.
We eliminate intermediate links, and you can directly visit our factory and have access to the machines, allowing you to enjoy the most affordable prices and fastest services. We understand the importance of price to our customers, so we are always committed to providing them with the most competitive prices to make your investment more valuable.
The development of a company cannot do without the support of talent. We provide employees with broad development opportunities and a good working atmosphere, allowing each employee to fully unleash their talents and potential.
By choosing us, you will receive the highest quality injection molding machine products and the most comprehensive service. We look forward to working together with you to create a better future!
Product Advantages
Long mold opening stroke, worry free capacity for large molds
The OC-650H has a super large mold opening stroke, which can easily accommodate large molds and greatly improve production efficiency. At the same time, this also makes product retrieval more convenient, reduces operational difficulty, and reduces potential risks in the production process.
Efficient and energy-saving, reducing costs
We are well aware of the importance of cost control for enterprises. Therefore, in the design and manufacturing process of our injection molding machine, special attention is paid to energy conservation and efficiency, equipped with servo motors. By adopting advanced hydraulic and electrical control systems, our injection molding machines achieve lower energy consumption while ensuring efficient production, saving your enterprise a significant amount of costs.
Stable and reliable, long-lasting and durable
Quality is our commitment to our customers. Our injection molding machine adopts high-quality components and precise manufacturing processes, ensuring the stability and reliability of the equipment. In long-term, high-intensity production environments, our injection molding machines can still maintain excellent performance, providing lasting and stable support for your enterprise.
Parameters
| MODEL | OC650H | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (Ton) | 24 | |||||
| Machine size L×W×H (m) | 9*2.1*2.3 | |||||

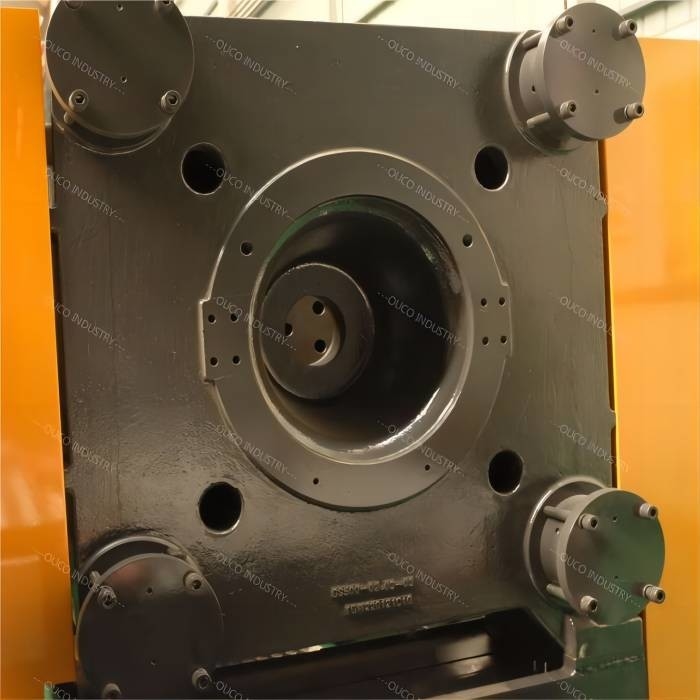

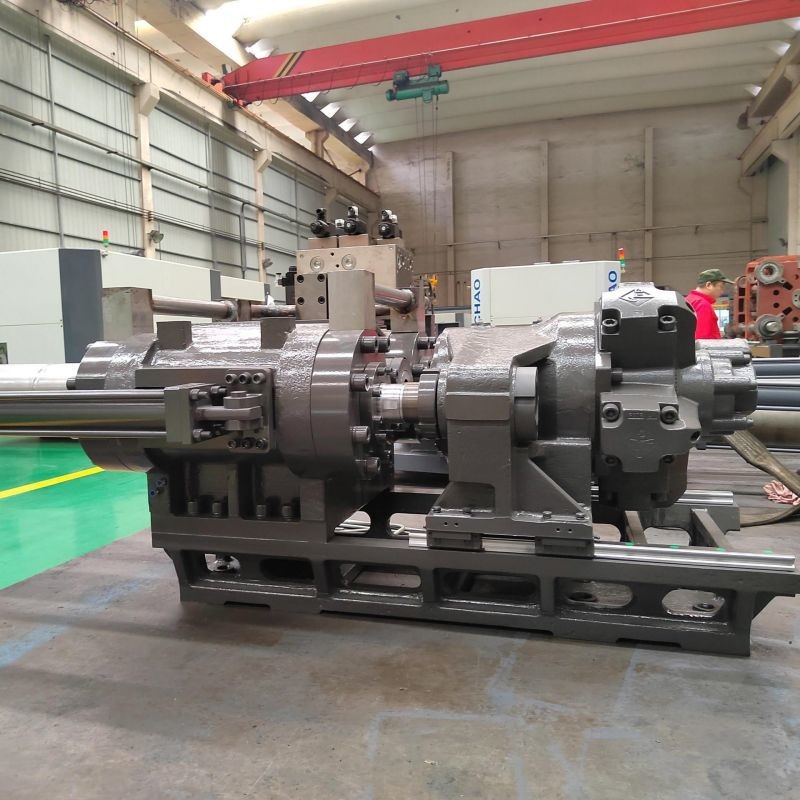

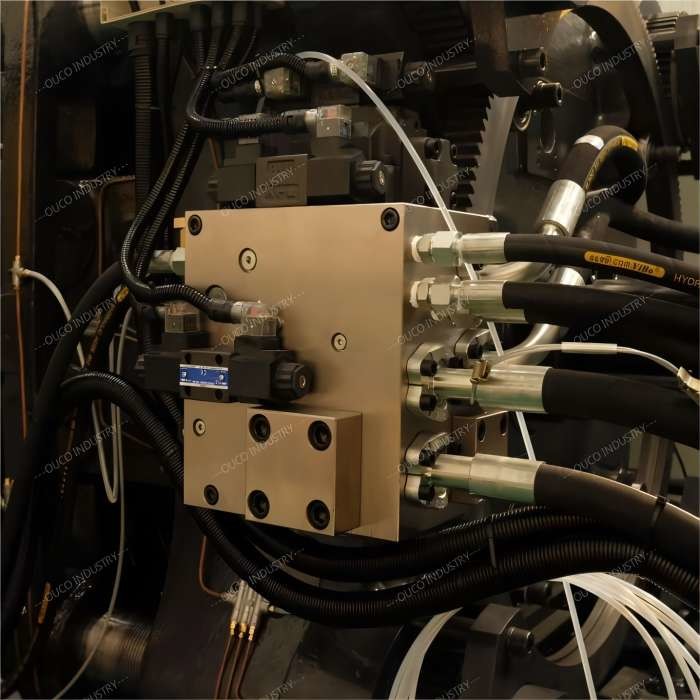

Detail Pictures
