| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650D |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

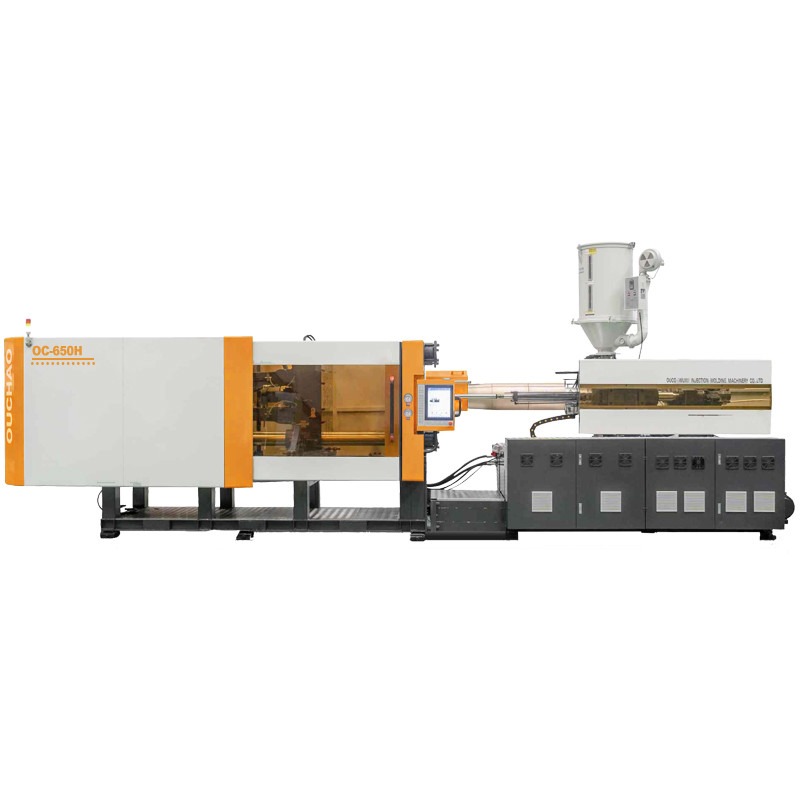

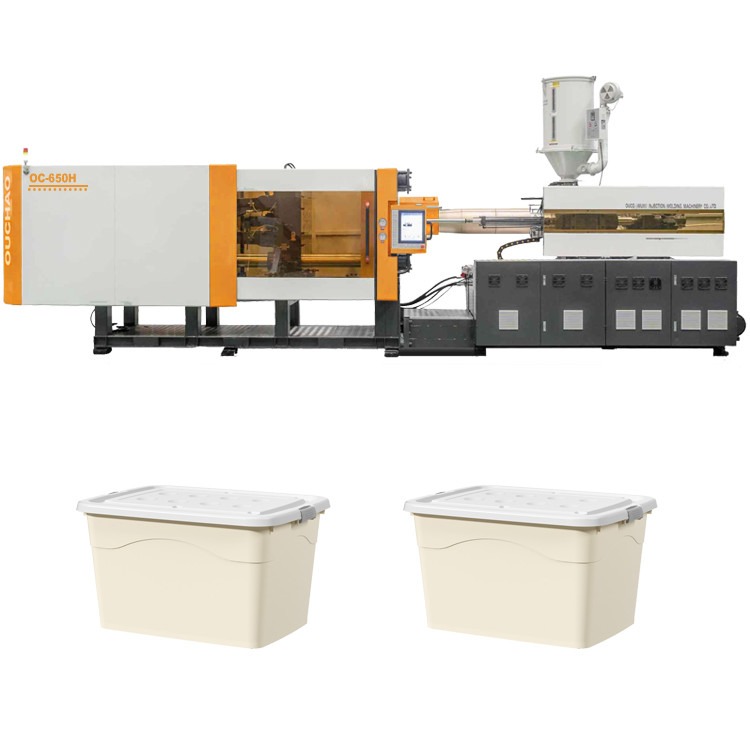

| Product Name: | OUCO Hydraulic Servo 650T Injection Molding Machine Producing Storage Boxes | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
Product Advantages
Parameters
| MODEL | OCM-650D | |||||
| Clamping force (kN) | 650 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||

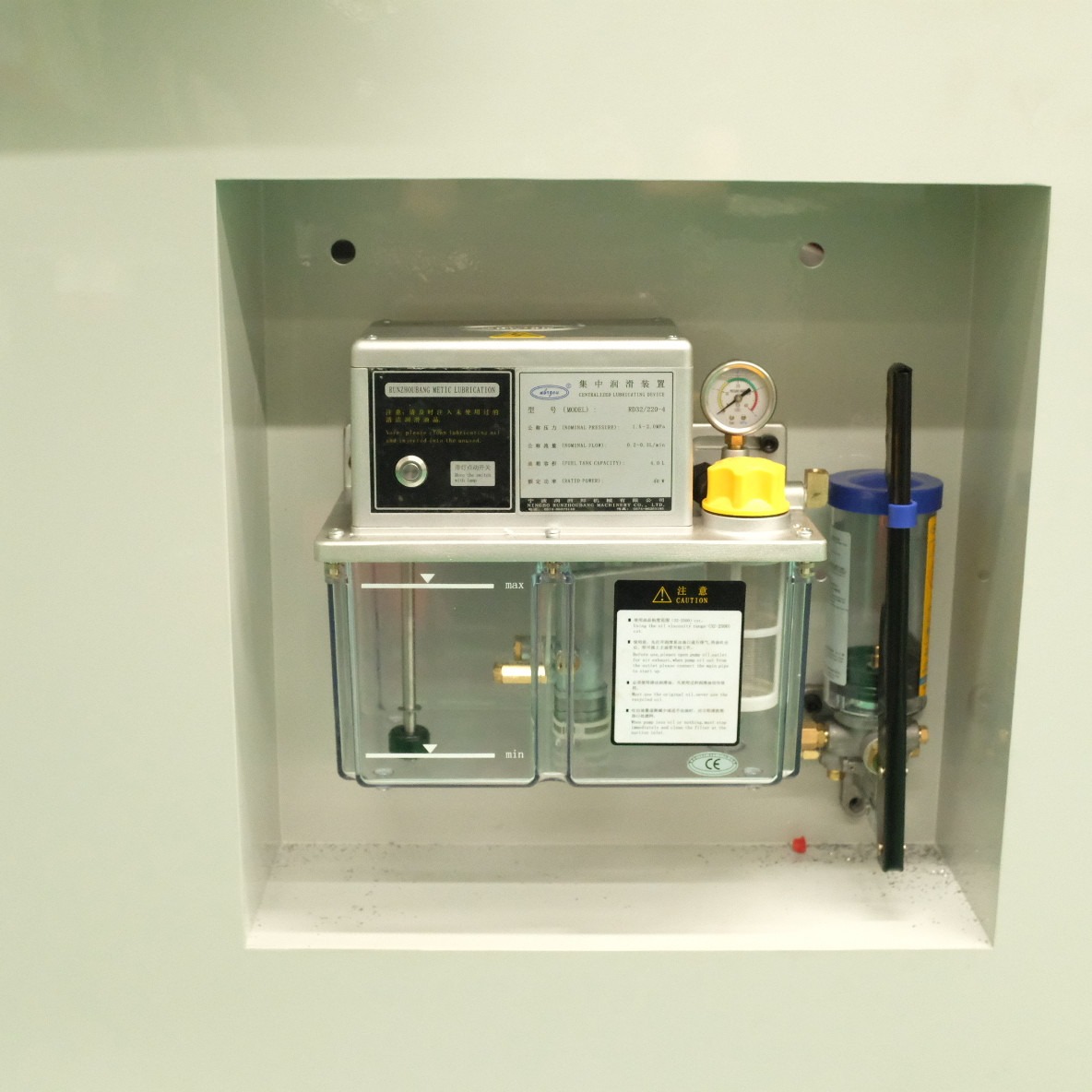

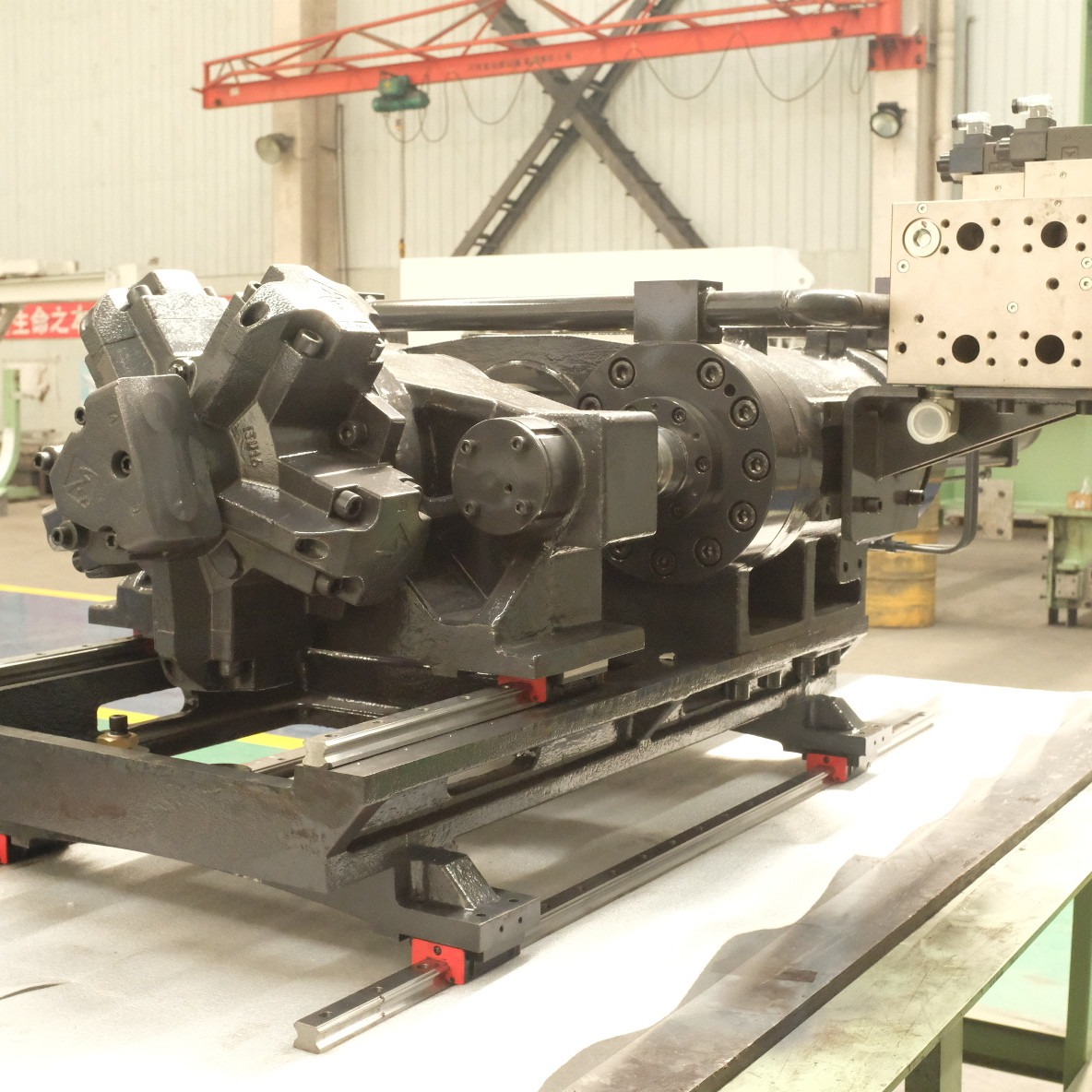

Detail Pictures
