| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

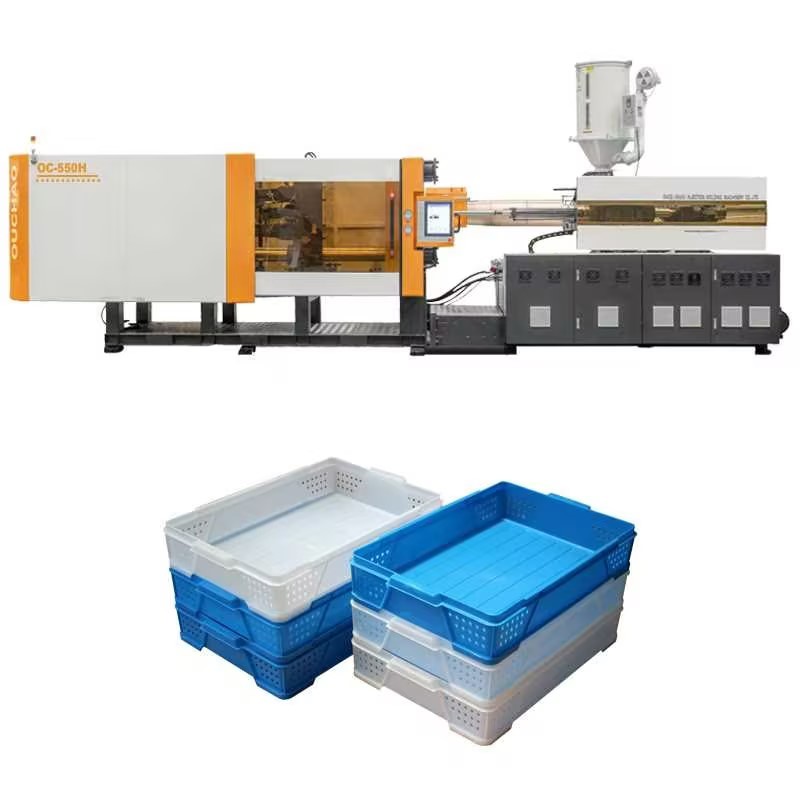

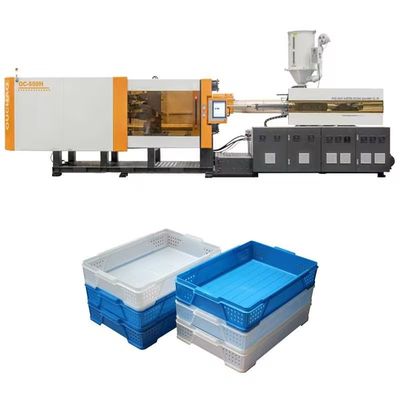

| Product Name: | Efficient Plastic Bread Creat 550T Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 550T Injection Molding Machine,Plastic Bread Creat Injection Molding Machine,High Efficient Injection Molding Machine |
||
Company Advantages
OUCO: the source of your success
We understand that each customer has unique needs and tailor solutions to help you achieve the following goals:
Improve production efficiency: shorten the production cycle, reduce waste, and optimize the production process.
Reduce production costs: save energy, reduce raw material consumption, and improve product qualification rate.
Improve product quality: achieve high-precision manufacturing and meet strict quality standards.
Tailor-made solutions: Injection molding machine accessories such as screws can be customized according to your needs.
OUCO: global partner
OUCO is based in China, looks at the world, actively explores overseas markets, and works together with global partners to achieve win-win results. We always adhere to the concept of sincere cooperation, mutual benefit and win-win, provide customers with high-quality products and services, and help customers succeed.
Product Advantages
The storage of large quantities of goods requires tools for storage and display, and plastic baskets are a relatively common storage tool. OUCO injection molding machines are better at producing such products.
Injection molding is a common manufacturing process for plastic bread baskets, and the OUCO injection molding machine can also take on this task. The bread baskets produced usually have smooth texture, beautiful appearance, and high production efficiency.
We carefully select high-quality parts from well-known domestic and foreign manufacturers for precision processing and assembly to ensure stable and reliable machine performance. In order to meet customers' demand for output, we have set up an efficient and reasonable servo system configuration, which is controlled by a servo motor. The injection speed will be higher than that of ordinary machines. The increase in injection speed is beneficial to the increase in total output. Realizing your return on investment is no longer a distant dream.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1991 | |||||
| Injection pressure(MPa) | 150 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.0*2.1 | |||||

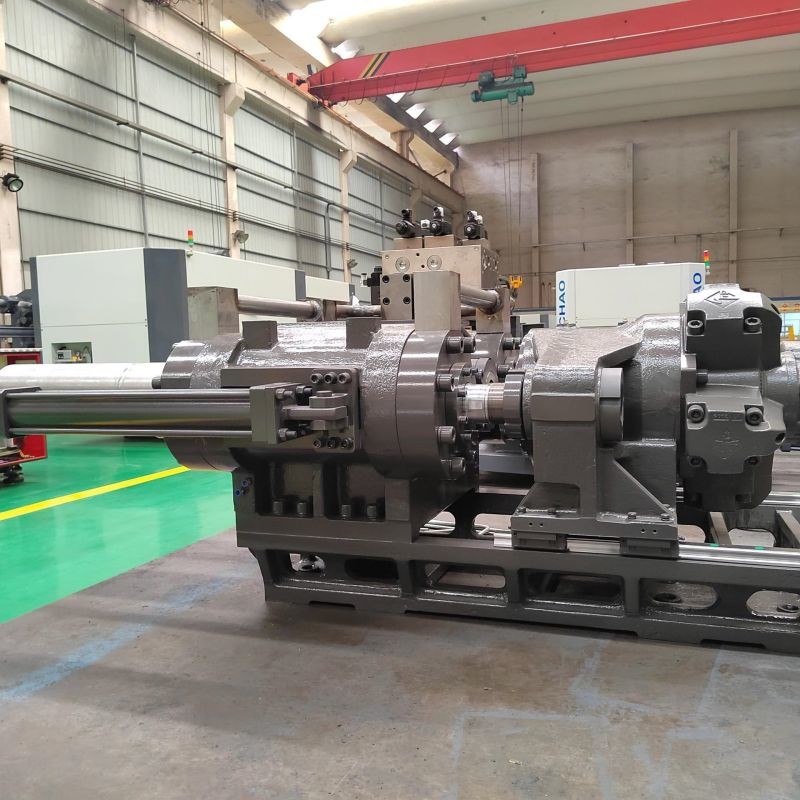

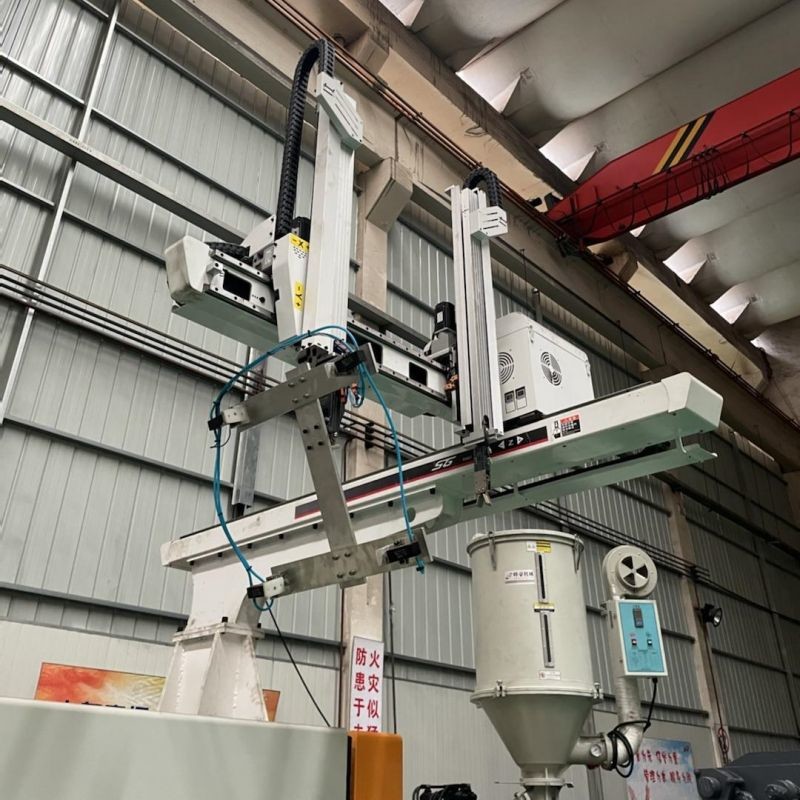

Detail Pictures
