| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC400H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Favorable Price Shopping Basket Making Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Shopping Basket Making Injection Molding Machine,Favorable Price Injection Molding Machine |
||
OUCO, specializes in injection molding machine manufacturing and serves customers wholeheartedly.
OUCO is a company from Jiangsu, China, specializing in the research and development, manufacturing, sales and service of injection molding machines. It has many years of experience in the injection molding machine industry and strong technical strength. We have a professional R&D team and advanced R&D equipment. With the strong support and encouragement of our BOSS, our technicians continue to develop new products and technologies, only to provide customers with high-quality, high-performance injection molding machine products. A complete service system ensures that it can provide customers with all-round services before, during and after sales.
In the future, all OUCO employees will continue to work together. We are committed to making OUCO the world's leading injection molding machine manufacturer and contributing to the development of the injection molding machine industry.
Product Advantages
If you need to produce plastic products such as plastic baskets, then please take a look at the OUCO injection molding machine. Our injection molding machines will give you an unforgettable experience.

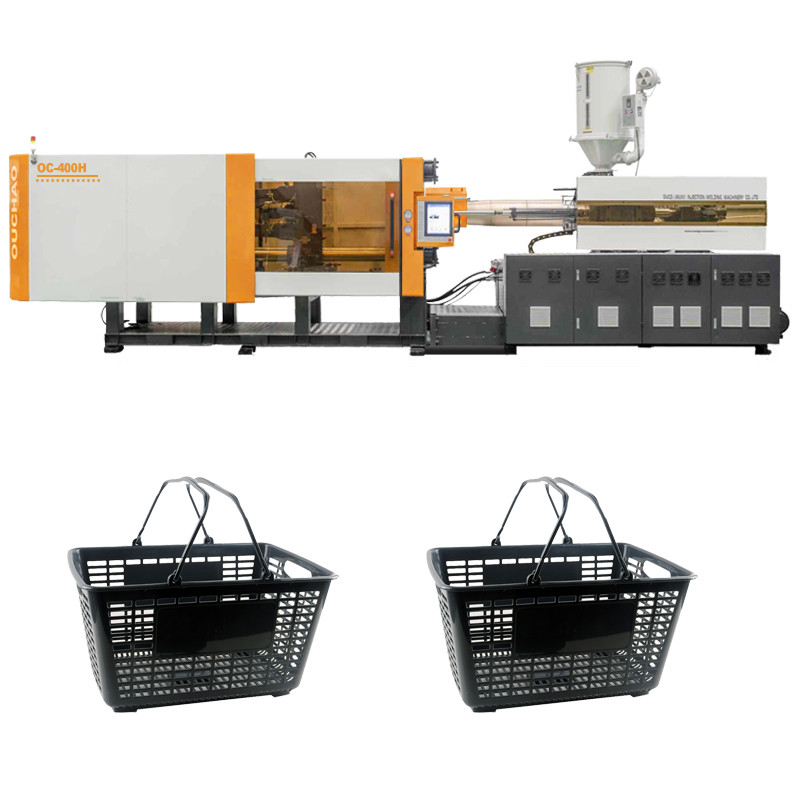

OC-400H is a model that is widely used in the production of daily necessities. It also performs well in the production of shopping baskets. The servo control system equipped with the machine can accurately control the injection, pressure holding, material return and other actions of the injection molding machine to ensure stable and reliable product quality, reduce energy waste, and save raw materials for you. In order to maintain stable production, the rigidity of the frame is strengthened to improve the bending resistance of the frame and reduce the deformation of the frame when the injection molding machine is running. We insist on using control computers from well-known manufacturers, such as Taiwan Techmation, which can monitor the operating status of the injection molding machine in real time and perform fault diagnosis to help you find and solve problems in time and reduce maintenance costs.
It can be said that using the OC-400H injection molding machine not only means stable product quality, but also reflects the company's practice of green development concepts, winning you a good reputation.
Parameters
|
MODEL |
OC400H |
|
Clamping force (kN) |
4000 |
|
Space between tie bar (mm*mm) |
720*680 |
|
Max. mold thickness (mm) |
730 |
|
Min. mold thickness(mm) |
300 |
|
Opening stroke (mm) |
800 |
|
Ejector stroke(mm) |
190 |
|
Ejector force forward(Kn) |
62 |
|
Screw diameter(mm) |
80 |
|
Screw L/D ratio |
21 |
|
Theoretical injection volume (cm³) |
1759 |
|
Shot weight (PS) g |
1699 |
|
Injection pressure(MPa) |
134 |
|
Injection rate (g/s) |
481 |
|
Motor power (Kw) |
47.5 |
|
Heater power (Kw) |
27 |
|
Machine Weight (T) |
16 |
|
Machine size L×W×H (m) |
8.2*1.9*2.0 |

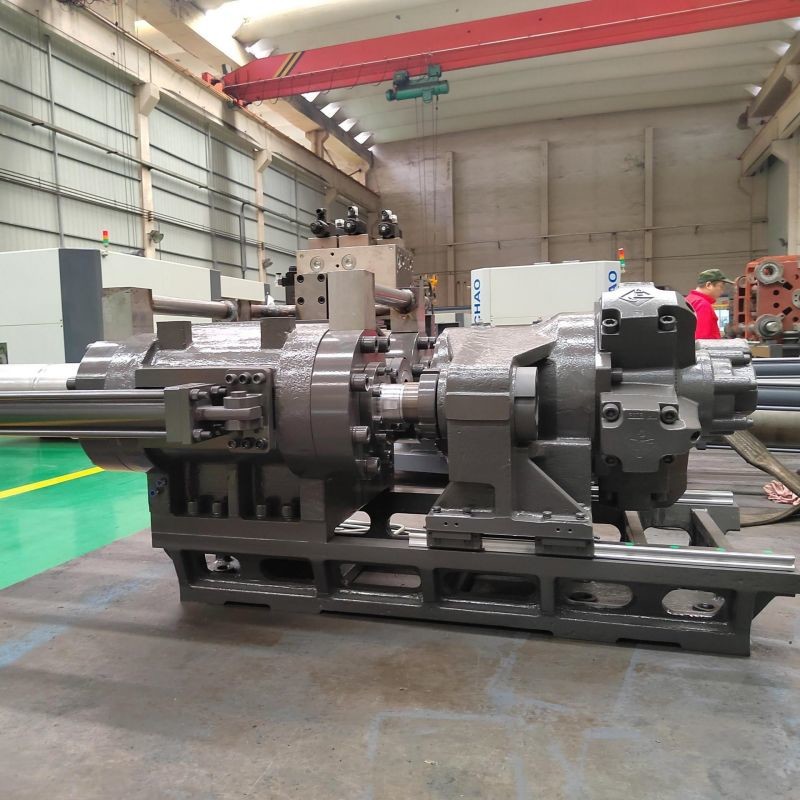

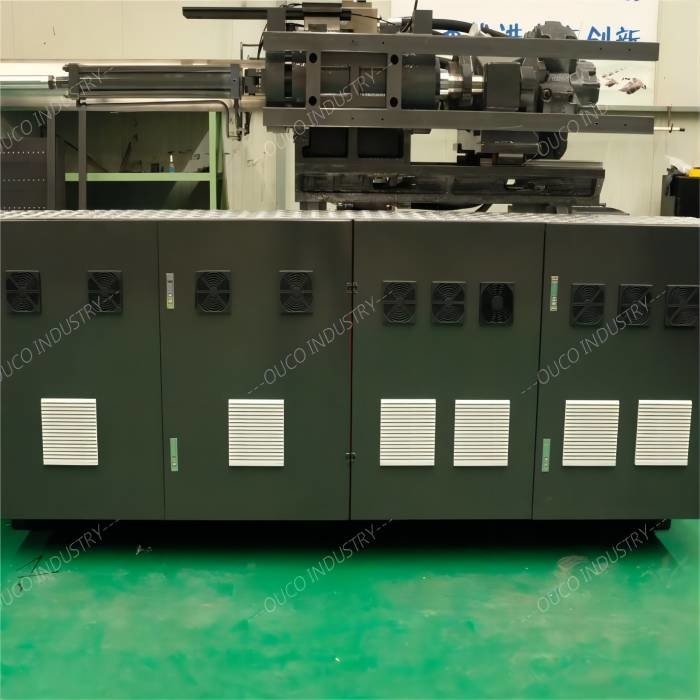

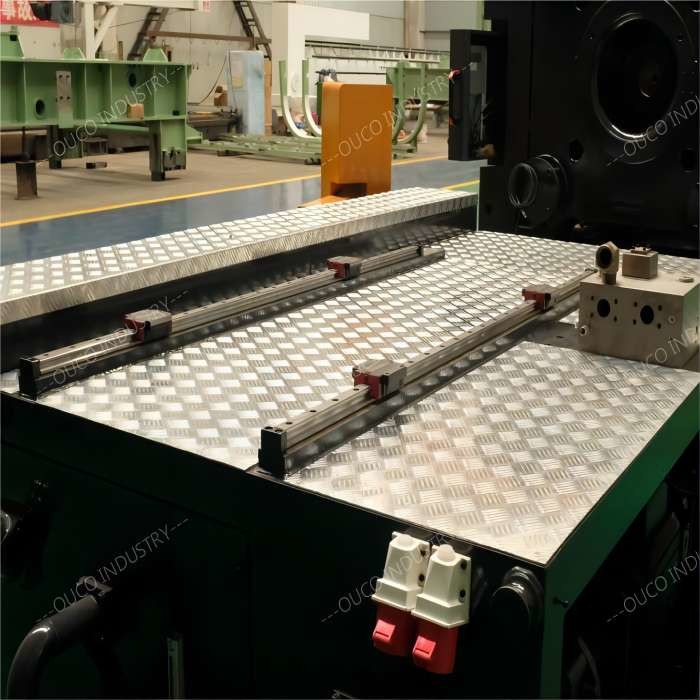

Detail Pictures
