| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC400H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

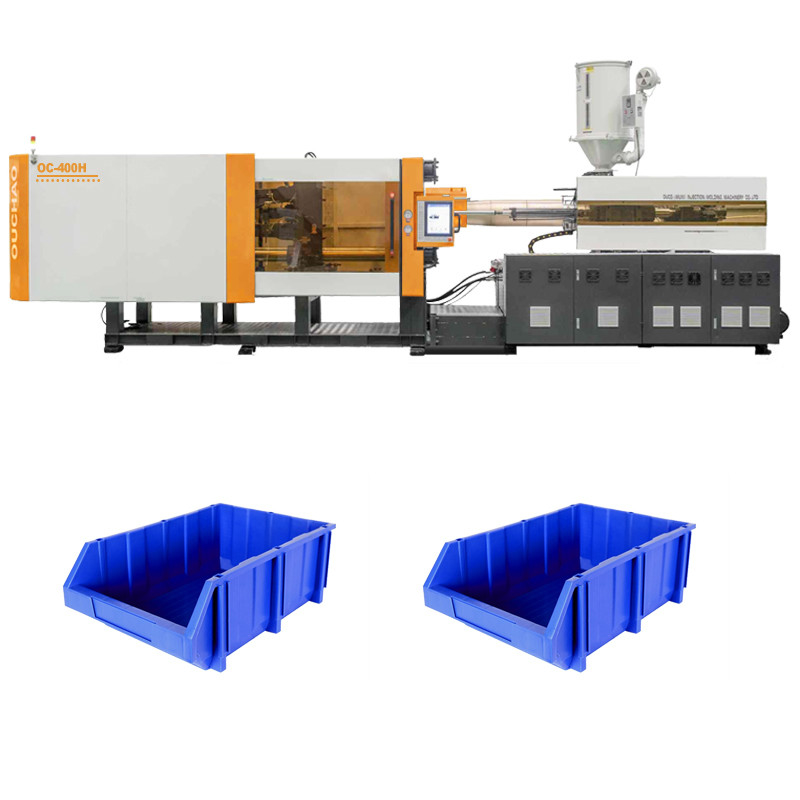

| Product Name: | OUCO 400T High Output Hydraulic Servo Small Accessories Plastic Warehouse Storage Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 400T Injection Molding Machine,Hydraulic Injection Molding Machine,Small Accessories Injection Molding Machine |
||
We have a large number of equipment operators with strong skills and high quality, which provide a solid guarantee for the high-precision processing and production of products. Inside the workshop, there are large-scale processing equipment. The workers perform production operations carefully and meticulously, and each process has scientific and rigorous specifications and processes to ensure the accuracy and reliability of product assembly. We introduce internationally advanced processing equipment and testing equipment, and use strict quality control and testing procedures to ensure that every piece of equipment leaving the factory reaches perfect quality. In addition, we also provide auxiliary equipment related to injection molding machines. If you need it, we can help you select and quote auxiliary equipment. Basically save you time and energy. We strive for excellence and constant innovation, only to provide you with the best quality products and services!
Product Advantages

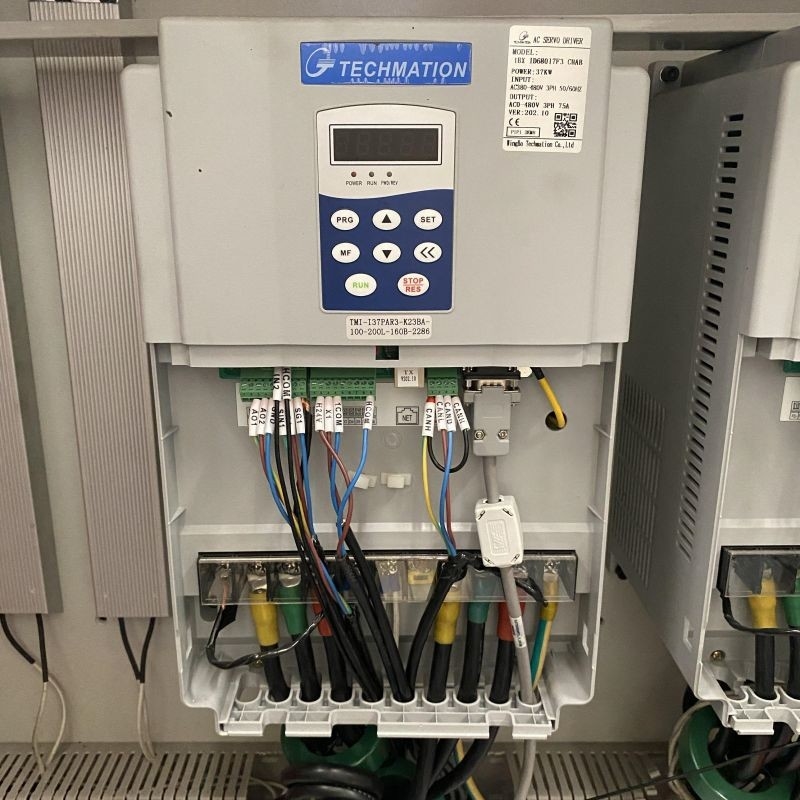

Our OC-400H injection molding machine is a high-efficiency injection molding machine that is widely praised by customers. It is driven by a servo motor, which runs more smoothly and produces lower noise than previous machines. It not only improves the comfort of the working environment, but also helps to extend the service life of the injection molding machine. The outward-turning mold clamping structure and direct-pressure clamping ensure 100% clamping force utilization, which can more effectively protect the template, reduce deformation, extend the service life of the mold, and reduce product flash. The standard configuration adopts a new generation computer from Taiwan brand Techmation with better adaptability, B&R and Coba computers are optional. The electrical components are imported brands such as Schneider and have a longer service life. OC-400H has high reliability, long service life, and wide adaptability, helping you quickly respond to needs in market competition and achieve greater success.
Parameters
|
MODEL |
OC400H |
|
Clamping force (kN) |
4000 |
|
Space between tie bar (mm*mm) |
720*680 |
|
Max. mold thickness (mm) |
730 |
|
Min. mold thickness(mm) |
300 |
|
Opening stroke (mm) |
800 |
|
Ejector stroke(mm) |
190 |
|
Ejector force forward(Kn) |
62 |
|
Screw diameter(mm) |
80 |
|
Screw L/D ratio |
21 |
|
Theoretical injection volume (cm³) |
1759 |
|
Shot weight (PS) g |
1699 |
|
Injection pressure(MPa) |
134 |
|
Injection rate (g/s) |
481 |
|
Motor power (Kw) |
47.5 |
|
Heater power (Kw) |
27 |
|
Machine Weight (T) |
16 |
|
Machine size L×W×H (m) |
8.2*1.9*2.0 |
