Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine

Basic Information
Place of Origin: China
Brand Name: OUCO
Certification: CE, ISO9001:2008, SGS
Model Number: OCM-550H
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Nude
Delivery Time: 2 months
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 sets/year
Detail Information
Product Name: Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine Type: Automation
Function: Plastic Parts Production Motor: Servo Energy Saving
Color: Support Customization Stable Performance: Short Cycle Time
Clamping Way: Hydraulic Transport Package: FCL
High Light:

Customisable Servo Hydraulic Injection Molding Machine

,

Customisable High Precision Injection Molding Machine


Product Description

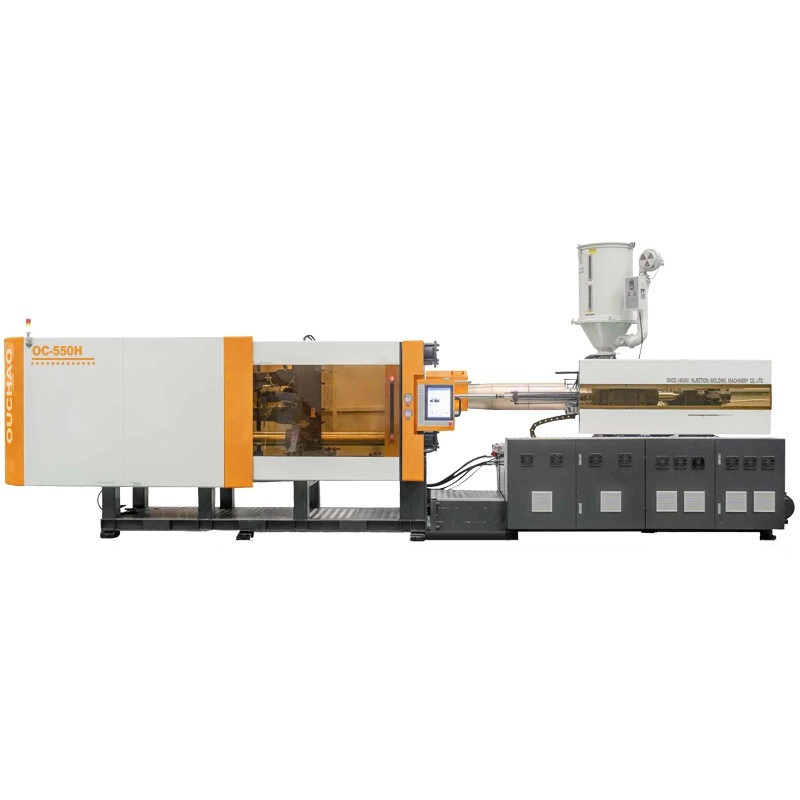

Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine

OUCO injection moulding machines, as a leading brand in the industry, provide more environmentally friendly and efficient injection moulding solutions with its unique energy-saving technology and excellent performance. With years of technology accumulation and R&D advantages, we have successfully developed energy-saving injection moulding machines with market competitiveness. In order to meet the needs of our customers, we are not afraid of hardships and challenges, we independently develop and manufacture high-quality injection moulding equipment, and provide customers with tailor-made high-efficiency, energy-saving and professional production solutions. We win the favour of the market with quality and win the praise of customers with service. The machine adopts advanced hydraulic power system, which can effectively reduce energy consumption and improve moulding efficiency. Meanwhile, the unique design and energy-saving advantages of OUCO injection moulding machine will create more business opportunities and development possibilities for you. When producing the same number of products, OUCO injection moulding machine can save nearly 30% of energy, which means that companies can improve productivity while reducing costs. In addition, the stability and high quality of OUCO injection moulding machines are also recognised by users, helping companies to improve product quality. Let's work together to create a better green future!



Product Advantages

1. Advantage of injection unit: high injection precision, high repeatability, double line guide rail, precise and fast, bringing you the latest production experience!
2. Advantage of hydraulic system: adopting advanced control technology and high-efficiency pumps, which greatly improves the power transmission efficiency and reduces the energy loss. The accessories are selected from famous brands, which bring unlimited possibilities for your production.
3. High efficiency and energy saving: reduce production energy consumption and improve production efficiency.
4. Convenient operation: the machine design is more humane, easy and convenient to operate, reduces the difficulty of operation, reduces the labour cost caused by errors to a certain extent, and reduces the operator's fatigue.




Parameters

                                                                 MODEL OCH-550T
Clamping force (kN) 5500
Space between tie bar (mm*mm) 860*800
Max. mold thickness (mm) 800
Min. mold thickness(mm) 300
Opening stroke (mm) 1010
Ejector stroke(mm) 210
Ejector force forward(Kn) 103
Screw diameter(mm) 90
Screw L/D ratio 22
Theoretical injection volume (cm3) 2608
Shot weight (PS) g 2519
Injection pressure(MPa) 118
Injection speed (mm/s) 133
Injection rate (g/s) 817
Motor power (Kw) 75
Oil tank capacity(L) 850
Heater power (Kw) 41
Machine Weight (kg) 20
Machine size L×W×H (mm) 8700*2100*2200

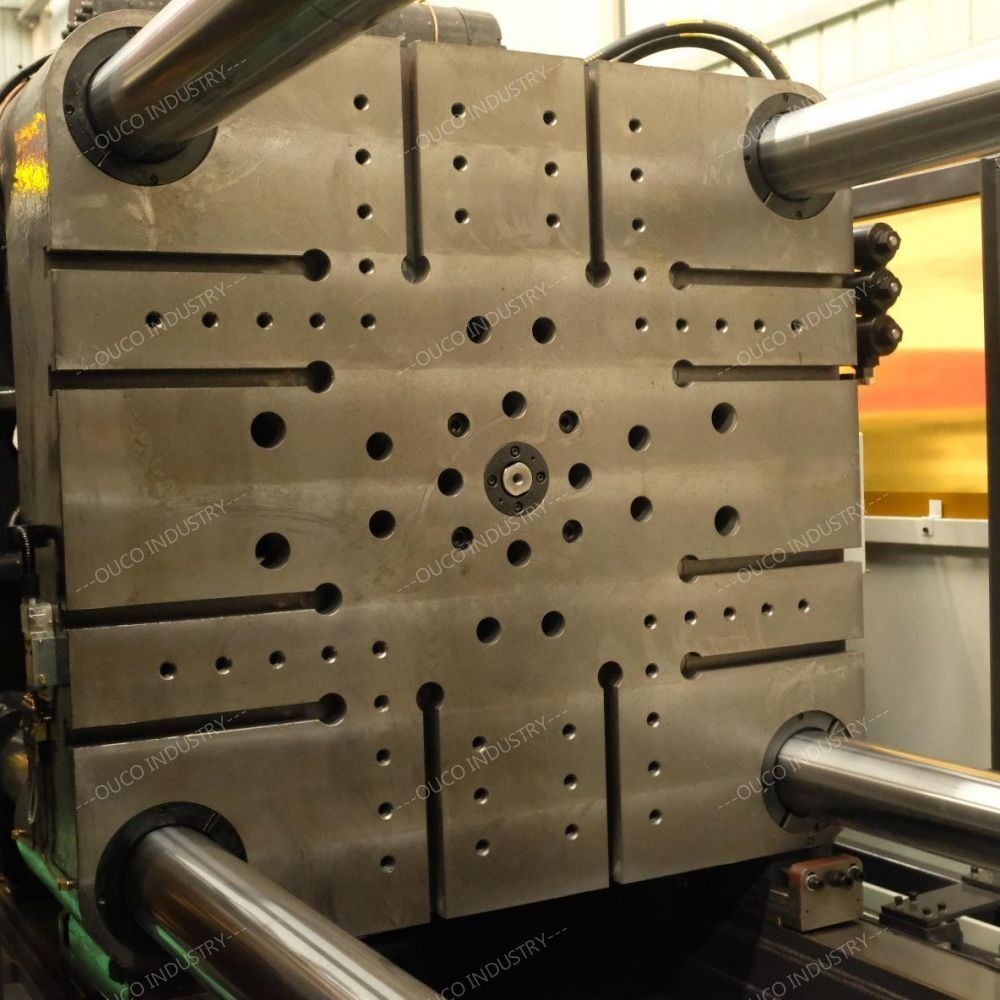

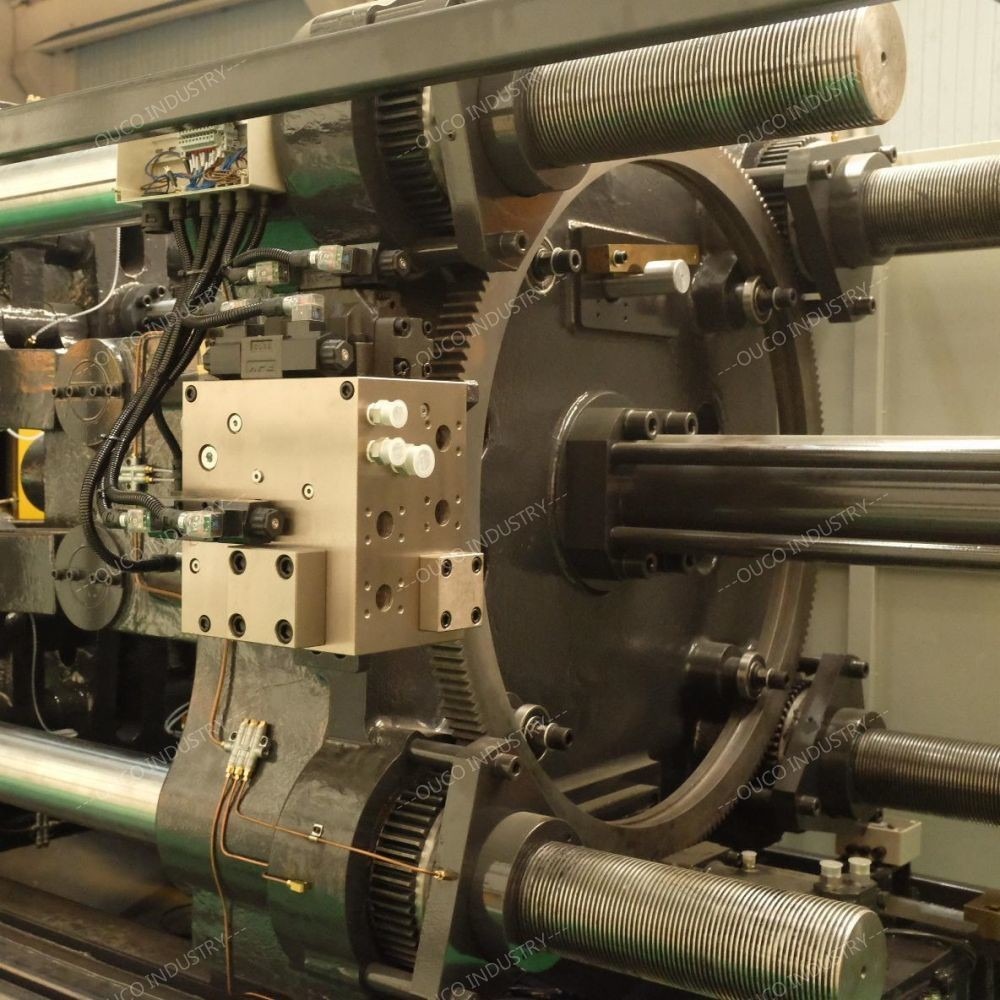

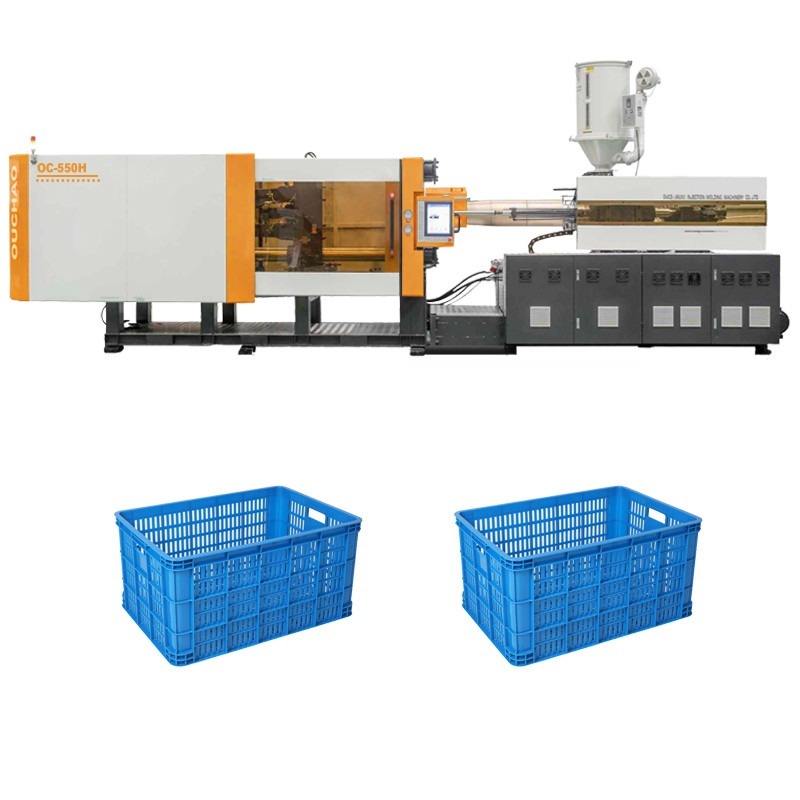

Detail Pictures
 Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 0Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 1Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 2Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 3Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 4
Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 5
Company Profile
Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 6
Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 7
Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine 8
