| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

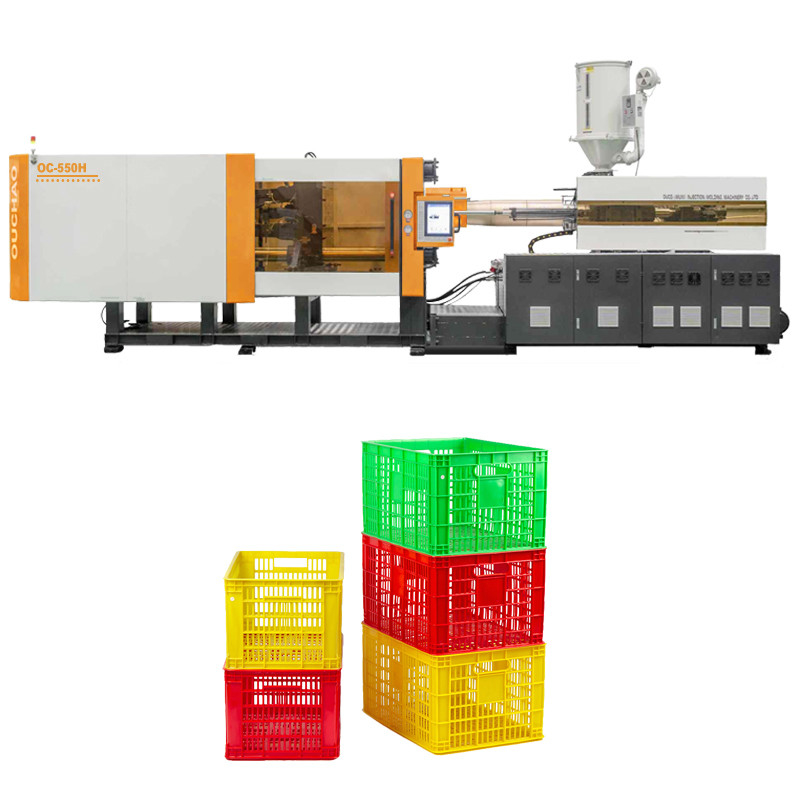

| Product Name: | OUCO 550T Save Materials Hydraulic Servo Supermarket Goods Delivery Plastic Crate Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 550T hydraulic injection molding machine,Fruit Basket hydraulic injection molding machine,Durable Fruit Basket Injection Molding Machine |
||
OUCO is a well-known injection molding machine supplier to plastic product manufacturers in various industries. We have established a firm foothold in the market with our excellent machine quality and price advantages. The high-efficiency injection molding machines we produce are dedicated to increasing production capacity, improving product qualification rates, reducing energy consumption and reducing production costs for customers. In a highly competitive market, we strive to maintain our commitment to superior quality and achieve extremely high customer satisfaction at every level of the industry. Our extensive experience enables us to identify our customers' needs and ensure that our injection molding machine products meet their requirements. Whether it is the production of standard parts or the application of special materials, we can provide you with flexible solutions to help your production to the next level. Choosing OUCO is the beginning of choosing to create a better future with a professional and trustworthy partner!
Product Advantages
OC-550H standard high-speed injection molding machine, your efficient production assistant. After the technical team continuously optimized and upgraded the machine, the mold clamping utilization rate reached 100%. The design of the center clamping structure brings a larger mold opening stroke and can adapt to and produce larger products. The central clamping structure improves the uniformity of pressure distribution on the mold surface, minimizes template deformation, and ensures stable product quality. The rigidity of the frame is strengthened to improve the bending resistance of the frame. The deformation of the frame and template is small when the machine is in operation, maintaining stable production conditions, improving product quality and achieving a higher yield rate. The control computer adopts the brand of Taiwan Techmation to realize real-time data setting and operation, and the operator-friendly UI interface makes the operation process simple and fast. We believe that OUCO injection molding machines will become your trustworthy production partner and help you remain invincible in the market.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1991 | |||||
| Injection pressure(MPa) | 150 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.0*2.1 | |||||
