| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

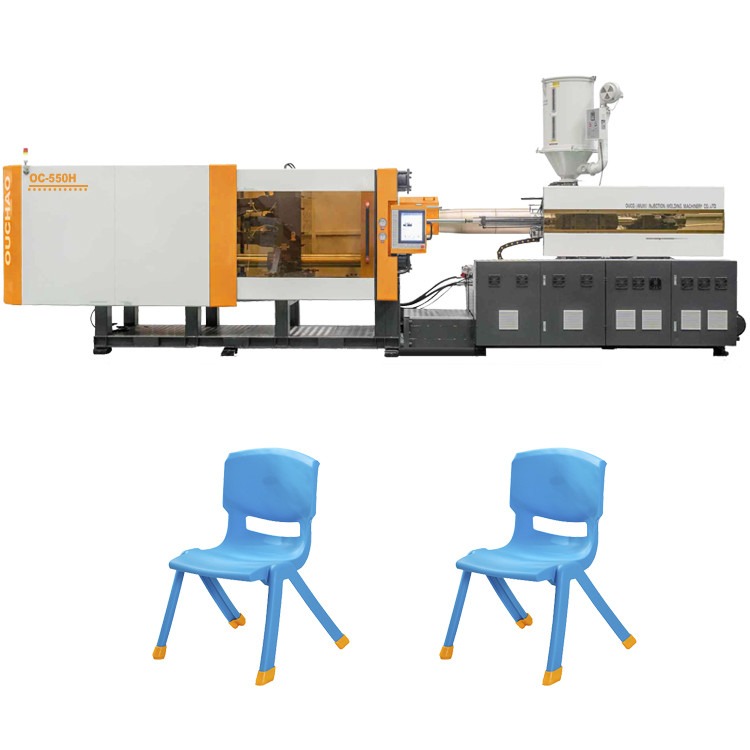

| Product Name: | 550T Horizontal Injection Molding Machine For Manufacturing Plastic Chair | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 550T Servo Injection Molding Machine,Plastic Chairs Servo Injection Molding Machine,Sturdy Servo Injection Molding Machine |
||
Product Advantages
Parameters
| MODEL | OCH-550T | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 90 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2608 | |||||
| Shot weight (PS) g | 2519 | |||||
| Injection pressure(MPa) | 118 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 817 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 20 | |||||
| Machine size L×W×H (mm) | 8700*2100*2200 | |||||

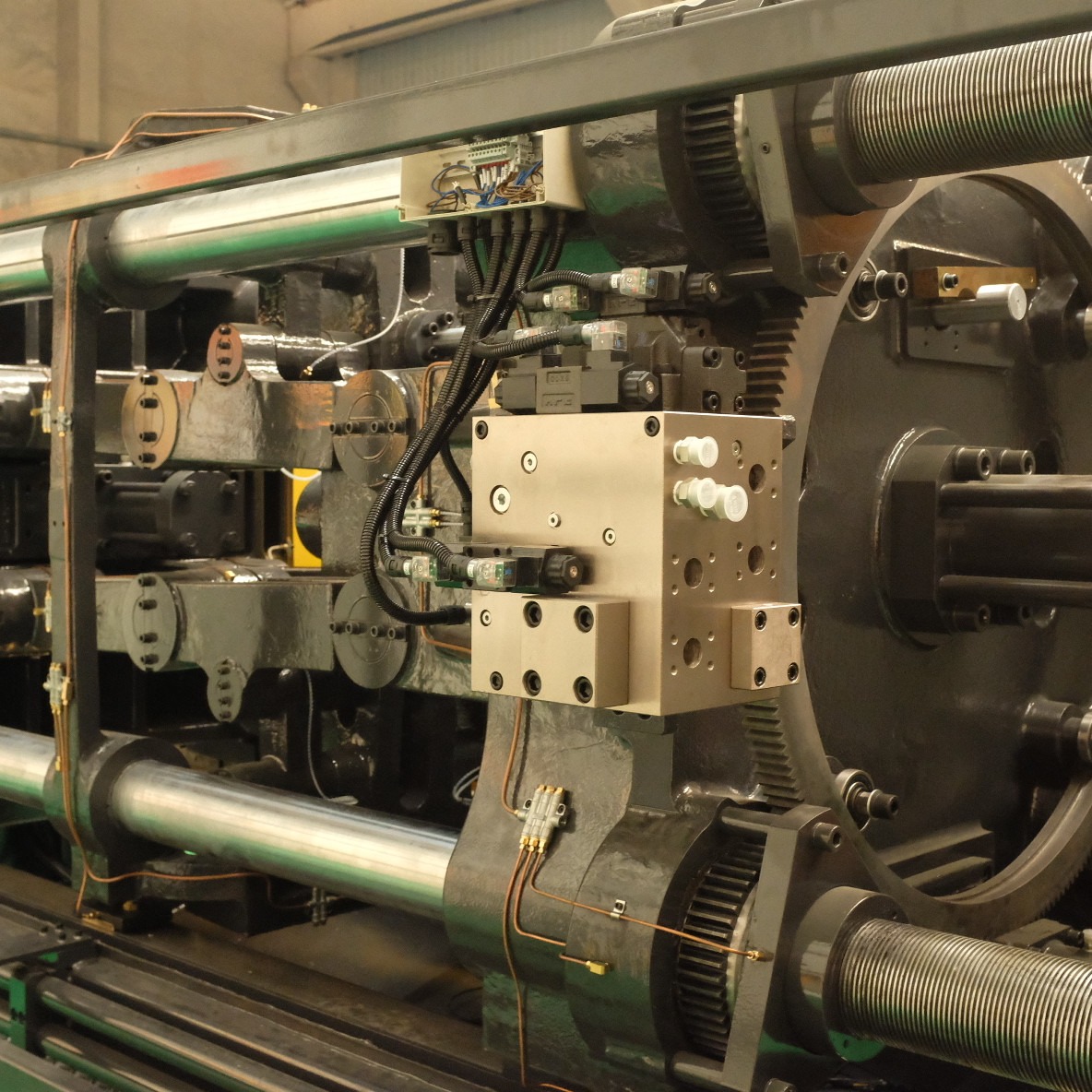

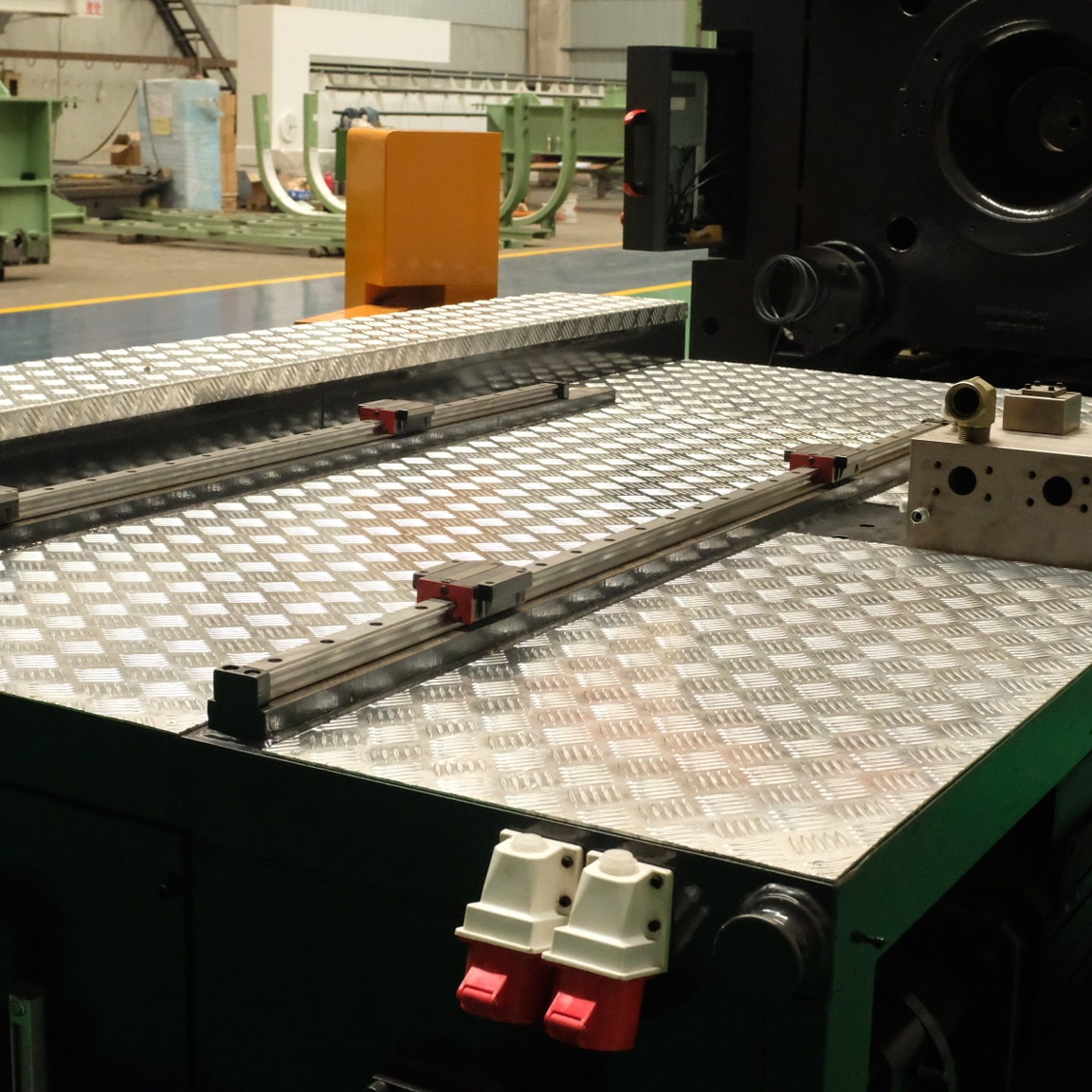

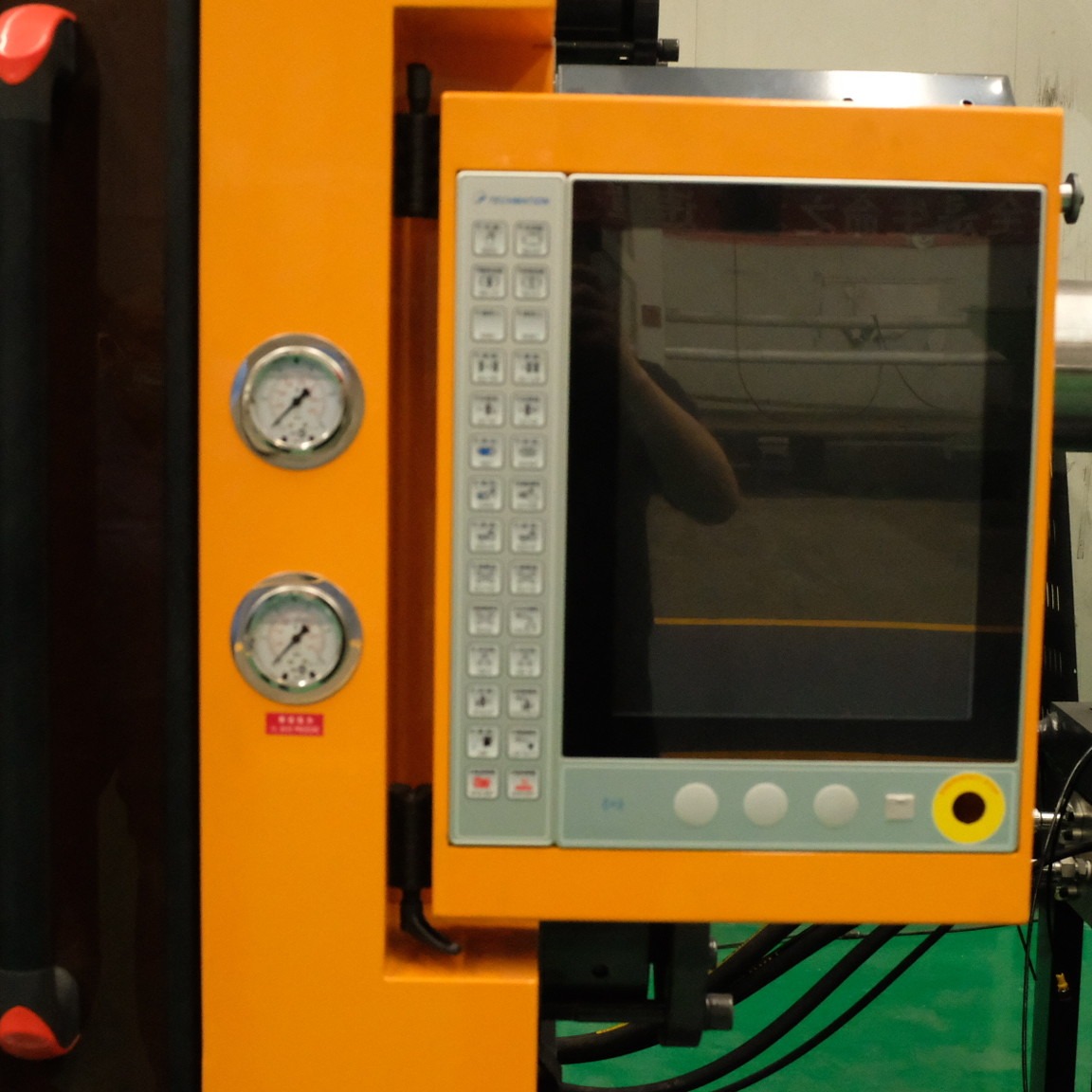

Detail Pictures
