| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

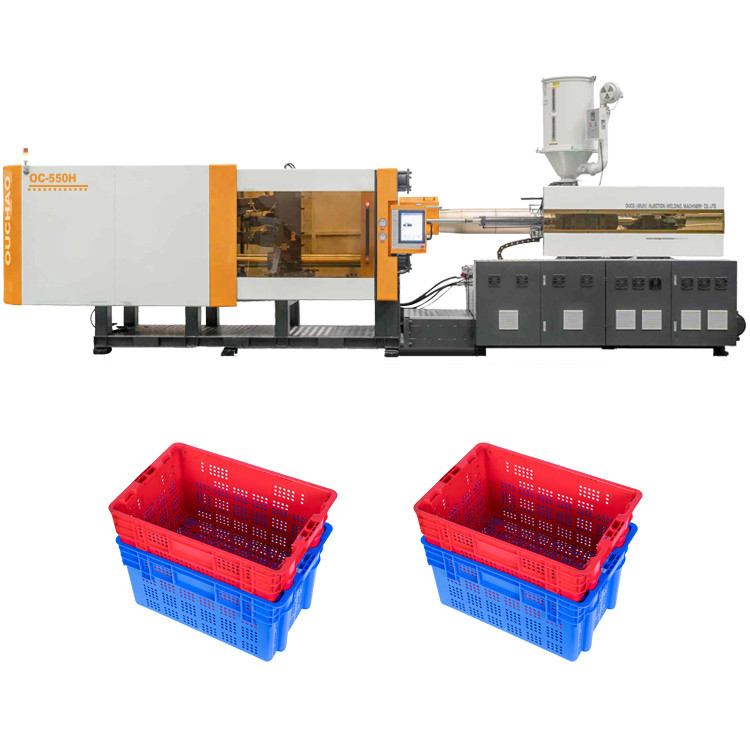

| Product Name: | OUCO 550T High Speed Hydraulic Servo Trade Stacking And Nesting Plastic Crates Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 550T Hydraulic Injection Molding Machine,550T High Speed Injection Molding Machine,550T injection molding machine servo motor |
||
We are a professional injection molding machine manufacturer that relies on advanced processing equipment and a high-quality operating team to provide customers with high-precision, high-quality injection molding machine products. Our workshop is equipped with sophisticated equipment such as CNC double gantry milling machines, provide important parts for the production of injection molding machines to ensure that products reach advanced levels in terms of flexibility and production efficiency. At the same time, we have an experienced team that works carefully together from sales to after-sales service to provide customers with a high-quality experience. We have won praise and trust from customers with our high-performance, high-stability products and customized services. Through meticulous production management and cost control, we offer competitive prices and provide customers with more attractive products. By choosing us, you will get a faster, more efficient and easier-to-operate production method and work with us to create a better future.
Product Advantages
Among the series of injection molding machines we have developed, OC-550H is undoubtedly one that cannot be ignored. The designed extra large mold opening stroke means that it can easily adapt to larger-sized molds, thereby producing larger-sized plastic products, expanding the production range of the product, and being more flexible in the production of plastic products of different sizes. OC-550H uses a central clamping structure. Compared with the traditional inner-curved two-side clamping structure, the central clamping structure template mold has a longer service life, produces products with higher precision, and the clamping utilization rate can reach 100%. At the same time, it can also save 2%-5% of raw materials. The oil circuit and program are further optimized to achieve high repeatability of the mold opening and clamping positions, making the machine run more smoothly and reliably. The machine operates with lower noise and the energy saving effect is more obvious. The dedicated computer equipped has a high response speed and can monitor various data in real time, making the human-machine interface more user-friendly, intuitive and easy to operate. This series of advantages makes OC-550H your efficient and reliable production partner.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1918 | |||||
| Injection pressure(MPa) | 149 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.1*2.2 | |||||

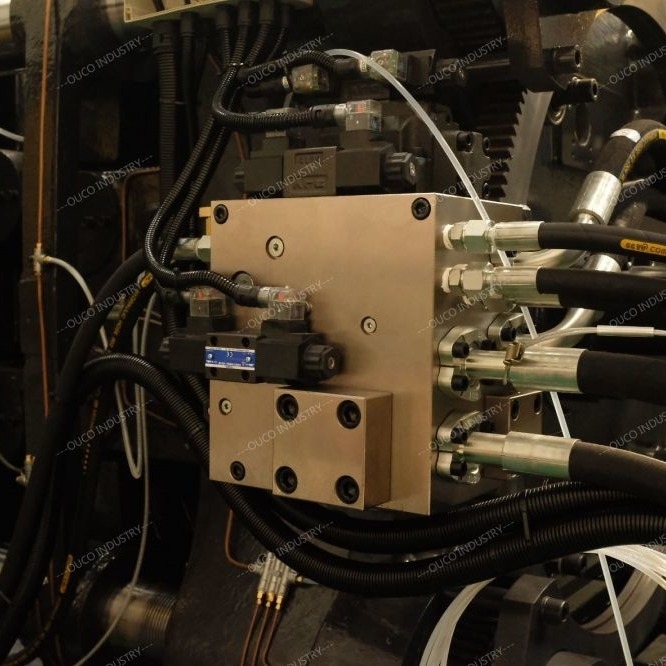

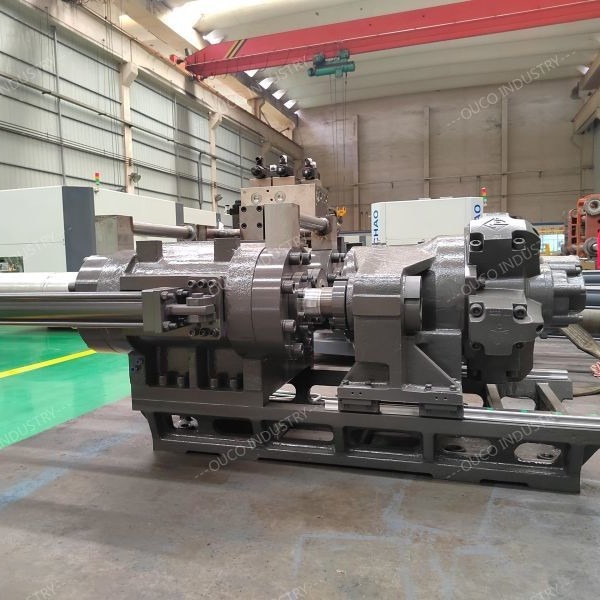

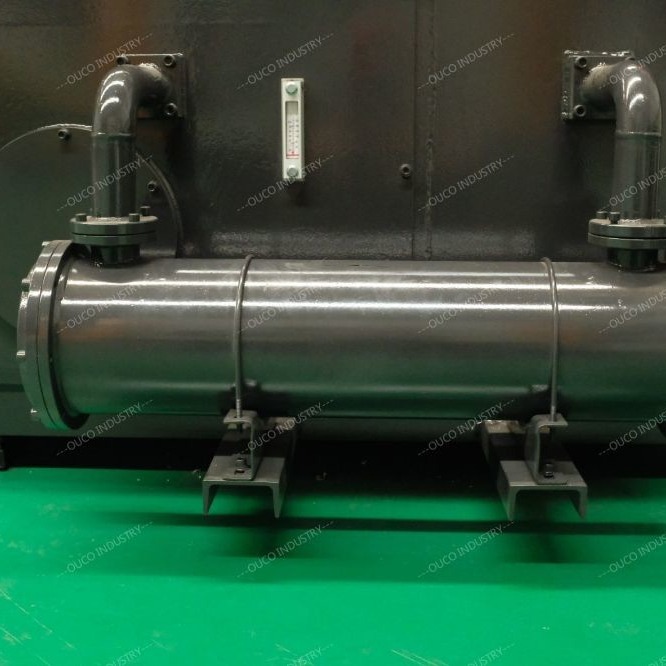

Detail Pictures
