| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

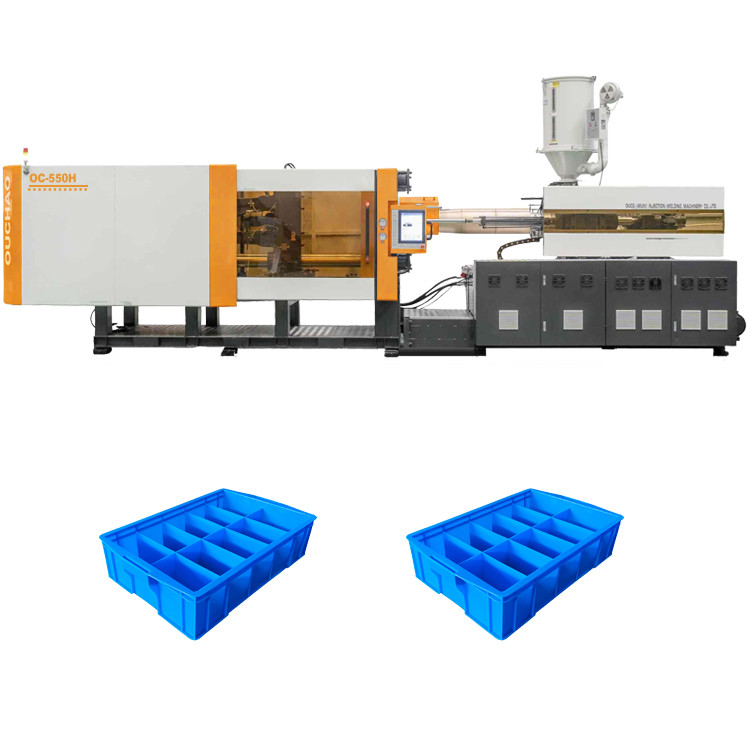

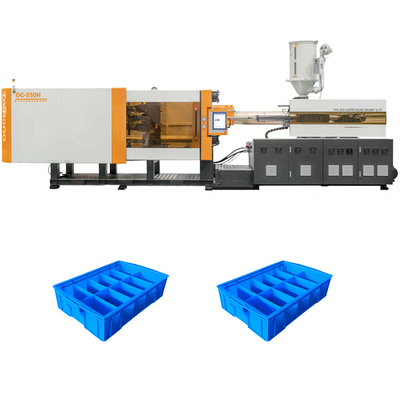

| Product Name: | 550T Partitioned Parts Box Injection Molding Machine With Servo Motor | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Rectangular Parts Injection Molding Machine,Hydraulic Servo Injection Molding Machine,Partition Storage Injection Molding Machine |
||
Company Advantages
We serve the market with high-quality injection molding machine products to meet the needs of industry customers.
On the basis of the standard high-speed series, we have enriched the factory product line. For the production of disposable tableware and lunch boxes, we have launched a high-speed thin-wall series injection molding machine. This series of products uses advanced servo motor control systems to achieve high speed and high precision. Injection molding can effectively improve production efficiency and product quality.
For the production of large plastic products such as plastic pallets, we have launched a two-platen injection molding machine. This series of products has the characteristics of large clamping force and large injection volume and can meet the production needs of large plastic products. Our products are widely used in daily consumer goods, logistics turnover boxes, auto parts and other industries and have won the trust and recognition of many customers.
In the future, we will continue to increase investment in research and development, continuously improve product performance and technical level, provide customers with better products and services, and help you achieve high-quality development.
Product Advantages
OC-550H injection molding machine, with its advanced technology and excellent performance, has become a representative model in the OUCO Injection Molding Machine Series.
First of all it is equipped with the latest generation of servo motors. Compared with traditional hydraulic systems, this advanced drive technology brings precise control, energy efficiency and higher responsiveness, not only improving performance but also saving costs.
Furthermore the precise screw design greatly improves the injection accuracy and reduces the defective rate of products. The efficient plasticizing drive system and precise temperature control further improve production efficiency and product quality.

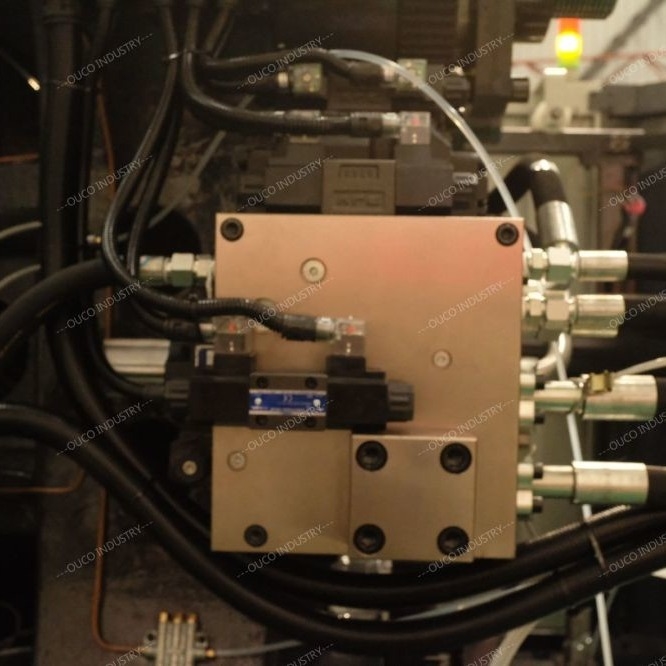

After that through optimized oil circuits and programs, the repeatability accuracy of the mold opening and clamping positions has been greatly improved, making the machine run more smoothly and reliably.
Generally speaking, the OC-550H injection molding machine can not only shorten the molding cycle and improve process molding capabilities, but also meet the needs of small-scale production to large-scale manufacturing, providing strong support for customers to achieve efficient and reliable production goals.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1918 | |||||
| Injection pressure(MPa) | 149 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.1*2.2 | |||||
Detail Pictures
