| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

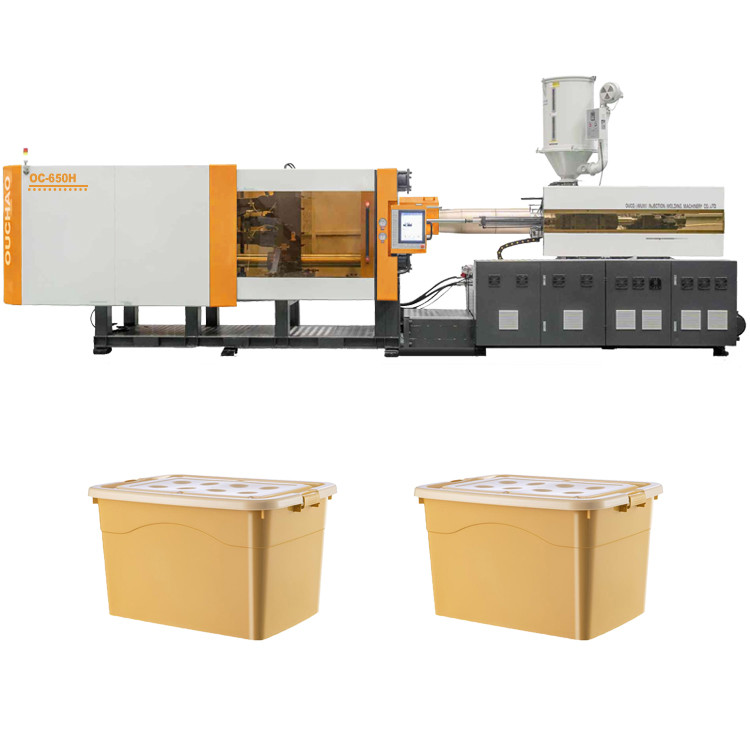

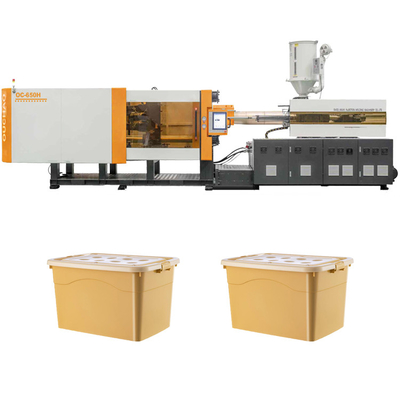

| Product Name: | OUCO 650T Hydraulic Servo Waterproof And Dust Proof Large-Capacity Plastic Storage Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Dust Proof Injection Molding Machine,Large-Capacity Injection Molding Machine,Waterproof Injection Molding Machine |
||
In order to meet the urgent needs of customers in the plastics industry for efficient production, we spare no effort to respond positively. At OUCO, we regard every production link as critical and meticulous work. From the strict screening of raw materials and accessories, to the fine polishing of the production process, to the strict testing of finished products, we always pursue quality standards of excellence. Our own finishing center, including technical personnel, will perform the strictest checks on the high standards of the injection molding machine before leaving the factory. In terms of production technology, we insist on using the latest injection molding technology, which can achieve high-speed, high-precision injection molding, thereby improving production efficiency and product quality. We not only provide excellent products, but also are committed to providing customers with comprehensive solutions and high-quality services. With OUCO products, you will gain a strong competitive advantage and be ahead of the forefront of industry development. Choosing OUCO means choosing a professional and trustworthy partner, let us work together to create a better future!
Product Advantages
OC-650H has beautiful appearance and powerful functions, making it an excellent choice for you to produce plastic products. Our injection molding machines offer many advantages to make your production more efficient and smoother. First of all, our machine circuit layout is simple and the interfaces are standardized, which facilitates later machine repair and maintenance. Secondly, the use of a special screw not only has stronger plasticizing ability, but also is faster and more efficient, and the screw material is durable. Fast and precise synchronous locking settings ensure product quality to the greatest extent. Our clamping force is controllable and evenly applied to the mold, improving product accuracy while protecting the mold and extending the service life of the mold and machine. In addition, the rigid design of the frame improves the bending resistance of the frame, which reduces the deformation of the frame and template when the machine is in operation, maintaining stable production conditions, thereby improving product quality and achieving a higher yield rate. Choosing our injection molding machine means choosing a more efficient and reliable production solution, making your production process smoother and the products you produce more high-quality and reliable.
Parameters
| MODEL | OC650H | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (Ton) | 24 | |||||
| Machine size L×W×H (m) | 9*2.1*2.3 | |||||

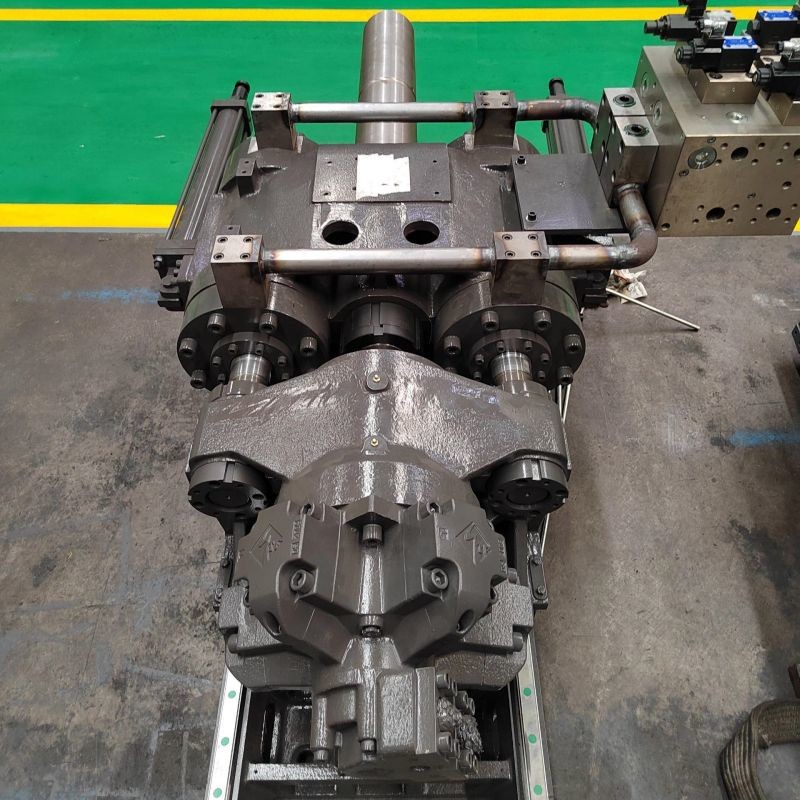

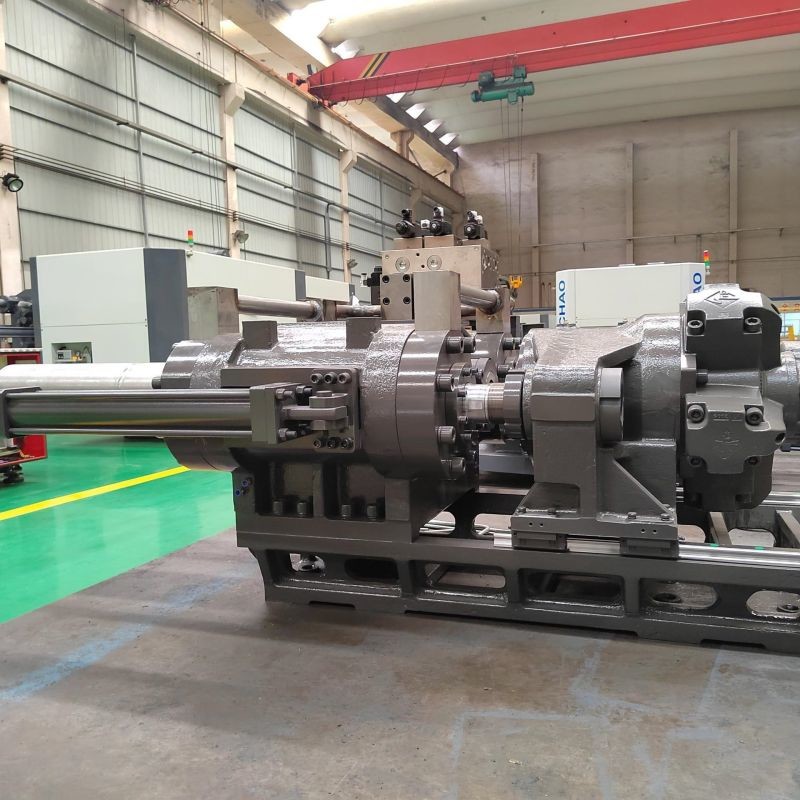

Detail Pictures
