| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

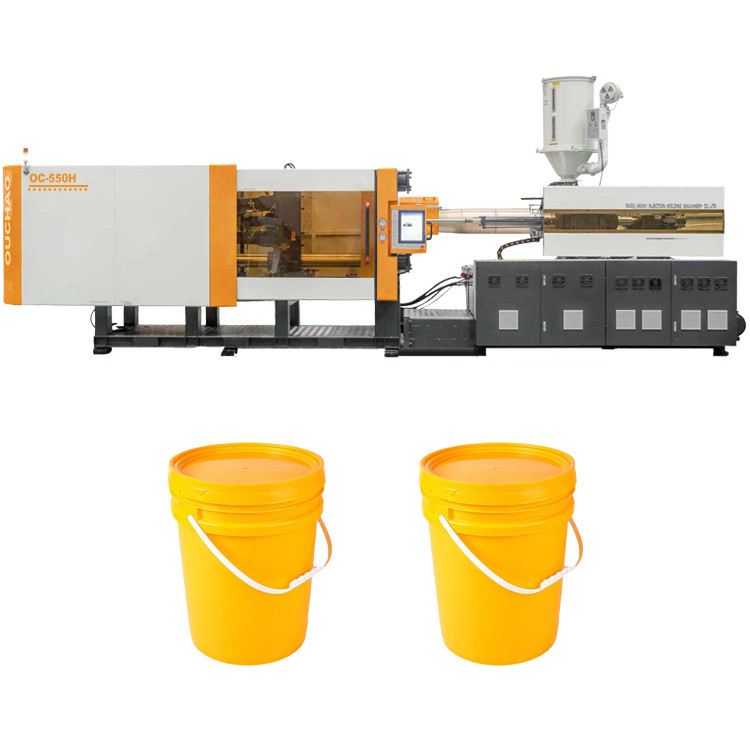

| Product Name: | OUCO 550T High Output Hydraulic Servo Chemical Coating Plastic Bucket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | High Output Injection Molding Machine,550T Injection Molding Machine,Bucket servo hydraulic injection molding machine |
||
We serve the market with high-quality injection molding machine products to meet the needs of industry customers. On the basis of the standard high-speed series, we have enriched the factory product line. For the production of disposable tableware and lunch boxes, we have launched a high-speed thin-wall series injection molding machine. This series of products uses advanced servo motor control systems to achieve high speed and high precision. Injection molding can effectively improve production efficiency and product quality. For the production of large plastic products such as plastic pallets, we have launched a two-platen injection molding machine. This series of products has the characteristics of large clamping force and large injection volume, and can meet the production needs of large plastic products. Our products are widely used in daily consumer goods, logistics turnover boxes, auto parts and other industries and have won the trust and recognition of many customers. In the future, we will continue to increase investment in research and development, continuously improve product performance and technical level, provide customers with better products and services, and help you achieve high-quality development.
Product Advantages
OC-550T uses imported seals with good sealing properties to prevent leakage of molten plastic. The sol back pressure adopts proportional pressure control, which results in a wider range of process adjustment and more stable products. The humanized control system has powerful functions, fast speed, precise control, simple operation, and the program can meet various process needs. There are lubrication points at the main friction parts, and the computer-controlled electric lubrication pump automatically delivers lubricating oil to the lubrication points. OC-550T has a large mold opening stroke, which is friendly to deep cavity series products and it is very suitable for the production and removal of products such as plastic barrels. The injection position electronic ruler control system adopts imported European brands to ensure the accuracy and consistency of the injection molding process, thus improving product quality and production efficiency. This series of advantages comprehensively reflects the high efficiency and excellent quality of OC-550H. Choosing OC-550H will provide strong support for your production.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1918 | |||||
| Injection pressure(MPa) | 149 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.1*2.2 | |||||
Detail Pictures
